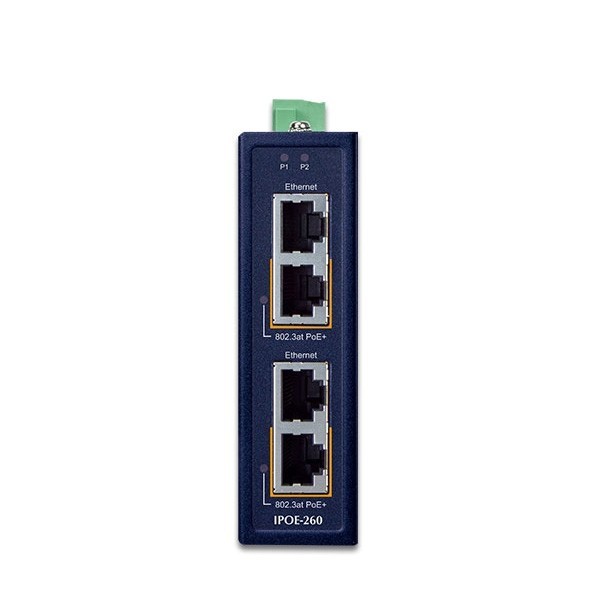

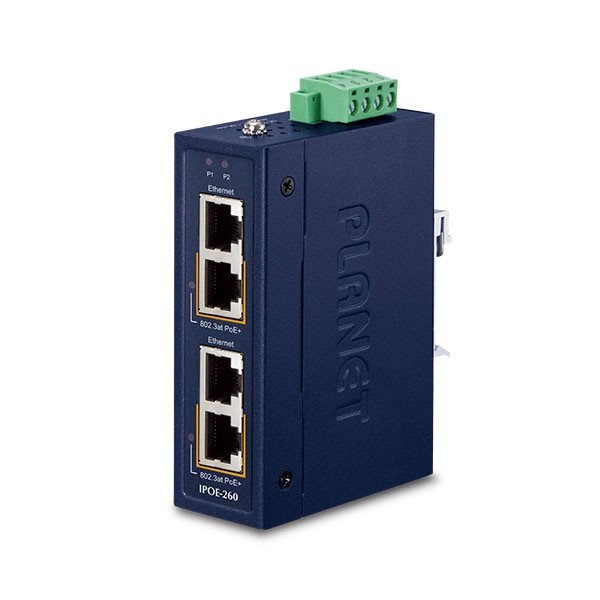

Injector Hub 2-Porte 10/100/1000T 802.3At Poe+, Booster 12V (-40 A 75°C, 12~54Vdc)

Riferimento:IPOE-260-12V

Injector Hub 2-Porte 10/100/1000T 802.3At PoE+, Booster 12V (-40 A 75?C, 12~54Vdc)
Descrizione

IPOE-260-12V Injector Hub 2-Porte 10/100/1000T 802.3at PoE+, Booster 12V (-40 a 75°C, 12~54VDC)

Specifiche Tecniche
Model
IPOE-260 IPOE-260-12V
Hardware Specifications
Copper Ports 2 pair 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports:
  • Data input port 1 and PoE output port 1
  • Data input port 2 and PoE output port 2
Connector Removable 4-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for Power 2
LED Indicator System:
Power 1 (Green),
Power 2 (Green),
PoE Port:
802.3at PoE+ x 1 (Green + Orange)
Network Cable Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
1000BASE-T: 4-pair UTP Cat. 5e, 6
Data Rate 10/100/1000Mbps
Power Requirements
IPOE-260 IPOE-260-12V
48~56V DC, redundant power with reverse polarity protection function. 12~56V DC, redundant power with reverse polarity protection function.
Power Consumption (Ethernet Full Loading)
IPOE-260 IPOE-260-12V
Max. 2 watts/6.8 BTU (Power on without any connection)
Max. 80 watts/272.9 BTU (Full loading with PoE function)
Max. 4 watts/13.6 BTU (Power on without any connection)
Max. 80 watts/272.9 BTU (Full loading with PoE function)
Dimensions (W x D x H) 30 x 70 x 105 mm
Weight 280g
Enclosure IP30 metal case
Installation DIN-rail, wall-mount or side wall-mount design
ESD Protection 6KV
EFT Protection 6KV
Power over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus / mid-span PSE
PoE Power Output
IPOE-260 IPOE-260-12V
48V DC input: Per PoE port max. 32 watts
56V DC input: Per PoE port max. 36 watts
Per port 54V DC, max. 36 watts
PoE Power Supply Type Mid-span
Power Pin Assignment 4/5 (+), 7/8 (-)
PoE Power Budget (max.)
IPOE-260 IPOE-260-12V
72 watts@48~56V DC input 60W @12~23V DC input
72W @24~56V DC input
Number of devices that can be powered 2
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
