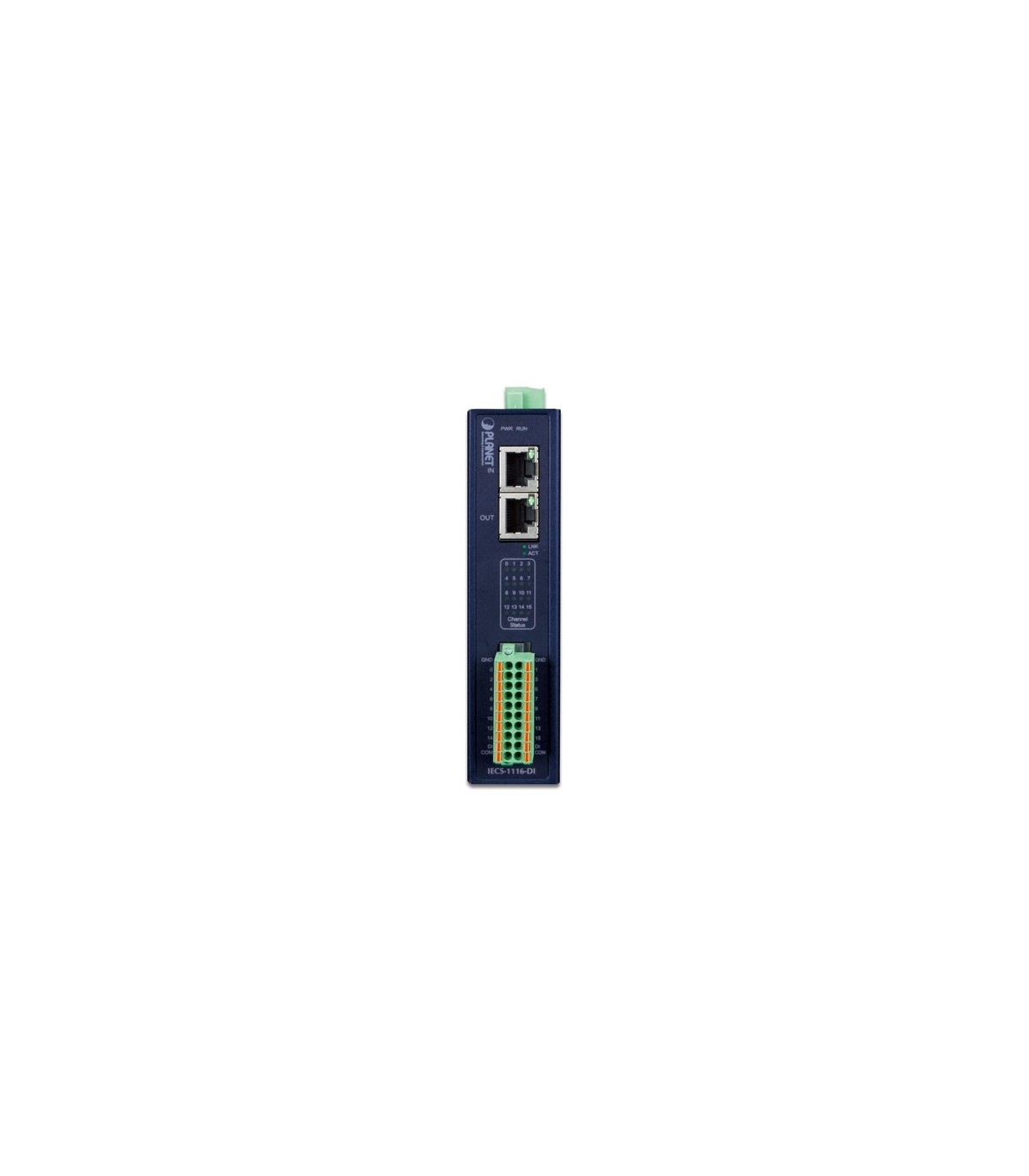

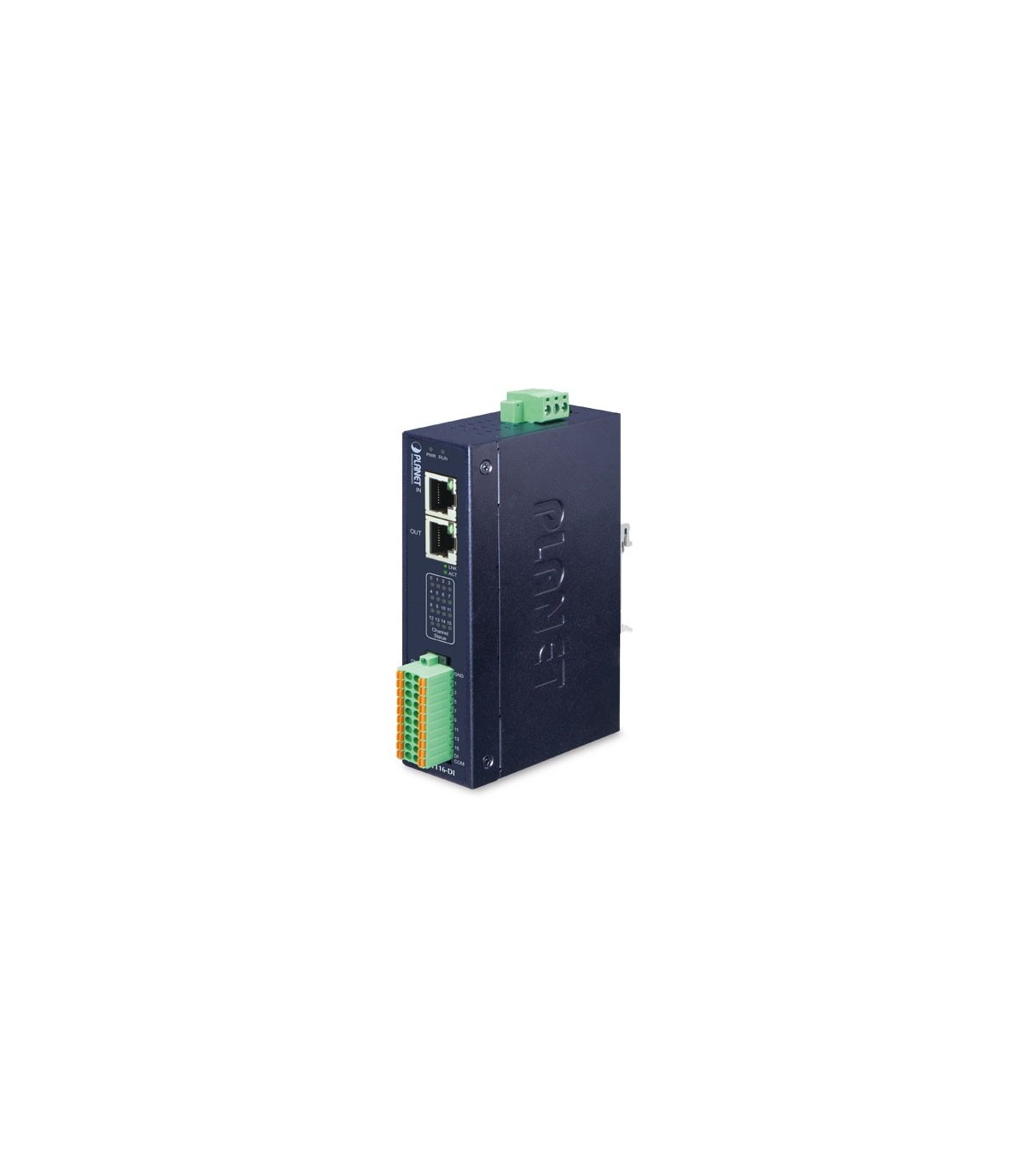

IECS-1116-DO Industrial EtherCAT Slave I/O Module with Isolated 16-ch Digital Output
| Specifiche Tecniche | |
|---|---|
| Channels | 16 |
| Output Type | Open collector (sink) |
| Load Voltage | 3.5~50V |
| Max. Load Current | 700 mA per channel |
| Photo Isolation | 3750 VDC |
| Communication Interface | |
| Connector | 2 RJ45 ports |
| Protocol | EtherCAT |
| Distance between Stations | Max. 100m (100BASE-TX) |
| Data Transfer Medium | Ethernet/EtherCAT cable (min. cat5), shielded |
| Power | |
| Input Voltage Range | 9~48V DC |
| Power Consumption | 4W max. |
| Mechanical | |
| Dimensions (W x D x H) | 32 x 87 x 135mm |
| Installation | DIN-rail and wall mounting |
| Case Material | IP40 metal |
| Environment | |
| Operating Temperature | -40~75 degrees C |
| Storage Temperature | -40~75 degrees C |
| Relative Humidity | 5~95% (non-condensing) |
