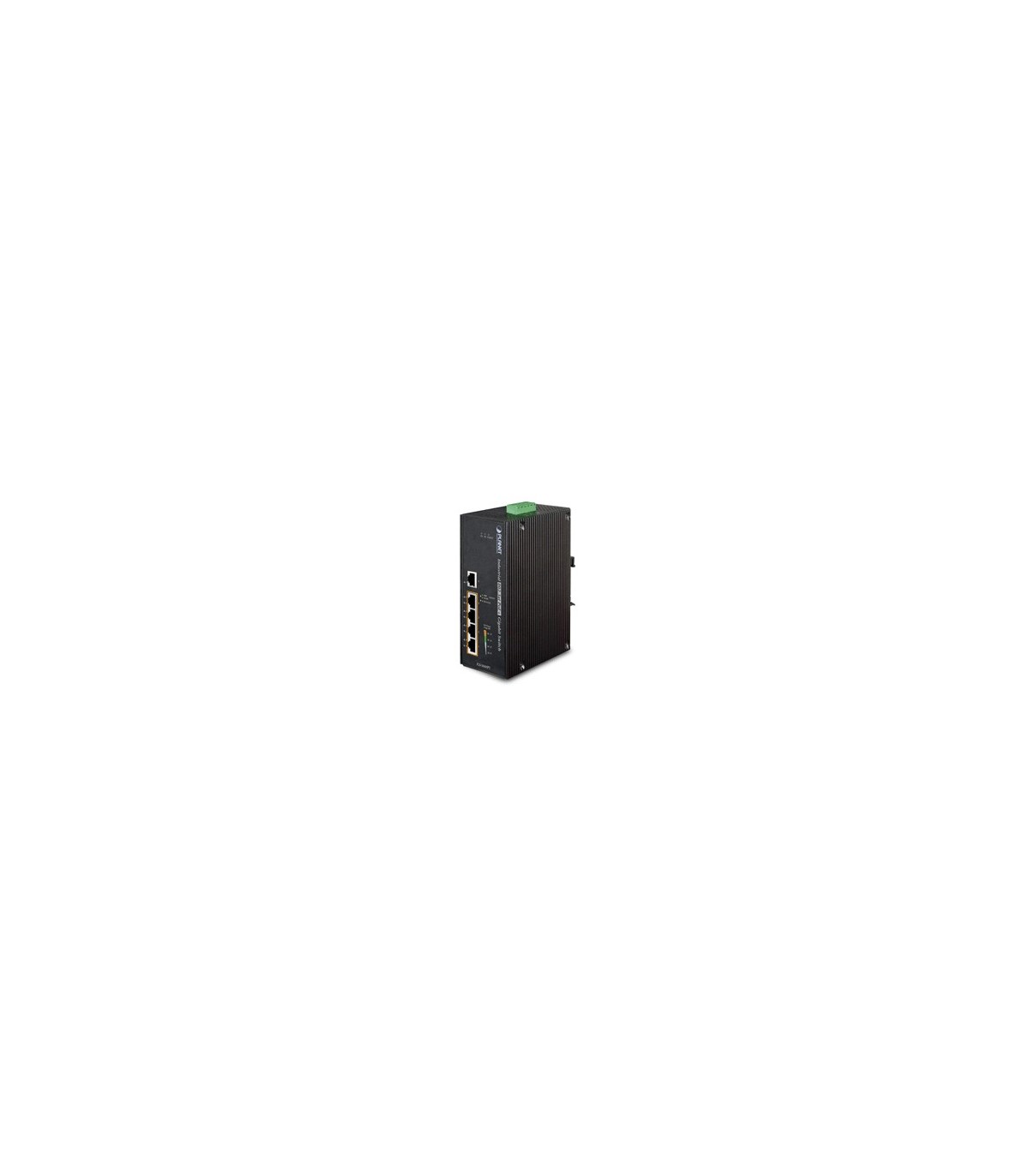

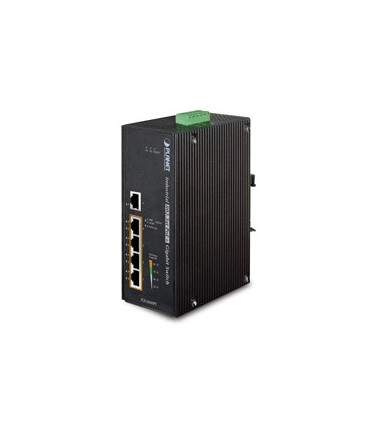

IGS-504HPT: Switch PoE+ Gigabit ultra resistente a 5 porte di PLANET Technology
L'IGS-504HPT Planet è uno switch PoE+ Gigabit a 5 porte progettato per ambienti difficili. Offre connettività Gigabit e alimentazione PoE+ a dispositivi come telecamere IP e telefoni VoIP, anche in condizioni operative estreme.
Caratteristiche principali:
- 5 porte Gigabit Ethernet: collega dispositivi di rete ad alte prestazioni.
- 4 porte PoE+ 802.3at: alimentano dispositivi fino a 30 watt per porta, ideali per telecamere IP ad alta definizione e access point wireless PoE.
- Robusto design IP30: resiste a temperature estreme da -40°C a 75°C, polvere, vibrazioni e urti.
- Doppia alimentazione con protezione da inversione di polarità: garantisce continuità operativa in caso di guasto all'alimentazione.
- Indicatori LED PoE: monitorano facilmente l'utilizzo dell'alimentazione PoE su ciascuna porta.
- Gestione semplice: Plug and Play, nessuna configurazione necessaria.
Vantaggi:
- Soluzione PoE+ compatta: alimenta i dispositivi direttamente sulla rete, eliminando la necessità di prese di corrente aggiuntive.
- Connettività Gigabit veloce: supporta trasferimenti dati ad alte velocità per applicazioni demanding.
- Affidabilità industriale: funzionamento stabile in ambienti difficili.
- Installazione semplice: montaggio a parete o su guida DIN per un'implementazione rapida.
Ideale per:
- Reti aziendali di piccole dimensioni: collega e alimenta dispositivi PoE in uffici e strutture remote.
- Applicazioni esterne: supporta telecamere di sicurezza e reti in cantieri o ambienti industriali.
- Sistemi di sorveglianza IP: alimenta telecamere PoE per la sicurezza perimetrale.
Specifiche tecniche | |||||
Copper Ports | 5 x 10/100/1000Base-T RJ-45 TP Auto-MDI/MDI-X, Auto-Negotiation |
||||
Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
||||
Alarm | Provides one relay output for power failure Alarm Relay current carry ability: 1A @ DC 24V |
||||
LED | 3 x LED for System and Power: ■ Green: DC Power 1 ■ Green: DC Power 2 ■ Green: Power Fault 2 x LED for Per Copper Port (Port-1~Port-4): ■ Green: 1000 LNK/ACT, Orange:100 LNK/ACT ■ Orange: PoE In-use 1 x LED for Port-5: ■ Green: 1000 LNK/ACT, Orange:100 LNK/ACT 4 x LED for PoE Power Usage (W): ■ Orange: 30, 60, 90 and 120W |
||||
ESD Protection | 6KV DC | ||||
EFT Protection | 6KV DC | ||||
Enclosure | IP30 aluminum metal case | ||||
Installation Type | DIN rail kit or wall mount | ||||
Dimensions (W x D x H) | 152 x 107x 72 mm | ||||
Weight | 1478g | ||||
Power Requirements | 48V DC, 5A max. Redundant power with polarity reverse protection function |
||||
Power Consumption / Dissipation | 14.1 watts / 48 BUT (System loading without PoE) 134.1 watts / 457 BTU (Full loading with PoE function) |
||||
Power over Ethernet | |||||
PoE Standard | IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE | ||||
PoE Power Supply Type | End-Span | ||||
Power Pin Assignment | 1/2(+), 3/6(-) | ||||
PoE Power Output | Per port 52V DC, 275mA. Max. 15.4 watts (IEEE 802.3af) Per port 52V DC, 535mA. Max. 30 watts (IEEE 802.3at) |
||||
Max. number of Class 4 PD | 4 | ||||
Switch Specification | |||||
Switch Processing Scheme | Store-and-Forward | ||||
Address Table | 1K entries | ||||
Flow Control | Back pressure for half duplex IEEE 802.3x Pause Frame for full duplex |
||||
Switch fabric | 10Gbps | ||||
Throughput (packet per second) | 7.44Mpps@64bytes | ||||
Maximum Transmit Unit | 9216 bytes | ||||
Speed | TP: 10/20Mbps, 100/200Mbps, 2000Mbps | ||||
Standards Conformance | |||||
Standards Compliance | IEEE 802.3 Ethernet / 10Base-T IEEE 802.3u Fast Ethernet / 100Base-TX IEEE 802.3ab Gigabit Ethernet / 1000Base-T IEEE 802.3x Full-Duplex Flow Control IEEE 802.3at High Power over Ethernet IEEE 802.3af Power over Ethernet |
||||
Regulation Compliance | FCC Part 15 Class A, CE | ||||
Stability Testing | IEC60068-2-32(Free fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration) |
||||
Environment | |||||
Temperature |
|
||||
Humidity |
|
