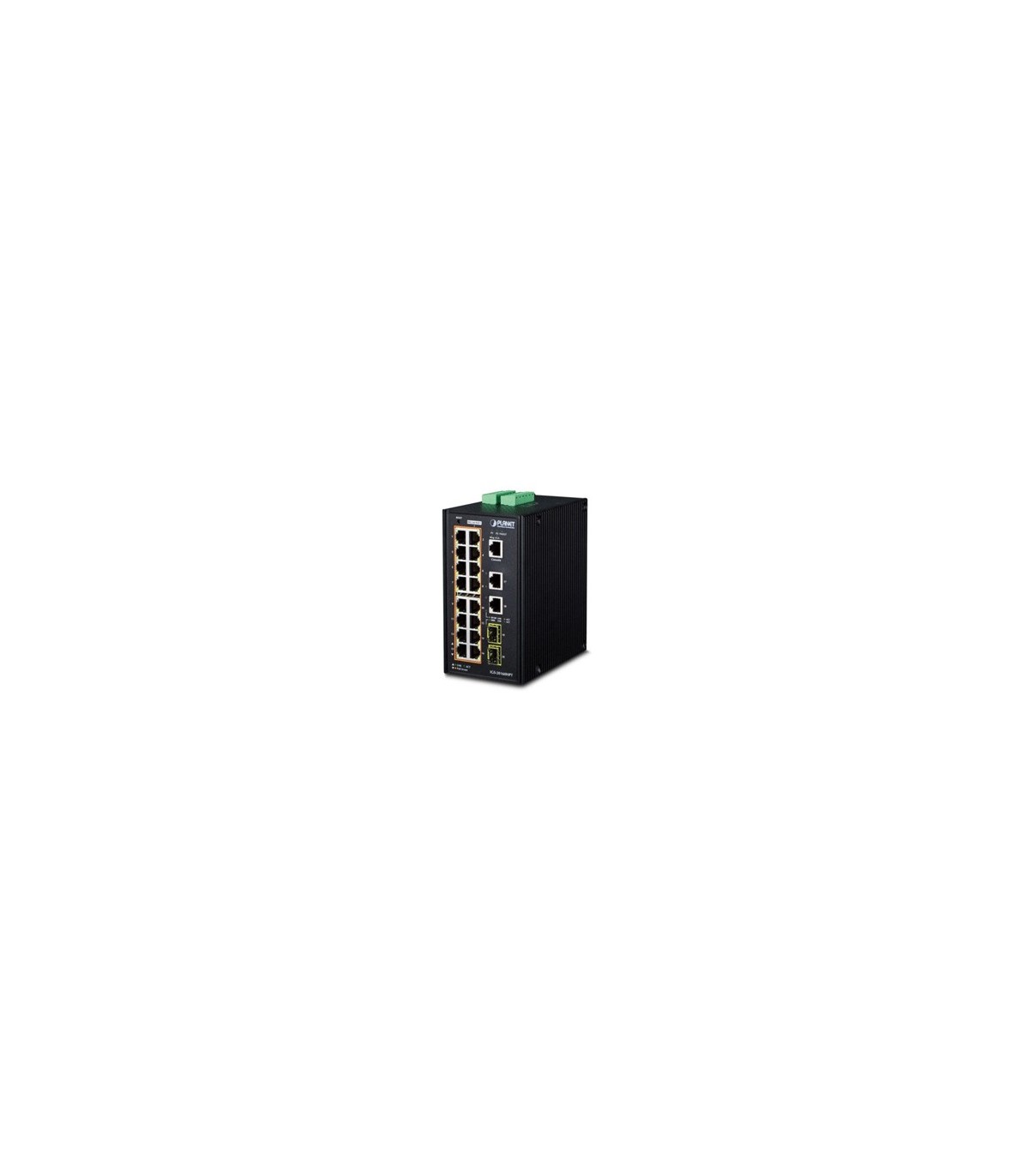

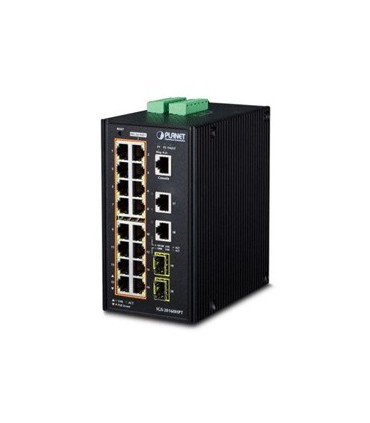

Planet IGS-20160HPT: Switch Gigabit Ethernet L2+ 16-Porte 10/100/1000-T 802.3At Poe+ 2 porte SFP Gigabit

Riferimento:IGS-20160HPT

IGS-20160HPT: Switch Gigabit Ethernet L2+ 16-Porte 10/100/1000-T 802.3At Poe+ 2 porte SFP Gigabit

Descrizione

IGS-20160HPT: Switch PoE Gigabit Industriale Robusto di PLANET Technology

L'IGS-20160HPT di PLANET Technology è uno switch Gigabit L2+ PoE+ progettato per ambienti difficili. Offre funzionalità avanzate per reti mission-critical che richiedono affidabilità e prestazioni elevate.

Caratteristiche principali:

  • 16 porte Gigabit Ethernet 10/100/1000 Mbps: collega e alimenta dispositivi PoE come telecamere IP, access point wireless e telefoni VoIP.

  • PoE+ fino a 36 watt per porta: supporta dispositivi ad alto consumo energetico, ideali per applicazioni come telecamere IP ad alta definizione.

  • 2 porte SFP Gigabit: estende la connettività della rete su lunghe distanze tramite cavi in fibra ottica.

  • Gestione L2+: consente configurazione avanzata con VLAN, Quality of Service (QoS) e Access Control Lists (ACL) per un controllo granulare del traffico di rete.

  • Robusto design IP30: resiste a temperature estreme da -40°C a 75°C, polvere, vibrazioni e urti, garantendo un funzionamento affidabile in ambienti industriali difficili.

  • Doppia alimentazione: offre ridondanza di alimentazione per evitare interruzioni di rete in caso di guasto di una sorgente.

Vantaggi:

  • Affidabilità e prestazioni elevate: perfetto per reti mission-critical che richiedono uptime continuo.

  • Flessibilità di connessione: supporta sia dispositivi in rame che in fibra ottica.

  • Gestione avanzata: configurazione dettagliata per ottimizzare il flusso di dati sulla rete.

  • Robustezza industriale: ideale per ambienti difficili con condizioni operative avverse.

Ideale per:

  • Impianti industriali: automazione, controllo di processo, sistemi di sicurezza.

  • Reti in ambienti difficili: esterni, cantieri, miniere, strutture remote.

  • Sistemi di sorveglianza IP: telecamere ad alta definizione, sistemi di accesso.



Specifiche Tecniche
Copper Ports 18 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 2 1000BASE-SX/LX/BX SFP interfaces (Port-19 and Port-20)
Compatible with 100BASE-FX SFP
PoE Injector Port 16 ports with 802.3at/af PoE injector function with Port-1 to Port-16
Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 40Gbps/non-blocking
Throughput (packet per second) 29.7Mpps@ 64Bytes packet
Address Table 8K entries, automatic source address learning and aging
Shared Data Buffer 4Mbits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 9Kbytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
ESD Protection 6KV DC
Enclosure IP30 aluminum case
Installation DIN rail kit and wall-mount kit
Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm One relay output for power failure. Alarm Relay current carry ability: 1A @ DC 24V
DI/DO 2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.
2 Digital Output (DO): Open collector to 24V DC, 100mA max.
LED Indicator System:
Power 1 (Green)
Power 2 (Green)
Fault Alarm (Green)
Ring (Green)
Ring Owner (Green)
Per 10/100/1000T RJ45 PoE+ Ports:
PoE-in-Use (Orange)
LNK/ACT (Green)
Per 10/100/1000T RJ45Ports:
1000 LNK/ACT (Orange)
100 LNK/ACT (Green)
Per SFP Interface:
1000 LNK/ACT (Orange)
100 LNK/ACT (Green)
Dimensions (W x D x H) 152 x 107x 84 mm
Weight 1533g
Power Requirements Dual 48~56V DC (>51V DC for PoE+ output recommended)
Power Consumption 11.1 watts/37.87BTU (Power on without any connection)
349 watts/119.08BTU (Full loading with PoE function)
Power Over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
PoE Power Output IEEE 802.3af Standard
- Per port 48V~51V DC (depending on the power supply), max. 15.4 watts

IEEE 802.3at Standard
- Per port 51V~56V DC (depending on the power supply), max. 36 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 48V Power input
- 240W maximum (depending on power input)

56V Power input
- Single power input: 260W maximum (depending on power input)
- Dual power input: 320W maximum (depending on power input)
Max. number of Class 2 PDs 16
Max. number of Class 3 PDs 16
Max. number of Class 4 PDs 10
Layer 2 Function
Basic Management Interfaces Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSH, SSL, SNMP v3
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Power saving mode control
Port Status Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port Mirroring TX/RX/both
1 to 1 monitor
VLAN 802.1Q tagged based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP/static trunk
Supports 10 trunk groups with 4 ports per trunk group
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet
IGMP Snooping IGMP (v1/v2/V3) snooping, up to 255 multicast groups
IGMP querier mode support
MLD Snooping MLD (v1/v2) snooping, up to 255 multicast groups
MLD querier mode support
Access Control List IP-based ACL/MAC-based ACL
Up to 123 entries
Bandwidth Control Per port bandwidth control
Ingress: 500Kb~1000Mbps
Egress: 500Kb~1000Mbps
SNMP MIBs RFC-1213 MIB-II
IF-MIB
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC-2933 IGMP-STD-MIB
RFC3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Layer 3 Function
IP Interfaces Max. 8 VLAN interfaces
Routing Table Max. 32 routing entries
Routing Protocols IPv4 software static routing
IPv6 software static routing
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)
Dettagli del prodotto
IGS-20160HPT
