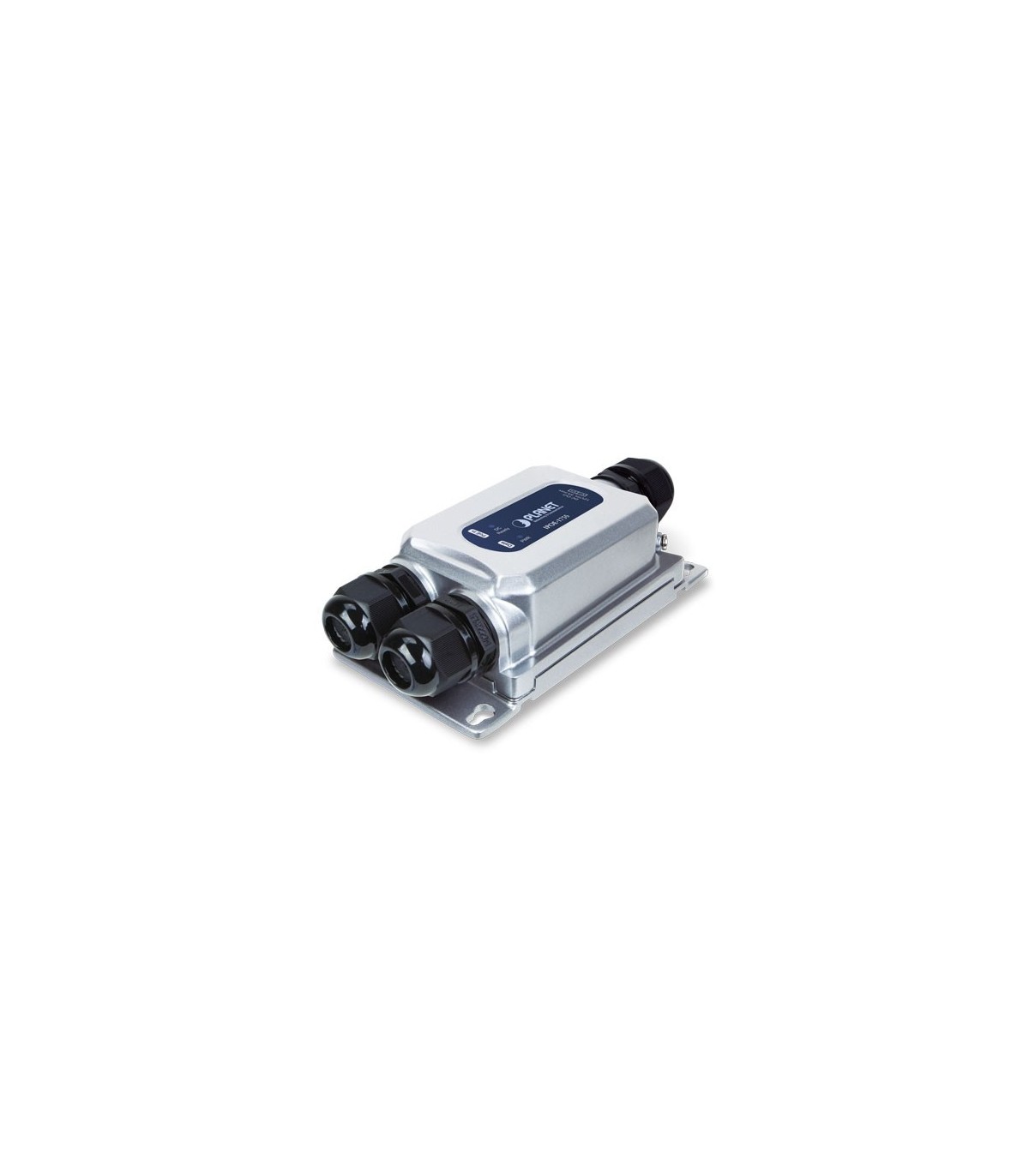

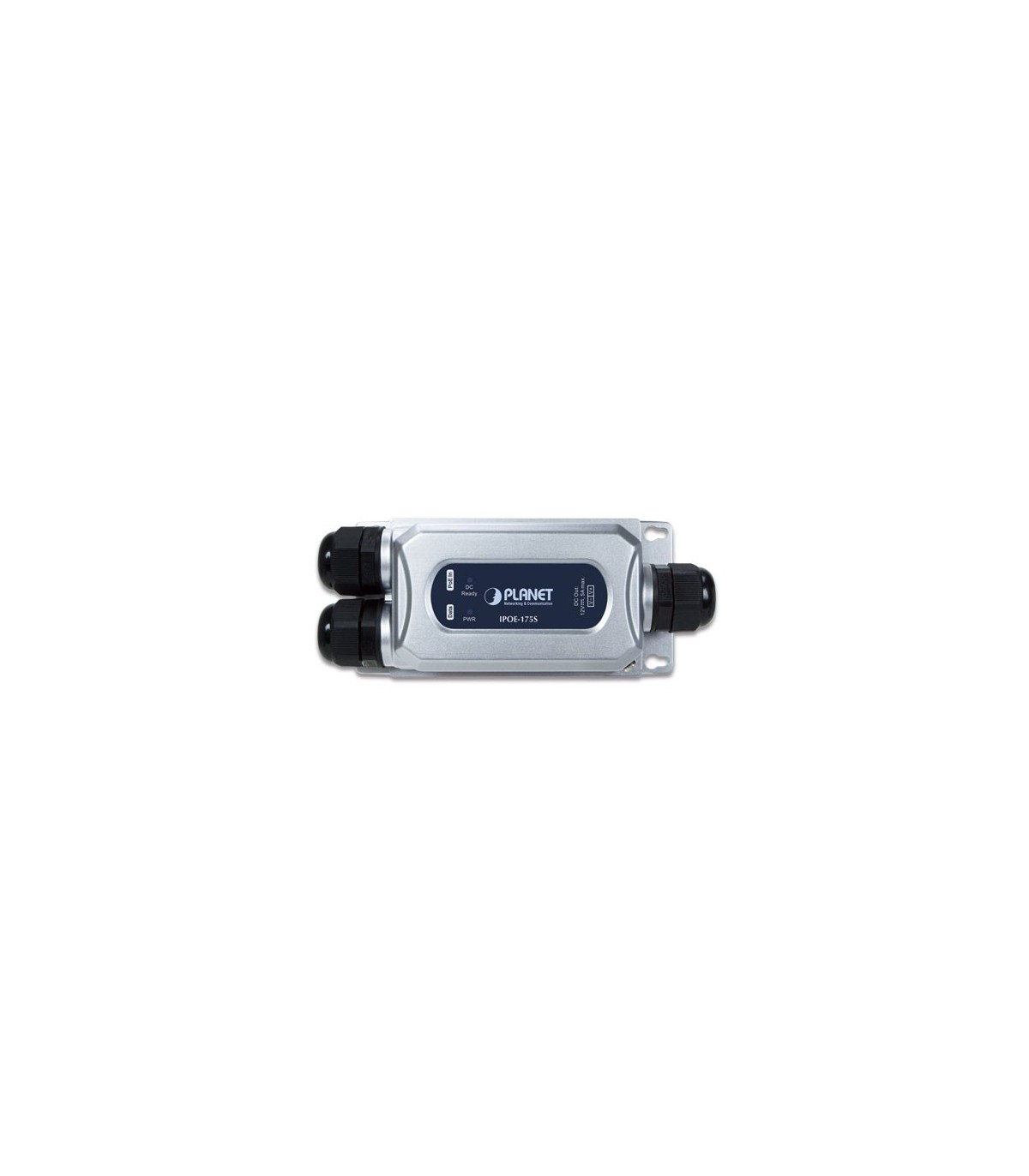

Trasforma l'alimentazione PoE++ in 12V DC per i tuoi dispositivi non-PoE, anche in condizioni difficili, con lo splitter PoE++ ultra resistente IPOE-175S di Planet Technology.
Potenza e affidabilità:
- Supporta lo standard IEEE 802.3bt PoE++ (Type 3) per estrarre fino a 60W di potenza da sorgenti PoE++.
- Eroga un'uscita stabile a 12V DC, 5A (60W) per alimentare dispositivi non-PoE.
- Funziona in un ampio range di temperatura da -40°C a 75°C, ideale per applicazioni esterne o industriali.
- Resistente all'acqua e alla polvere grazie all'involucro in alluminio con grado di protezione IP67.
- Progettato per resistere a urti e vibrazioni, conforme agli standard IEC 60068-2-27, IEC 60068-2-32 e IEC 60068-2-6.
Flessibilità e compatibilità:
- Porta di ingresso dati e PoE++ 10/100/1000 Mbps.
- Porta di uscita dati 10/100/1000 Mbps.
- Uscita di alimentazione a 2 pin per collegare qualsiasi dispositivo a 12V DC.
- Compatibile con sorgenti PoE++ e PoE standard (End-span e Mid-span).
Gestione semplice:
- Indicatori LED per monitorare lo stato dell'alimentazione e PoE.
- Installazione a parete facile con staffe dedicate.
Ideale per:
- Alimentare telecamere IP analogiche o ad alta risoluzione non-PoE.
- Collegare dispositivi wireless non-PoE come WiFi bridge o ripetitori esterni.
- Alimentare sensori o altri dispositivi industriali in ambienti difficili.
- qualsiasi applicazione che richieda un splitter PoE++ robusto e affidabile per alimentare dispositivi a 12V DC.
Scegli IPOE-175S per:
- Alimentazione stabile a 12V DC fino a 60W.
- Funzionamento affidabile in ambienti difficili.
- Flessibilità con sorgenti PoE++ e PoE standard.
- Gestione semplice.
- Robusto design IP67 resistente all'acqua e alla polvere.
- Rapporto qualità-prezzo vantaggioso.
Specifiche Tecniche | |
---|---|
Input Port | 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt PoE++ “PoE + Data” in RJ45 port |
Output Port | 1 x 10/100/1000BASE-T “Data” out RJ45 port |
Output Power Terminal Block | 1 x 2-pin terminal block “DC” out port - Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-) |
Data Rate | 10/100/1000Mbps |
LED Indicators | PWR (Green) DC Ready x 1 (Green) |
Input Voltage | 44~56V DC |
Power Requirement | 4-pair 802.3at PoE+ and 802.3bt PoE++ : 52~56V DC 802.3at PoE+ : 48~56V DC |
Power Consumption | Ethernet full loading without DC output: Full loading with maximum 12V DC, 5A output: 65.6watts |
ESD Protection | Air 8KV DC Contact 6KV DC |
Surge Protection | 6KV |
Enclosure | IP67-rated and IK10 aluminum case |
Installation | Wall-mount ear |
Dimensions (W x D x H) | 150 x 43.8 x 72.94 mm 169.85 x 43.8 x 72.94 mm, with cable gland |
Weight | 424g |
MTBF | >100,000 hours |
Network Cable | 10BASE-T: UTP category 3,4, 5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) 1000BASE-T: UTP category 5e,6 cable (≤100m) |
Power over Ethernet | |
PoE Standard | IEEE 802.3bt PoE++ type 3 PD Backward compatible with IEEE 802.3at PoE+ |
PoE Power Supply Type | 802.3bt PoE++/PoH (Power over HDBaseT) 802.3at PoE+ End-span/Mid-span |
PoE Power Output | DC 12V, 5A (60W, full load) |
Power Pin Assignment | 1/2 (-); 3/6 (+), 4/5 (+), 7/8 (-) or 1/2 (+); 3/6 (-), 4/5 (+), 7/8 (-) |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Stability Testing | IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration) |
Standard Conformances | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
Environment | |
Operating Temperature | -40 ~ 75 degrees C |
Storage | Temperature -40 ~ 85 degrees C |
