Media Converter Managed 10/100/1000T A 100/1000X (Mini-GBIC, SFP)

Descrizione

Descrizione

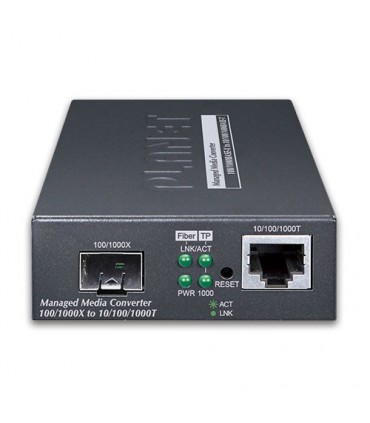

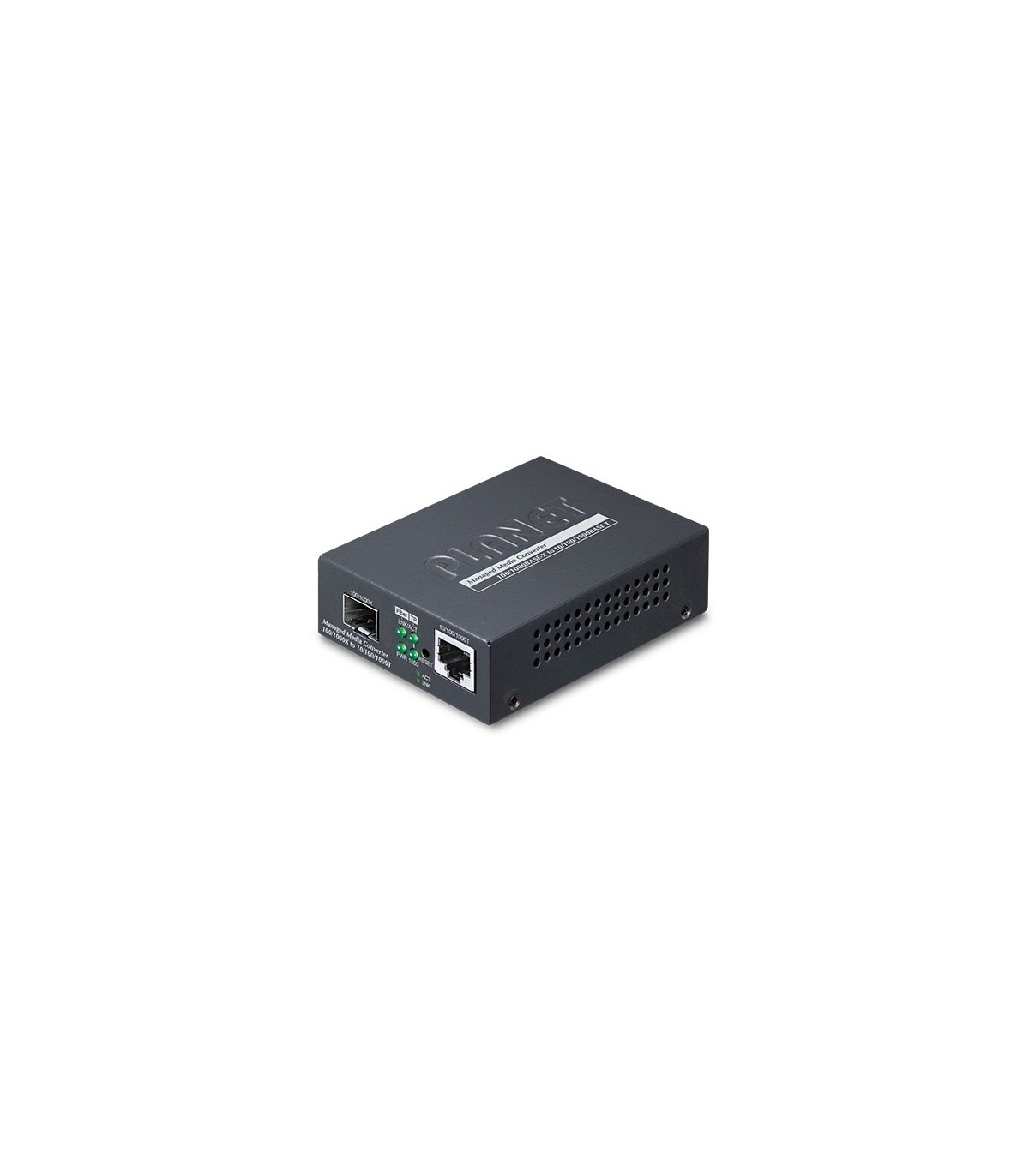

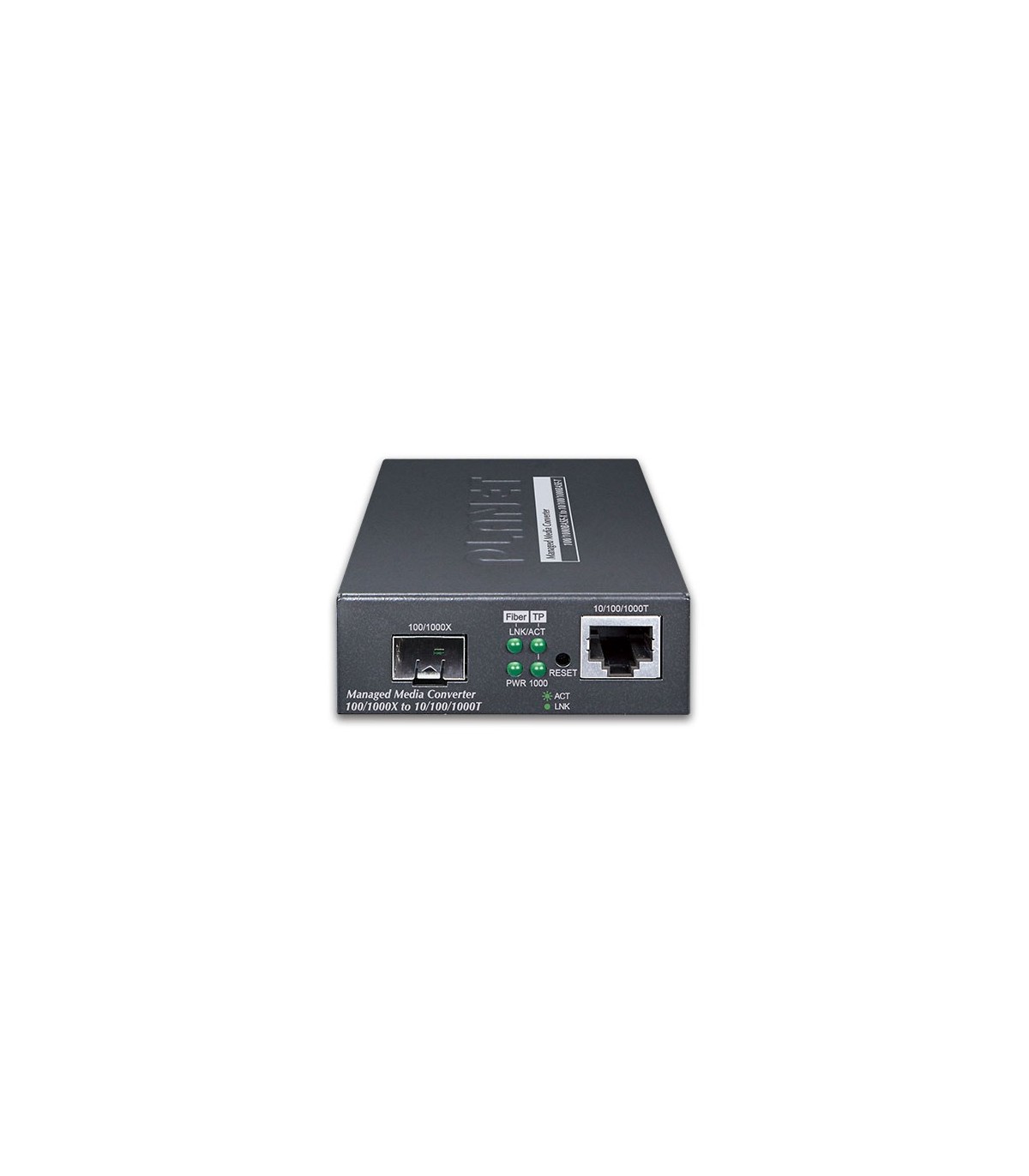

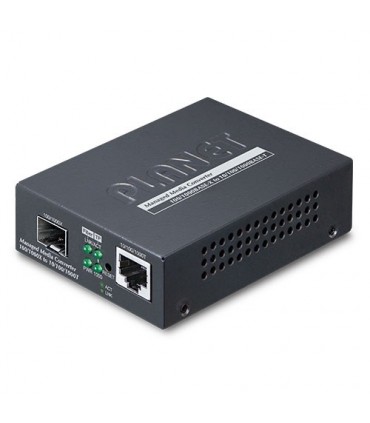

GT-915A Media Converter Managed 10/100/1000T a 100/1000X (mini-GBIC, SFP)

Specifiche Tecniche
Copper Interface	1 x 10/100/1000BASE-T RJ45 port (Auto-MDI/MDI-X) twisted pair
Fiber Interface	1 x 100/1000BASE-X SFP Slot
Reset Button	< 10 sec: System reboot > 10 sec: Factory default
ESD Protection	6KV DC
Enclosure	Compact-sized metal case
Installation	Wall mountable Media convert Chassis installation Optional DIN-rail kit
Dimensions (W x D x H)	94 x 70 x 26mm
Weight	201g (device only)
Power Input	DC 5V, 2A
Power Consumption	3.4 watts/11.6 BTU (maximum)
LED Indicator	PWR, (Green) TP LINK/ACT, 1000 (Green) Fiber LINK/ACT (Green)
Network Cables	10/100/1000BASE-T: 　10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100 m 　100BASE-TX: 2-pair UTP Cat. 5, up to 100 m 　1000BASE-T: 4-pair STP Cat 5 up to 100m 100/1000GBASE-SX/LX: 　50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m. 　9/125μm single-mode cable, extending long distance to 10/20/40/60/80/120km (vary on 　fiber transceiver or SFP module)
Switching Specifications
Switch Processing Scheme	Store and Forward
Fabric	4Gbps
Throughput (packet per second)	2.98Mpps@64bytes
Address Table	1K entries, automatic source address learning and aging
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Jumbo Frame	16K
Shared Buffer	512Kb
Layer 2 Function
Port Configuration	Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto negotiation status
VLAN	IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Up to 16 VLAN groups, out of 4094 VLAN IDs Management VLAN
Bandwidth Control	Per port bandwidth control 　Ingress: 1~1000,000Kbps 　Egress: 1~1000,000Kbps
QoS	Traffic classification based, strict priority and WRR 8-level priority for switching Traffic classification: 　802.1p priority 　IP DSCP 　IP Address
Security Function
Access Security	Remote management protocols control by SSH, Telnet, HTTP ans HTTPs
System Management
Basic Management Interfaces	Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces	SSHv2, TLS v1.2, SNMP v3
System Management	Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP LLDP protocol NTP PLANET Smart Discovery Utility PLANET CloudViewer app
Event Management	Remote syslog Local system log SNMP trap
Standards Conformance
Regulatory Compliance	FCC Class A, CE Class A
Standards Compliance	IEEE 802.3, 10BASE-T IEEE 802.3u, 100BASE-TX/FX IEEE 802.3ab, 1000BASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3x full-duplex flow control IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1ab LLDP IEEE 802.3ah OAM RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP
Environment
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
