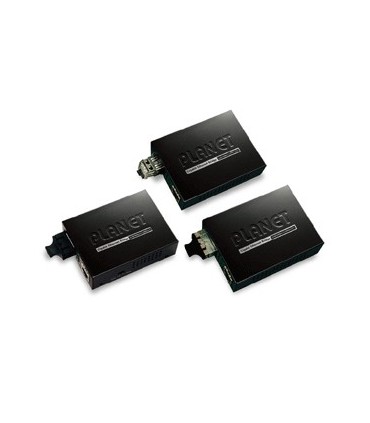

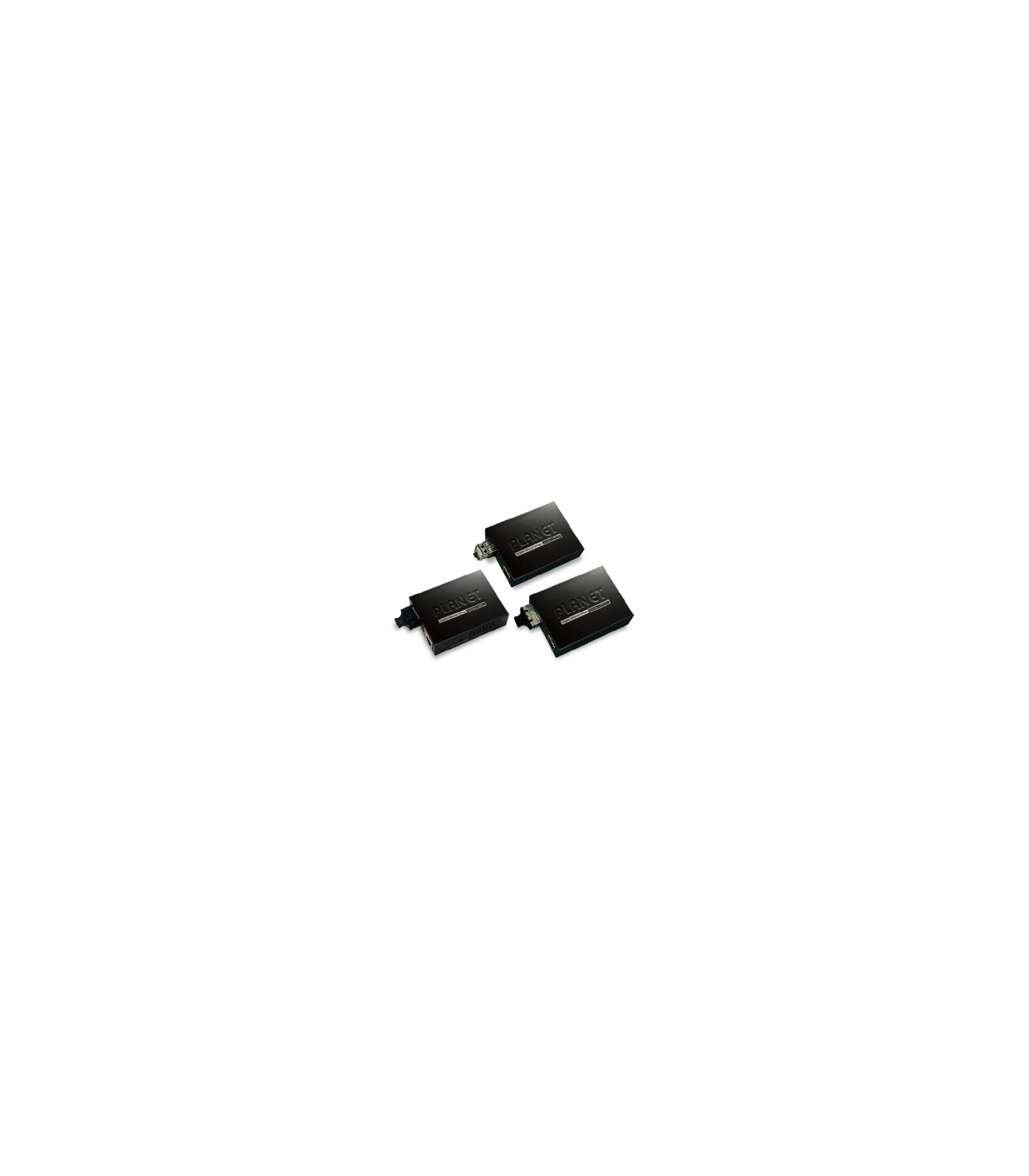

Media Converter 10/100/1000Base-T A Minigbic (Sfp)
Media Converter 10/100/1000Base-T A Minigbic (Sfp)

Media Converter 10/100/1000Base-T A Minigbic (Sfp)

Riferimento:GT-805A

Planet
Media Converter Gigabit Smart 10/100/1000Base-T A Wdm 1510Nm
Media Converter 10/100/1000Base-T Lx Fino A 550M (Multimodale Gt-802)
Media Converter 10/100/1000Base-T A Minigbic (SFP)
Descrizione



GT-805A  Media Converter 10/100/1000Base-T a miniGBIC (SFP) opzionale







Specifiche Tecniche
Modello
GT-805A
Hardware Specification
Standards  IEEE 802.3, 10Base-T
IEEE 802.3u, 100Base-TX
IEEE 802.3ab, 1000Base-T
IEEE 802.3z, 1000Base-SX / LX
Ports  1 x 10/100/1000Base-T port
1 x 1000Base-SX / LX port
Copper Interface  RJ-45 port (Auto-MDI / MDI-X) Twisted Pair
Optic Interface
SFP
Speed  Twisted-pair  10/20Mbps for Half / Full-Duplex
100/200Mbps for Half / Full Duplex
2000Mbps for Full-Duplex
Fiber-optic  2000Mbps for Full-Duplex
Cable  Twisted-pair

10Base-T: 2-pair UTP Cat. 3,4,5, up to 100 m
100Base-TX: 2-pair UTP Cat. 5, up to 100 m
1000Base-T: 4-pair STP Cat 5 up to 100m

Fiber-optic Cable  •　50 / 125µm or 62.5 / 125µm multi-mode fiber cable, up to 220 / 550m
•　 9 / 125µm single-mode cable, provides long distance for 10 / 15 / 20 / 30 / 40 / 50 / 60 / 70 / 120km (very on fiber transceiver or SFP
　 module)
LED Indicator  •　PWR
•　TP LINK / ACT, 1000
•　Fiber LINK / ACT
Power Consumption  5.6 Watts / 19 BTU (maximum)
Power Input  DC 5V / 2A
Dimensions (W x D x H) 26 x 70 x 97 mm
Operator Environment

Operating temperature: 0 to 50 degree C
Humidity: 5~90% non-condensing

Storage Environment  storage temperature: -40 to 70 degree C
Humidity: 5~90% non-condensing
Emissions  FCC Class A, CE Class A

Dettagli del prodotto
GT-805A
