Planet
GT-802S60
Media Converter 10/100/1000T A 1000Lx (Sc, Sm) -60Km

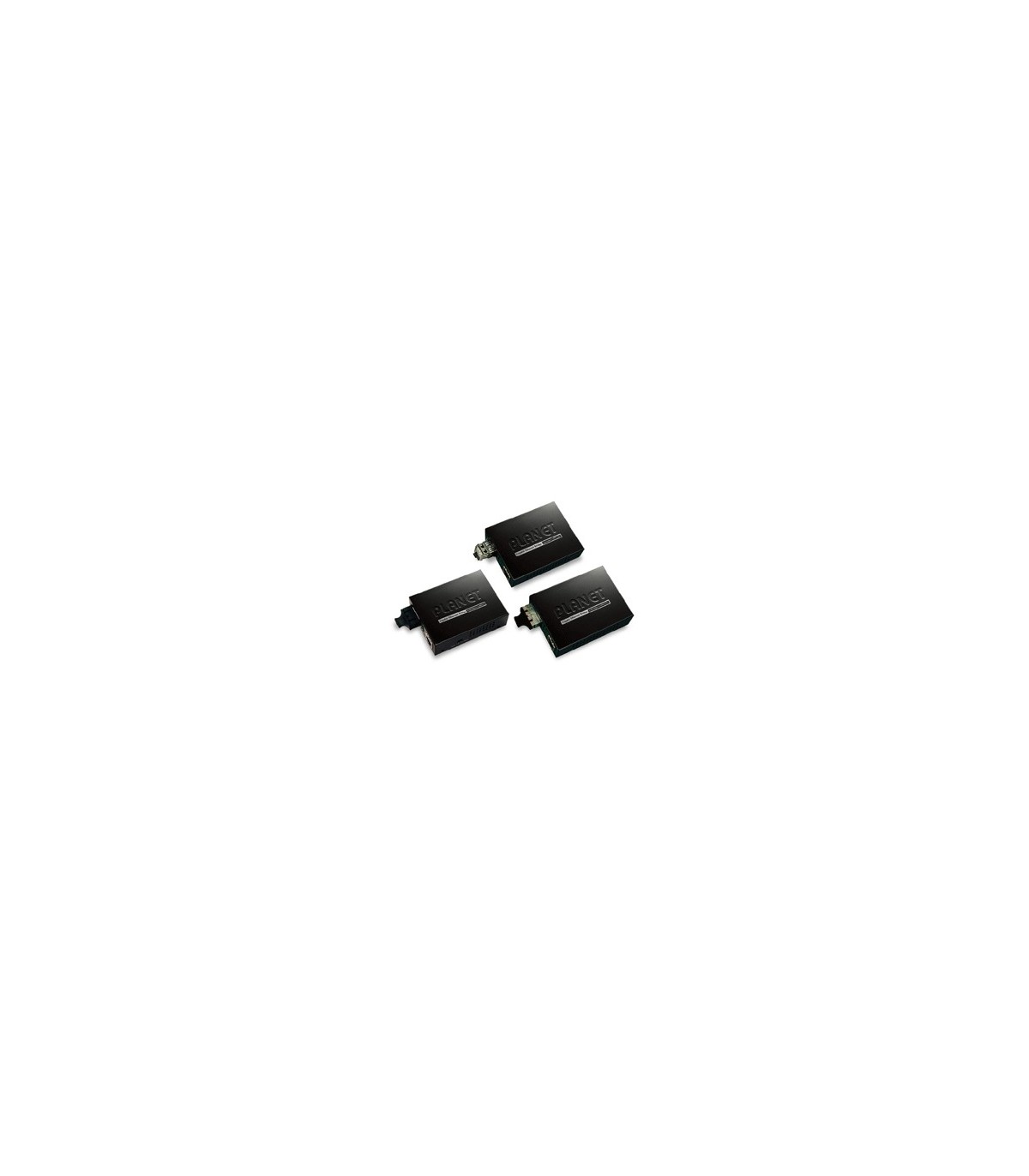

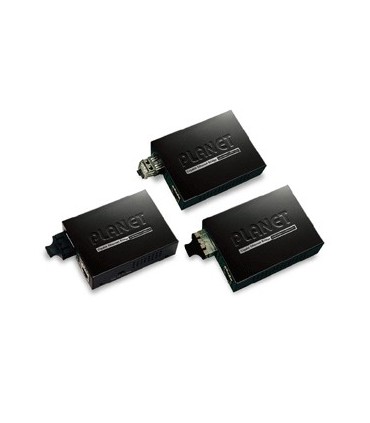

GT-806B15 Media Converter Gigabit Ethernet 10/100/1000Base-T a 1000Base-LX (WDM) Bi-direzionale - 1510nm - 15KM
| Specifiche Tecniche | ||||||||||
| Modello |
GT-806B15 | |||||||||
| Hardware Specification | ||||||||||
| Standards | IEEE 802.3, 10Base-T IEEE 802.3u, 100Base-TX IEEE 802.3ab, 1000Base-T IEEE 802.3z, 1000Base-SX / LX | |||||||||
| Ports | 1 x 10/100/1000Base-T port 1 x 1000Base-SX / LX port | |||||||||
| Copper Interface | RJ-45 port (Auto-MDI / MDI-X) Twisted Pair | |||||||||
| Optic Interface |
WDM | |||||||||
| Optic Wavelength | TX:1550nm RX:1310nm | |||||||||
| Speed | Twisted-pair | 10/20Mbps for Half / Full-Duplex 100/200Mbps for Half / Full Duplex 2000Mbps for Full-Duplex | ||||||||
| Fiber-optic | 2000Mbps for Full-Duplex | |||||||||
| Cable | Twisted-pair |
10Base-T: 2-pair UTP Cat. 3,4,5, up to 100 m | ||||||||
| Fiber-optic Cable | • 50 / 125µm or 62.5 / 125µm multi-mode fiber cable, up to 220 / 550m • 9 / 125µm single-mode cable, provides long distance for 10 / 15 / 20 / 30 / 40 / 50 / 60 / 70 / 120km (very on fiber transceiver or SFP module) | |||||||||
| LED Indicator | • PWR • TP LINK / ACT, 1000 • Fiber LINK / ACT | |||||||||
| Power Consumption | 5.6 Watts / 19 BTU (maximum) | |||||||||
| Power Input | DC 5V / 2A | |||||||||
| Dimensions (W x D x H) | 26 x 70 x 97 mm | |||||||||
| Operator Environment |
Operating temperature: 0 to 50 degree C | |||||||||
| Storage Environment | storage temperature: -40 to 70 degree C Humidity: 5~90% non-condensing | |||||||||
| Emissions | FCC Class A, CE Class A | |||||||||
