Planet
GT-806A40
Media Converter 10/100/1000T A 1000Lx(Wdm) -Tx:1310Nm-40Km

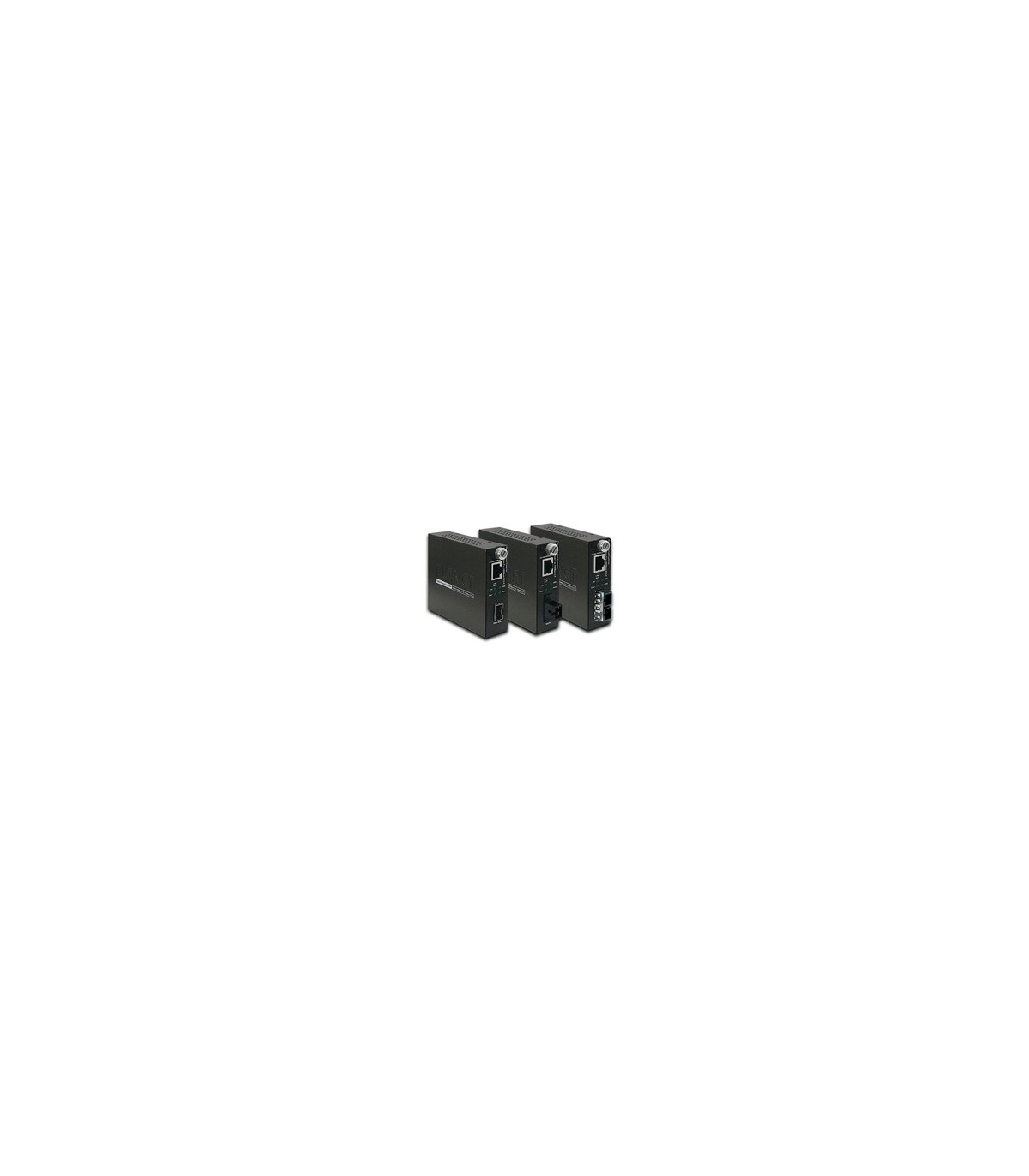

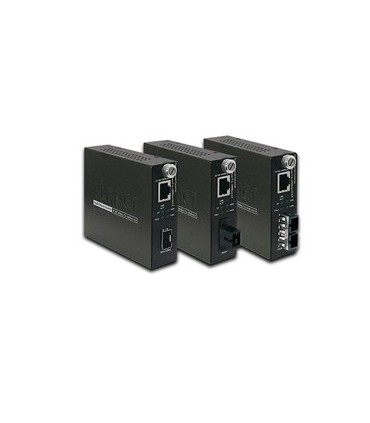

GST-806A15Media Converter Gigabit Smart 10/100/1000Base-T a WDM Bi-direzionale - 1310nm - 15KM
Specifiche tecniche | |
Standards | IEEE 802.3, 10Base-T IEEE 802.3u, 100Base-TX IEEE 802.3ab, 1000Base-T IEEE 802.3z, 1000Base-SX/LX IEEE 802.3ah OAM |
Ports | 1 x 10/100/1000Base-T port, 1 x 1000Base-SX/LX port |
Copper Interface | RJ-45 port (Auto-MDI/MDI-X) Twisted Pair |
Optic Interface | GST-802 / GST-802S: SC GST-805A: SFP GST-806A15 / GST-806B15 / GST-806A60 / GST-806B60: WDM |
Optic Wavelength | GST-802: 850nm GST-802S: 1310nm GST-805A: N/A GST-806A15: TX:1310nm / RX:1550nm GST-806B15: TX:1550nm / RX:1310nm GST-806A60: TX:1310nm / RX:1550nm GST-806B60: TX:1550nm / RX:1310nm |
Launch Power(dBm) Max. | GST-802: -4 dBm GST-802S: -3 dBm GST-805A: N/A GST-806A15: -3 dBm GST-806B15: +5 dBm GST-806A60: -3 dBm GST-806B60: +4 dBm |
Launch Power(dBm) Min. | GST-802: -9.5 dBm GST-802S: -9.5dBm GST-805A: N/A GST-806A15: -9 dBm GST-806B15: 0 dBm GST-806A60: -9 dBm GST-806B60: -1 dBm |
Receive Sensitivity | GST-802: -13.5 dBm GST-802S: -14.4 dBm GST-805A: N/A GST-806A15: -21 dBm GST-806B15: -25 dBm GST-806A60: -21 dBm GST-806B60: -25 dBm |
Maximum Input power | GST-802: -18 dBm GST-802S: -20 dBm GST-805A: N/A GST-806A15: -3 dBm GST-806B15: -3 dBm GST-806A60: -2 dBm GST-806B60: -2 dBm |
Speed Twisted-pair | 10/20Mbps for Half / Full-Duplex 100/200Mbps for Half / Full Duplex 2000Mbps for Full-Duplex |
Speed Fiber-optic | 2000Mbps for Full-Duplex |
Cable Twisted-pair | 10Base-T: 2-pair UTP Cat. 3,4,5, up to 100 m 100Base-TX: 2-pair UTP Cat. 5, up to 100 m 1000Base-T: 4-pair STP Cat 5 up to 100m |
Cable Fiber-optic Cable | • 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m. • 9/125μm single-mode cable, provides long distance for 10/20/30/40/50/70/120km (vary on fiber transceiver or SFP module) |
LED Indicator | • PWR (Green) • TP: 1000, LINK/ACT • Fiber: LINK/ACT |
DIP Switch | Fiber (Auto-negotiation / Manual), LFP (Disable / Enable) |
Power Consumption | 3.1 Watts / 10BTU (maximum) |
OAM | TS-1000, IEEE 802.3ah terminal |
Jumbo Frame size | 9K |
Power Input | DC 5V / 2A |
Dimension (W x D x H) | 81 x 94 x 26 mm |
Operating Environment | Temperature: 0~50 Degree C; Humidity: 5~90% non-condensing |
Storage Environment | Temperature: -40~70 Degree C; Humidity: 5~90% non-condensing |
Emissions | FCC Class A, CE Class A |
