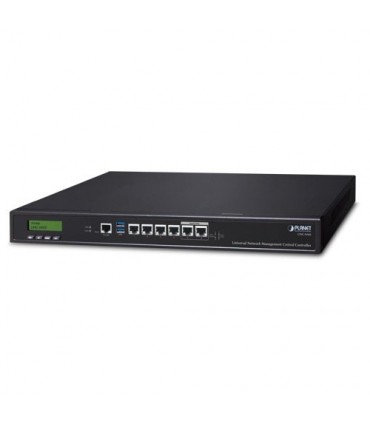

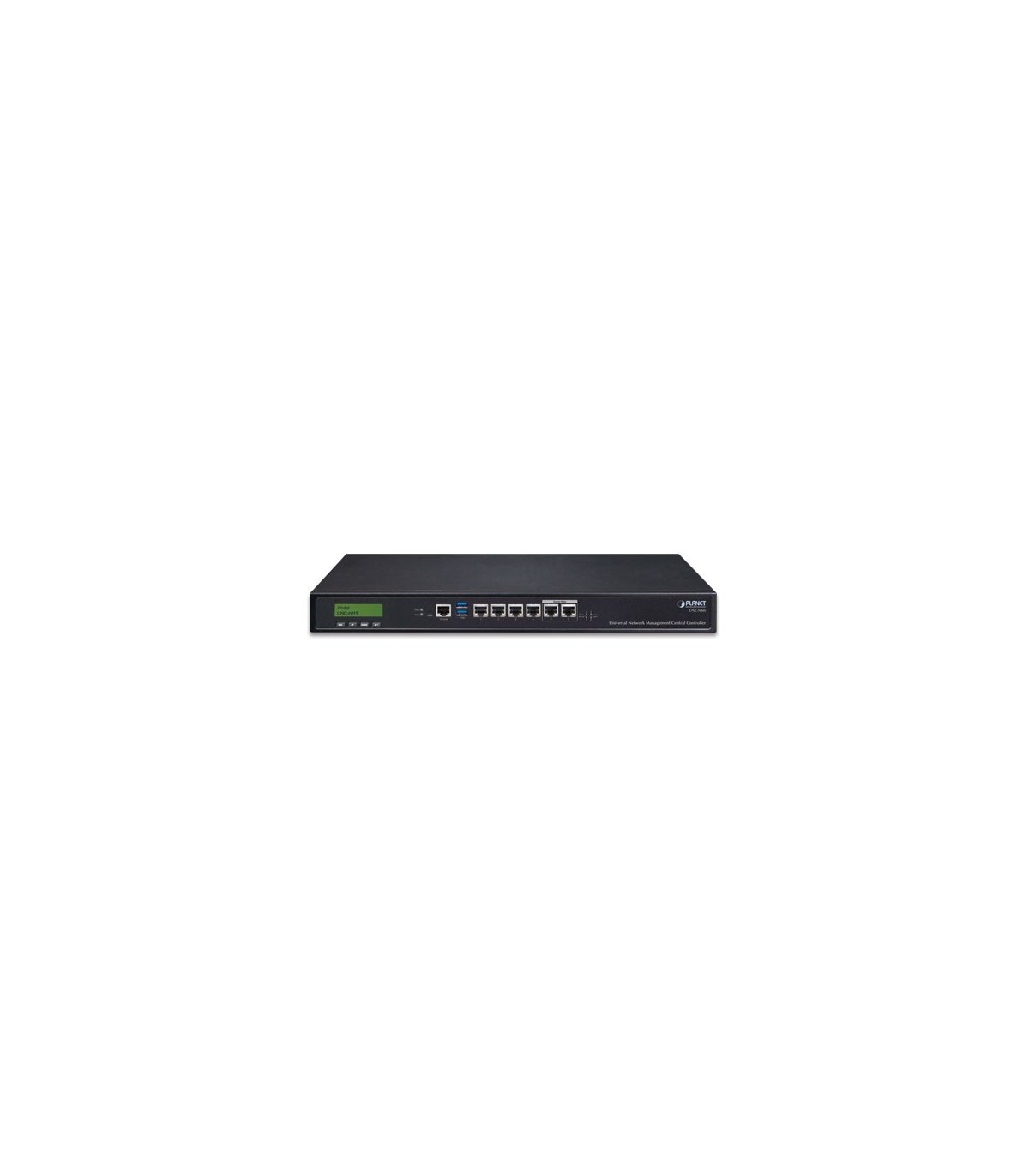

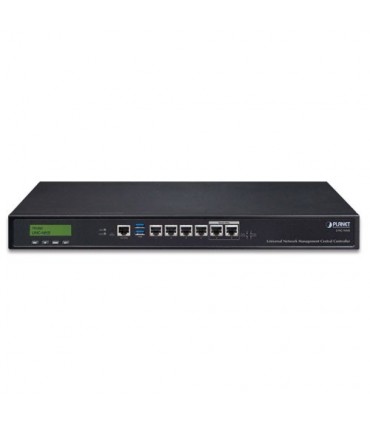

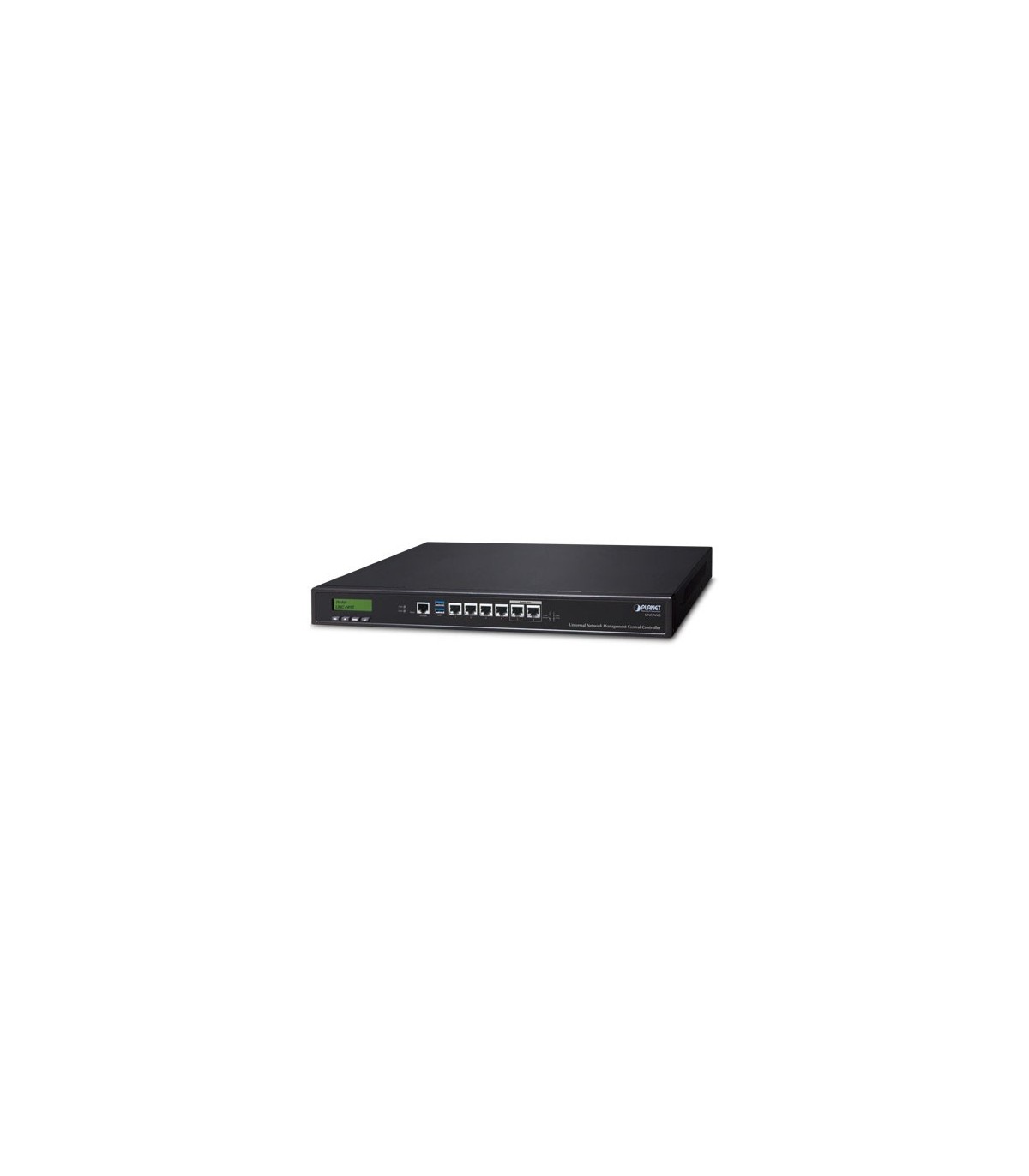

Universal Network Management Central Controller With Lcd & 6 10/100/1000T Lan Ports (1024 X 100 Nodes)



UNC-NMS  Universal Network Management Central Controller with LCD & 6 10/100/1000T LAN Ports (1024 x 100 nodes)

Specifiche Tecniche
Product UNC-NMS
Universal Network Management Center Central Controller with LCD & 6 10/100/1000T LAN Ports (1024 x 100 nodes)
Form Factor 1U Rack-mount
Physical Specifications
I/O Interface 6 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (LAN 5 and LAN 6 were bypass design)
2 USB 3.0 ports (They cannot be used at the same time.)
1 Factory default button (GPIO)
1 RJ45 Console port interface
2 DB-9 COM1,COM2 (reserve)
Storage 2.5" 64G SATA HDD
LED 2 LED (Power / HDD)
LCM Size (Active Area) 49.45 mm (W) x 9.58 mm (H)
LCM Button 4 touch buttons for enter, exit, up and down
Dimensions (W x D x H) 438 (W) x 180 (D) x 44 mm (H)
17.24” (W) x 7.09” (D) x 1.73” (H)
Weight 3 kg (6.62 lbs)
Enclosure Metal
Power Requirements 3 pin AC Power input socket
AC 100~240V , 65W
Environment & Certification
Temperature Operating: 0 ~ 50 degrees C
Storage: -20 ~ 70 degrees C
Humidity 5 ~ 90% relative humidity (non-condensing)
MTBF (Hours) 100,000
Network Management
Number of Managed Sites 100
Number of Managed Devices 102,400
Auto Discovery by NMS agent Supports PLANET devices
Dashboard Providing the at-a-glance view of center system, site summary, site Map, traffic, PoE network status
Site Management To create site list, site map for NMS agent management
Device List To manage all site devices or filter one site devices list for NMS agent function operation
Statistic To show Top 10 Event Report, History Comparison function, Critical Events for devices
Topology Viewer A topology of network devices compliant with MQTT, SNMP, ONVIF, Smart Discovery and LLTD Protocol with Map or not
Event Reports The status of a network can be reported via network alarm, system log
Alarm System Email alerts for the administrator via the SMTP server
Switch Virtual Panel To directly configure the switch for basic function
ONVIF IP Cam Snapshot Directly catch the managed IP cam snapshot
Batch Provisioning Enabling multiple APs to be configured and upgraded at one time by using the designated profile for each site.
Coverage Heat Map Real-time signal coverage of APs on the user-defined floor map to optimize Wi-Fi field deployment
Customized Profile Allowing the creation and maintenance of multiple wireless profiles
Auto Provisioning Multi-AP provisioning with one click
Cluster Management Simplifying high-density AP management
Zone Plan Optimizing AP deployment with actual signal coverage
Authentication Built-in RADIUS server seamlessly integrated into the enterprise network
User Control Allowing on-demand account creation and user-defined access policy
Scalability Free system upgrade and AP firmware bulk upgrade capability
Network Services
Network DDNS

Built-in DHCP Server for auto IP assignment to APs

Console; Telnet; SSL; Web browser (Chrome is recommended.);
SNMP v1, v2c, v3

Supports SNMP, ONVIF and PLANET Smart Discovery
Maintenance Backup
System backup and restore to local or USB HDD

Provides system reboot manually or automatically per power schedule

Provides IPv4/IPv6 ping and trace route
Standards Conformance
Regulatory Compliance CE, FCC
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
