Renewable Energy Management Controller

Riferimento:NMS-360

Universal Network Management Central Controller With Lcd & 6 10/100/1000T Lan Ports (1024 X 100 Nodes)

Descrizione

Descrizione

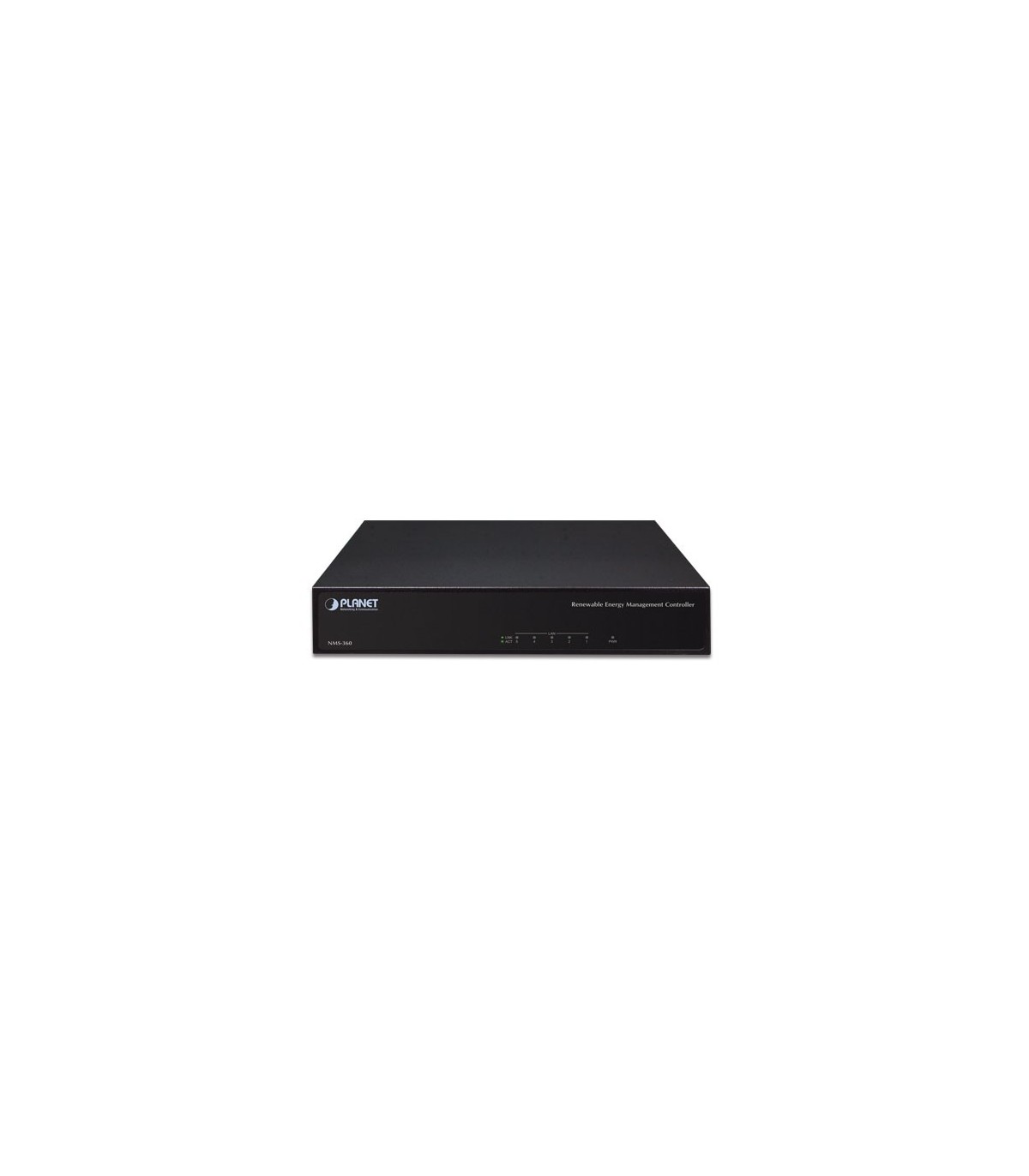

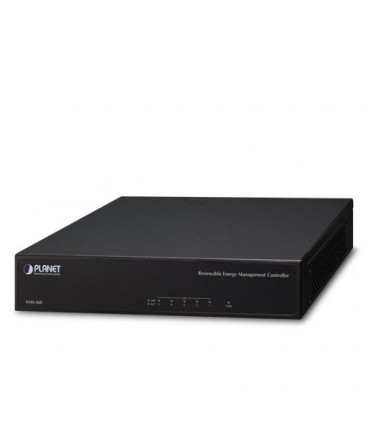

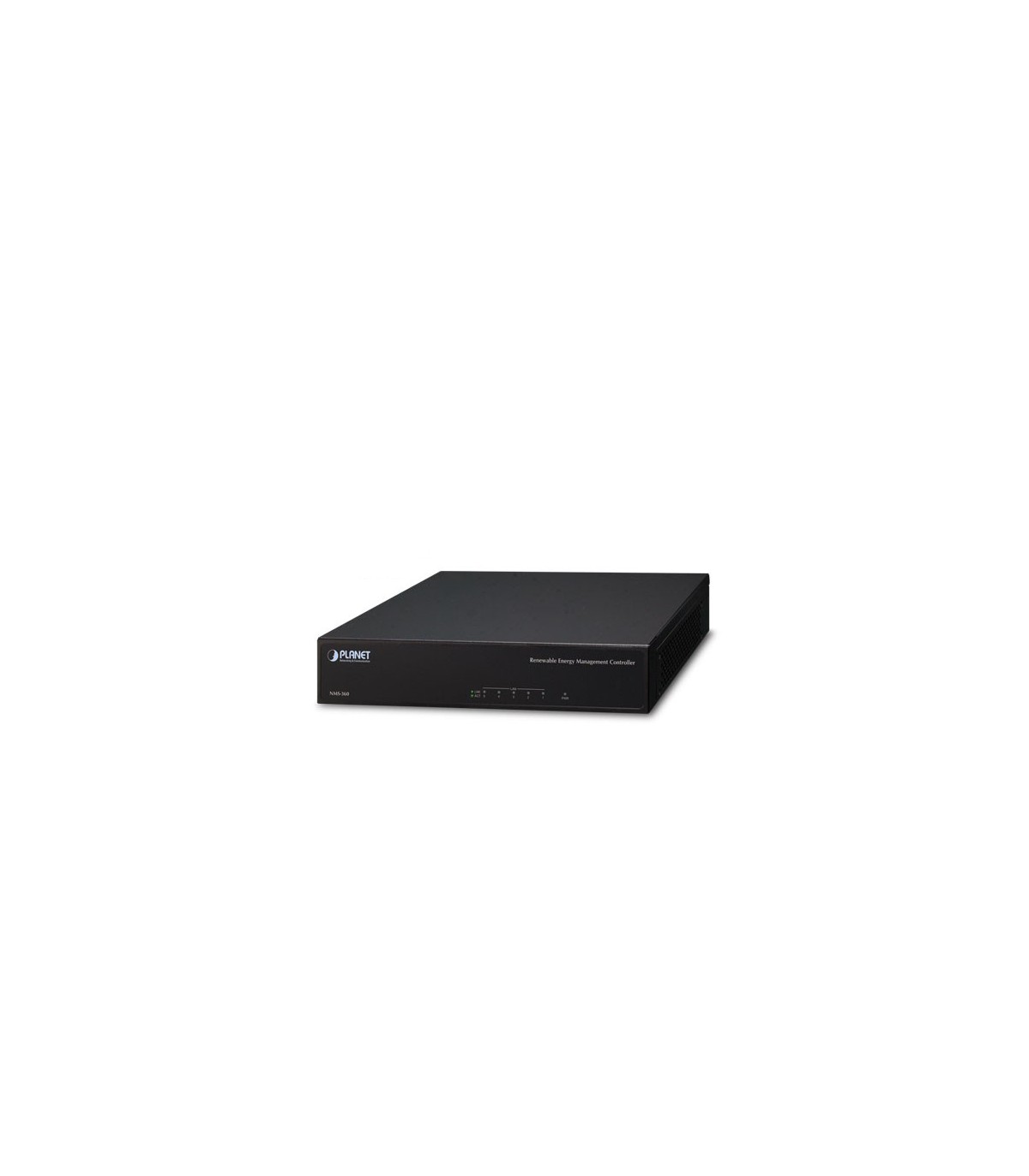

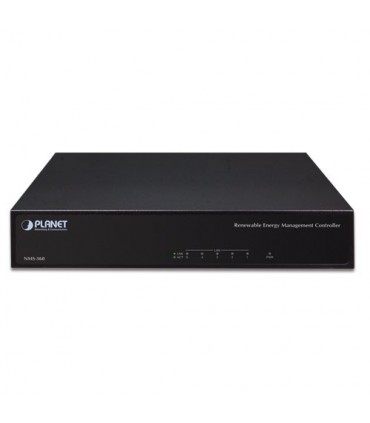

NMS-360 Renewable Energy Management Controller

Specifiche Tecniche
I/O Interface Storage	Five 10/100/1000BASE-T RJ45 ports with auto-MDI/MDI-X 2 USB 3.0 ports (They cannot be used at the same time.) 1 RS232-to-RJ45 console port (115200, 8, N, 1) 1 DC jack power input 1 power switch 1 reset button 8GB EMMC5.1, 15nm/2 eMLC
Dimensions (W x D x H)	232 x 153 x 44 mm
Weight	1.15 kg
Enclosure	Metal
Power Requirements	60W adapter 12V 5A with DC jack AC 100~240V, 3~1.5A, 60~50Hz.
Environment & Certification
Temperature	Operating: 0 ~ 40 degrees C Storage: -20 ~ 75 degrees C
Humidity	10 ~ 85% relative humidity (non-condensing)
MTBF (Hours)	120,000
Network Management
Number of Managed Devices	512
Number of IP cameras	2,048
Dashboard	Providing the at-a-glance view of system, power, traffic, and device event statuses
Setup Wizard	Easy-to-use step-by-step guidance
Node Discovery	Management is carried out once a BSP-360-powered device is detected.
App-like Device Viewing	App-like devices that are compliant with SNMP, MQTT, and Smart Discovery
Event Table	The status of system can be reported via event alarm
Alarm System	E-mail alerts for the administrator via the SMTP server
Device Provisioning	Enabling BSP-360 to be configured and upgraded at the same time
Site Map	Real-time site map of BSP-360 and IP cams on the user-defined map to optimize energy deployment
Remote PoE Control	Real-time remote PoE on/off to reboot connected devices
User Control	Allowing on-demand account creation and user-defined access policy
Scalability	Free system upgrade and BSP-360 firmware bulk upgrade capability
Maximum Scalability	1 site map, 512 nodes, 2048 managed IP cameras.
Backup/Restoration/Read	Provides system and profile backup/restoration/read raw data from USB
User Account Management	Supports on-demand account creation per user-defined access policy
Network Services
Network	DDNS Supports PLANET DDNS/Easy DDNS DHCP Built-in DHCP Server for auto IP assignment to APs Management SSL; Web browser (Chrome is recommended); SNMP v1, v2c, v3 Discovery Supports SNMP, ONVIF and PLANET Smart Discovery
Maintenance	Backup System backup and restore to local or USB HDD Reboot Provides system reboot manually or automatically per power schedule Diagnostic Provides IPv4/IPv6 ping and trace route
Standards Conformance
Regulatory Compliance	CE, FCC
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow control and back pressure IEEE 802.3z Flow control with Rx thresholds and Tx pause frames IEEE 1588 protocol and IEEE 802.1AS implementation IEEE 802.3az (EEE)
