Renewable Energy Management Controller Con 12" Lcd Touch Screen

Riferimento:NMS-360V-12

"Renewable Energy Management Controller Con 12"" Lcd Touch Screen "
Descrizione

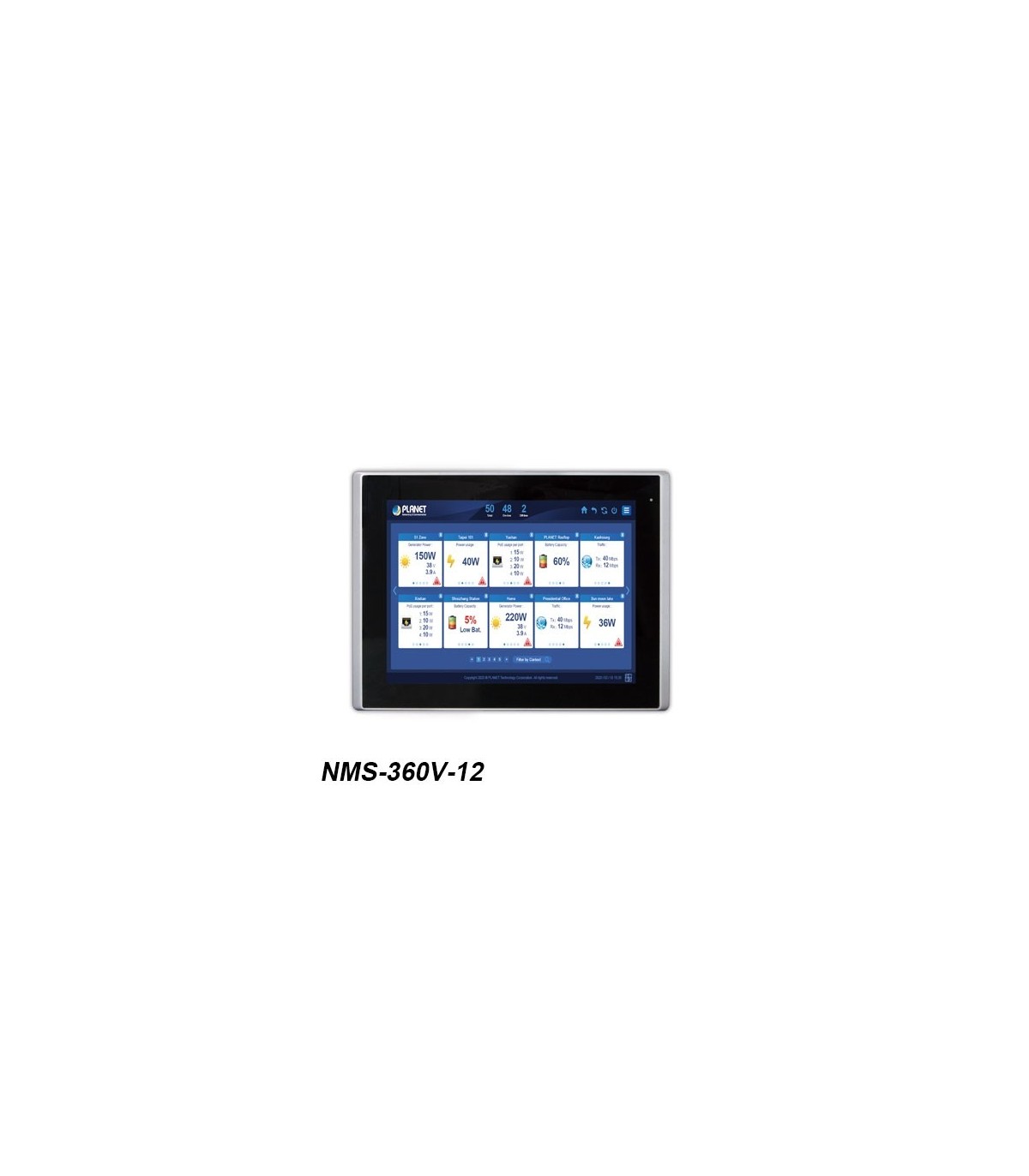

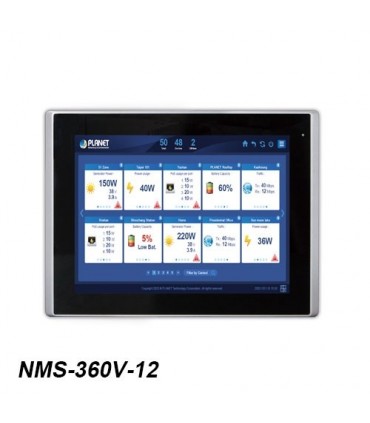

NMS-360-12 Renewable Energy Management Controller con 10" LCD Touch Screen

Specifiche Tecniche
Model
NMS-360V-12 NMS-360V-10
Form Factor Panel Mount, VESA 100 x 100
Physical Specifications

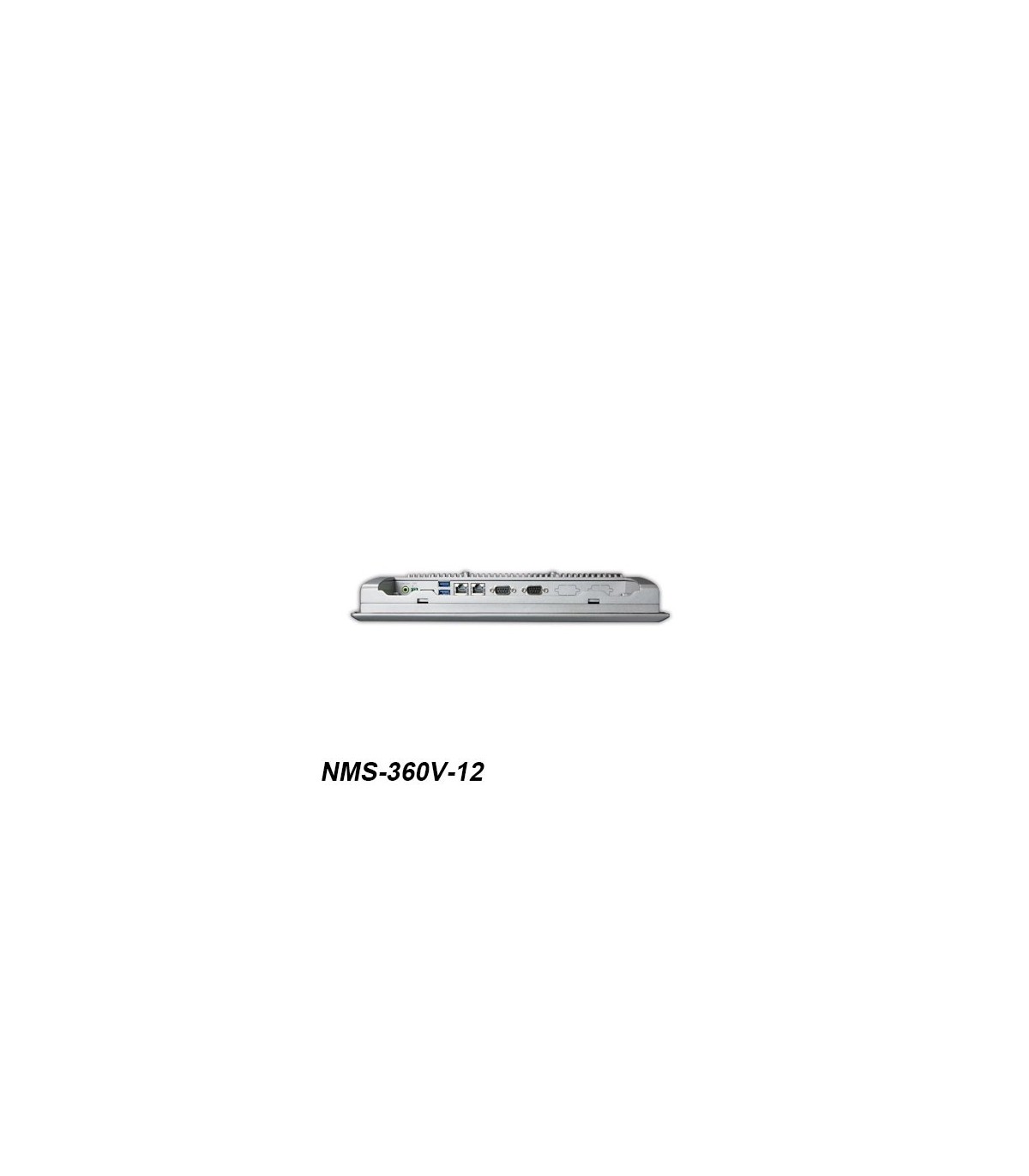

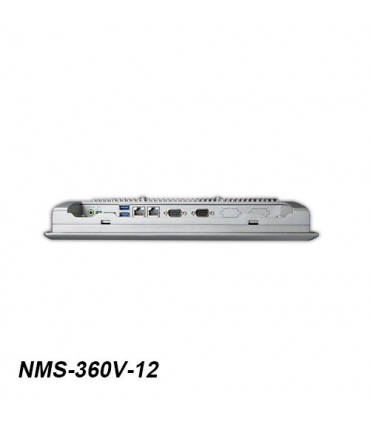

I/O Interface 2 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
2 USB 3.0 ports (They cannot be used at the same time.)
1 Audio Line Out (reserved)
1 HDMI interface
2 DB-9 COM1,COM2 (reserve)
1 3-pin DC power input terminal
1 2-pin connector for power on/off button (reserve)
Storage 2.5" 32G SATA3 HDD
Touch LCD Size
12.1” TFT-LCD 10.1” TFT-LCD
Touch Type Resistive Touch Window
Projected Capacitive Touch
Display Resolution
1024 x 768 1280 x 800
Display Luminance(cd/m²)
500 350
Display Viewangle(H°/V°)
160(H)/140(V) 160(H)/160(V)
Display Contrast
700:1 800:1
Display Backlight lifetime (hrs)
30,000 hrs 40,000 hrs
Light Transmission (%) Resistive Touch Window: over 80%
Projected Capacitive Touch: over 90%
Dimensions (W x D x H)
12”: 319 x 51.7 x 245 mm 10”: 285 x 49 x 189 mm
Weight
12”: 2.9 kg 10”: 2 kg
Enclosure Aluminum Die-casting Chassis
Power Requirements DC IN 9~36V
60W adapter 12V 5A with terminal block
AC 100~240V, 2.0A, 60~50Hz.
Environment & Certification
IP Rating IP66 compliant front bezel
Temperature Operating: 0 ~ 50 degrees C
Storage: -30 ~ 70 degrees C
Humidity 10 ~ 90% relative humidity (non-condensing)
MTBF (Hours) 100,000
Network Management
Number of Managed Devices 512
Number of IP cameras 2,048
Dashboard Providing the at-a-glance view of system, power, traffic, and device event statuses
Setup Wizard Easy-to-use step-by-step guidance
Node Discovery Management is carried out once a BSP-360-powered device is detected.
App-like Device Viewing App-like devices that are compliant with SNMP, MQTT, and Smart Discovery
Event Table The status of system can be reported via event alarm
Alarm System E-mail alerts for the administrator via the SMTP server
Device Provisioning Enabling BSP-360 to be configured and upgraded at the same time
Site Map Real-time site map of BSP-360 and IP cams on the user-defined map to optimize
energy deployment
Remote PoE Control Real-time remote PoE on/off to reboot connected devices
User Control Allowing on-demand account creation and user-defined access policy
Scalability Free system upgrade and BSP-360 firmware bulk upgrade capability
Maximum Scalability 1 site map, 512 nodes, 2048 managed IP cameras.
Backup/Restoration/Read Provides system and profile backup/restoration/read raw data from USB
User Account Management Supports on-demand account creation per user-defined access
Policy
Network Services
Network DDNS
Supports PLANET DDNS/Easy DDNS

DHCP
Built-in DHCP Server for auto IP assignment to APs

Management
SSL; Web browser (Chrome is recommended);
SNMP v1, v2c, v3

Discovery
Supports SNMP, ONVIF and PLANET Smart Discovery
Maintenance Backup
System backup and restore to local or USB HDD

Reboot
Provides system reboot manually or automatically per power schedule

Diagnostic
Provides IPv4/IPv6 ping and trace route
Standards Conformance
Regulatory Compliance CE, FCC
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow control and back pressure
Dettagli del prodotto
NMS-360V-12
