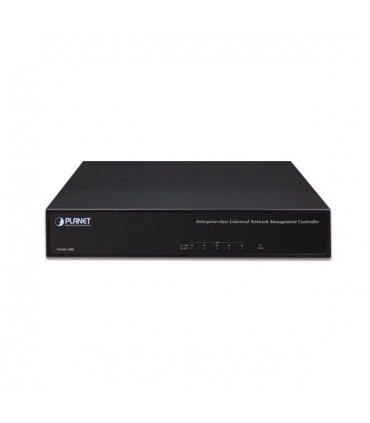

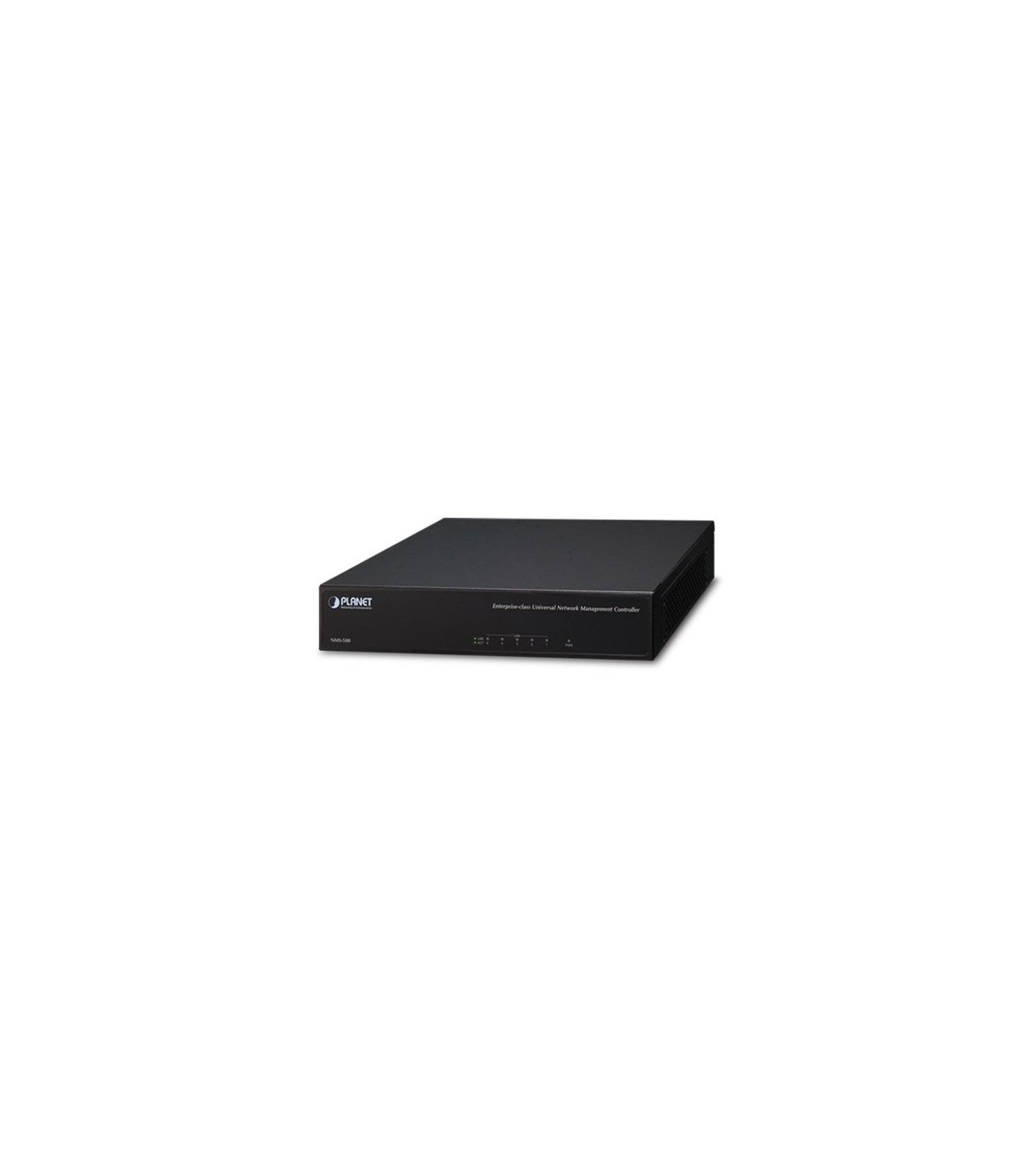

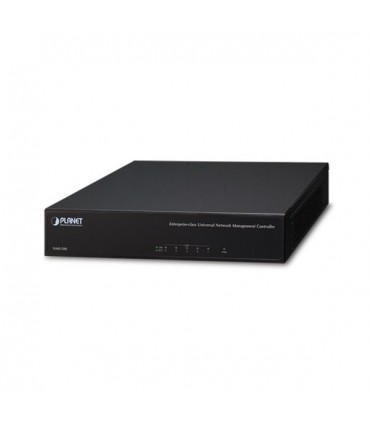

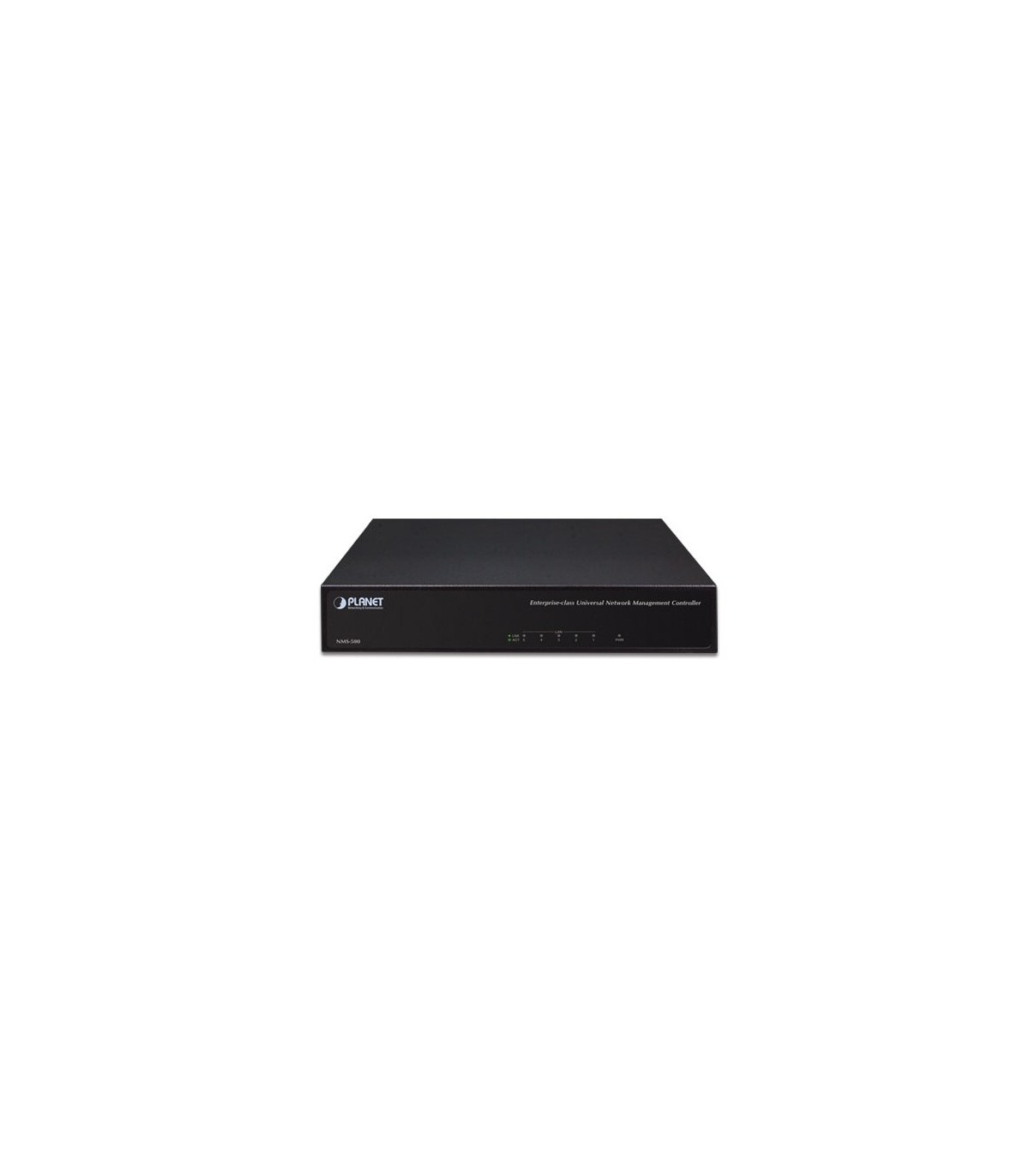

Planet Enterprise-Class Universal Network Management Controller

Riferimento:NMS-500

Descrizione

Descrizione

NMS-500 PLANET Enterprise-class Universal Network Management Controller

Specifiche Tecniche
Form Factor	Desktop
Processor	Intel® Celeron® N3350 up to 2.6 GHz
Memory	2GB SDRAM, DDR3L-1866, 256M*16bit
Physical Specifications
I/O Interface	Five10/100/1000BASE-T RJ45 ports with auto-MDI/MDI-X 2 USB 3.0 ports (They cannot be used at the same time.) 1 RS232-to-RJ45 console port (115200, 8, N, 1) 1 DC jack power input 1 power switch 1 reset button
Storage	8GB EMMC5.1, 15nm/2 eMLC
Dimensions (W x D x H)	232 x 153 x 44 mm
Weight	1.15 kg
Enclosure	Metal
Power Requirements	60W adapter 12V 5A with DC jack AC 100~240V, 3~1.5A, 60~50Hz.
Environment & Certification
Temperature	Operating: 0 ~ 40 degrees C Storage: -20 ~ 75 degrees C
Humidity	10 ~ 85% relative humidity (non-condensing)
MTBF (Hours)	120,000
Network Management
Number of Managed Devices	512
Number of RADIUS Client Devices	512
Number of RADIUS User Accounts	10,000
Auto Discovery	Supports PLANET devices
Dashboard	Summarized system overview includes online device numbers, activated client numbers
Device List	Allows creation and maintenance of device profiles
Topology View	Provides visual topology view of connected PLANET devices
Status Monitoring	Real-time online/offline devices
Event and Syslog Report	Real-time system event and syslog server supported
Event Alarm Define	Allows event alarm item option
SMTP Alarm	E-mail alert to the administrator via the SMTP server
SSID/RF Profile	Allows creation and maintenance of multiple wireless profiles
Cluster Management	Allows AP grouping for bulk provisioning and batch upgrading
Bulk AP Provisioning	Supports bulk AP provisioning with user-defined profiles
Bulk AP Firmware Upgrade	Supports bulk AP firmware upgrade
Coverage Heat Map	Enables real signal coverage of managed AP reflecting on the uploaded zone maps
Graphical Statistics	Real-time and historical visibility of wireless traffic flow
Backup/Restoration	Provides system and profile backup/restoration
SSIDs-to-VLANs Mapping	Allows to configure SSIDs-to-VLANs mapping in supported APs
RADIUS Authentication	RADIUS server is integrated for client authentication in a large-scale enterprise network
User Account Management	Supports on-demand account creation per user-defined access policy
Network Services
Network	DDNS: Supports PLANET DDNS/Easy DDNS DHCP: Built-in DHCP Server for auto IP assignment to APs Management: Console; Telnet; SSL; Web browser (Chrome is recommended); SNMP v1, v2c, v3 Discovery: Supports SNMP, ONVIF and PLANET Smart Discovery
Maintenance	Backup: System backup and restore to local or USB HDD Reboot: Provides system reboot manually or automatically per power schedule Diagnostic: Provides IPv4/IPv6 ping and trace route
Standards Conformance
Regulatory Compliance	CE, FCC
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow control and back pressure IEEE 802.3z Flow control with Rx thresholds and Tx pause frames IEEE 1588 protocol and IEEE 802.1AS implementation IEEE 802.3az (EEE)
[Remarks]	Router: Log in to the router’s Web user interface and enable the SNMP function. Switch: Log in to the switch’s Web user interface and enable the SNMP and LLDP function. AP: Log in to the AP’s Web user interface to configure the AP to “Managed AP”. In support of SNMP AP, enable the SNMP function. IP Cam: The ONVIF function is enabled by default.
