Universal Network Management Controller With Lcd Touch Screen (10”/12”)

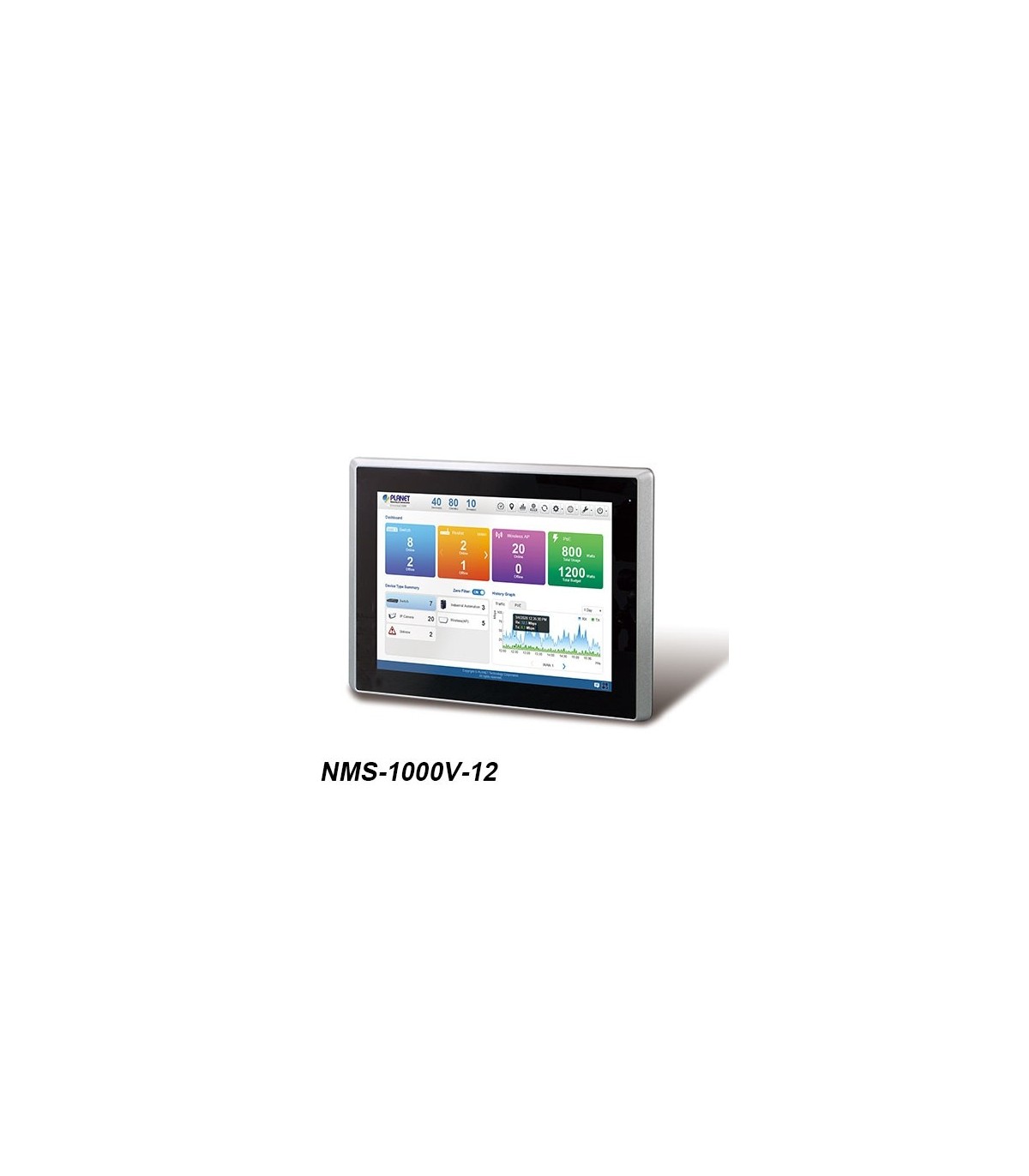

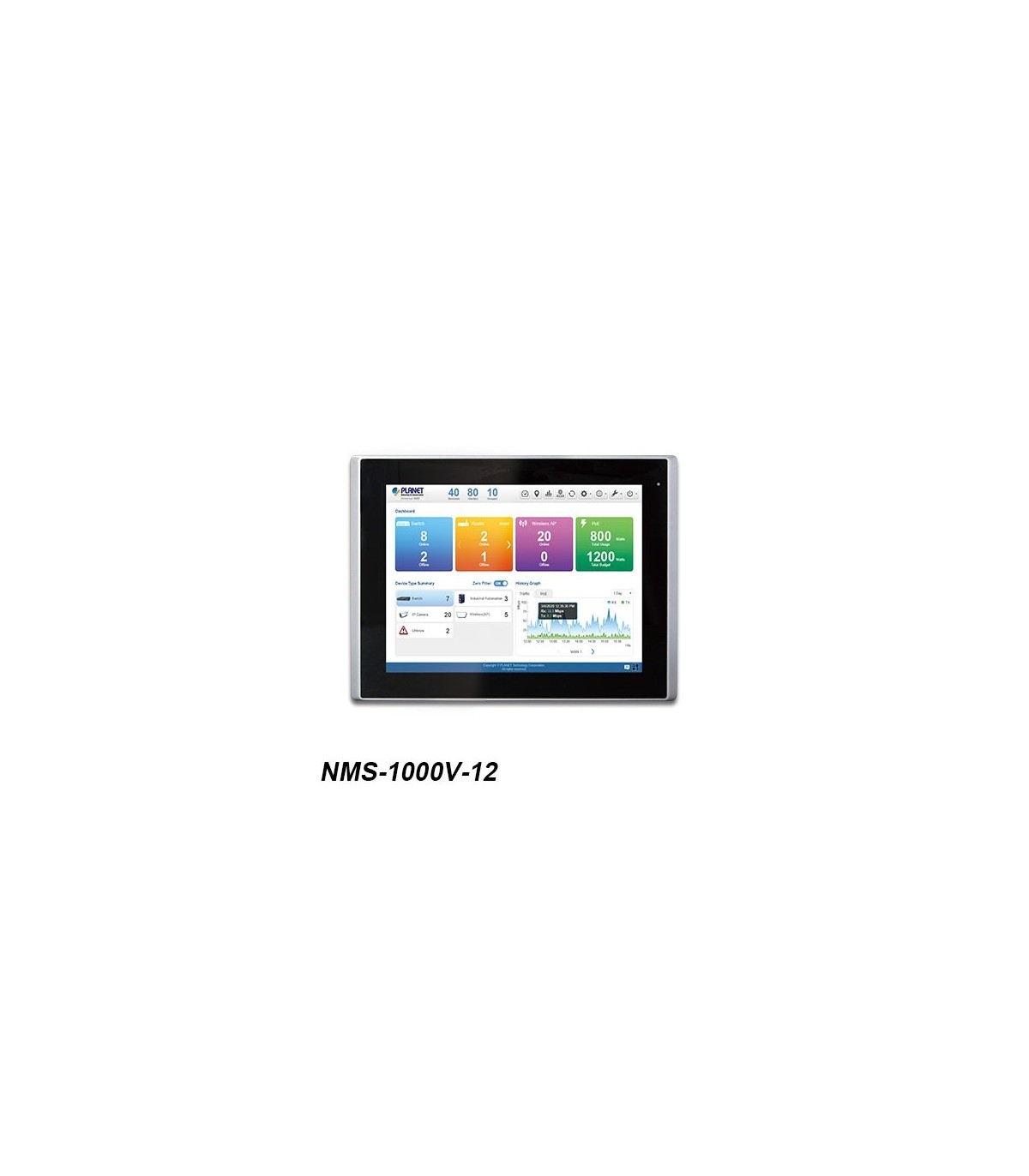

NMS-1000V-12 Universal Network Management Controller with LCD Touch Screen (10”/12”)

Specifiche Tecniche
Form Factor Panel Mount, VESA 100 x 100
Physical Specifications
I/O Interface 2 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
2 USB 3.0 ports (They cannot be used at the same time.)
1 Audio Line Out (reserve)
1 HDMI interface
2 DB-9 COM1,COM2 (reserve)
1 3-pin DC power input terminal
1 2-pin connector for power on/off button (reserve)
Storage 2.5" 32G SATA3 HDD
Touch LCD Size NMS-1000V-12: 12.1” TFT-LCD
NMS-1000V-10: 10.1” TFT-LCD
Touch Type Resistive Touch Window
Projected Capacitive Touch
Display Resolution NMS-1000V-12: 1024 x 768
NMS-1000V-10: 1280 x 800
Display Luminance(cd/m²) NMS-1000V-12: 500
NMS-1000V-10: 350
Display Viewangle(H°/V°) NMS-1000V-12: 160(H)/140(V)
NMS-1000V-10: 160(H)/160(V)
Display Contrast NMS-1000V-12: 700:1
NMS-1000V-10: 800:1
Display Backlight lifetime(hrs) NMS-1000V-12: 30,000 hrs
NMS-1000V-10: 40,000 hrs
Light Transmission (%) Resistive Touch Window: over 80%
Projected Capacitive Touch: over 90%
Dimensions (W x D x H) NMS-1000V-12: 319 x 51.7 x 245 mm
NMS-1000V-10: 285 x 49 x 189 mm
Weight NMS-1000V-12: 2.9 kg
NMS-1000V-10: 2 kg
Enclosure Aluminum Die-casting Chassis
Power Requirements DC IN 9~36V
60W adapter 12V 5A with terminal block
AC 100~240V, 2.0A, 60~50Hz.
Environment & Certification
IP rating IP66 Compliant Front Bezel
Temperature Operating: 0 ~ 50 degrees C
Storage: -30 ~ 70 degrees C
Humidity 10 ~ 90% relative humidity (non-condensing)
MTBF (Hours) 100,000
Network Management
Number of Managed Devices 1,024
Number of RADIUS Client Devices 1,024
Number of RADIUS User Accounts 20,000
Auto Discovery Supports PLANET devices
Dashboard Providing the at-a-glance view of system, device summary, traffic, PoE network status
Device List Allows creation and maintenance of device profiles
Topology View Provides visual topology view of connected PLANET devices
Status Monitoring Real-time online/offline devices
Event and Syslog Report Real-time system event and syslog server supported
Event Alarm Define Allows event alarm item option
SMTP Alarm E-mail alert to the administrator via the SMTP server
Popup Alert Message Window Touch screen exclusive alert message window
SSID/RF Profile Allows creation and maintenance of multiple wireless profiles
Cluster Management Allows AP grouping for bulk provisioning and batch upgrading
Bulk AP Provisioning Supports bulk AP provisioning with user-defined profiles
Bulk AP Firmware Upgrade Supports bulk AP firmware upgrade
Coverage Heat Map Enables real signal coverage of managed AP reflecting on the uploaded zone maps
Graphical Statistics Real-time and historical visibility of wireless traffic flow
Backup/Restoration Provides system and profile backup/restoration
SSIDs-to-VLANs Mapping Allows to configure SSIDs-to-VLANs mapping in supported APs
RADIUS Authentication RADIUS server is integrated for client authentication in a large-scale enterprise network
User Account Management Supports on-demand account creation per user-defined access policy
Network Services
Network DDNS: Supports PLANET DDNS/Easy DDNS
DHCP: Built-in DHCP Server for auto IP assignment to APs
Management: Console; Telnet; SSL; Web browser (Chrome is recommended); SNMP v1, v2c, v3
Discovery: Supports SNMP, ONVIF and PLANET Smart Discovery
Maintenance Backup: System backup and restore to local or USB HDD
Reboot: Provides system reboot manually or automatically per power schedule
Diagnostic: Provides IPv4/IPv6 ping and trace route
Standards Conformance
Regulatory Compliance CE, FCC
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
