WDAP-W1200E
Access Point Wireless Dual Band In-Wall 1200Mbps 802.11Ac Wave 2 (Eu Type, 802.3At PoE, 3 10/100/1000T Lan, 1 RJ11)

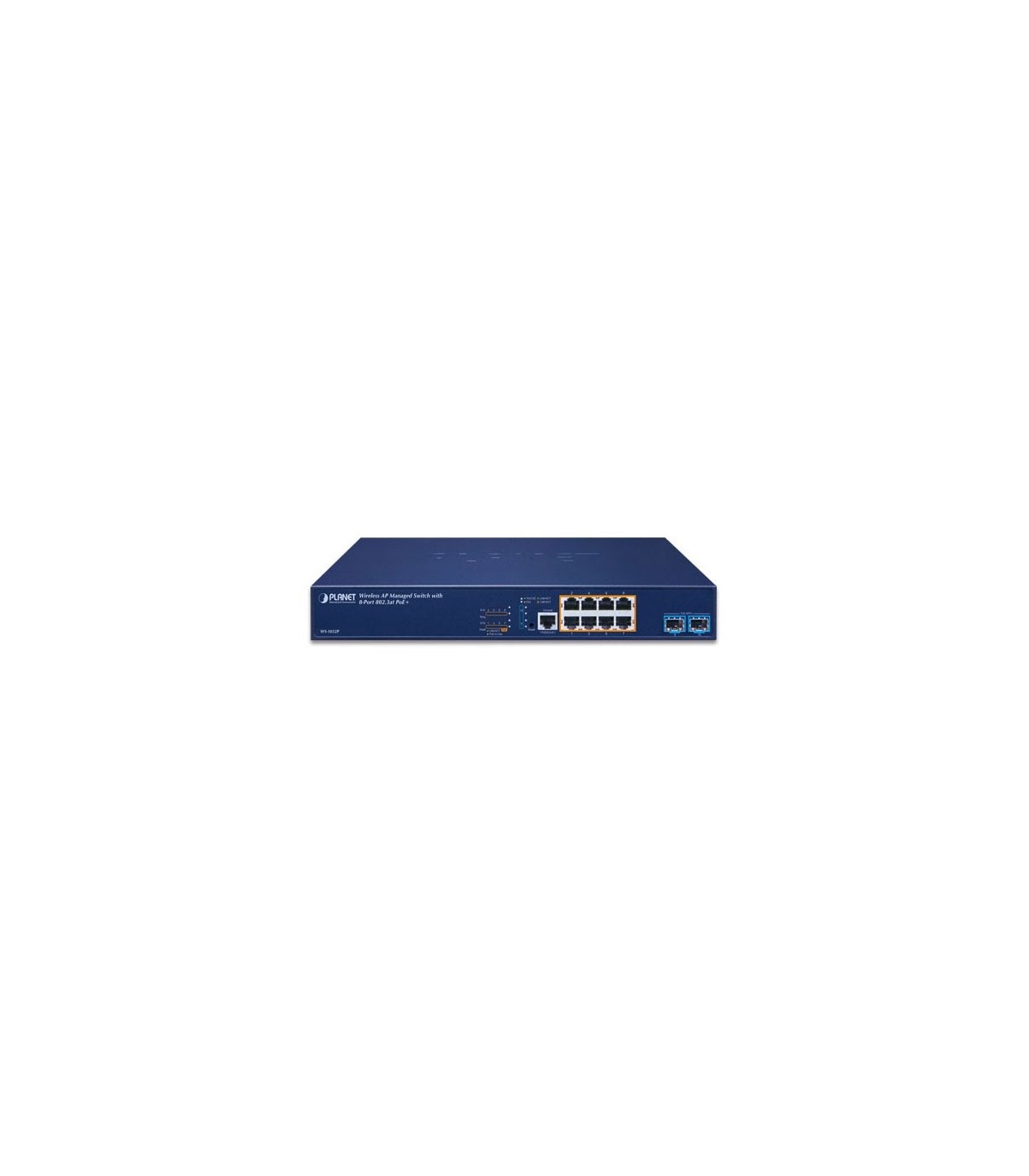

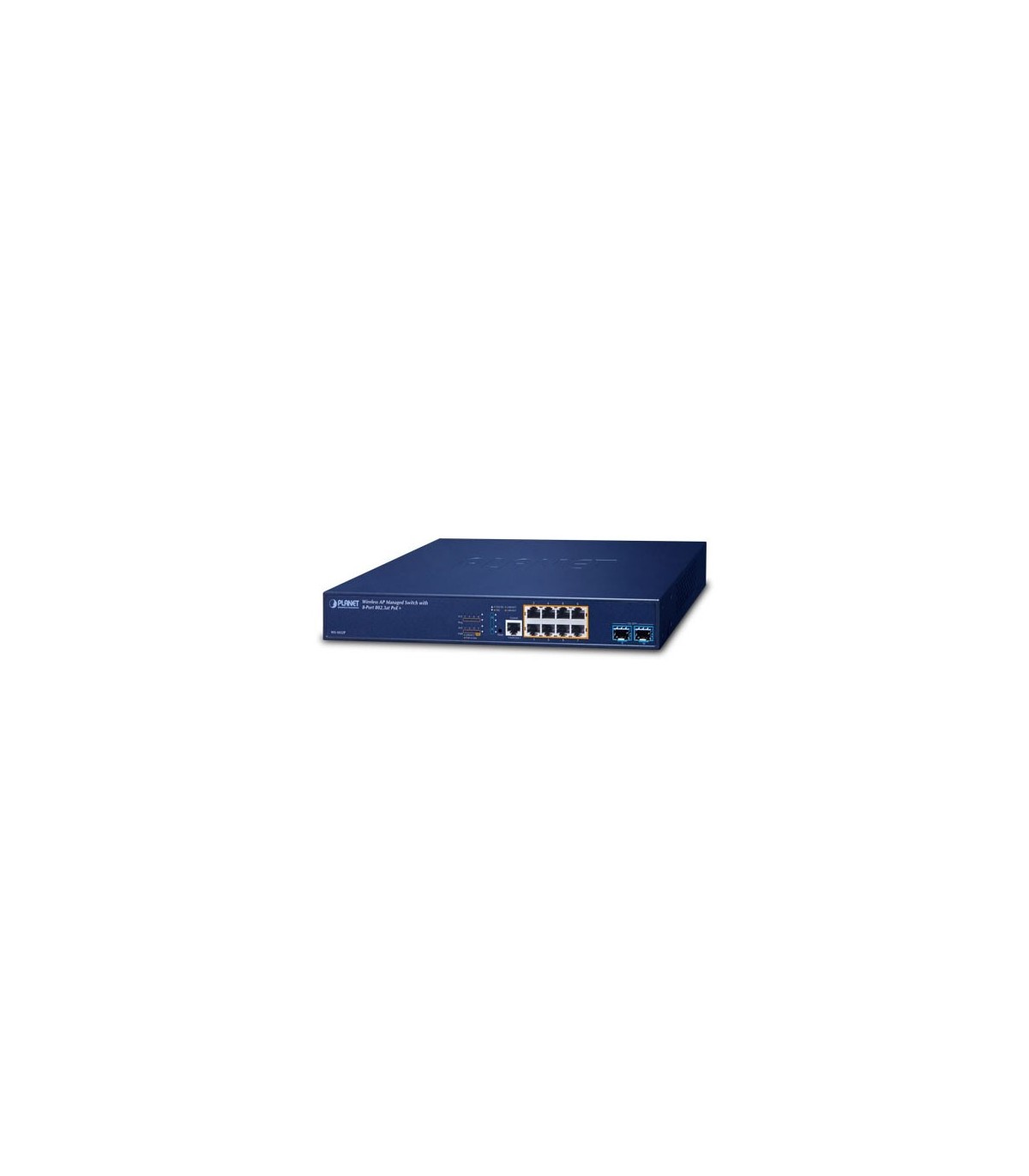

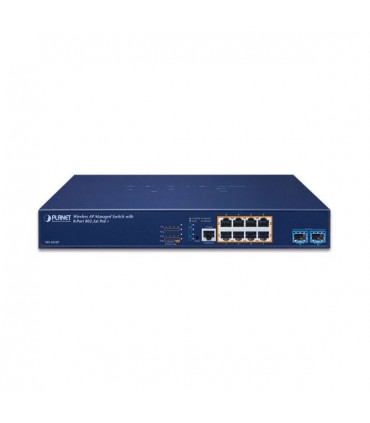

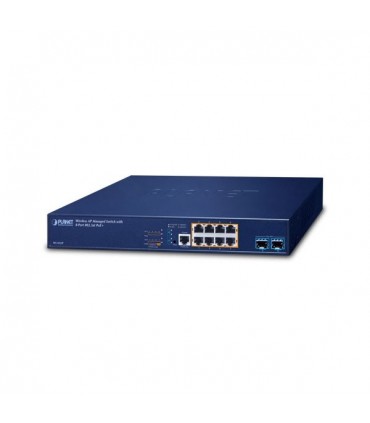

WS-1032P Wireless AP Managed Switch con 8-Porte 10/100/1000T 802.3at PoE + 2-Porte 10G SFP+ (120W PoE Budget, 200m Extend mode, AP Grouping, batch provisioning, floor map, ERPS Ring, CloudViewer app, MQTT, Cybersecurity features, Hardware Layer 3 RIPv1/v2, OSPFv2/v3 dynamic routing, supports1G, 2.5G SFP and 10G SFP+)
Specifiche Tecniche | |
---|---|
Copper Ports | 8x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X interface with Port-1 to Port-8 |
SFP Ports | 2 x 1G/2.5G/10G BASE-X SFP interfaces with Port-9 to Port-10 |
PoE Injector Port | 8 ports with 802.3at/afPoE injector function with Port-1 to Port-8 |
Console | 1 x RJ45 serial port (115200, 8, N, 1) |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
Power Requirements | 100~240V AC, 50/60Hz |
Power Consumption (Full Loading) | Max. 14.8 watts/50.47BTU (Power on without any connection) Max. 162 watts/552.42BTU (Full loading with PoE+ function) |
ESD Protection | 6KV DC |
EFT Protection | 4KV |
Dimensions (W x D x H) | 330 x 150 x 44.5mm, 1U height |
Weight | 1.6 KG |
LED | System: R.O (Green), Ring (Green), SYS (Green), PWR ((Green) 10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 8): 10/100/1000Mbps LNK/ACT (Green) PoE-in-Use (Amber)(Port 1 to Port 8) 1/2.5/10G Mbps SFP+ Interfaces (Port 9 to Port 10): 1G/2.5GLNK/ACT (Green) 10G Mbps (Amber) |
Switching | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 56 Gbps/non-blocking |
Throughput | 41.67Mpps@ 64Bytes packet |
Address Table | 8K entries, automatic source address learning and aging |
Shared Data Buffer | 4.1Mbits |
Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
Jumbo Frame | 9KB |
Wireless APManagement | |
Maximum Managed APs | 32 |
Maximum AP Groups | 10 |
Maximum APs per AP Group | 32 |
Wireless Encryption/Security | WEP encryption security WPA Personal / Enterprise (TKIP / AES) WPA2 Personal / Enterprise (TKIP / AES) Enterprise Class 802.1x |
AP Auto Discovery | Supports AP auto discovery |
Dashboard | Summarized system overview includes online AP and activated client number |
SSID/RF Profile | Allows multiple wireless profiles creation and maintenance |
Cluster Management | Allows AP grouping for bulk provisioning and batch upgrading |
Bulk AP Provisioning | Supports bulk AP provisioning with user-defined profiles |
Bulk AP Firmware Upgrade | Supports bulk AP firmware upgrade |
Coverage Heat Map | Enables real signal coverage of managed AP reflecting on the uploaded zone maps |
Status Monitoring | Real-time traffic statistics reporting of AP and activated clients |
Graphical Statistics | Real-time and historical visibility of traffic flow |
Profile Backup/Restoration | Provides SSID, radio profile backup/restoration |
SSIDs-to-VLANs Mapping | Allows to configure SSIDs-to-VLANs mapping in supported APs |
Supported Access Point Models[*] | |
Indoor AP | WDAP-C7210E WDAP-W1200E WDAP-C7200E WDAP-W750E WNAP-C3220E WNAP-W2200UE |
Outdoor AP | WDAP-850AC WDAP-802AC WBS-512AC WBS-502N WBS-202N WAP-552N WAP-252N WDAP-702AC WBS-502AC WBS-500N WBS-200N WAP-500N WAP-200N |
[*] Remarks | The supported AP models may be changed after a firmware upgrade. |
Power over Ethernet | |
PoE Standard | IEEE 802.3atPoE Plus, PSE Backward compatible with IEEE 802.3af PoE PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per port 52V DC, max. 36watts |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Budget | 120 watts (max.) @ 25 degrees C 100 watts (max.) @ 50 degrees C |
PoE Ability | PD @ 7 watts: 8 units PD @15.4 watts : 7 units PD @ 30.8 watts: 3 units |
Layer 3 Functions | |
IP Interfaces | Max. 128 VLAN interfaces |
Routing Table | Max. 128 routing entries |
Routing Protocols | IPv4 RIPv2 IPv4 OSPFv2 IPv6 OSPFv3 IPv4 hardware static routing IPv6 hardware static routing |
Layer 2 Management Functions | |
Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable/enable |
Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
Port Mirroring | TX/RX/Both Many-to-1 monitor Supports up to 5 sessions |
VLAN | IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 4K VLAN groups, out of 4094 VLAN IDs |
Link Aggregation | IEEE 802.3ad LACP/static trunk Supports 5 trunk groups with 10 ports per trunk |
IGMP Snooping | IPv4 IGMP (v1/v2/v3) Snooping, up to 255 multicast groups IPv4 IGMP Querier mode support |
MLD Snooping | IPv6 MLD (v1/v2) Snooping, up to 255 multicast groups IPv6 MLD Querier mode support |
Ring | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 10ms @ 3 nodes Recovery time <50ms @ 16 nodes Supports Major ring and sub-ring |
Access Control List | IP-based ACL/MAC-based ACL Up to 256 entries |
Bandwidth Control | Per port bandwidth control Ingress: 10Kbps~13000Mbps Egress: 10Kbps~13000Mbps |
QoS | Traffic classification based, strict priority and WRR 8-level priority for switching Port number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP packet |
Security Functions | |
Access Control List | IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority Up to 256 entries |
Security | Port Security IP source guard Dynamic ARP inspection Command line authority control based on user level |
AAA | RADIUS client TACACS+ client |
Network Access Control | IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication |
Switch Management | |
Basic Management Interfaces | Console; Telnet Web browser SNMP v1, v2c |
Secure Management Interfaces | SSHv2, TLSv1.2, SNMPv3 |
System Management | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility PLANET CloudViewer app |
Event Management | Remote Syslog Local System log SMTP |
SNMP MIBs | RFC1213 MIB-II RFC 2863 IF-MIB RFC 1643 Ethernet MIB RFC2863 Interface MIB RFC2665 Ether-Like MIB RFC2737 Entity MIB RFC2819 RMON MIB (Groups 1, 2, 3 and 9) RFC2618 RADIUS Client MIB RFC3411SNMP-Frameworks-MIB IEEE802.1X PAE LLDP MAU-MIB Power over Ethernet MIB |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3z 1000BASE-SX/LX IEEE 802.3ab 1000BASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE802.3x flow control and back pressure IEEE802.3ad port trunk with LACP IEEE802.1D Spanning Tree Protocol IEEE802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE802.1p Class of Service IEEE802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 RFC 2453 RIP v2 ITU-T G.8032 ERPS Ring |
Environments | |
Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Storage | Temperature: -10 ~ 70degrees C Relative Humidity:5 ~ 95% (non-condensing) |
