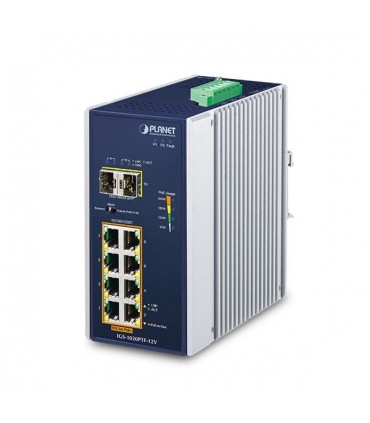

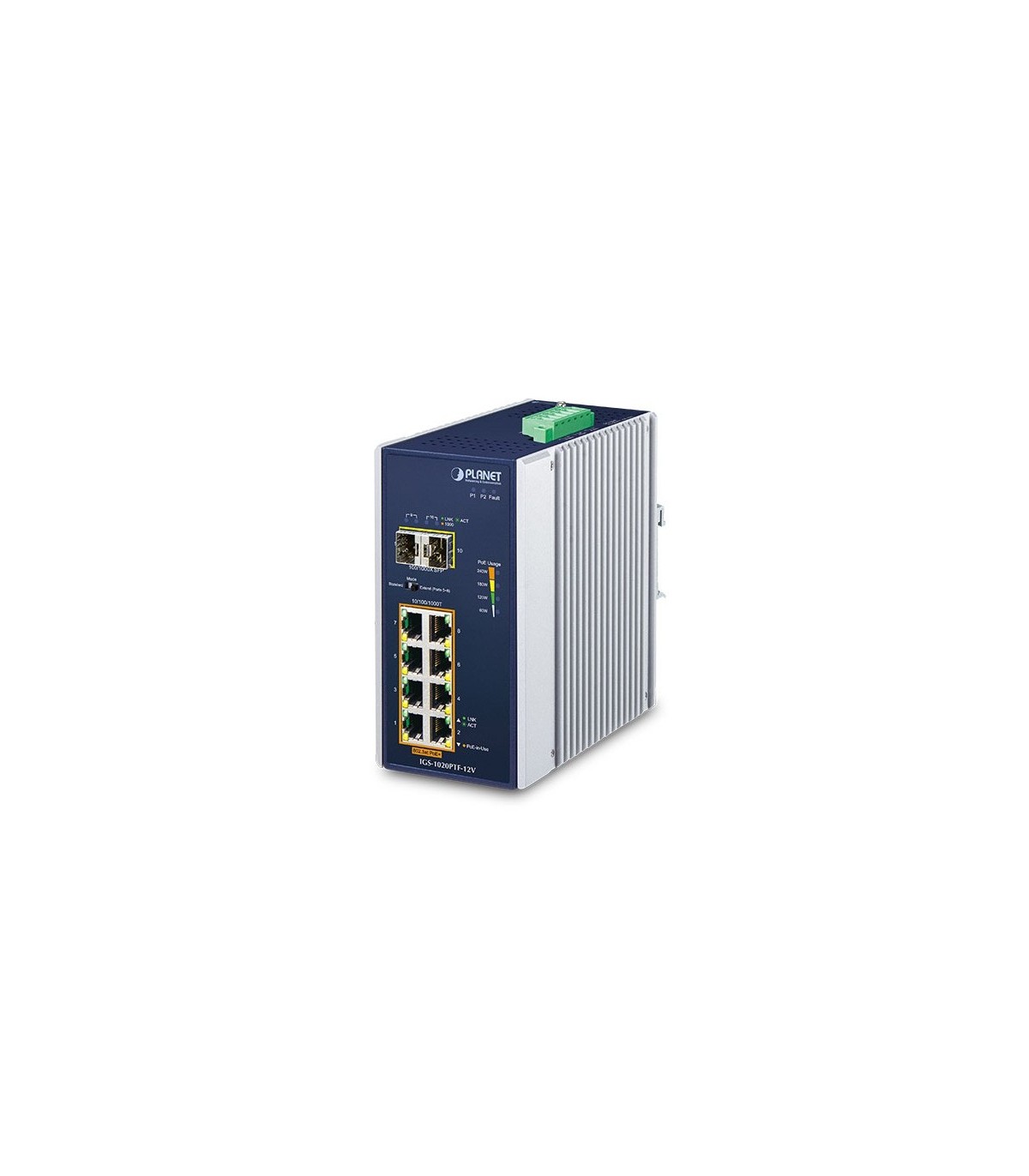

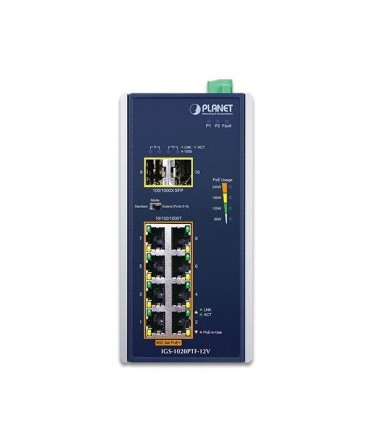

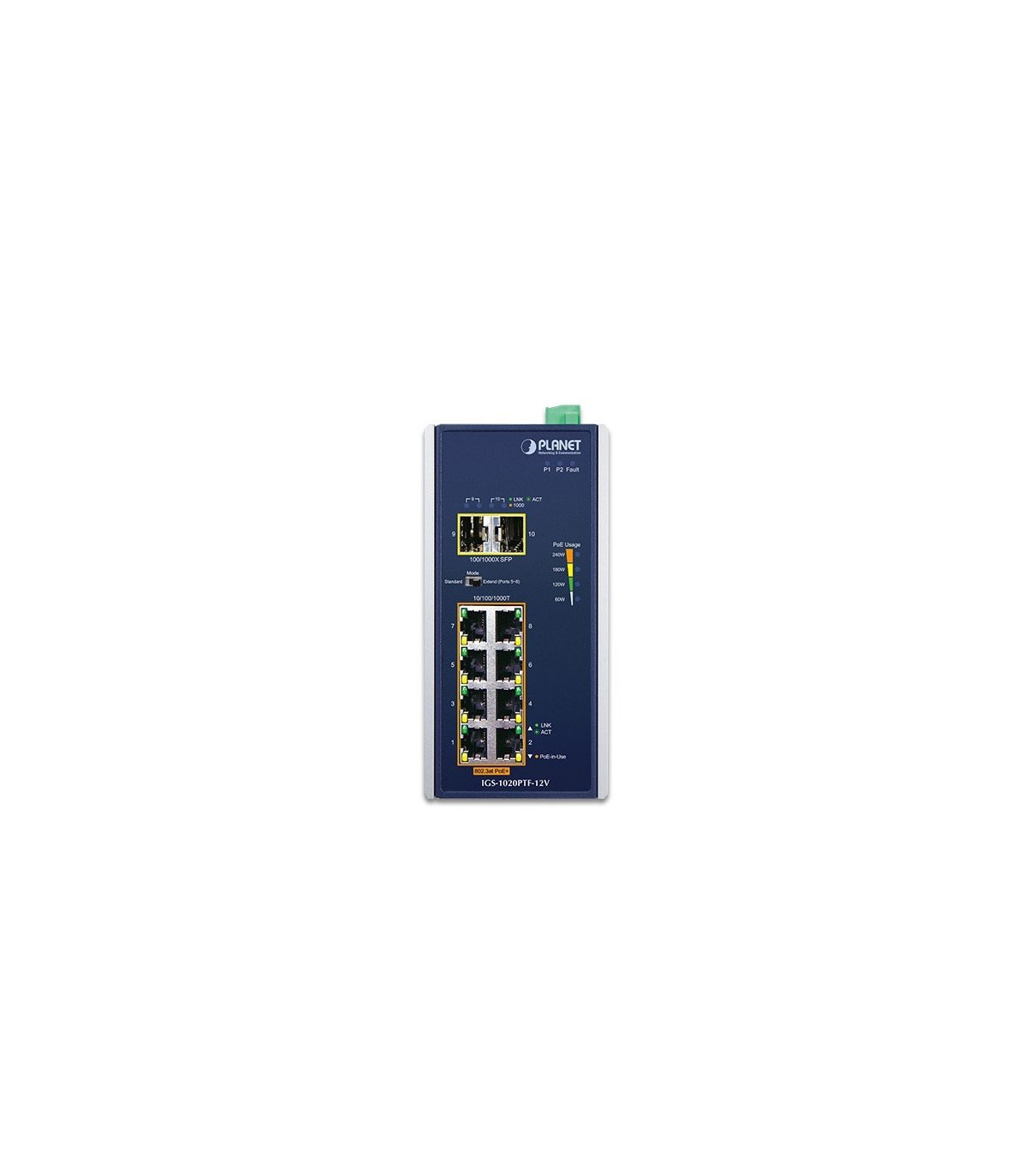

Switch Unmanaged 8-Porte 10/100/1000T 802.3At Poe + 2-Porte 100/1000X Sfp Con Booster 12V (-40 A 75°C)
Riferimento:IGS-1020PTF-12V
IGS-1020PTF-12V Switch Unmanaged 8-Porte 10/100/1000T 802.3at PoE + 2-Porte 100/1000X SFP con Booster 12V (-40 a 75°C)
| Specifiche Tecniche | |
|---|---|
| Copper Ports | 8 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| PoE Injector Ports | 8 ports with 802.3at PoE+ injector function (Ports 1 to 8) |
| SFP Slots | 2 1000BASE-SX/LX/BX SFP interfaces (Ports 9 to 10) Compatible with 100BASE-FX SFP |
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| DIP Switch | Standard/Extend mode (Extend mode for Ports 5 to 8 only) |
| LED Indicators | 3 x LED for System and Power: Green: DC Power 1 Green: DC Power 2 Red: Power Fault Alarm 8 x LED for PoE Copper Port (Ports 1 to 8): Green: LNK/ACT (10/100/1000Mbps) Amber: PoE-in-Use 2 x LED for 100/1000X Fiber Port (Ports 9 to 10): Green: LNK/ACT (100/1000Mbps) Amber: 1000Mbps 4 x LED for PoE Usage Amber: 60W, 120W, 180W and 240W |
| Power Requirements | 12~56V DC, 6A (max.) |
| Power Consumption | Max. 5.6 watts/19BTU@56V DC input (System) Max. 8.4 watts/29BTU@56V DC input (Ethernet Full Loading) Max. 252.1 watts/860BTU@56V DC input (Ethernet + PoE Full Loading) |
| Dimensions (W x D x H) | 77 x 106 x 152mm |
| Weight | 1164g |
| Enclosure | IP30 aluminum case |
| Installation | DIN-rail/ wall-mount |
| ESD Protection | 6KV |
| Switch Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20Gbps |
| Throughput (packet per second) | 14.8Mpps@64bytes |
| Address Table | 8K entries |
| Buffer Memory | 4M bits on-chip buffer memory |
| Jumbo Frame | 9Kbytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2 (+), 3/6 (-) |
| PoE Power Output | Per port 54V DC Max. 30 watts |
| PoE Power Budget (max.) | 240W maximum @54V DC 120W maximum@24V DC 60W maximum@12V DC |
| Max. Number of Class 3 PDs@25W | 8 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
