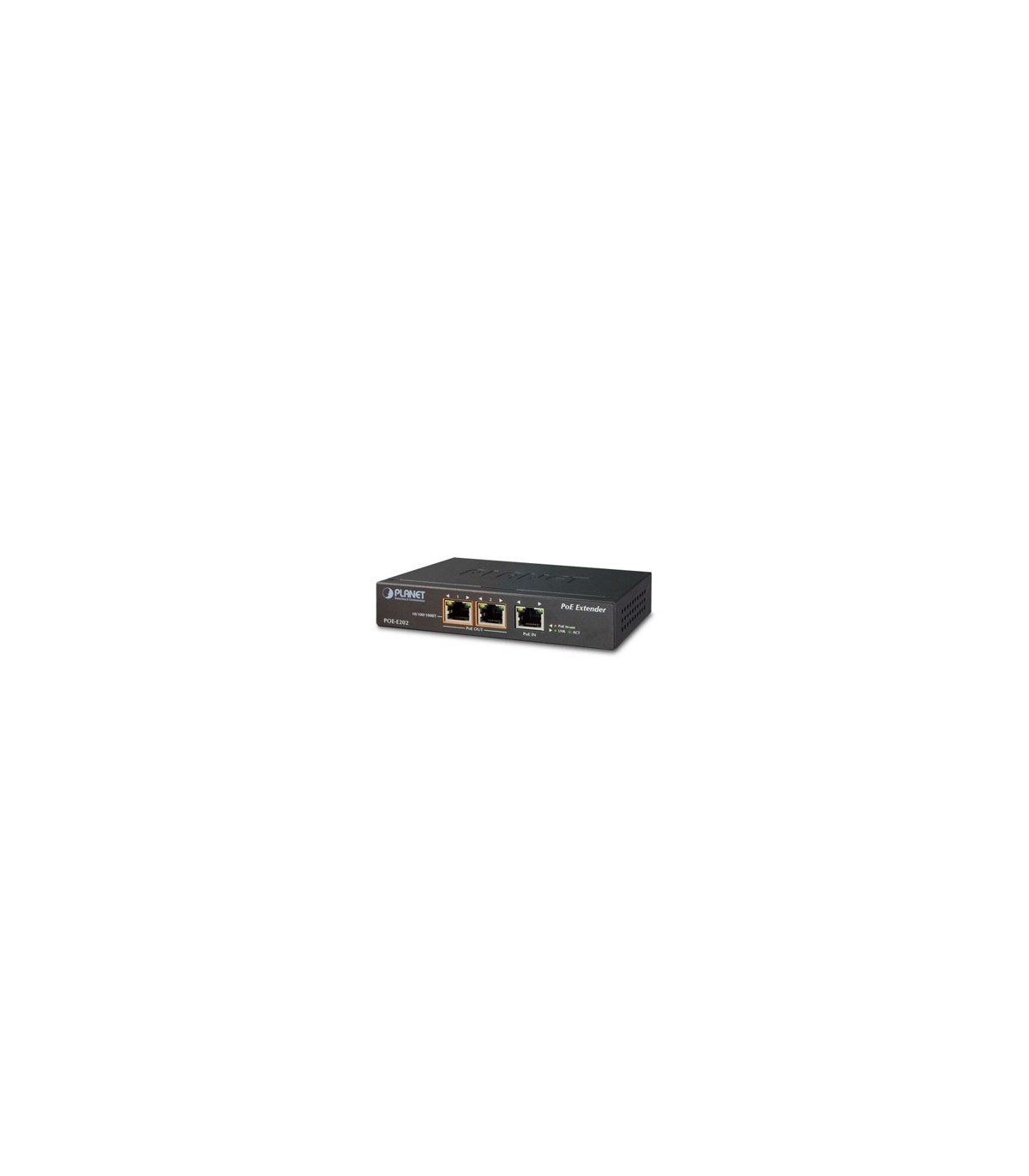

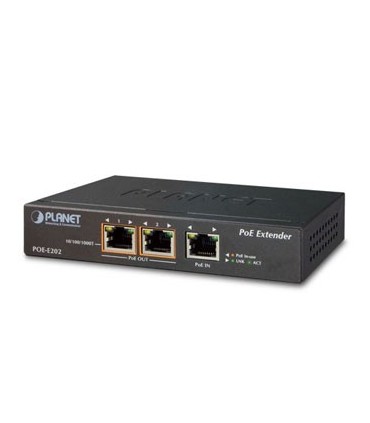

PoE-E202: POE EXTENDER 100MT Ingresso 1 Porta POE802.3AT - Uscita 2 Porte POE802.3AF
Il PoE-E202 di Planet Technology è un extender PoE robusto e affidabile, progettato per estendere la portata dell'alimentazione PoE standard (PoE+) fino a 100 metri su un singolo cavo Ethernet, superando i limiti di 100 metri degli switch PoE tradizionali. Questo lo rende ideale per alimentare dispositivi PoE distanti come telecamere IP, access point wireless e telefoni VoIP, anche in situazioni dove non è possibile installare uno switch PoE nelle vicinanze.
Caratteristiche principali:
- Estensione PoE+ fino a 100 metri: Alimenta due dispositivi PoE standard (fino a 15 watt ciascuno) o un dispositivo PoE+ a media potenza (fino a 25 watt) a distanza con un singolo cavo Ethernet Cat.5e/6.
- Design compatto e robusto: Installazione semplice a parete per adattarsi a diversi ambienti.
- Plug-and-play: Facile da configurare e utilizzare senza software aggiuntivo.
- Ampia compatibilità: Funziona con la maggior parte dei dispositivi PoE IEEE 802.3af/at.
- Indicatori LED: Visualizza lo stato di alimentazione, attività PoE e connessione per un facile monitoraggio.
- Affidabile: Protezioni ESD e surge integrate per un funzionamento sicuro.
Vantaggi:
- Estende la portata del PoE: Alimenta dispositivi distanti senza bisogno di switch PoE aggiuntivi.
- Facile da installare: Design compatto e plug-and-play per una configurazione rapida.
- Versatile: Adatto a diversi scenari applicativi con dispositivi PoE standard e PoE+.
- Monitoraggio semplice: Indicatori LED per tenere sotto controllo il funzionamento del dispositivo.
- Sicuro e affidabile: Protezioni integrate per garantire la sicurezza dei dispositivi collegati.
Applicazioni:
- Reti in edifici aziendali
- Videosorveglianza IP con telecamere remote
- Reti wireless con access point distanti
- Reti Voce su IP con telefoni IP remoti
- Automazione industriale con sensori e attuatori PoE
Specifiche Tecniche | |
PoE IN | 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE “Data + DC power” in auto MDI/MDI-X, auto-negotiation RJ45 connector |
PoE OUT | 2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data + DC power” out auto MDI/MDI-X, auto-negotiation RJ45 connector |
Power over Ethernet | |
PoE Standard | “PoE In” Port IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD Per “PoE Out” Port IEEE 802.3at Power over Ethernet Plus end-span PSE IEEE 802.3af Power over Ethernet end-span PSE |
PoE Power Supply Type | End-span (Type A) |
PoE Power | “PoE In” Port 52~56V DC, max. 30.8 watts Per “PoE Out” Port 44~55V DC, max. 25 watts |
Power Pin Assignment | “PoE In” Port 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) Per “PoE Out” Port 1/2 (+), 3/6 (-) |
Hardware Specifications | |
Data Rate | 10/100/1000Mbps |
MAC Address Table | 2K |
Data Buffer | 2Mbits |
Switch Architecture | Store-and-Forward |
Switch Fabric | 6Gbps |
Switch Throughput | 4.46Mpps @ 64 bytes |
Jumbo Frame | 10KB |
Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
LED Indicators | “PoE In” Port: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green) “PoE Out” Port 1: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green) “PoE Out” Port 2: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green) |
Protection | ESD (Ethernet): 2KV (TBD) Surge (EFT for power) : 2KV (TBD) |
Enclosure | Metal |
Installation | Wall mountable |
Dimensions (W x D x H) | 140 x 77 x 28 mm |
Weight | 234g |
Power Requirements | IEEE 802.3at compliant with voltage within 52V-56V DC |
Power Consumption | 1.6 watts/5.5BTU (System on with PoE input) 2.2 watts/7.5BTU (Ethernet full loading without PoE function) 36 watts/122.8BTU (Full loading with PoE function) |
Network Cable | 10BASE-T: 4-pair UTP Cat. 5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat. 5 up to 100m (328ft) 1000BASE-T: 4-pair UTP Cat. 5e, 6, up to 100m (328ft) EIA/TIA-568 100-ohm STP (100m, 328ft) |
Standard Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standard Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3x Flow Control |
Environment | |
Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
