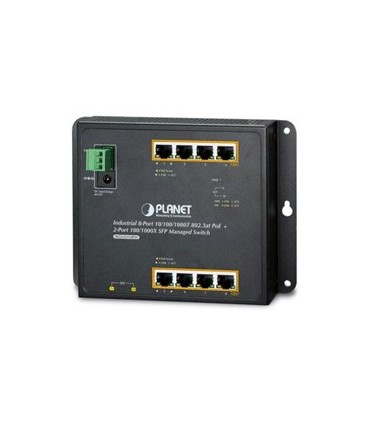

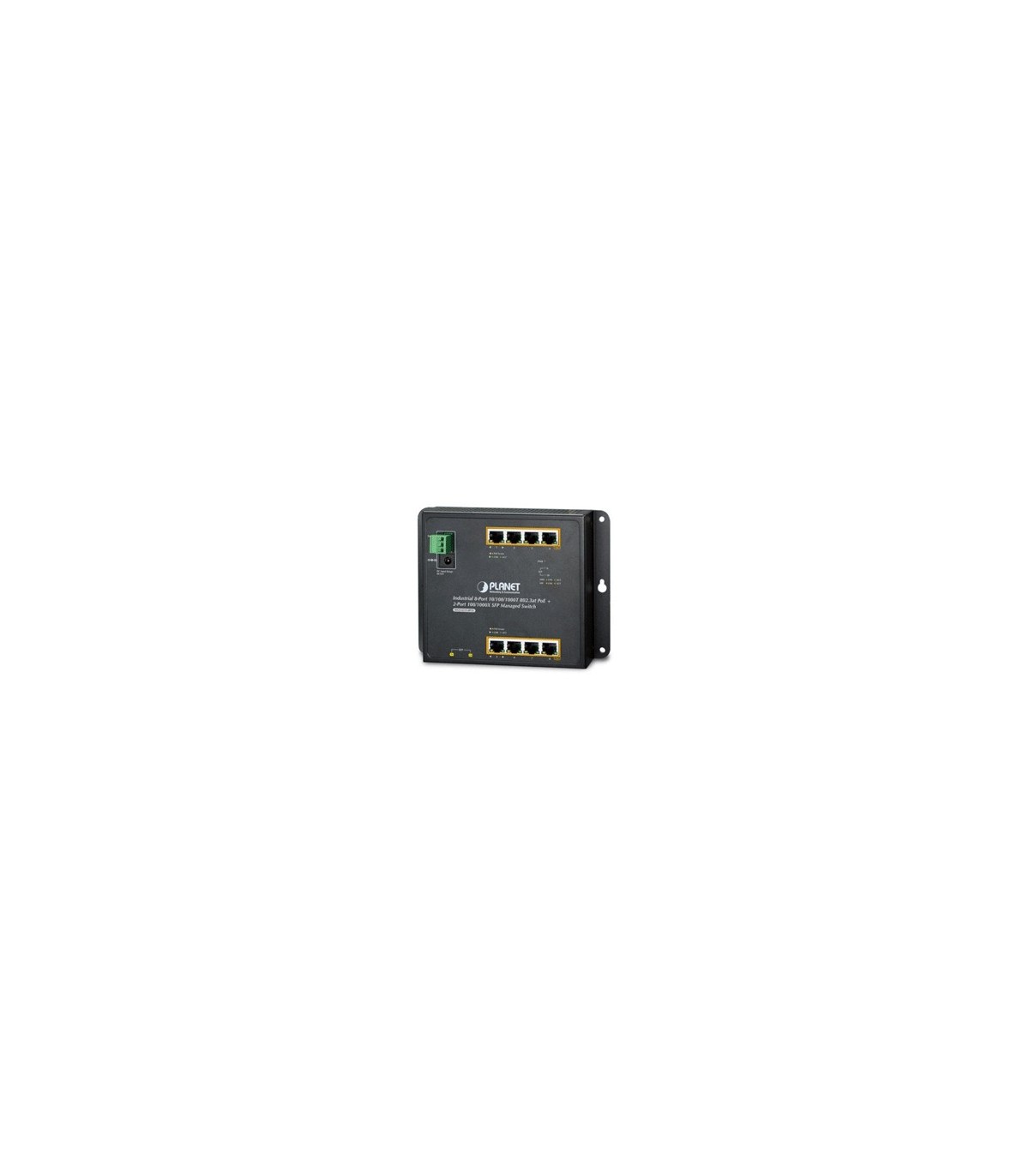

Planet WGS-4215-8P2S: Switch Industriale Gigabit L2/L4 8 Porte PoE+ e 2 Porte SFP IP30

Riferimento:WGS42158P2S

WGS-4215-8P2S: Switch Gigabit L2/L4 8-Porte 10/100/1000-T 802.3At PoE

Descrizione



WGS-4215-8P2S: Switch Gigabit L2/L4 8 Porte 10/100/1000-T 802.3at PoE + 2 Porte 100/1000-X SFP IP30 (-40 a 75°C) + Alimentazione Ridondante 48V

Il WGS-4215-8P2S di Planet Technology è uno switch PoE Gigabit L2/L4 a 8 porte 10/100/1000T robusto e affidabile, progettato per applicazioni industriali con condizioni operative difficili. Offre funzionalità PoE+ avanzate, gestione Layer 2/L4 completa e un robusto design industriale IP30 per temperature estreme da -40 a 75°C.

Caratteristiche principali:

  • 8 porte PoE+ Gigabit: Alimenta fino a 7 dispositivi PoE a media potenza (36 watt) o 8 dispositivi standard (15 watt) con un budget totale di 200 watt.

  • 2 slot SFP Gigabit: Espandi la rete a connessioni in fibra ottica ad alta velocità.

  • Gestione Layer 2/L4: VLAN, QoS, ACL, IGMP/MLD snooping e altre funzioni per ottimizzare il traffico e la sicurezza.

  • Doppio ingresso di alimentazione: Funzionamento continuo anche in caso di interruzione di un alimentatore.

  • Design industriale robusto: Resistente a temperature estreme, vibrazioni, shock e scariche elettrostatiche.

  • Versatile: Montaggio a parete, magnetico o su guida DIN per adattarsi a diverse installazioni.

  • Gestione completa: Web, Telnet e SNMP v1/2c/3 per un controllo completo.

Vantaggi:

  • Prestazioni potenti: PoE+ integrato, connessioni Gigabit e gestione avanzata per reti esigenti.

  • Affidabilità elevata: Design robusto, doppio ingresso di alimentazione e funzionamento in temperature estreme.

  • Versatile: Adatto a diverse applicazioni industriali con esigenze di networking complesse.

  • Gestione semplice: Configura e monitora lo switch facilmente in remoto o localmente.

  • Sicurezza avanzata: Proteggi la tua rete con funzioni Layer 2/L4 e crittografia.

Applicazioni:

  • Automazione industriale

  • Reti SCADA

  • Videosorveglianza IP

  • Reti wireless industriali

  • Traffico intelligente

  • Edifici intelligenti



Specifiche Tecniche
Copper Ports Eight 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
PoE Inject Port Eight with 802.3at PoE+ injector function (Port-1 to Port-8)
SFP/mini-GBIC Slots Two 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode
Switch Architecture Store-and-Forward
Switch Fabric 20Gbps/non-blocking
Switch Throughput@64 bytes 14.8Mpps @64 bytes
MAC Address Table 8K entries
Shared Data Buffer 4.1 megabits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 10KB
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
LED Power LED: Power (Green)
PoE Port (Port-1 to Port-8):
 PoE-in-Use (Orange)
 LNK/ACT (Green)
100/1000X SFP Ports (Port 9 to Port 10):
 1000 LNK/ACT (Green)
 100 LNK/ACT (Orange)
Connector ■ Removable 3-pin terminal block for power input
- Pin 1/2 for Power (Pin 1: V+/Pin 2: V-)
- Pin 3 for earth ground
■ DC power jack with 2.0mm central pole
Power Requirements 48~56V DC, 5A (max.) terminal block power input
48~56V DC, 5A (max.) DC jack power input
Note: The two power input interfaces don’t support power redundant function.
Power Consumption/ Dissipation Max. 210 watts/716 BTU
Dimensions (W x D x H) 178 x 25 x 134 mm
Weight 640g
ESD Protection Contact Discharge 6KV DC
Air Discharge 8KV DC
Enclosure Metal
Installation Fixed wall mount, magnetic wall mount or DIN rail
Power over Ethernet
PoE Standard IEEE 802.3af/802.3at Power over Ethernet PSE
PoE Power Supply Type End-span
PoE Power Output ■ IEEE 802.3af Standard
 - Per port 48V~56V DC (depending on the power supply), max. 15.4
 watts
■ IEEE 802.3at Standard
 - Per port 50V~56V DC (depending on the power supply), max. 36 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 200 watts (depending on power input)
Max. Number of Class 2 PDs 8
Max. Number of Class 3 PDs 8
Max. Number of Class 4 PDs 7
Layer 2 Functions
Port Mirroring TX/RX/Both
Many-to-1 monitor
VLAN 802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN
Link Aggregation IEEE 802.3ad LACP and static trunk
Supports 1 groups with 2 SFP ports per trunk
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU guard, BPDU filtering and BPDU forwarding
IGMP Snooping IPv4 IGMP (v2/v3) snooping
IGMP querier
Up to 256 multicast groups
MLD Snooping IPv6 MLD (v1/v2) snooping, up to 256 multicast groups
Access Control List IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
QoS 8 mapping IDs to 8 level priority queues
- Port Number
- 802.1p priority
- DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control
Security IEEE 802.1X port-based authentication
Built-in RADIUS client to cooperate with RADIUS server
RADIUS/TACACS+ authentication
IP-MAC port binding
MAC filtering
Static MAC address
DHCP snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Storm control support
Broadcast/Unknown unicast/Unknown multicast
Management Functions
Basic Management Interfaces Web browser; Telnet; SNMP v1, v2c, v3
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
Configuration upload/download through HTTP/TFTP
Remote/Local Syslog
System log
LLDP protocol
SNTP
PLANET Smart Discovery Utility
Secure Management Interfaces SSH, SSL, SNMP v3
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Accessories
Standard Accessories ■ Quick Installation Guide x 1
■ 3-pin Terminal Block Connector x 1
■ Wall-mounted Kit x 1
■ DIN-rail Kit x 1
■ Magnet Kit x 1
■ RJ45 Dust Cap x 8
■ SFP Dust Cap x 2
