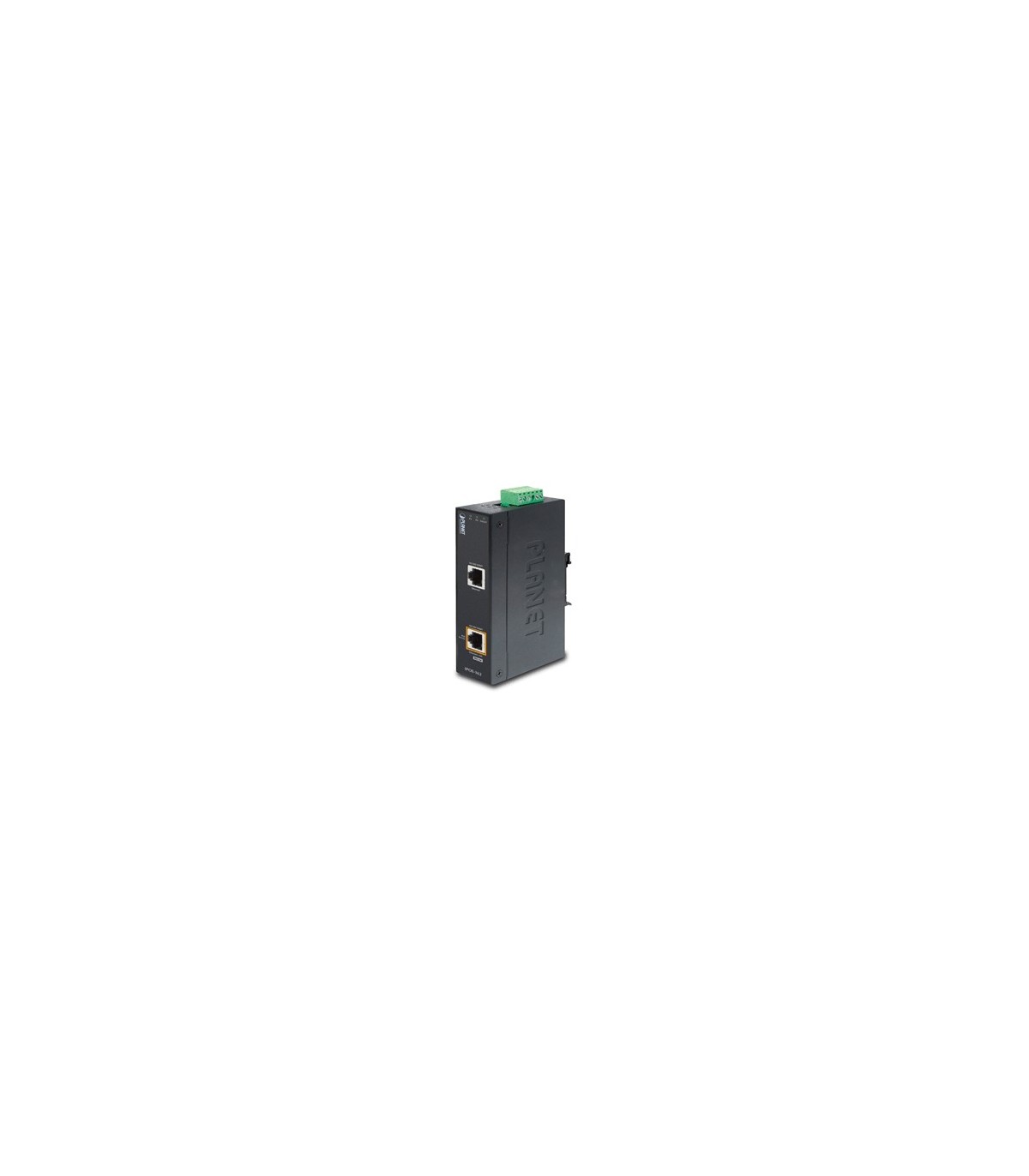

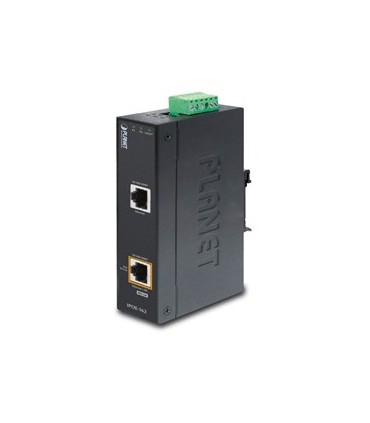

IPOE-162 Injector PoE (30W) 802.3at - IP30 (-40 to 75 C)
L'IPOE-162 di Planet Technology è un iniettore PoE industriale, ideale per alimentare in modo efficiente dispositivi come access point wireless, telecamere IP, telefoni VoIP e altri dispositivi PoE, anche in ambienti con condizioni operative difficili. Conforme allo standard IEEE 802.3at PoE+, può erogare fino a 30 watt di potenza per dispositivo su un singolo cavo Ethernet, semplificando l'installazione e riducendo la necessità di prese di corrente aggiuntive.
Caratteristiche principali:
Vantaggi:
Applicazioni:
Specifiche tecniche | |
Interface | “Data” Input Port: 1 x RJ-45 STP “PoE (Data+Power)” Output Port: 1 x RJ-45 STP Input power terminal block: 1 |
LED Indicator | System: Power 1, Power 2, Fault (Green) PoE Port: PoE in Use x 1 (Green) |
Network Cable | 10Base-T: UTP Cat. 3, 4, 5, up to 100m (328ft) 100Base-TX: UTP Cat. 3, 4, 5, up to 100m (328ft) 1000Base-T: UTP Cat. 5, 5e, 6 up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m) |
Data Rate | 10/100/1000Mbps |
Dimension (W x D x H) | 135 x 87.8 x 32 mm |
Weight | 473g |
Unit Input Voltage | 24 ~ 48V DC 24V AC |
Power Consumption | 30 Watts max. |
Number of device can be powered | 1 |
Installation | DIN Rail kit and Wall Mount ear |
Alarm | Provides one relay output for power fail, Alarm Relay current carry ability: 3A @ DC 30V |
Enclosure | IP30 Slim Type Metal Case |
Power over Ethernet | |
PoE Standard | IEEE 802.3at High Power over Ethernet / Mid-Span PSE |
PoE Power Output | DC 56V / 30 Watts |
PoE Power supply Type | Mid-Span |
Power Pin Assignment | 4/5(+), 7/8(-) |
Standards Conformance | |
Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet enhancement standard |
FCC | FCC Part 15B Class A |
CE | EMI: ■ EN 55022 ■ EN 61000-3-2 ■ EN 61000-3-3 EMS: ■ EN 61000-4-2 (ESD) ■ EN 61000-4-3 (RS) ■ EN 61000-4-4 (EFT) ■ EN 61000-4-5 (Surge) ■ EN 61000-4-6 (CS) ■ EN 61000-4-8 (PFMF) |
Stability Testing | IEC60068-2-32(Free Fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration) |
Environment | |
Operating Temperature | -40 ~ 75 Degree C |
Storage Temperature | -40 ~ 85 Degree C |
Humidity | 5 ~ 95% (Non-condensing) |
