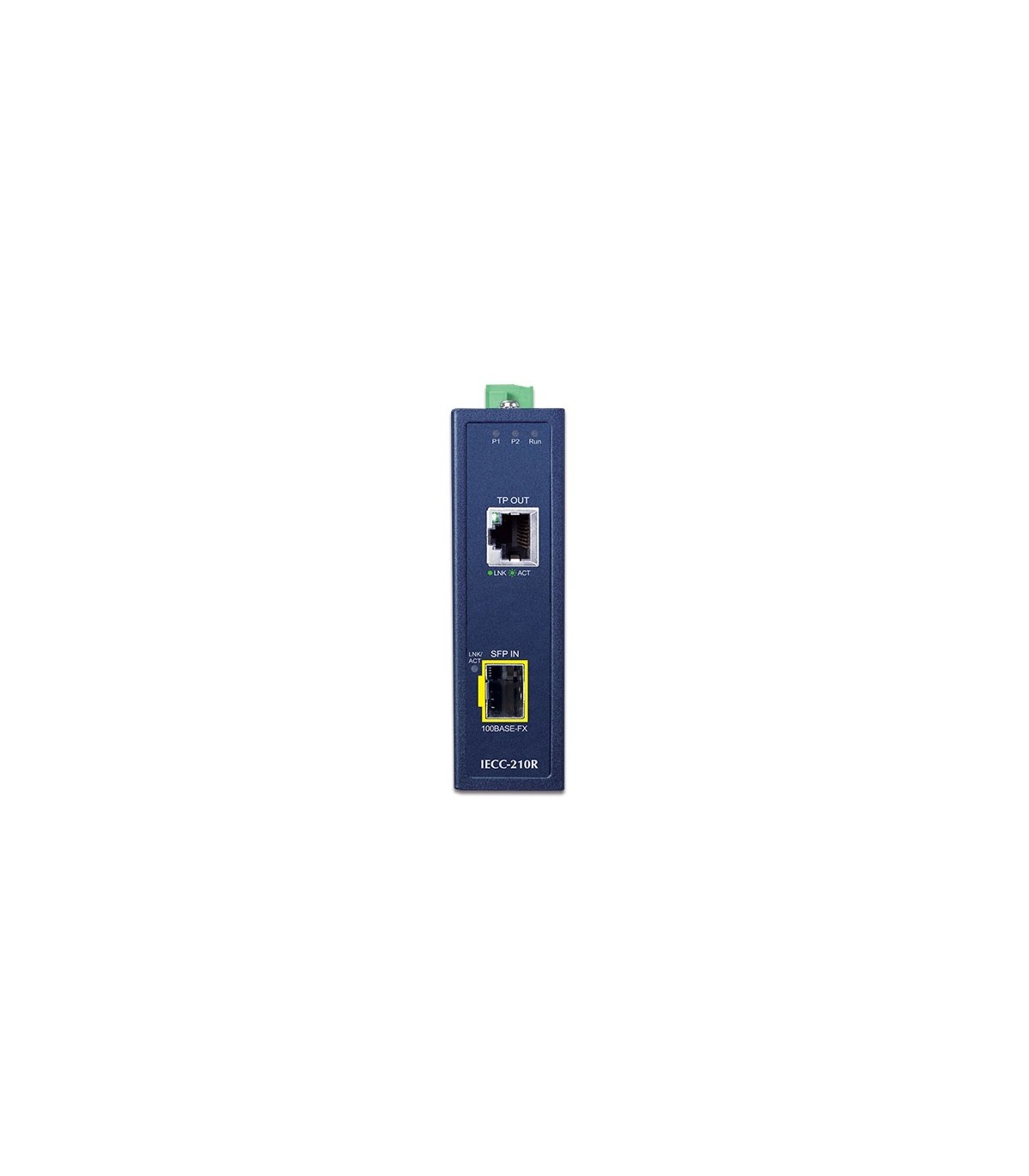

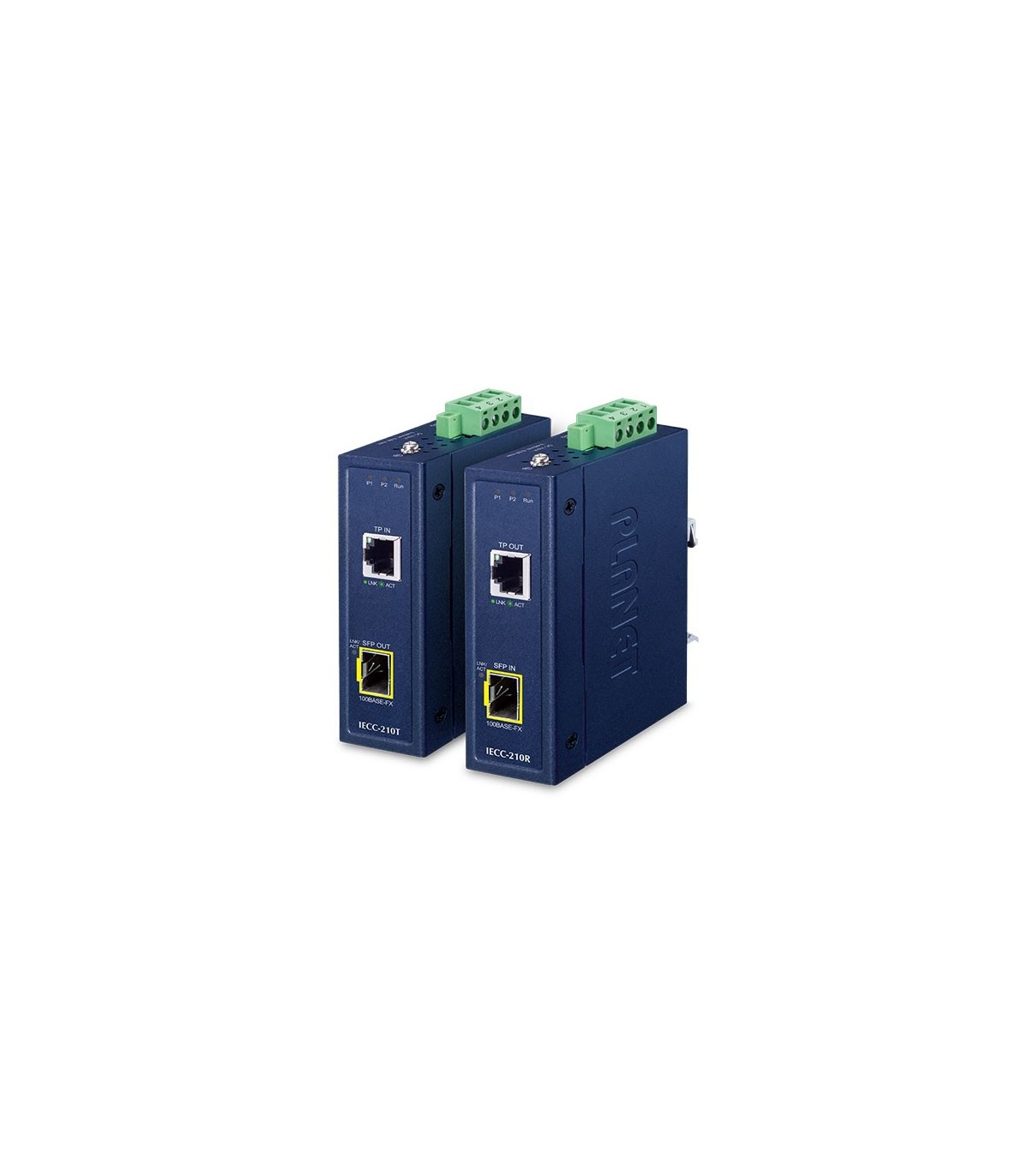

Industrial Ethercat Media Converter Kit (Iecc-210T + Iecc-210R, -40~75 Degrees C, Dual 9~48V Dc, 1 X 100Tx Rj45, 1 X 100Fx Sfp)
Riferimento:IECC-210-KIT
Industrial Ethercat Media Converter Kit (Iecc-210T + Iecc-210R, -40~75 Degrees C, Dual 9~48V Dc, 1 X 100Tx RJ45, 1 X 100Fx SFP)
IECC-210T-KIT Industrial EtherCAT Media Converter Kit (IECC-210T + IECC-210R, -40~75 degrees C, Dual 9~48V DC, 1 x 100TX RJ45, 1 x 100FX SFP, BECKHOFF EtherCAT conformance test tool verified)
| Specifiche Tecniche | |
|---|---|
| Copper | Port：1 x 100BASE-TX RJ45 port Distance： between Stations max. 100 m (100BASE-TX) Data Transfer Medium：Ethernet/EtherCAT cable (min. cat5), shielded |
| Filer | Port：1 x 100BASE-FX SFP port Distance between Stations：Depending on the ability of SFP module Data Transfer Medium：Depending on the ability of SFP module |
| EtherCAT | |
| Protocol | EtherCAT |
| Power | |
| Input Voltage Range | 9~48V DC |
| Power Consumption | 1.92W max. |
| Mechanical | |
| Dimensions (W x D x H) | 33 x 70 x 104mm |
| Installation | DIN-rail and wall mounting |
| Case Material | IP30 metal |
| Environment | |
| Operating Temperature | -40~75 degrees C |
| Storage Temperature | -40~75 degrees C |
| Relative Humidity | 5~95% (non-condensing) |
