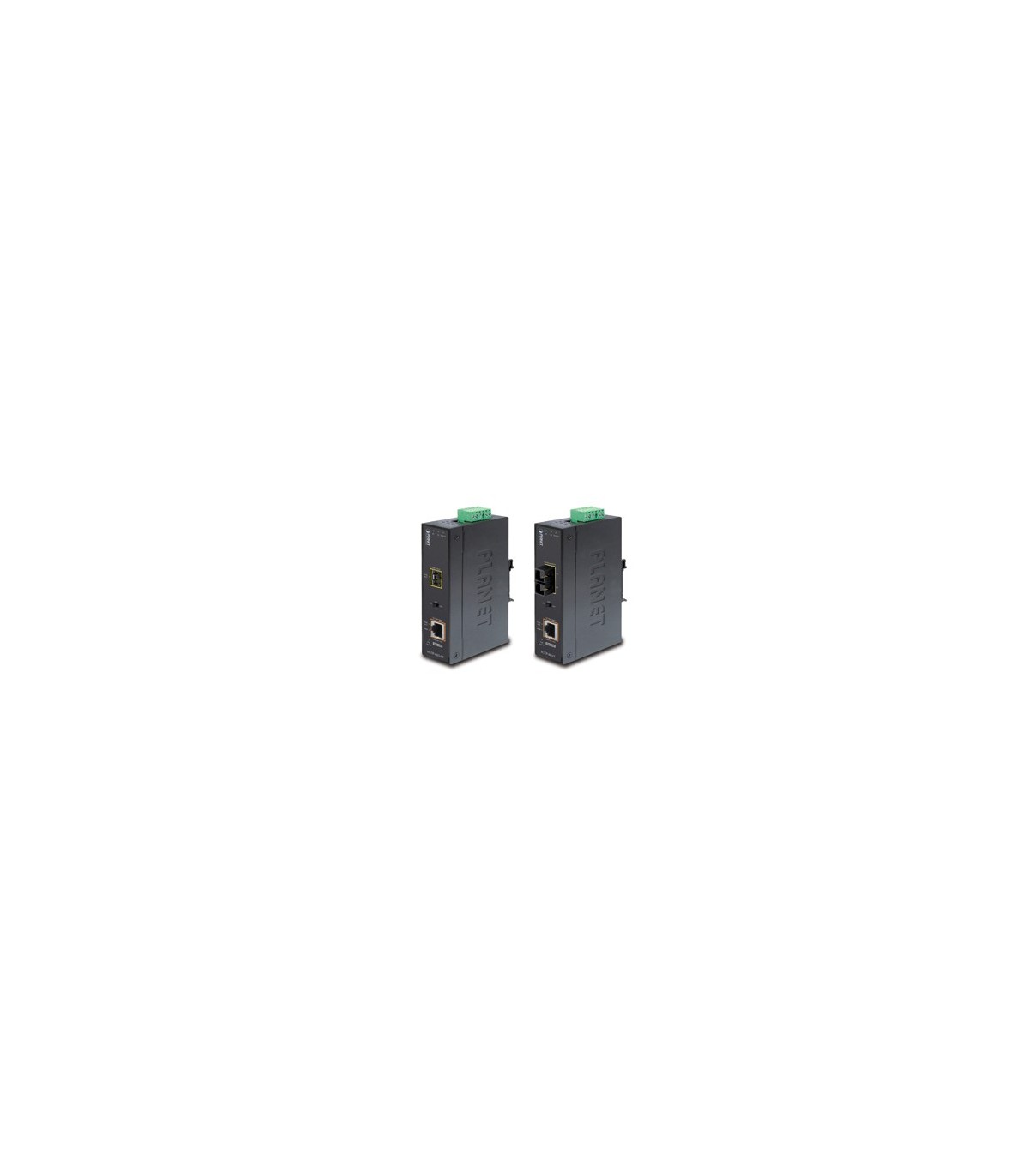

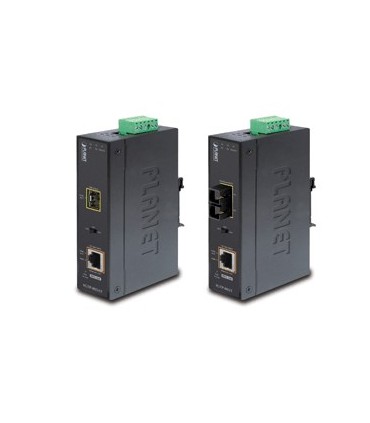

IGTP-802T - Media Converter Gigabit PoE 10/100/1000Base-T a 1000Base-SX - 802.3af - IP30 (-40 a 75°C)
Specifiche Hardware | |||
Model | IGTP-80xT Series | ||
10/100/1000Base-T Port | 1-Port RJ-45 interface, auto-negotiation and auto MDI / MDI-X | ||
1000Base-X Fiber Interface | IGTP-802T: SC IGTP-802TS: SC IGTP-805AT: SFP (LC) |
||
Fiber Cable | IGTP-802T Multi-mode: 50/125um or 62.5/125um optic fiber IGTP-802TS Single-mode: 9/125um optic fiber IGTP-805AT Vary on SFP Module |
||
Cable Distance | IGTP-802T: 220m / 550m IGTP-802TS: 10km IGTP-805AT: Vary on SFP Module |
||
Optical Frequency | IGTP-802T: 850nm IGTP-802TS: 1310nm IGTP-805AT: Vary on SFP Module |
||
Launch Power | IGPT-802T: Max. -4dBm Min. -9.5dBm IGTP-802TS: Max. -3dBm Min. -9.5dBm IGTP-805AT: Vary on SFP Module |
||
Receive Sensitivity | IGTP-802T: -13.5dBm IGTP-802TS: -14.4dBm IGTP-805AT: Vary on SFP Module |
||
Maximum Input power | IGTP-802T: -18dBm IGTP-802TS: -20dBm IGTP-805AT: Vary on SFP Module |
||
IEEE 802.3at / 802.3af PoE Port | 1, End-Span, 1/2(+), 3/6(-) | ||
LED Indication | System: Power 1, Power 2 and Fault LED (Green) Fiber port: LNK / ACT (Green) 10/100/1000Base-T port: LNK / ACT, PoE In-use (Green / Orange) |
||
Link Fault Pass-Through DIP Switch | ON / OFF | ||
Flow Control | Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex | ||
Maximum Frame Size | 9216 bytes | ||
Power Requirement | 24VDC or 48VDC, redundant power with polarity reverse protect function | ||
Enclosure | IP30 Aluminum metal case | ||
Dimension (W x D x H) | 135 x 87 x 32mm | ||
Weight | IGTP-802T / IGTP-802TS: 510g IGPT-805AT: 500g |
||
Installation | DIN rail kit and wall mount ear | ||
ESD Protection | 6KV DC | ||
EFT Protection | 6KV DC | ||
Alarm | Provides one relay output for power fail Alarm Relay current carry ability: 1A @ DC 24V |
||
Speed | Twisted-pair: 10/20Mbps for Half / Full-Duplex, 100/200Mbps for Half / Full Duplex 1000/2000Mbps for Full Duplex Fiber-Optic: 200Mbps / 2000Mbps for Full-Duplex |
||
Network Cables | 10/100/1000Base-T: 2-Pair UTP Cat. 3, 4, 5, 5e, 6 (Maximum 100 meters) EIA / TIA-568 100-ohm STP (Maximum 100 meters) 100Base-FX / 1000Base-SX / LX: Multi-mode: 50/125um or 62.5/125um optic fiber Single-mode: 9/125um optic fiber |
||
Power Consumption | 24V: 33 Watts / 112BTU, 48V: 31 Watts / 105BTU (With PoE) | ||
Power over Ethernet | |||
PoE Standard | IEEE 802.3af / 802.3at High Power over Ethernet / PSE | ||
PoE Power Supply Type | End-Span | ||
PoE Power Output | 52V DC. 15.4 Watts 52V DC. 30 Watts |
||
Power Pin Assignment | 1/2(+), 3/6(-) | ||
Standards Conformance | |||
Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX / FX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-SX / LX Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at High Power over Ethernet |
||
Stability Testing | IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
