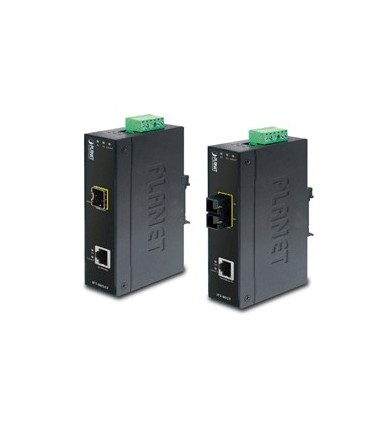

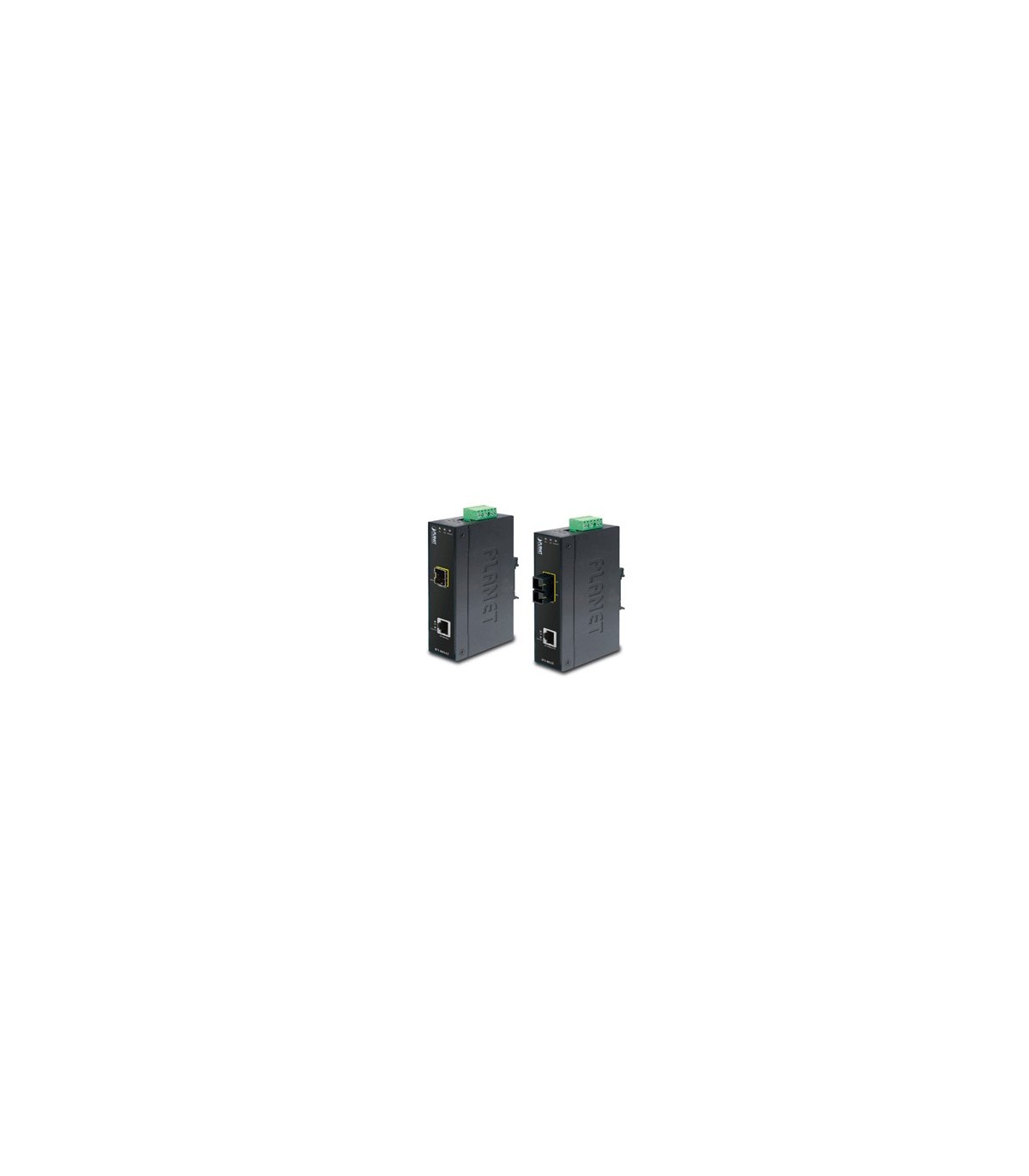

IFT-802T Media Converter Fast Ethernet 10/100Base-TX a 100Base-FX (SC 2KM) Multimodale IP30 (-40 a 75°C)
| Specifiche tecniche | |
| 10/100Base-TX Port | 1 RJ-45 Auto-MDI/MDI-X port |
| 100Base-FX Port | IFT-802T:1 SC Interface IFT-802TS15:1 SC Interface IFT-805AT:1 SFP Slot |
| Fiber Port Type | IFT-802T:SC / Multi-mode IFT-802TS15:SC / Single-mode IFT-805AT:Vary on module |
| Cable Distance | IFT-802T:2km IFT-802TS15:15km IFT-805AT:Vary on module |
| Optical Frequency | IFT-802T:1310nm IFT-802TS15:1310nm IFT-805AT:Vary on module |
| Launch Power (dBm) | Max IFT-802T:-14 IFT-802TS15:0 Min IFT-802T:-20 IFT-802TS15:-20 Vary on module IFT-805AT |
| Receive Sensitivity (dBm) | IFT-802T:-32 IFT-802TS15:-32 IFT-805AT:Vary on module |
| Maximum Input Power (dBm) | IFT-802T:-14 IFT-802TS15:0 IFT-805AT:Vary on module |
| Dimension (W x D x H) | 135 x 85 x 32 mm |
| Weight | 430g |
| Installation | DIN rail kit and wall mount ear |
| Maximum Frame Size | 1522bytes packet size |
| Flow Control | Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
| Enclosure | IP-30 Slim Type Metal Case |
| LED Indicator | System: •Power 1 (Green) •Power 2 (Green) •Fault (Green) 1x copper port: •10/100 (Green) •LNK/ACT (Green) 1 x 100FX port: •100 (Green) •LNK/ACT (Green) |
| Power Input | 12 to 48V DC Redundant power with polarity reverse protection function |
| Power Consumption | 3 Watts/ 10BTU (maximum) |
| Protection | ESD (Ethernet): 6KV DC Surge (Power): 6KV DC |
| Speed | Twisted-pair: •10/20Mbps for Half / Full-Duplex •100/200Mbps for Half / Full Duplex Fiber-optic: •200Mbps for Full-Duplex |
| Network cables | 10/100Base-TX: •2-Pair UTP Cat. 3, 4, 5 (100meters, max.) •EIA/TIA-568 100-ohm STP (100meters, max.) 100Base-FX: •IFT-802T: Multi-mode optic fiber 62.5/125μm / 50/125μm (2km) •IFT-802TS15: Single-mode optic fiber 9/125μm (15km) •IFT-805AT: SFP Slot (Depends on SFP module) |
| Standards Conformance | |
| Emissions | FCC Class A, CE Class A |
| Standards Compliance | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX / 100Base-FX IEEE 802.3x Flow Control and Back pressure |
| Stability Testing | IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
| Environment | |
| Operating Temperature | -40~75 Degree C |
| Operating Humidity | 5~90% non-condensing |
| Storage Temperature | -40~85 Degree C |
| Storage Humidity | 5~90% non-condensing |
