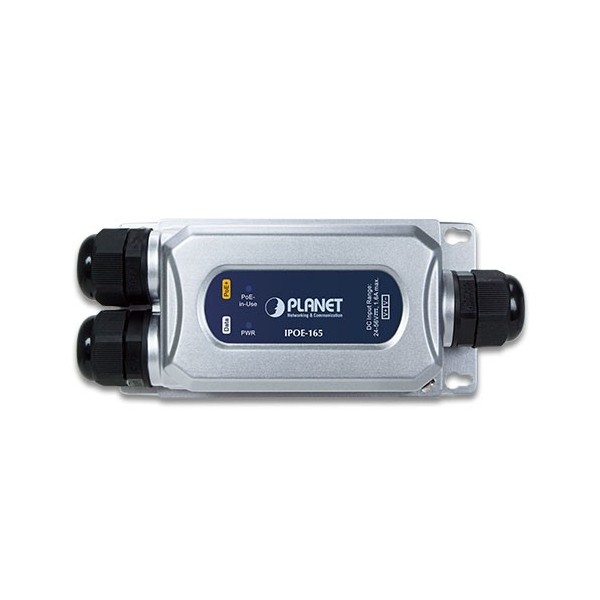

PoE+ Injector IP67 1-Porta 802.3at PoE+ (-40 a 75°C)

Riferimento:IPOE-165

Descrizione

IPOE-165 PoE+ Injector IP67 1-Porta 802.3at PoE+ (-40 a 75°C)

Specifiche Tecniche

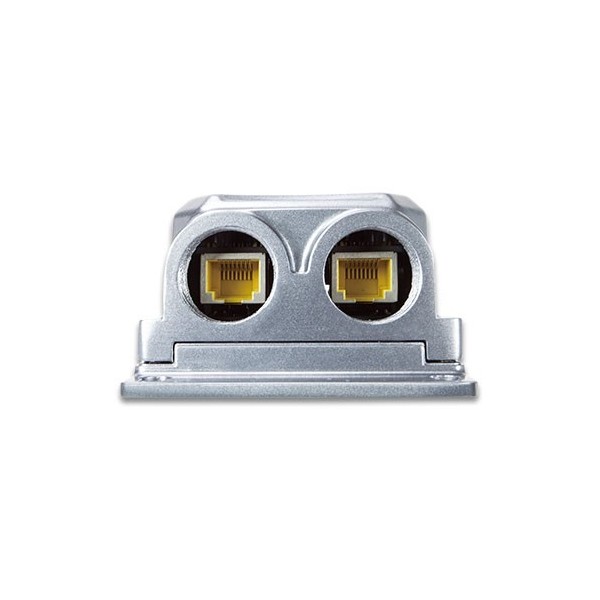

Interface Input Port
1 x 10/100/1000BASE-T “Data” in RJ45 port

Output Port
1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE+
“Data + DC” out RJ45 port

Input Power Terminal Block
1 x 2-pin terminal block
- Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-)
Data Rate 10/100/1000Mbps
LED Indicator PWR (Green)
PoE-in-use x 1 (Green)
Input Voltage 24~56V DC
Power Consumption
Voltage System on Full Load (Max.)
DC 24V 0.72W 43.4W
DC 36V 0.72W 41.04W
DC 54V 1.08W 40.5W
ESD Protection Air 8KV DC
Contact 6KV DC
Surge Protection 6KV

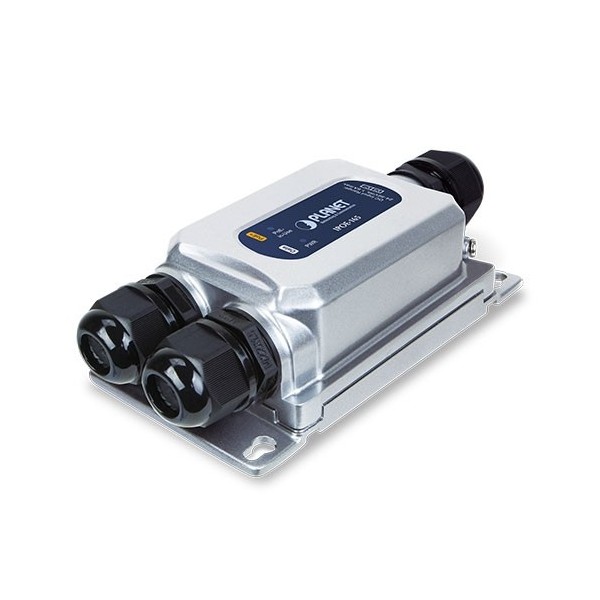

Enclosure IP67-rated and IK10 aluminum metal case
Installation Wall-mount ear
Dimensions (W x D x H) 150 x 43.8 x 72.94 mm
169.85 x 43.8 x 72.94 mm, with cable gland
Weight 339g
373g (with three waterproof cable glands)
MTBF >100,000 hours
Network Cable 10BASE-T: UTP category 3, 5 cable (≤100m)
100BASE-TX: UTP category 5,5e cable (≤100m)
1000BASE-T: UTP category 5e,6 cable(≤100m)
Power over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus / End-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
PoE Power Output 54V DC, max. 30 watts
PoE Power Supply Type End-span
Power Pin Assignment 1/2 (+), 3/6 (-)
Standards Conformance
Regulatory Compliance FCC Part 15 Class A
CE
Stability Testing IEC 60068-2-32 (Free fall)
IEC 60068-2-27 (Shock)
IEC 60068-2-6 (Vibration)
Standards Conformances IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)
Dettagli del prodotto
IPOE-165
