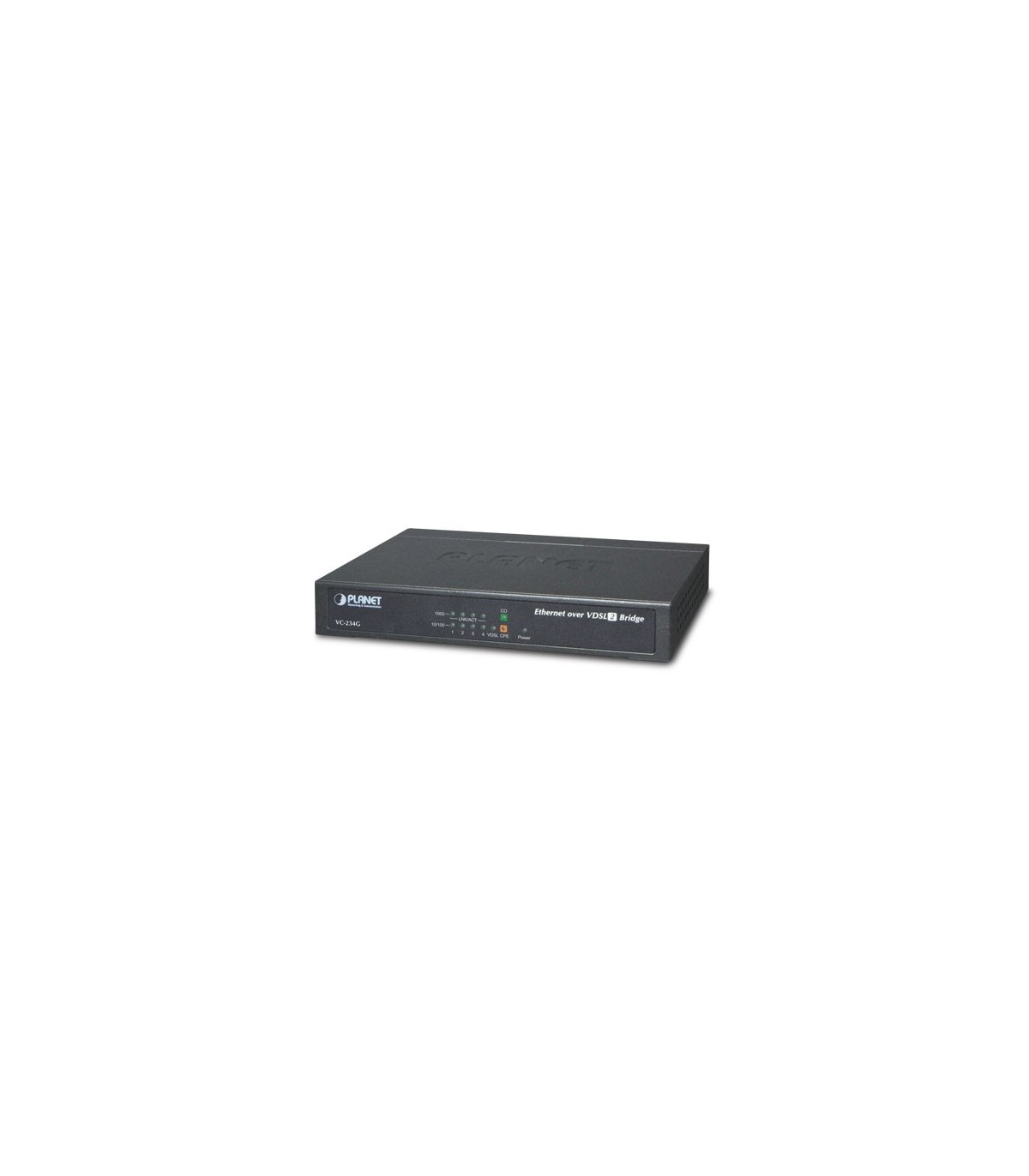

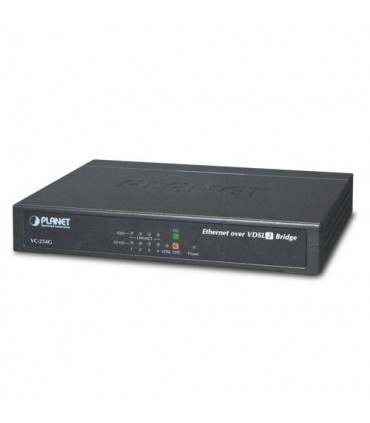

Bridge Ethernet 4-Porte 10/100Tx A Vdsl2 - 30A (Con G.Vectoring)

Riferimento:VC-234G

Bridge Ethernet 4-Porte 10/100Tx A Vdsl2 - 30A (Con G.Vectoring)
Descrizione



VC-234G Bridge Ethernet 4-Porte 10/100TX a VDSL2 - 30a  (con G.Vectoring)

Specifiche Tecniche
LAN Ports 4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
VDSL Port

1 VDSL2 RJ11 female phone jack
Twisted-pair telephone wires (AWG24 or better) up to 1.4km

Phone Port 1 RJ11, built-in splitter for POTS connection
Dimensions (W x D x H) 154.6 x 86.0 x 26.3 mm
Weight 350g
Power Requirements 5V DC, 2A external power
LED Indicators 1 power: Green
4 1000BASE-T LNK/ACT: Green
4 100BASE-TX LNK/ACK: Green
1 VDSL: Green
1 CO: Green
1 CPE: Green
DIP Switch & Functionality

4-position DIP switch

  • CO/CPE mode select

  • Selectable G.INP and interleaved mode

  • Selectable target Band plan

  • Selectable target SNR mode
Switch Specification
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Jumbo Packet Size 9K bytes
System Specification
VDSL Compliance VDSL-DMT
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
ITU-T G.993.5 G.vectoring
ITU-T G.998
G.INP
ADSL Compliance Capable of ADSL2/2+ standard
  • ITU G.992.3 G.dmt.bis

  • ITU G.992.5 G.dmt.bisplus

Data Rate: Up to 24Mbps
Performance*<br>(Downstream/Upstream) Interleave, Asym, 8dB
 200M ----> 193Mbps/89Mbps
 400M ----> 164Mbps/69Mbps
 600M ----> 112Mbps/39Mbps
 800M ----> 70Mbps/14Mbps
 1000M --> 46Mbps/7Mbps
 1400M --> 21Mbps/4Mbps

Interleave, Sym, 8dB
 200M ----> 142Mbps/139Mbps
 400M ----> 116Mbps/118Mbps
 600M ----> 70Mbps/73Mbps
 800M ----> 50Mbps/40Mbps
 1000M --> 24Mbps/24Mbps
 1400M --> 10Mbps/6Mbps

G.INP, Asym, 8dB
 200M ----> 200Mbps/100Mbps
 400M ----> 170Mbps/68Mbps
 600M ---->113Mbps/37Mbps
 800M ----> 70Mbps/18Mbps
 1000M --> 51Mbps/7Mbps
 1400M --> 24Mbps/2Mbps

G.INP, Sym, 8dB
 200M ----> 150Mbps/150Mbps
 400M ----> 120Mbps/126Mbps
 600M ----> 73Mbps/78Mbps
 800M ----> 48Mbps/43Mbps
 1000M --> 27Mbps/26Mbps
 1400M --> 10Mbps/5Mbps

Interleave, Asym, 12dB
 200M ----> 180Mbps/80Mbps
 400M ----> 145Mbps/57Mbps
 600M ----> 95Mbps/32Mbps
 800M ----> 60Mbps/13Mbps
 1000M --> 39Mbps/6Mbps
 1400M --> 18Mbps/2Mbps

Interleave, Sym, 12dB
 200M ----> 137Mbps/129Mbps
 400M ----> 99Mbps/102Mbps
 600M ----> 54Mbps/61Mbps
 800M ----> 41Mbps/35Mbps
 1000M --> 22Mbps/19Mbps
 1400M --> 7Mbps/3Mbps

G.INP, Asym, 12dB
 200M ----> 185Mbps/90Mbps
 400M ----> 150Mbps/60Mbps
 600M ----> 94Mbps/36Mbps
 800M ----> 61Mbps/14Mbps
 1000M --> 44Mbps/6Mbps
 1400M --> 21Mbps/1Mbps

G.INP, Sym, 12dB
 200M ----> 142Mbps/136Mbps
 400M ----> 103Mbps/110Mbps
 600M ----> 57Mbps/65Mbps
 800M ----> 38Mbps/36Mbps
 1000M --> 14Mbps/13Mbps
 1400M --> 8Mbps/3Mbps

*Note: As there are various resistance values in the category of RJ11 cable, the actual data rate will vary on the quality of the copper wire and environmental factors.
