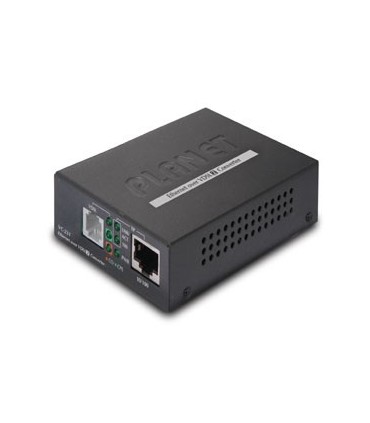

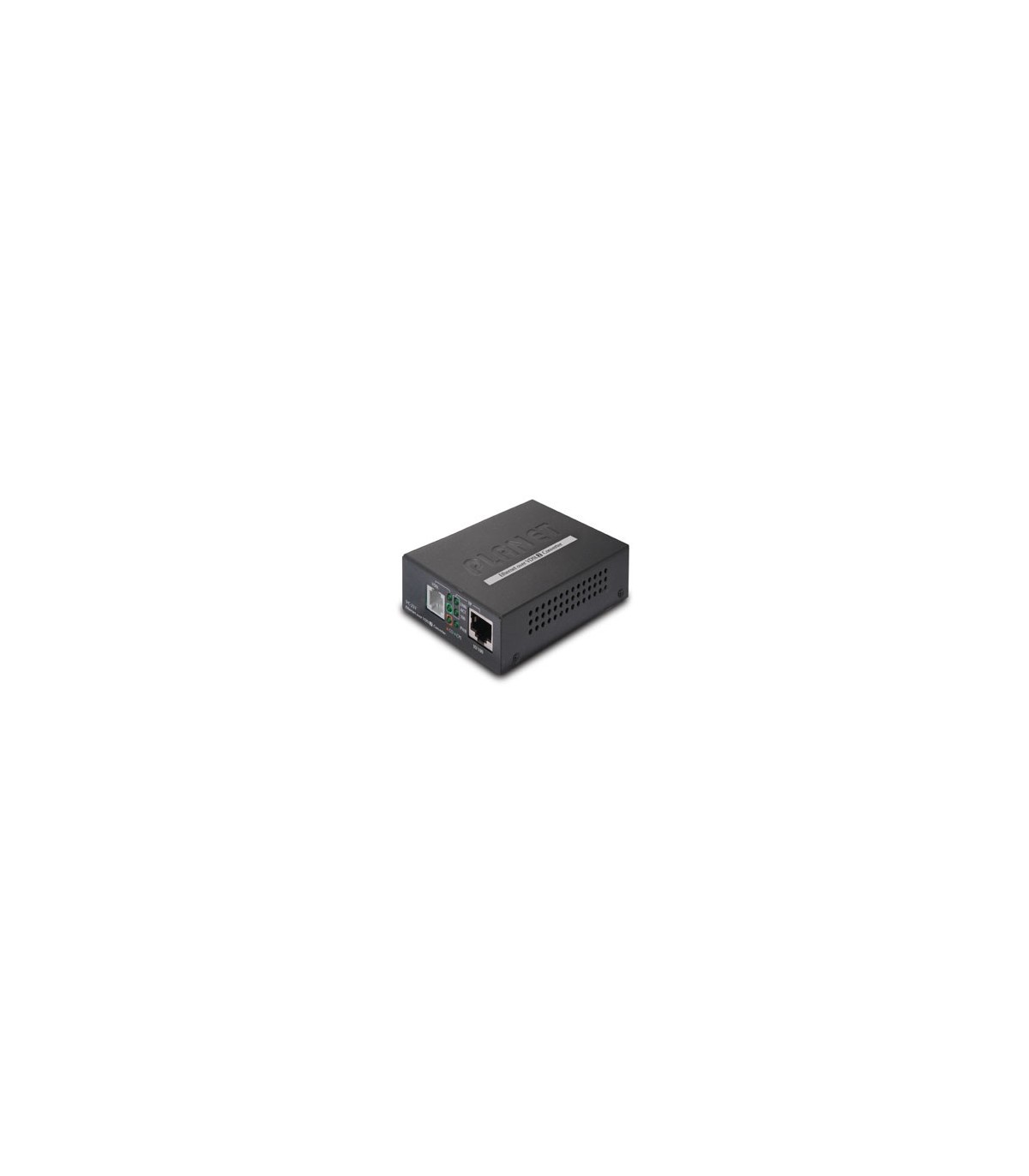

VC-231 Convertitore Ethernet 100/100 Mbps a VDSL2 - 30a
| Specifiche Tecniche | |||
| Modello | VC-231 | ||
| Hardware Specification | |||
| Ports | 10/100Base-TX:?1 RJ-45, Auto-Negotiation and Auto-MDI/MDI-X VDSL:?1 RJ-11, female Phone Jack PHONE:?Additional Splitter for POST connection | ||
| DIP Switch & Functionality | • 4 position DIP switch • CO / CPE mode select • Selectable fast and interleaved mode • Selectable target 17a / 30a profiles • Selectable target SNR mode | ||
| Encoding | • VDSL-DMT ?- ITU-T G.993.1 VDSL ?- ITU-T G.997.1 ?- ITU-T G.993.2 VDSL2 (Profile 17a/30a Support) | ||
| LED Indicators | • One Power • 3 for RJ-11/VDSL2 • 2 for per RJ-45 10/100Base-TX port | ||
| Cabling | • Ethernet ??10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft) ??100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft) • VDSL ??Twisted-pair telephone wires (AWG24 or better) up to 1.4km | ||
| Performance* (Downstream / Upstream) | • 17a profile ?300m -> 86/65Mbps ?400m -> 86/52Mbps ?600m -> 81/36Mbps ?800m -> 72/19Mbps ?1000m -> 60/9Mbps ?1200m -> 59/6Mbps ?1400m -> 50/2Mbps • 30a profile ?300m -> 100/100Mbps ?400m -> 90/90Mbps ?600m -> 61/40Mbps ?800m -> 54/8Mbps | ||
| Power Requirement | 5V DC, 2A | ||
| Power Consumption | 6.6 Watts / 22 BTU | ||
| Dimension (W x D x H) | 97 x 70 x 26 mm | ||
| Weight | 199g | ||
| Environment | |||
| Operating | Temperature: 0 ~ 50 Degree C Relative Humidity: 10 ~ 90% (non-condensing) | ||
| Storage | Temperature: -10 ~ 70 Degree C Relative Humidity: 10 ~ 90% (non-condensing) | ||
| Switch Specification | |||
| Switch Processing Scheme | Store-and-Forward | ||
| Address Table | 1K entries | ||
| Flow Control | Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex | ||
| Switch fabric | 0.2Gbps | ||
| Throughput (packet per second) | 0.14Mpps | ||
| Network cables | 10/100Base-TX: 2-Pair UTP Cat. 3,4, 5 (100meters, max.) EIA / TIA-568 100-ohm STP (100meters, max.) | ||
| Standard Conformance | |||
| Regulation Compliance | FCC Part 15 Class A, CE | ||
| Standards Compliance | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX ITU-T ?- G.993.1 (VDSL) ?- G.997.1 ?- G.993.2 VDSL2 (Profile 17a/30a) | ||
