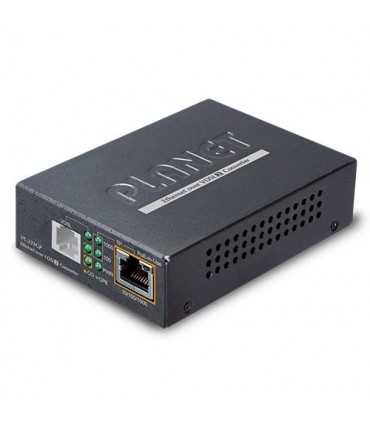

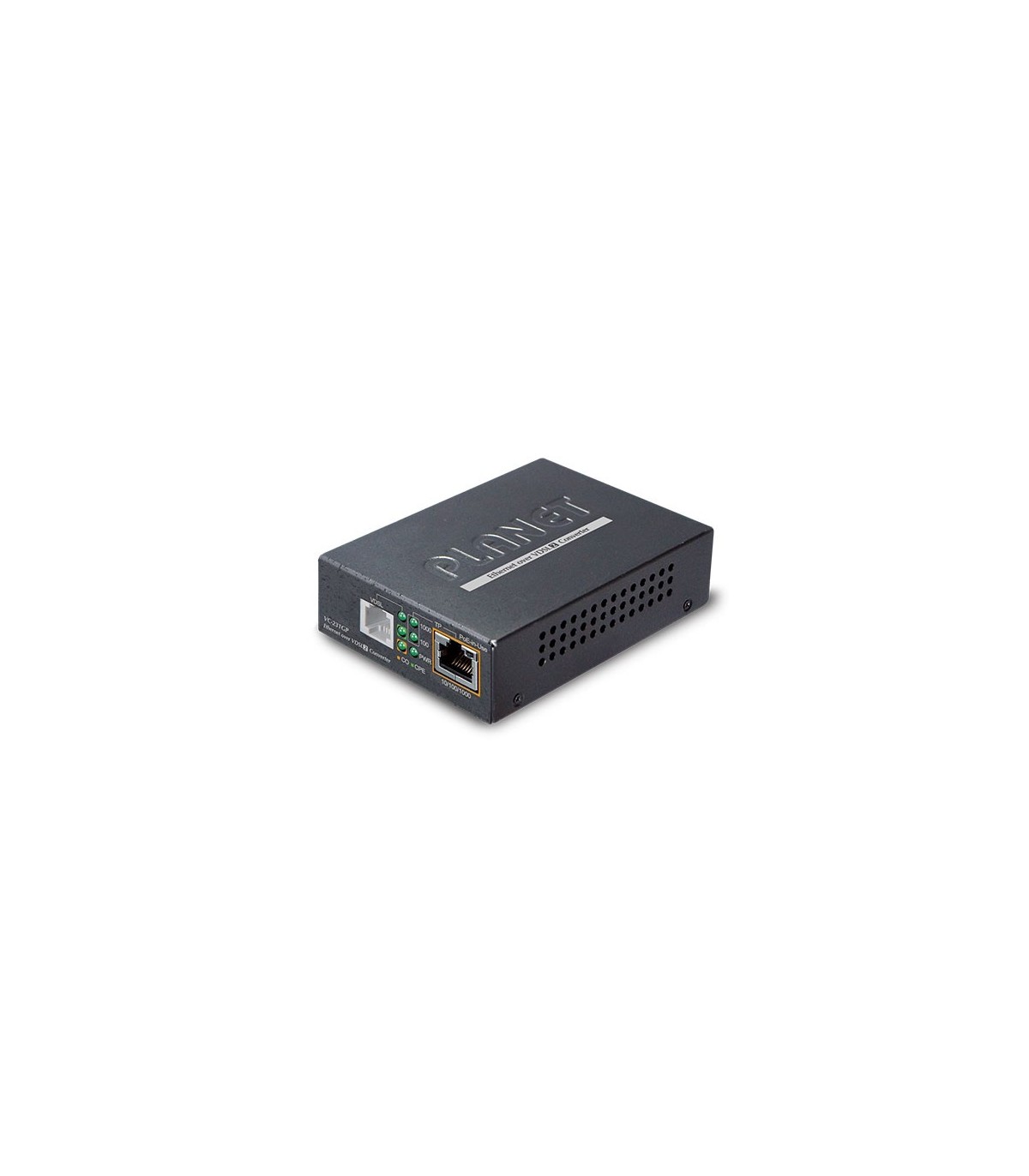

Convertitore Ethernet 10/100/1000 Mbps A Vdsl2 -30A Profile

Riferimento:VC-231G

Convertitore Ethernet 1-Porta 1000X Sfp + 1-Porta Rj11 Vdsl2 -30A (Con G.Vectoring)

Descrizione

Descrizione

VC-231G Convertitore Ethernet 10/100/1000 a VDSL2 -30a profile w/ G.vectoring, RJ11

Specifiche Tecniche

LAN Ports

1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

VDSL Port

1 VDSL2 RJ11 female phone jack
Twisted-pair telephone wires (AWG-24 or better) up to 1.4km

Phone Port

Additional splitter for POTS connection

Dimensions (W x D x H)

97 x 70 x 26 mm

Weight

184g

Power Requirements

5V DC 2A

LED Indicators

1 power: Green
1 1000BASE-T LNK/ACT: Green
1 100BASE-TX LNK/ACK: Green
1 VDSL:Green
1 CO: Green
1 CPE: Green

DIP Switch & Functionality

4-position DIP switch
CO or CPE mode selectable
Selectable G.INP and interleaved mode
Selectable target Band plan
Selectable target SNR mode

Switch Specifications

Switch Processing Scheme

Store-and-Forward

Address Table

2K entries

Flow Control

Back pressure for half duplex
IEEE 802.3x pause frame for full duplex

Maximum Packet Size

1522bytes

System Specifications

VDSL Compliance

VDSL-DMT:
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a support)
ITU-T G.993.5 G.vectoring
ITU-T G.998
G.INP

ADSL Compliance

Capable of ADSL2/2+ standard:

ITU G.992.3 G.dmt.bis ITU G.992.5 G.dmt.bisplus Data Rate: Up to 24Mbp

Performance*(Downstream/Upstream)

CO, Interleave, Asym, 8dB 　200M -> 190Mbps/87Mbps 　400M -> 161Mbps/60Mbps 　600M -> 118Mbps/36Mbps 　800M -> 59Mbps/24Mbps 　1000M -> 47Mbps/7Mbps 　1200M -> 39Mbps/4Mbps 　1400M -> 25Mbps/4Mbps CO, Interleave, Sym, 8dB 　200M -> 147Mbps/139Mbps 　400M -> 112Mbps/110Mbps 　600M -> 75Mbps/73Mbps 　800M -> 44Mbps/44Mbps 　1000M -> 26Mbps/25Mbps 　1200M -> 24Mbps/13Mbps 　1400M -> 20Mbps/9Mbps G.INP, ASym, 8dB 　200M -> 197Mbps/101Mbps 　400M -> 168Mbps/65Mbps 　600M -> 109Mbps/34Mbps 　800M -> 65Mbps/20Mbps 　1000M -> 53Mbps/7Mbps 　1200M -> 44Mbps/4Mbps 　1400M -> 28Mbps/4Mbps G.INP, sym, 8dB 　200M -> 150Mbps/150Mbps 　400M -> 117Mbps/117Mbps 　600M -> 77Mbps/77Mbps 　800M -> 43Mbps/43Mbps 　1000M -> 29Mbps/28Mbps 　1200M -> 27Mbps/15Mbps 　1400M -> 22Mbps/10Mbps CO, Interleave, Asym, 12dB 　200M -> 178Mbps/84Mbps 　400M -> 143Mbps/53Mbps 　600M -> 99Mbps/32Mbps　　800M -> 48Mbps/22Mbps 　1000M -> 41Mbps/5Mbps 　1200M -> 33Mbps/3Mbps 　1400M -> 23Mbps/3Mbps CO, Interleave, Sym, 12dB 　200M -> 135Mbps/127Mbps 　400M -> 96Mbps/96Mbps 　600M -> 61Mbps/59Mbps 　800M -> 40Mbps/40Mbps 　1000M -> 23Mbps/18Mbps 　1200M -> 22Mbps/9Mbps 　1400M -> 16Mbps/7Mbps G.INP, Asym, 12dB 　200M -> 185Mbps/89Mbps 　400M -> 148Mbps/54Mbps 　600M -> 95Mbps/32Mbps 　800M -> 58Mbps/14Mbps 　1000M -> 46Mbps/6Mbps 　1200M -> 37Mbps/3Mbps 　1400M -> 25Mbps/3Mbps G.INP, Sym, 12dB 　200M -> 140Mbps/140Mbps 　400M -> 97Mbps/97Mbps 　600M -> 60Mbps/60Mbps 　800M -> 35Mbps/35Mbps 　1000M -> 26Mbps/21Mbps 　1200M -> 25Mbps/11Mbps 　1400M -> 18Mbps/8Mbps

Standard Conformance

Standards Compliance

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-duplex flow control
IEEE 802.1p Class of Service
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a support)
ITU-T G.993.5 G.Vectoring & G.INP
ITU-T G.998

Dettagli del prodotto

Codice prodotto VC-231G
