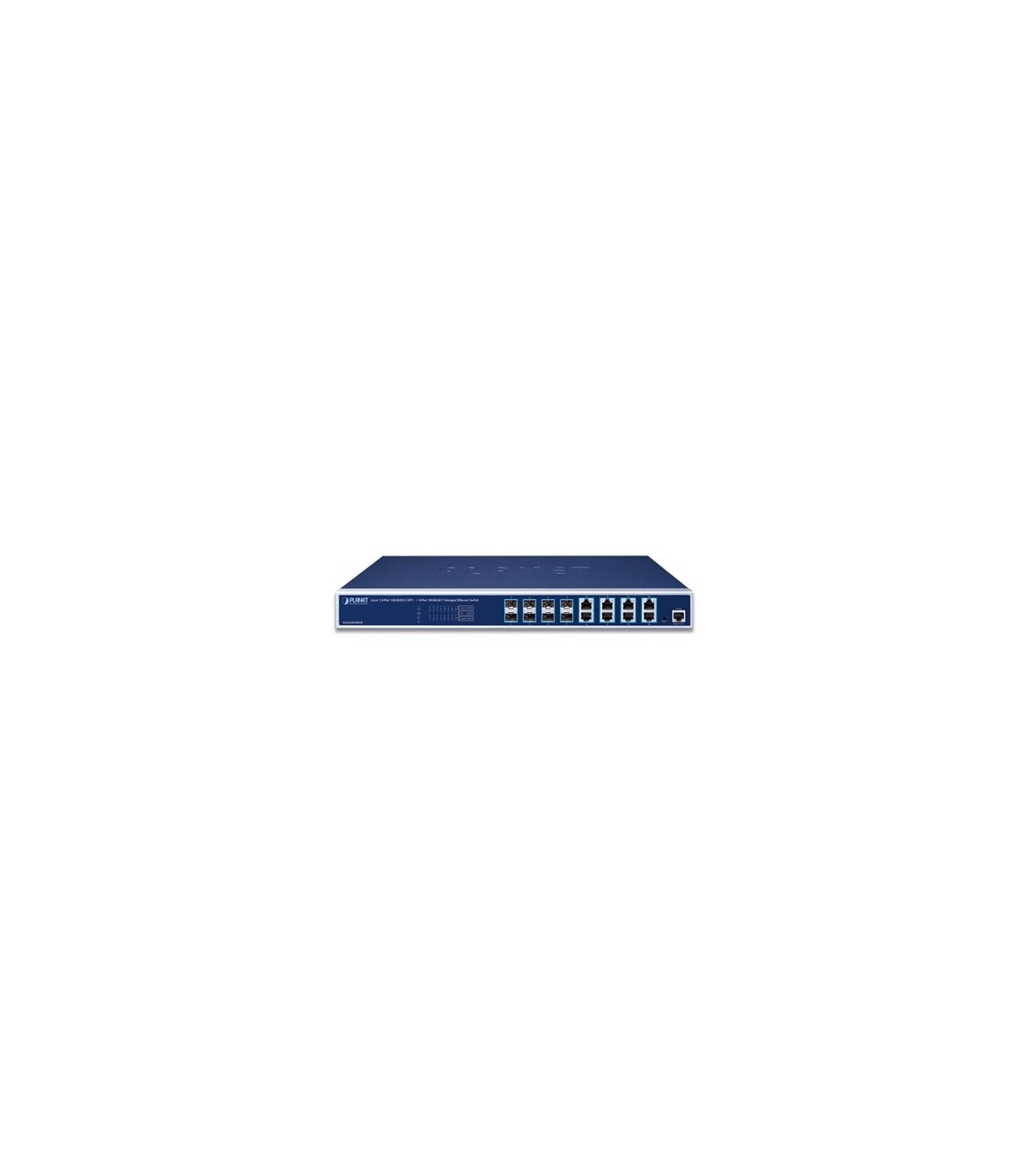

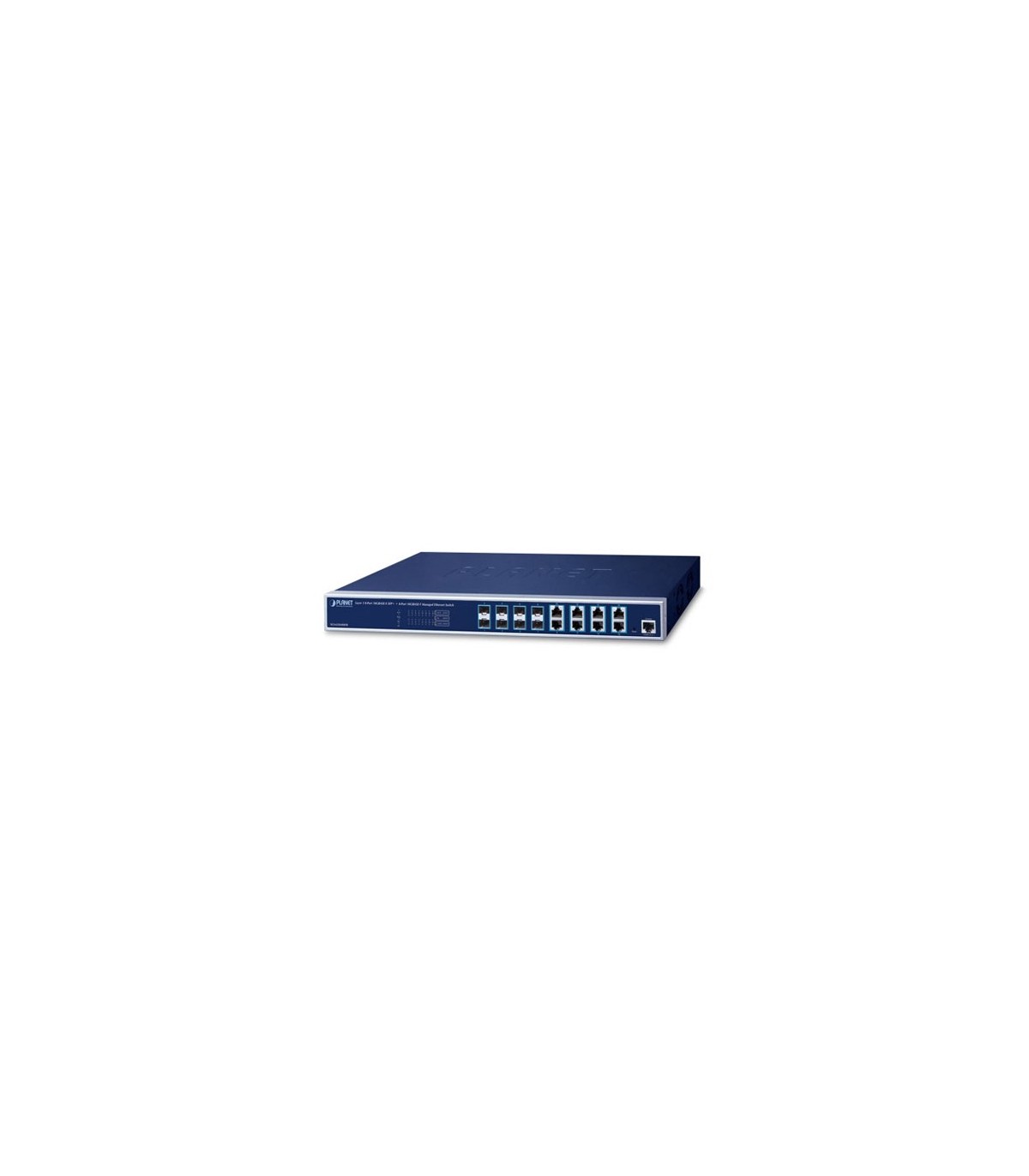

Layer 3 8-Porte 10GBASE-X SFP+ + 8-Porte 10GBASE-T Managed Ethernet Switch

Riferimento:XGS63208X8TR

Descrizione

 XGS63208X8TR Layer 3 8-Porte 10GBASE-X SFP+ + 8-Porte 10GBASE-T Managed Ethernet Switch

Specifiche Tecniche
Copper Ports 8 10GBASE-T RJ45 auto negotiation ports (Ports 9 to 16)
Supports 10G/5G/2.5G/1G/100Mbps data rate
SFP+ Slots 8 10GBASE-SR/LR SFP+ ports (Ports1 to 8)
Backward compatible with 100BASE-FX, 1000BASE-SX/LX/BX and 2500BASE-X SFP transceivers
Console 1 x RJ45-to-DB9, RS232 serial port (115200, 8, N, 1)
Reset Button  < 5 sec: System reboot
 > 5 sec: Factory default
RAM 2048Mbytes
Flash Memory 64Mbytes
Dimensions (W x D x H) 440 x 200 x 44.5mm, 1U height
Weight 2,870g
Power Requirements - AC 100~240V AC, 50/60Hz, 2.1A max.
Power Requirement - DC DC 36-60V, 2A
Power Consumption AC Input:
 System On: 22W
 Full loading: 44W
DC Input:
 System on: 25W
 Full loading: 45W
ESD Protection 6KV DC
Surge Protection 4KV DC
Fan 2 smart fans
LED System:
 AC (Green), DC (Green), Ring (Green), Ring Owner (Green)
Per 10GBASE-T RJ45 ports:
 100/1G/ LNK/ACT (Green)
 10G LNK/ACT (Amber)
 2.5G/5G LNK/ACT (Green and amber)
Per 10GBASE-X SFP+ ports:
 100/1G/ LNK/ACT (Green)
 10G LNK/ACT (Amber)
 2.5G LNK/ACT (Green and amber)
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 320Gbps/non-blocking
Throughput 238.1Mpps@ 64Bytes packet
Address Table 32K entries, automatic source address learning and aging
Shared Data Buffer 32Mbits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame 10240bytes
Layer 3 Functions
IP Interfaces Max. 128 VLAN interfaces
Routing Table Max. 512 static route entries
Max. 3072 routing table entries
Routing Protocols IPv4 RIPv2
IPv4 OSPFv2
IPv6 OSPFv3
IPv4 hardware static routing
IPv6 hardware static routing
Layer 2 Functions
Port Configuration Port disable/enable
Flow Control disable/enable
Port link capability control
Port Status Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring TX/RX/Both
Many-to-1 monitor
Supports up to 5 sessions
VLAN IEEE 802.1Q tag-based VLAN,
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Supports 7 MSTP instances
BPDU Guard, BPDU filtering and BPDU transparent
Root Guard
Link Aggregation IEEE 802.3ad LACP (static trunk)
Supports 8 trunk groups with 16 ports per trunk
IGMP Snooping IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD Snooping IPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
Bandwidth Control Per port bandwidth control
 Ingress: 10Kbps~13128Mbps
 Egress: 10Kbps~13128Mbps
Ring Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms @ 3 nodes
Recovery time <50ms @ 16 nodes
Supports Major ring and sub-ring
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
Port number
 802.1p priority
 802.1Q VLAN tag
 DSCP/TOS field in IP packet
Security Functions
Access Control List IP-based ACL/MAC-based ACL
ACL based on:
 MAC Address
 IP Address
 Ethertype
 Protocol Type
 VLAN ID
 DSCP
 802.1p Priority
Up to 512 entries
Security Port security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries
AAA RADIUS client
TACACS+ client
Network Access Control IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Management Functions
Basic Management Interfaces Console;Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSHv2, TLSv1.2, SNMPv3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewer app
Event Management Remote Syslog
System log
SMTP
SNMP MIBs RFC1213 MIB-II
RFC 2863 IF-MIB
RFC1643 Ethernet MIB
RFC2863 Interface MIB
RFC2665 Ether-Like MIB
RFC2737 Entity MIB
RFC2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC2618 RADIUS Client MIB
RFC3411SNMP-Frameworks-MIB
IEEE802.1X PAE
LLDP
MAU-MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5GBASE-X
IEEE 802.3ae 10Gb/s Ethernet
IEEE802.3x flow control and back pressure
IEEE802.3ad port trunk with LACP
IEEE802.1D Spanning Tree Protocol
IEEE802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE802.1p Class of Service
IEEE802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
RFC 5340 OSPF v3
RFC 2453 RIP v2
Environments
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70degrees C
Relative Humidity:5 ~ 95% (non-condensing)
