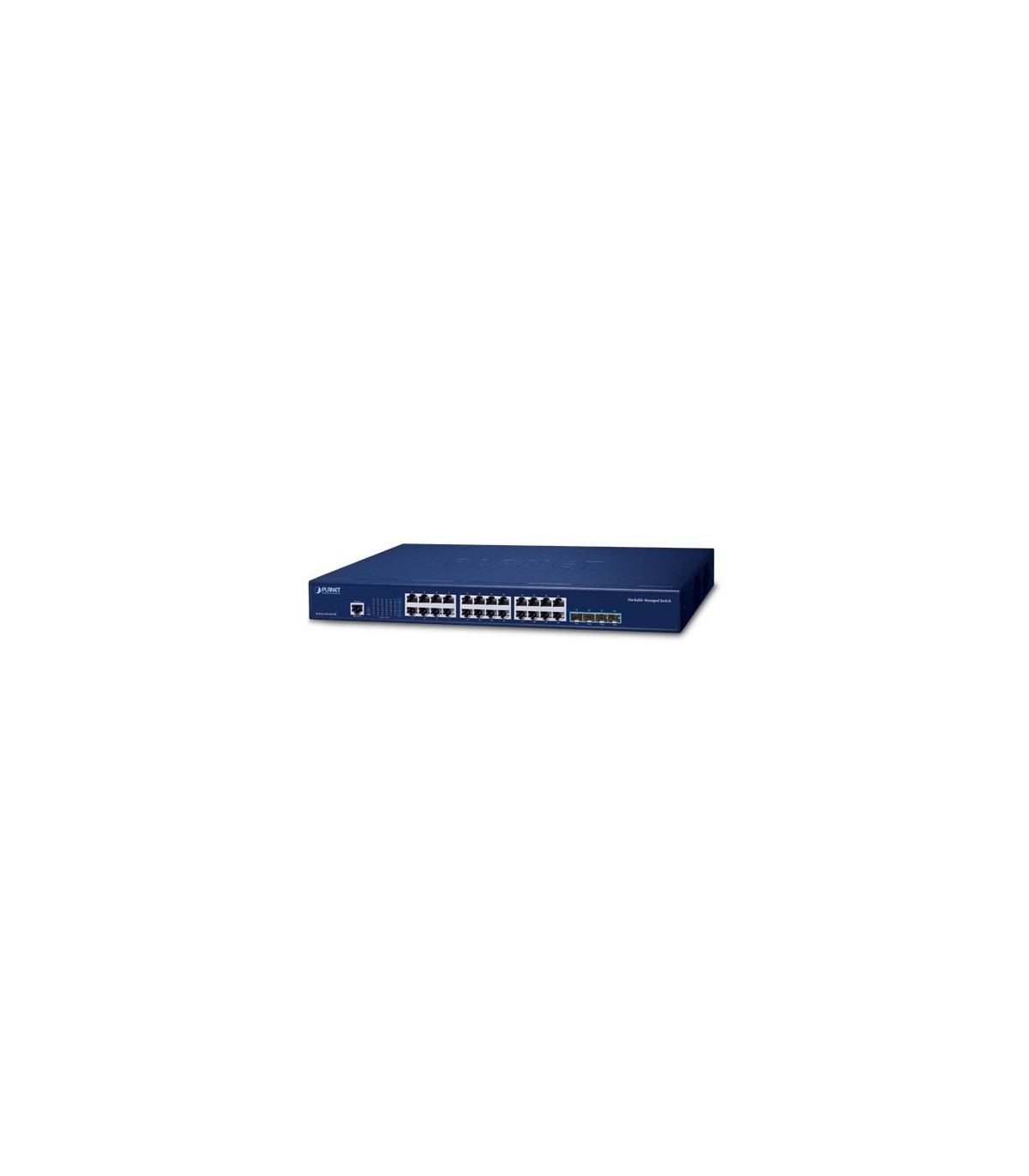

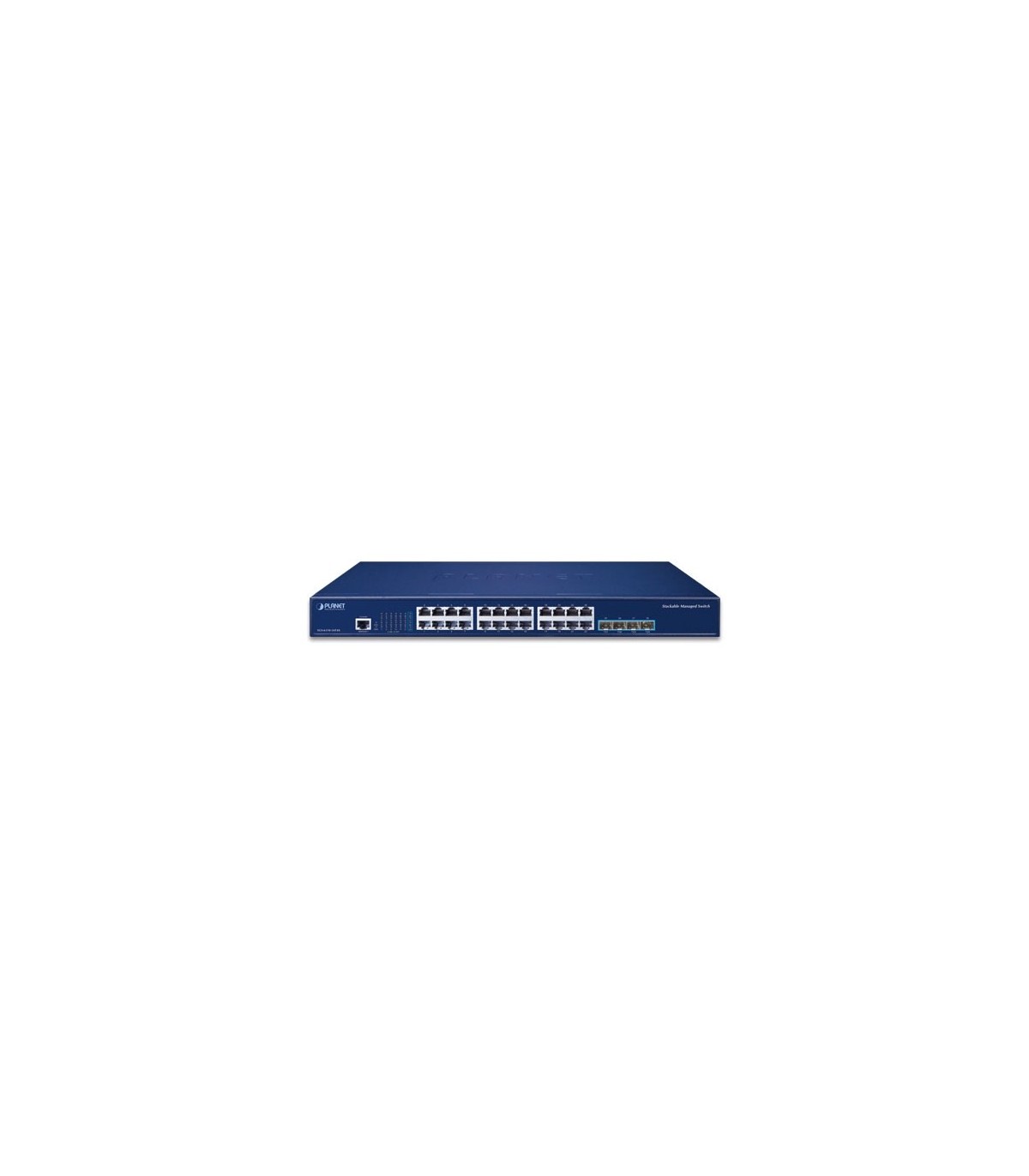

L3 24-Porte 10/100/1000T + 4-Porte 10G Sfp+ Stackable Managed Switch

Riferimento:SGS631024T4X

SGS631024T4X L3 24-Porte 10/100/1000T + 4-Porte 10G SFP+ Stackable Managed Switch

Descrizione

SGS631024T4X L3 24-Porte 10/100/1000T + 4-Porte 10G SFP+ Stackable Managed Switch

Il SGS631024T4X di Planet Technology rappresenta la soluzione ideale per reti aziendali alla ricerca di prestazioni elevate e gestibilità avanzata. Questo switch stackable managed di livello 3 è dotato di 24 porte RJ45 10/100/1000BASE-T per il collegamento di una vasta gamma di dispositivi e 4 porte 10G SFP+ per uplink ad alta velocità o connessioni di aggregazione, garantendo così una flessibilità senza precedenti e una capacità di espansione ottimale.

Le sue caratteristiche avanzate includono un'architettura di commutazione store-and-forward con un fabric di 128Gbps e una capacità di inoltro di 95.23Mpps, gestendo efficacemente il traffico di rete per applicazioni intensive. Supporta anche frame Jumbo fino a 9K bytes, migliorando le prestazioni per trasferimenti di dati di grandi dimensioni.

In termini di sicurezza, il SGS631024T4X offre funzionalità avanzate quali ACL (Access Control Lists) per un controllo granulare del traffico, IEEE 802.1X per l'autenticazione della porta di rete, nonché la prevenzione degli attacchi DoS per proteggere la rete da minacce esterne. L'integrazione di protocolli come RIPv1/v2, OSPFv2 per il routing IPv4, e RIPng, OSPFv3 per IPv6, assicura la massima versatilità in termini di gestione del routing.

La gestione dello switch è semplificata grazie alle interfacce di configurazione via console, Telnet, web browser e SNMP, con il supporto per SSHv1/v2, TLSv1.2 e SNMPv3 che garantisce una gestione sicura. Inoltre, le funzionalità di stacking hardware consentono di gestire più switch come un'unità unica, ottimizzando la gestione della rete e aumentando la resilienza.

Con un design compatto da 1U per il montaggio in rack e un consumo energetico efficiente, il SGS631024T4X è una soluzione ideale per ambienti aziendali che necessitano di elevata affidabilità, scalabilità e sicurezza nella gestione della loro infrastruttura di rete.

Specifiche Tecniche
Copper Ports 24 10/100/1000BASE-T RJ45 copper ports (port-1 to port-24)
10G SFP+ Ports 4 10GBASE-SR/LR SFP+ interface (port-25 to port-28)
Backward compatible with 1000BASE-SX/LX/BX SFP transceiver
Console Port 1 x RJ45-to-RS232 serial port (9600, 8, N, 1)
DRAM 256Mbytes
Flash Memory 16Mbytes
Dimensions (W x D x H) 440 x 180 x 44 mm
Weight 2600g
Power Consumption 35 watts / 153.58 BTU
Power Requirements- AC AC 100~240V, 50/60Hz
Fan -
LED LED
System:
SYS, PWR Green
Ports:
10/100/1000T RJ45 Port: LNK/ACT Green
1/10G SFP+ Port: LNK/ACT Green
Switching Specifications
Switch Architecture Store-and-forward
Switch Fabric 128Gbps/non-blocking
Switch Throughput 95.23Mpps
Address Table 16K MAC address table with auto learning function
ARP Table 2K
Routing Table 2040
VLAN Interface 64
IP Interface 64
ACL Table 1024
Shared Data Buffer 1.5MB
Jumbo Frame 9KBytes
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
IPv4 Layer 3 Functions
IP Routing Protocol Static route
RIPv1/v2
OSPFv2
Policy-based routing (PBR)
Hardware-based Layer 3 routing
Routing Features VRRP v1/v3
ARP
ARP Proxy
IGMP Proxy
IPv6 Layer 3 Functions
IP Routing Protocol RIPng
OSPFv3
IPv6 LPM Routing
IPv6 Policy-based Routing (PBR)
IPv6 VRRPv3
IPv6 RA (Router Advertisement)
Hardware-based Layer 3 routing
Routing Features Configured Tunnels
GRE Tunnel
ISATAP Tunnel,6 to 4 tunnel
Manual tunnel
Other ICMPv6, IPv6 ND
Layer 2 Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Bandwidth control on each port
Port loopback detect
Port Status Display each port’s speed duplex mode, link status, flow control status and
auto negotiation status
VLAN IEEE 802.1Q tagged VLAN, up to 4K VLAN groups
IEEE 802.1ad Q-in-Q (VLAN stacking)
GVRP for dynamic VLAN management
Private VLAN Edge (PVE) supported
Protocol-based VLAN
MAC-based VLAN
IP subnet-based VLAN
Spanning Tree Protocol STP, IEEE 802.1D (Classic Spanning Tree Protocol)
RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
Supports BPDU and root guard
Multicast IPv4 IGMP v1/v2/v3 snooping
Querier mode support
IPv6 MLD v1 snooping
Multicast VLAN Register (MVR)
Up to 1024 multicast groups (IPv4 + IPv6)
Link Aggregation IEEE 802.3ad LACP/static trunk
Supports 64 groups with 8 ports per trunk group
Bandwidth Control TX/RX/Both
At least 64Kbps step
QoS 8 priority queues on all switch ports
Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
- CAR, HQoS, MAC/IP/TCP/UDP
- IEEE 802.1p CoS/ToS
- IPv4/IPv6 DSCP
- Port-based WRR
- - Tail-Drop, WRED, flow monitoring and traffic shaping
Ring Supports ITU-G G.8032 ERPS
Recovery time < 10ms @ 3units
Recovery time < 50ms @ 16units
Security Functions
Access Control List Supports Standard and Expanded ACL
IP-based ACL/MAC-based ACL
Time-based ACL
Up to 1024 entries
Security Port isolation, Port security,
“IP+ MAC+ port” binding
MAC sticky DAI & IP source guard, PPPoE+
L2/L3/L4 ACL flow identification
Filtration Anti-attack from DDo S, TCP’s SYN Flood, UDP Flood
Broadcast / multicast / unknown unicast storm-control
Supports MD5, SHA-256, RSA-1024, AES256
AAA Authentication TACACS+ and IPv4/IPv6 over RADIUS
Network Access Control IEEE 802.1x port-based network access control
MAC-based authentication
RADIUS/TACACS authentication
Switch Management Functions
System Configuration Console and Telnet
Web browser
SNMP v1, v2c
Secure Management Interfaces SSHv1/v2, TLSv1.2 and SNMPv3
System Management Supports both IPv4 and Ipv6 addressing
Supports the user IP security inspection for Ipv4/Ipv6 SNMP
Supports MIB and TRAP
Supports RMON 1, 2, 3, 9 four groups
Supports IPv4/IPv6 FTP/TFTP
Supports IPv4/IPv6 NTP
Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password
The right configuration for users to adopt RADIUS server’s shell management
Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area
Supports IPv4 and IPv6 DHCP server
Event Management Supports Syslog server for IPv4 and IPv6
Hardware Stacking 8 members max.
2 10G SFP+ slots are functioned as Stacking Up and Down interfaces
Hardware Stacking Compatibility List SGS-6310-24T4X
SGS-6310-24P4X
SGS-6310-16S8C4XR
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Internet Engineering Task Force
RFC 1271 RMON
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMP v2
RFC 2011 IP/ICMP MIB
RFC 2012 TCP MIB
RFC 2013 UDP MIB
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2452 TCP6 MIB
RFC 2454 UDP6 MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMP6 MIB
RFC 2573 SNMP v3 notify
RFC 2574 SNMP v3 vacm
RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB)
RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB)
Standard Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking/tunneling
IEEE 802.1x port authentication network control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 2328 OSPF v2
RFC 1058 RIP v1
RFC 2453 RIP v2
ITU-T G.8032 ERPS Ring
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 10 ~ 90% (non-condensing)
Storage Temperature: -20 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Dettagli del prodotto
SGS631024T4X
