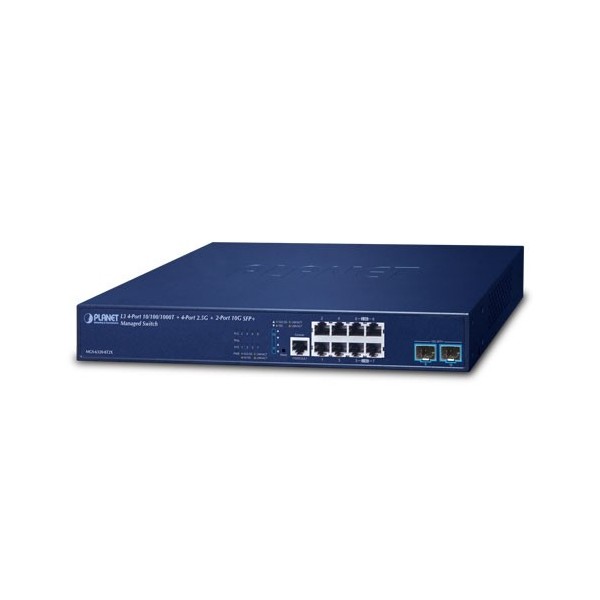

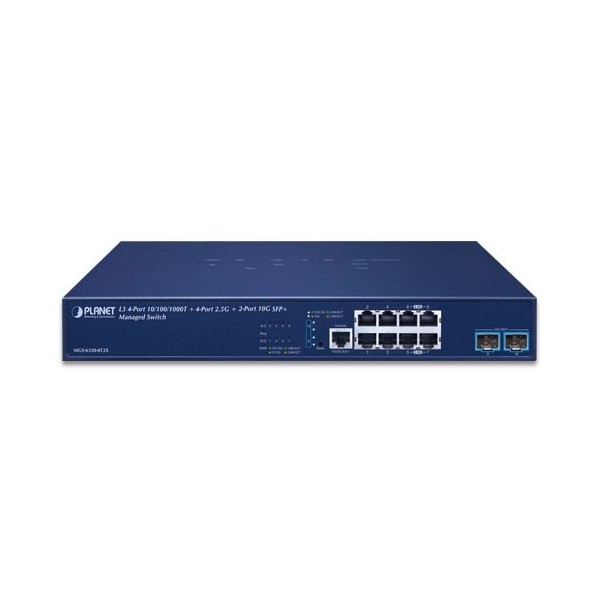

MGS-6320-8T2X Switch Managed L3 4-Porte 10/100/1000T + 4-Porte 2.5G + 2-Porte 10G SFP+
Lo switch MGS-6320-8T2X Planet Technology è uno switch Ethernet Layer 3 gestito che offre una configurazione versatile di porte per ambienti di rete moderni. Con 4 porte Gigabit Ethernet, 4 porte 2.5G e 2 porte 10G SFP+, questo dispositivo è progettato per soddisfare le esigenze di connettività ad alta velocità e di alimentazione per una varietà di dispositivi di rete.
Specifiche Tecniche e Funzionalità:
- Porte Ethernet: Fornisce 4 porte 10/100/1000BASE-T RJ45 e 4 porte aggiuntive che supportano velocità fino a 2.5G (10/100/1000/2500BASE-T), offrendo flessibilità per connettere dispositivi che richiedono velocità di rete diverse.
- Porte SFP+: Due slot SFP+ che supportano velocità da 1G a 10G, permettendo connessioni ad alta velocità per uplink o per collegamenti a lunga distanza.
- Console e Gestione: Include una porta seriale RJ45-to-DB9 per la gestione e il troubleshooting del dispositivo, supportando configurazioni avanzate tramite la linea di comando.
- Prestazioni di Switching: Con uno switch fabric di 68Gbps e un throughput di 50.59Mpps, garantisce un'elevata capacità di elaborazione dei dati e un trasferimento efficiente all'interno della rete.
- Layer 3 e Routing: Supporta funzioni avanzate di routing, come RIPv2, OSPFv2 per IPv4, OSPFv3 per IPv6, e routing statico, consentendo una gestione flessibile del traffico di rete e una migliore efficienza nella distribuzione delle risorse di rete.
- Sicurezza e ACL: Include funzionalità di sicurezza come liste di controllo di accesso basate su IP e MAC, autenticazione IEEE 802.1x, Dynamic ARP Inspection e protezione da IP source guard, offrendo una protezione robusta contro le minacce alla sicurezza della rete.
- Gestione QoS e VLAN: Consente una gestione avanzata del traffico con supporto per QoS, VLAN tagging, e VLAN basate su protocollo, garantendo una prioritizzazione efficace del traffico critico e una segregazione sicura della rete.
- Alimentazione e Consumo: Progettato per un funzionamento efficiente, con un consumo energetico massimo di 18.48 watt in pieno carico, assicurando una gestione energetica ottimale.
Lo switch MGS-6320-8T2X di Planet Technology si posiziona come una soluzione ideale per le imprese che cercano un dispositivo versatile e ad alte prestazioni per migliorare la loro infrastruttura di rete, supportando una vasta gamma di applicazioni dalla distribuzione di access point wireless ad alta velocità fino alla connessione di server e dispositivi di storage in ambienti data center o di rete distribuita.
Specifiche Tecniche | |
---|---|
Copper Ports | 4x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X interface with Port-1 to Port-4 4x 10/100/1000/2500BASE-T RJ45 auto-MDI/MDI-X interface with Port-5 to Port-8 |
SFP+ Slots | 2 x 1G/2.5G/10GBASE-X SFP interfaces with Port-9 to Port-10 |
Console | 1 x RJ45-to-DB9, RS232 serial port (115200, 8, N, 1) |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
RAM | 512Mbytes |
Flash Memory | 64Mbytes |
Dimensions (W x D x H) | 330 x 150 x 44.5mm, 1U height |
Weight | 1436g |
Power Requirements | 100~240V AC, 50/60Hz, 1.5A max. |
Power Consumption | Max. 9.9 watts/33.76BTU (Power on without any connection) Max. 18.48 watts/63.02BTU (Full loading) |
ESD Protection | 6KV DC |
Surge Protection | 4KV DC |
LED | System: PWR (Green), SYS (Green), R.O (Green), Ring (Green) Per 10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 4): 1000 LNK/ACT (Green) 10/100Mbps LNK/ACT (Amber) Per 10/100/1000/2500BASE-T RJ45 Interfaces (Port 5 to Port 8): 1000/2500Mbps LNK/ACT (Green) 10/100Mbps LNK/ACT (Amber) Per SFP+ Interfaces (Port 9 to Port 10): 1G/2.5G LNK/ACT (Green) 10G LNK/ACT (Amber) |
Switching Specifications | |
Switch Architecture | Store-and-Forward |
Switch Fabric | 68Gbps/non-blocking |
Throughput | 50.59Mpps@ 64Bytes packet |
Address Table | 8K entries, automatic source address learning and aging |
Shared Data Buffer | 4.1Mbits |
Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
Jumbo Frame | 10Kbytes |
Layer 3 Functions | |
IP Interfaces | Max. 32 VLAN interfaces |
Routing Table | Max. 32 static route entries Max. 1K routing table entries |
Routing Protocols | IPv4 RIPv2 IPv4 OSPFv2 IPv6 OSPFv3 IPv4 hardware static routing IPv6 hardware static routing |
Layer 2 Functions | |
Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable/enable Port link capability control |
Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
Port Mirroring | TX/RX/Both Many-to-1 monitor Supports up to 5 sessions |
VLAN | IEEE 802.1Q tag-based VLAN, IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP Up to 4K VLAN groups, out of 4094 VLAN IDs |
Link Aggregation | IEEE 802.3ad LACP (static trunk) Supports 4 trunk groups with 10 ports per trunk |
IGMP Snooping | IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Supports 255 IGMP groups |
MLD Snooping | IPv6 MLD (v1/v2) snooping, IPv6 MLD querier mode support Supports 255 MLD groups |
Bandwidth Control | Per port bandwidth control Ingress: 10Kbps~13000Mbps Egress: 10Kbps~13000Mbps |
Ring | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 10ms @ 3 nodes Recovery time <50ms @ 16 nodes Supports Major ring and sub-ring |
QoS | Traffic classification based, strict priority and WRR 8-level priority for switching Port number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP packet |
Security Functions | |
Access Control List | IP-based ACL/MAC-based ACL ACL based on: MAC Address IP Address Ethertype Protocol Type VLAN ID DSCP 802.1p Priority Up to 512 entries |
Security | Port security IP source guard, up to 512 entries Dynamic ARP inspection, up to 1K entries Command line authority control based on user level Static MAC address, up to 64 entries |
AAA | RADIUS client TACACS+ client |
Network Access Control | IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication |
Management Functions | |
Basic Management Interfaces | Console;Telnet; Web browser; SNMP v1, v2c |
Secure Management Interfaces | SSHv2, TLSv1.2, SNMPv3 |
System Management | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility PLANET CloudViewer app |
Event Management | Remote Syslog System log SMTP |
SNMP MIBs | RFC1213 MIB-II RFC 2863 IF-MIB RFC1643 Ethernet MIB RFC2863 Interface MIB RFC2665 Ether-Like MIB RFC2737 Entity MIB RFC2819 RMON MIB (Groups 1, 2, 3 and 9) RFC2618 RADIUS Client MIB RFC3411SNMP-Frameworks-MIB IEEE802.1X PAE LLDP MAU-MIB Power over Ethernet MIB |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3z 1000BASE-SX/LX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBASE-X IEEE 802.3ae 10Gb/s Ethernet IEEE802.3x flow control and back pressure IEEE802.3ad port trunk with LACP IEEE802.1D Spanning Tree Protocol IEEE802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE802.1p Class of Service IEEE802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 RFC 2453 RIP v2 |
Environments | |
Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Storage | Temperature: -10 ~ 70degrees C |
