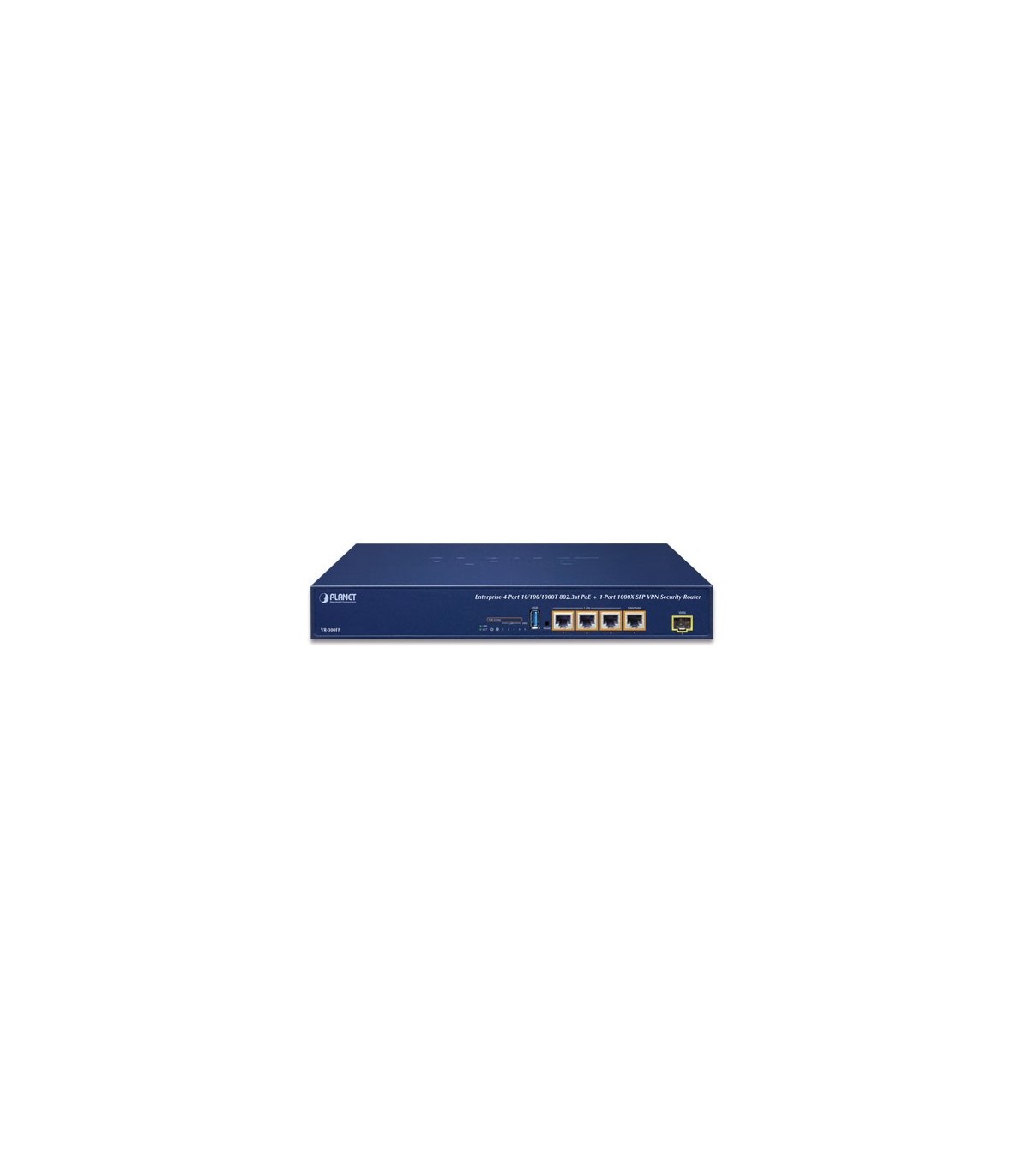

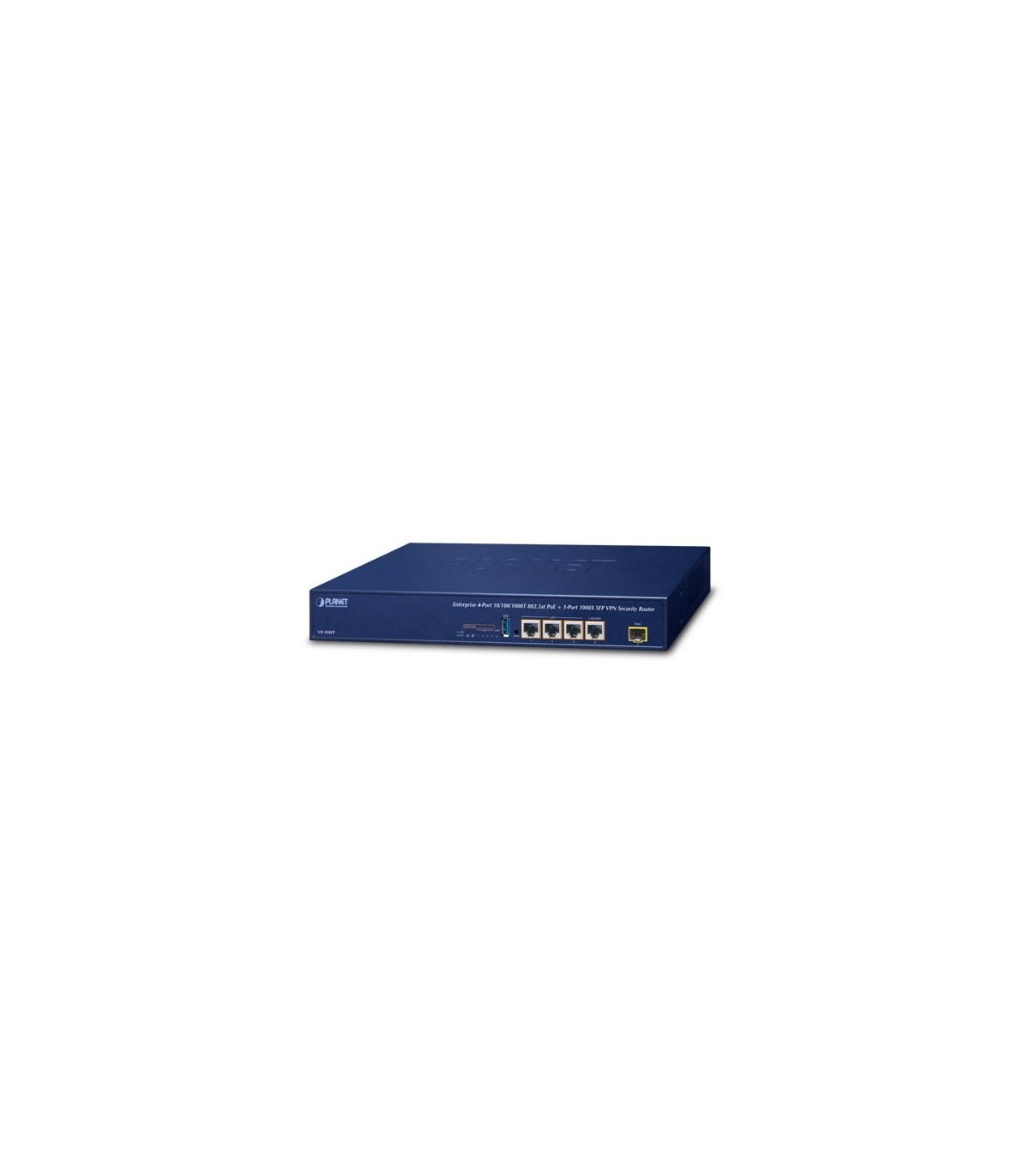

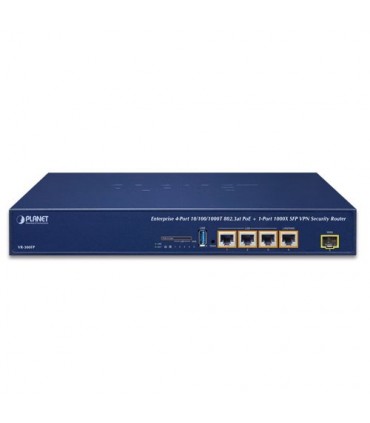

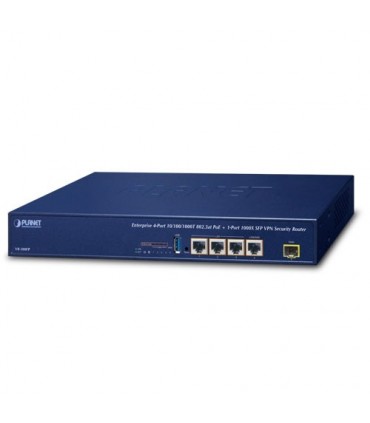

Enterprise 4-Porte 10/100/1000T 802.3at PoE + VPN Security Router1-Porta 1000X SFP

Riferimento:VR-300FP

Descrizione

VR-300FP Enterprise 4-Porte 10/100/1000T 802.3at PoE + VPN Security Router1-Porta 1000X SFP

Specifiche Tecniche
Ethernet 4 10/100/1000BASE-T RJ45 Ethernet ports including
1 1000BASE-X SFP slot
3 LAN ports (Ports 1 to 3)
1 LAN/WAN port (Port 4)
1 WAN port (Port 5)
USB Port 1 USB 3.0 port for system configuration backup and restore
Reset Button Reset to factory default
Thermal Fan 1
LED Indicators PWR (Green)
Internet (Green)
LAN/WAN (Green)
PoE-in-Use LED (Amber)
Installation Desktop installation or rack mounting
Power Requirements 100~240V AC, 50/60Hz, auto-sensing
Power Consumption / Dissipation VR-300F: Max.3.7 watts/ BTU
VR-300FP: Max.132 watts/ BTU
Weight VR-300F: 1.3kg
VR-300FP: 1.5kg
Dimensions (W x D x H) 330 x 155 x 43.5 mm, 1U height
Enclosure Metal
Power over Ethernet
PoE Standard IEEE 802.3af / 802.3at PoE+ PSE
PoE Power Supply Type End-span
PoE Power Output Per port 52V DC, 36 watts (max.)
Power Pin Assignment 1/2 (+), 3/6 (-)
PoE Power Budget 120 watts (max.) @ 25 degrees C
100 watts (max.) @ 50 degrees C
Max. Number of Class 4 PDs 4
PoE Management PD Alive Check
Scheduled Power Recycling
PoE Schedule
PoE Usage Monitoring
Security Service
Firewall Security Cybersecurity
Stateful Packet Inspection (SPI)
Blocks DoS/DDoS attack
ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323, TFTP
NAT Port forwarding
DMZ Host
UPnP
Content Filtering MAC filtering
IP filtering
Web filtering
Bandwidth Management Outbound load balancing
Failover for dual-WAN
QoS (Quality of Service)
Networking
Operation Mode Routing mode
Routing Protocol Static Route, Dynamic Route (RIP), OSPF
VLAN 802.1q Tag-based, Port-based, Multi-VLAN
Multicast IGMP Proxy
NAT Throughput Max. 900Mbps
Outbound Load Balancing Supported algorithms: Weight
Protocol IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3,
Key Features HA (High Availability)
Captive Portal
RADIUS Server/Client
AP Control
VPN
VPN Function IPSec/Remote Server (Net-to-Net, Host-to-Net)
GRE
PPTP Server
L2TP Server
SSL Server/Client (Open VPN)
VPN Tunnels Max. 60
VPN Throughput Max. 60Mbps
Encryption Methods DES, 3DES, AES or AES-128/192/256 encrypting
Authentication Methods MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm
Management
Basic Management Interfaces Web browser
SNMP v1, v2c
PLANET Smart Discovery utility/UNI-NMS supported
Secure Management Interfaces SSHv2, TLSv1.2, SNMP v3
System Log System Event Log
Others Setup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot
Diagnostics
Standards Conformance
Regulatory Compliance CE, FCC
Environment Specifications
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Dettagli del prodotto
VR-300FP
