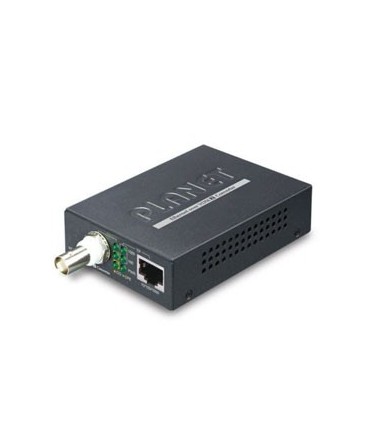

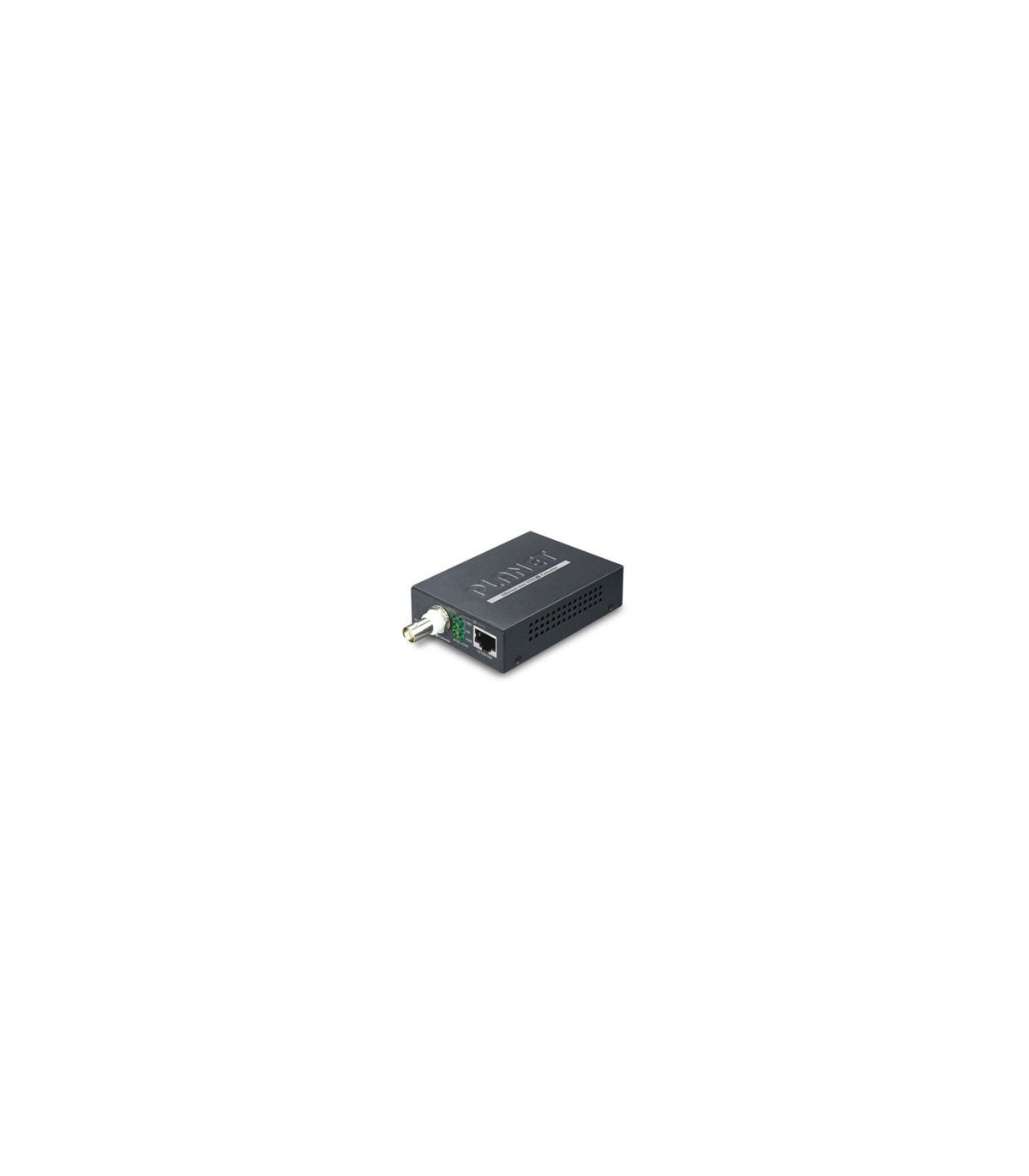

1-Porta Gigabit Ethernet Over Coaxial Converter

Riferimento:VC-232G

1-Porta Gigabit Ethernet Over Coaxial Converter
Descrizione



VC-232G 1-Porta Gigabit Ethernet over Coaxial Converter



Il convertitore ethernet coassiale di nuova generazione VC-232G di Planet Technology fa permette di realizzare connessioni fino a 1.400 metri di distanza e fino a 300 Mbps di banda totale su cavo coassiale e rivitalizzare vecchi cablaggi.

Approfondimenti e dettagli per convertitore Ethernet Coassiale VC-232G su Blog Tecnico 4Power

Specifiche Tecniche
TP interface 1 1000BASE-T RJ45 ports
● Note: the TP interface doesn’t support 10Mbps or 100Mbps connection
VDSL Interface 1 BNC female Ethernet over Coaxial

Cabling
Coaxial cable: 75 ohm
RG-6/U cable, less than12Ω/1000 ft
RG-59/U cable, less than 30Ω/1000 ft.

Maximum Distance
Max. 1400m with data transmission (4,593ft.)
Functionality DIP-1: Select CO or CPE mode
DIP-2: Select G.INP or Interleaved mode
DIP-3: Select Band Profile (Asymmetric or Symmetric)
DIP-4: Select SNR of 12dB or 8dB
Dimensions (W x D x H) 70 x 97 x 26 mm
Weight 185g
Power Requirement DC 5V, 2A external power
LED Indicators Power: Green
1000BASE-T LNK/ACT: Green
VDSL: Green
CO: Green
CPE: Green
Housing Metal
System Specifications
VDSL Compliance
  • VDSL-DMT ITU-T G.993.1 VDSL
     ITU-T G.997.1
     ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
     ITU-T G.993.5 G. Vectoring
     ITU-T G.998
     G.INP
  • Standards Conformance
    Standards Compliance IEEE 802.3ab Gigabit Ethernet
    ITU-T G.993.1 VDSL
    ITU-T G.997.1
    ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
    ITU-T G.993.5 G.Vectoring and G.INP
    ITU-T G.998
    Regulatory Compliance FCC Part 15 Class A, CE
    Environment
    Temperature Operating: 0~50 degrees C
    Storage: -10~70 degrees C
    Humidity Operating: 5~95% (non-condensing)
    Storage: 5~95% (non-condensing)
    Performance
    Coaxial Performance Interleave(Upstream/Downstream: Mbps)
     Asymmetric (8dB):
     200m ->88/168
     400m ->75/160
     600m ->59/129
     800m ->32/110

     Asymmetric (12dB):
     200m ->78/145
     400m ->69/137
     600m ->48/118
     800m ->26/94

     Symmetric (8dB):
     200m ->129/131
     400m ->117/122
     600m ->101/92
     800m ->62/73

     Symmetric (12dB):
     200m ->117/123
     400m ->102/102
     600m ->88/82
     800m ->47/56


    G.INP(Upstream/Downstream: Mbps)
     Asymmetric (8dB):
     200m ->95/200
     400m ->82/175
     600m ->59/151
     800m ->37/122

     Asymmetric (12dB):
     200m ->89/181
     400m ->71/156
     600m ->46/136
     800m ->30/102

     Symmetric (8dB):
     200m ->147/147
     400m ->132/135
     600m ->108/104
     800m ->76/78

     Symmetric (12dB):
     200m ->138/143
     400m ->116/120
     600m ->91/89
     800m ->58/60


    Note: As there are various resistance values in the category of RG-59/U or RG-6/U cable, the actual data rate will vary on the quality of the copper wire and environmental factors.

    Dettagli del prodotto
    VC-232G
