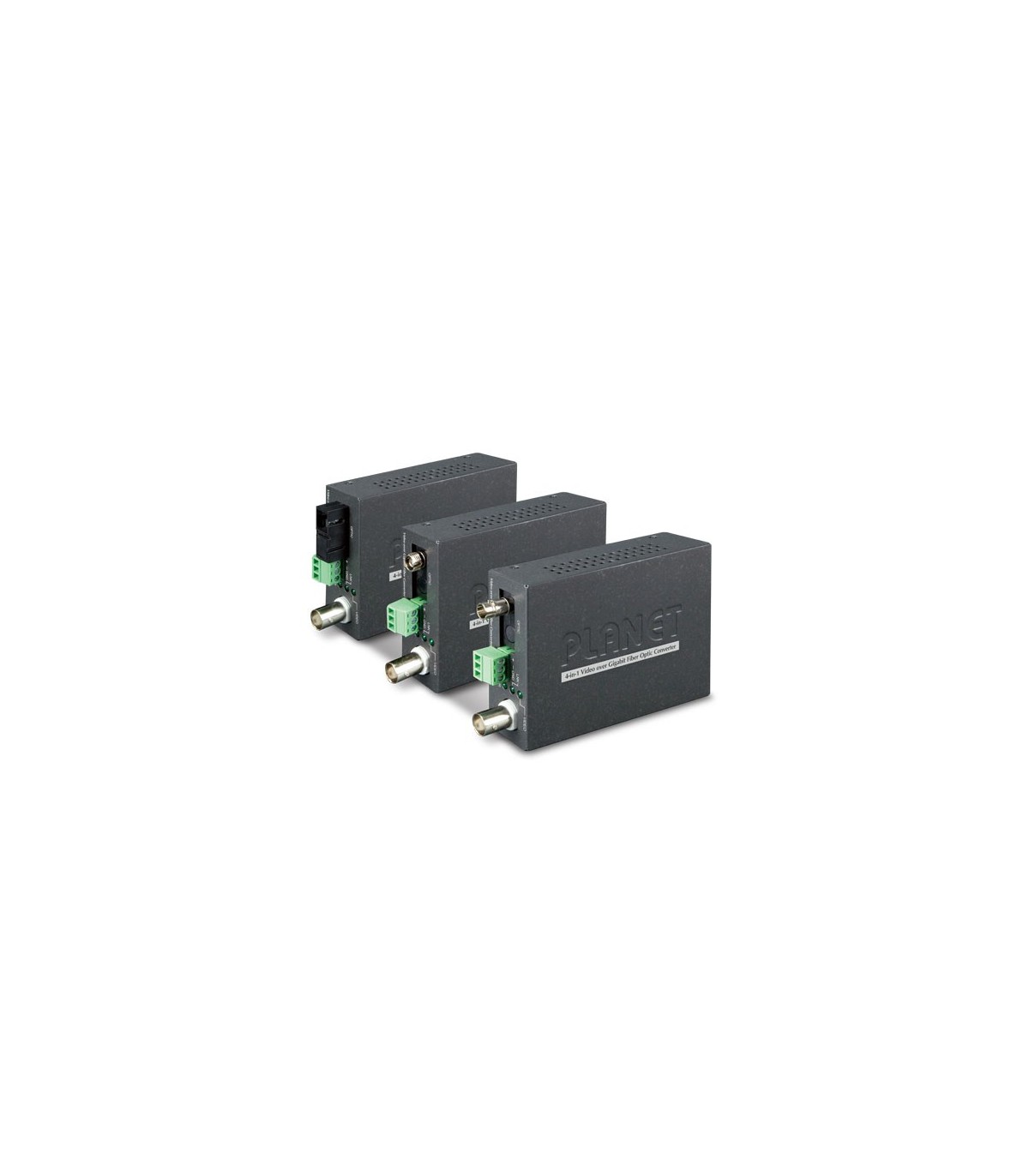

Kit Convertitori Video Over Fiber(St) - Include Tx Ed Rx

Kit Convertitori Video Over Fiber(St) - Include Tx Ed Rx

Riferimento:VF-101G-KIT

Planet
Media Converter 10/100Tx A 100Base-Fx (Sc) Monomodale - 50Km, Lf
Transceiver Fibra Sfp (40Km) 100Mbps Wdm Tx-1310
Kit Convertitori Video Over Fiber(St) - Include Tx Ed Rx
Descrizione

VF-101G-KIT Kit Convertitori Video over Fiber(ST) - include Tx ed Rx nella confezione distanza max 20Km

Specifiche tecniche
Video Channel 1 channel bi-direction
Signal Mode NTSC/PAL/SECAM
Video Connector BNC
Video Input / Output Impedance 75ohm/unbalanced interface
Video Input / Output Voltage 1.0 Vpp / Typical peak-peak value
Video Bandwidth 60MHz
Video Digital Bit Width 8/10 bit
Differential Gain(DG) < 1.3% (typical value)
Differential Phase(DP) < 1.3° (typical value)
SNR Weighted > 67dB (typical value)
Data Interface
Data Channel 1 channel
Physical Protocol RS-485
Operation Mode Simplex
Data Connector 3 Pin terminal block with screw clamps
Data Rate DC-115.2Kbps
Bit Error Rate (BER) < 10ns
Optical Interface
Optical Connector VF-101G-KIT：ST
VF-102G-KIT：FC
VF-106G-KIT：SC, WDM
Distance VF-101G-KIT：20km for single-mode
VF-102G-KIT：20km for single-mode
VF-106G-KIT：20km for single-mode
Optical Wavelength

VF-101G-KIT：

        TX: 1310nm
        RX: 1550nm
VF-102G-KIT：

        TX: 1310nm
        RX: 1550nm

VF-106G-KIT：

        TX: 1310nm
        RX: 1550nm
Launch Power (dBm) Max.: 0, Min.: -9
Receive Sensitivity (dBm) -26
Max. Input Power (dBm) -3
Cable 9/125μm single mode cable
Caratteristiche
LED Indicators
  • Power
  • Video
  • Link (fiber optic)
Dimension (W x D x H) 94 x 70 x 26 mm
Weight 200g
Power Requirement 5V DC, 2A
Power Consumption 4.8 Watts (maximum)
Mechanical Metal
Installation Wall-mountable, DIN-rail (with optional kit), chassis installation (with optional chassis)
Compatible Converter Chassis MC-700 / MC-1500 / MC-1500R
Standards Conformance
Regulation Compliance FCC, CE
Environment
Operating Temperature:　-25 ~ 70 Degree C
Relative Humidity:　0 ~ 95% (non-condensing)
Storage Temperature: -30 ~ 80 degrees C
Relative Humidity: 0 ~ 95% (non-condensing)

Dettagli del prodotto
VF-101G-KIT
