Planet WGS-804HP: Switch Ethernet Gigabit 8 porte con 4 Porte PoE
Riferimento:WGS-804HP
WGS-804HP: Switch PoE Hi Power Gigabit 8 porte Ethernet (4+4 PoE) montaggio a parete o incasso
WGS-804HP Switch PoE Hi Power Gigabit 8 porte Ethernet (4+4 PoE) montaggio a parete o incasso

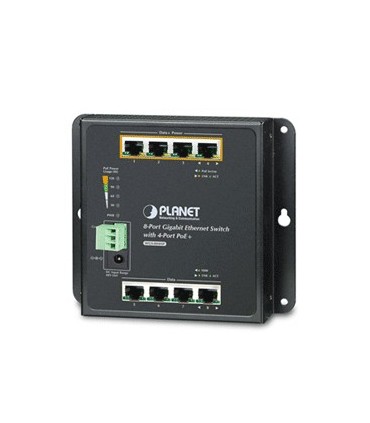

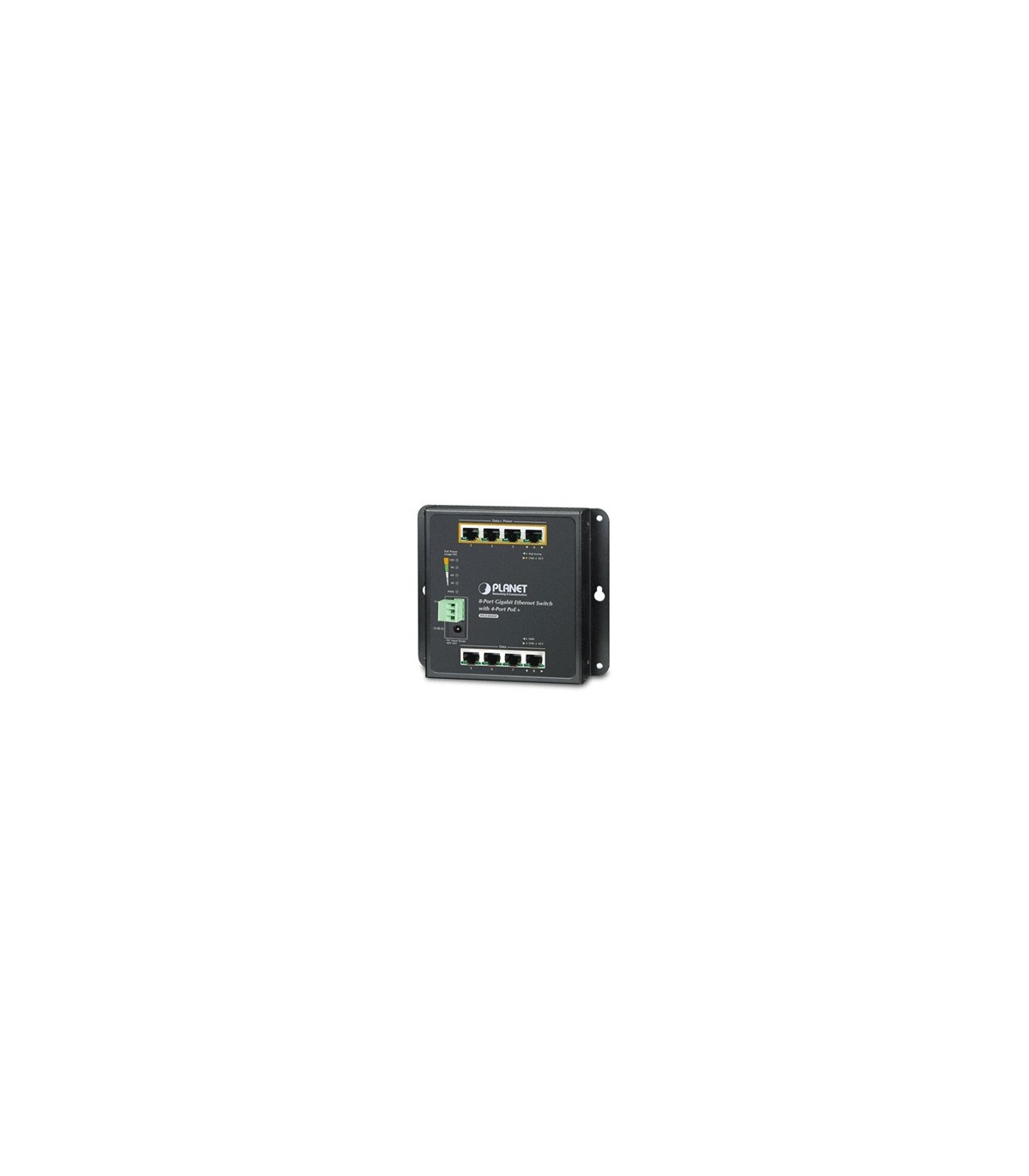

WGS-804HP 8-Porte 10/100/1000T Wall Mounted Gigabit Ethernet Switch con 4-Porte PoE+
4Power presenta WGS-804HP, uno switch PoE di Planet Technology : accesso frontale e ridotte dimensioni (134x146x25mm) per l’installazione in spazi ristretti: scatole da incasso, barra DIN in quadri elettrici e, grande novità, su superfici metalliche con l’esclusivo sistema di ancoraggio magnetico. Destinato ad applicazioni industriali, building automation, domotica, sicurezza, HAN (Home Area Networking) e Internet of Things (IoT). 4+4 Porte Ethernet Gigabit delle quali 4 PoE ad alta potenza (30,8 W), per combinare periferiche PoE e non PoE senza alcun problema. Alimentatore full Budget PoE di 120 W e gestione intelligente energia. Le caratteristiche tecniche, il robusto contenitore metallico IP30 fanless e la doppia alimentazione (48÷56 V) fanno del WGS-804HP un prodotto di eccellenza.
Dettagli e approfondimenti: http://networking.4power.it/switch-parete-wgs-804hp
Ne parlano:
Securindex.com : Da 4Power uno switch PoE High Power per montaggio a incasso o a parete
Office Automation 03/2015: Nuovo switch POE HI-POWER da incasso o a parete da 4Power
| Specifiche Tecniche | |
| Network Connector | 8-Port RJ45 for 10/100/1000BASE-T |
| PoE Inject Port | 4-Port with 802.3af / 802.3at PoE injector function (Port-1 to Port-4) |
| Switch Architecture | Store and forward |
| MAC Address Table | 8K MAC address table with auto learning function |
| Data Buffer | 1Mbit |
| Switch Fabric | 16Gbps / non-blocking |
| Switch Throughput | 11.9Mpps@64Bytes |
| Jumbo Frame | 9Kbytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| LED Indicators | Power LED: Power (Green) PoE Power Usage LED: 30W, 60W, 90W, 120W (Green) PoE Port(Port-1 to Port-4): PoE-in-Use (Orange) LNK/ACT (Green) 10/100/1000BASE-TX Port (Port-5 to Port-8): 1000 (Green) LNK/ACT (Green) |
| Connector | ■ Removable 3-pin terminal block for power input - Pin 1/2 for DC Power - Pin 3 for earth ground ■ DC power jack with 2.0mm central pole |
| Power Requirements | 48~56V DC, 3A (max.) |
| Power Consumption | 140 watts / 478BTU |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| Enclosure | IP30 metal |
| Dimensions (W x D x H) | 148 x 134 x 25 mm |
| Weight | 510g |
| Installation | Wall mount, magnetic wall mount and DIN-rail kit |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af / 802.3at Power over Ethernet PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | ■ IEEE 802.3af Standard - Per port 48V~56V DC (depending on the power supply), max. 30 watts ■ IEEE 802.3at Standard - Per port 50V~56V DC (depending on the power supply), max. 30 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| * PoE Power Budget | 120 watts (depends on power input) |
| Max. Number of Class 2 PD | 4 |
| Max. Number of Class 3 PD | 4 |
| Max. Number of Class 4 PD | 4 |
| Standard Conformance | |
| Standard Compliance | IEEE 802.3: Ethernet IEEE 802.3u: Fast Ethernet IEEE 802.3ab: Gigabit Ethernet IEEE 802.3x: Flow Control IEEE 802.3af: Power over Ethernet IEEE 802.3at: High Power over Ethernet |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration) |
| Environment | |
| Operating | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Accessory | |
| Standard Accessories | ■ User’s manual x1 ■ Magnetic kit x 1 ■ DIN-rail kit x 1 ■ Wall-mounted Kit x 1 ■ Dust cap x 8 ■ 3-pin Terminal Block Connector x 1 |
