Switch PoE+ Gigabit Managed 24 Porte FGSW-2624-HPS: Ideale per Reti PoE ad Alta Potenza
Sfrutta al Massimo la Tua Rete PoE con lo Switch FGSW-2624-HPS: 24 Porte PoE+, 220W di Budget, Gestione Web, Layer 2

Planet FGSW-2624-HPS: Switch PoE+ Gigabit 24 Porte PoE+, 220W di Budget, Gestione Web, Layer 2

Riferimento:FGSW2624HPS

Planet
Planet LRP-822CS: Switch Managed Lunga Distanza Ipv4/Ipv6, 8 Porte su Coassiale
Planet POE-161: Poe Splitter Alimenta dispositivi non PoE con 5/12V DC

FGSW-2624-HPS: Switch PoE+ Gigabit Managed 24 Porte FGSW-2624-HPS: PoE+, Gestione Web, Layer 2 Avanzato

Descrizione

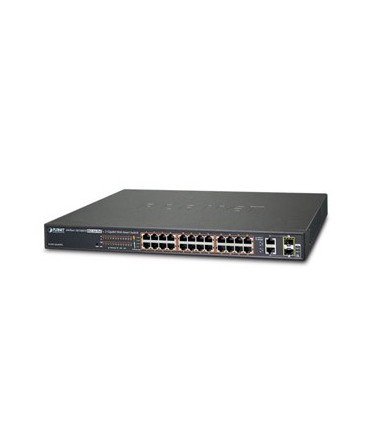

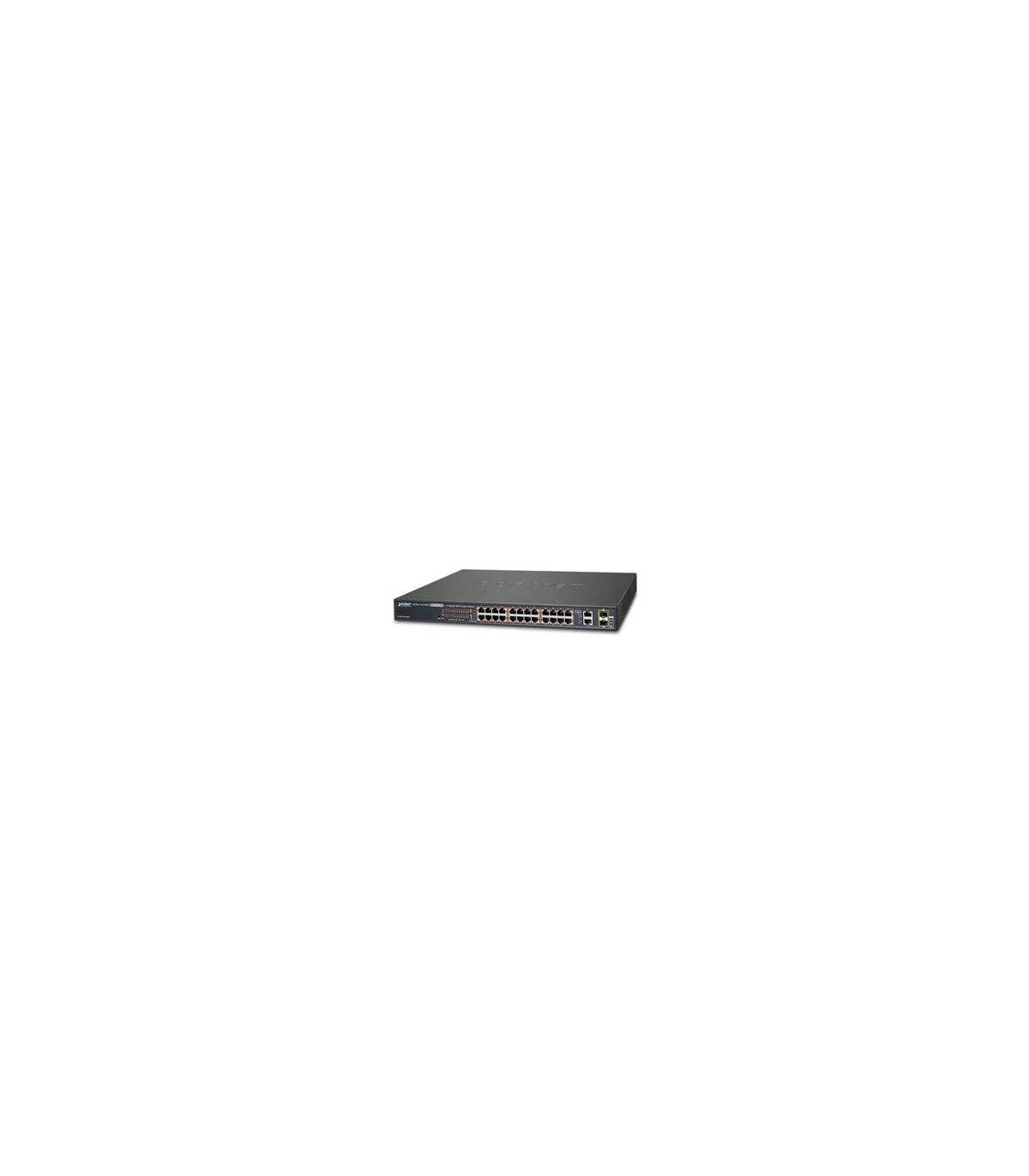

FGSW-2624-HPS Switch Fast Eth. PoE Layer 2 24-Porte 10/100Base-TX + 2-Port Gigabit TP/SFP Opz. - (220W) - 802.3at

Il FGSW-2624-HPS di Planet Technology è uno switch PoE Layer 2 a 26 porte progettato per alimentare e collegare dispositivi in rete in ambienti aziendali, scuole, hotel e molto altro. Offre 24 porte Fast Ethernet PoE+ che forniscono fino a 30W di potenza per dispositivi PoE esigenti come:

  • Telecamere IP

  • Access point WiFi

  • Telefoni VoIP

  • Dispositivi industriali

Oltre alle porte PoE+, lo switch dispone di 2 porte Gigabit TP/SFP opzionali per connessioni uplink ad alta velocità e connessioni in fibra ottica.

Caratteristiche principali:

  • PoE+ ad alta potenza: fino a 30W per porta (220W totali) per alimentare dispositivi PoE ad alto consumo.

  • 24 porte Fast Ethernet PoE+: supporta IEEE 802.3af e 802.3at.

  • 2 porte Gigabit: collega dispositivi non PoE alla rete.

  • Switch Fast Ethernet: velocità di rete fino a 100 Mbps.

  • Gestione Layer 2: VLAN, QoS, IGMP Snooping, sicurezza avanzata.

  • Plug and play: facile installazione e configurazione.

  • Design compatto: ideale per spazi ristretti.

L'FGSW2624HPS è la soluzione ideale per:

  • Aggiornare la rete esistente a PoE+ senza sostituire lo switch.

  • Alimentare telecamere IP, access point WiFi e altri dispositivi in ambienti PoE.

  • Creare una rete PoE scalabile per le tue esigenze future.

Specifiche tecniche:

  • Porte: 24 x PoE+ RJ-45, 2 x RJ-45 (10/100/1000 Mbps), 2 x SFP (opzionali)

  • Alimentazione PoE+: fino a 30W per porta (220W totali)

  • Standard PoE: IEEE 802.3af, IEEE 802.3at

  • Switch: Store and Forward, 8.8Gbps, 6.54Mpps

  • VLAN: supporto VLAN con tag 802.1Q

  • Gestione: Web, SNMP v1

  • Dimensioni: 440 x 300 x 44.5 mm

  • Peso: 4.14kg



Specifiche Tecniche
10/100Mbps Copper Ports 24 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
Gigabit Copper Ports 2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 2 1000BASE-X SFP interfaces, shared with Port-25 to Port-26
Switch Architecture Store-and-Forward
Switch Fabric 8.8Gbps / non-blocking
Throughput 6.54Mpps@64Bytes
Address Table 4K entries, automatic source address learning and ageing
Shared Data Buffer 2.75Mb embedded memory for packet buffers
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Maximum Transmit Unit 1518 Bytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H) 440 x 300 x 44.5 mm, 1U height
Weight FGSW-2624HPS: 4142g
Power Consumption FGSW-2624HPS: Max. 297 watts / 1013.4 BTU
ESD Protection Contact Discharge 4KV DC
Air Discharge 8KV DC
LED FGSW-2624HPS:
System:
Power (Green)
10/100BASE-TX RJ45 Interfaces (Port 1 to Port 24):
10/100Mbps LNK/ACT (Green)
PoE-in-Use (Orange)
10/100/1000BASE-T RJ45 / SFP Interfaces (Port 25 to Port 26):
LNK/ACT (Green)
100/1000 (Green)
PoE Usage
50W, 100W, 150W, 190W (Orange)
Cable Twisted-pair:
■ 10BASE-T: 2-pair UTP Cat 3, 4, 5 for up to 100 meters
■ 100BASE-TX: 2-pair UTP Cat 5, 5e for up to 100 meters
■ 1000BASE-T: 4-pair UTP Cat 5e, 6 for up to 100 meters

Fiber-optic Cable:
■ 1000BASE-SX:
50/125μm or 62.5/125μm multi-mode fiber-optic cable, up to 550m (varying on SFP module)
■ 1000BASE-LX:
9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120 kilometers (varying on SFP module)
Power over Ethernet
PoE Standard IEEE 802.3af / 802.3at PoE / PSE
PoE Power Supply Type End-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Output FGSW-2624HPS: Per Port 52V DC, Max. 30.8 watts
PoE Power Budget FGSW-2624HPS:
■ 220 watts (max.) @ 25 degrees C
■ 190 watts (max.) @ 50 degrees C
PoE Ability FGSW-2624HPS:
■ PD @ 7 watts: 24 units
■ PD @ 15.4 watts: 14 units
■ PD @ 30 watts: 7 units
Layer 2 Functions
Port Configuration Port disable / enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Port Status Display each port’s speed duplex mode, link status, flow control status, auto negotiation status and trunk status
Port Mirroring TX / RX / Both
Many-to-1 monitor
VLAN 802.1Q tagged-based VLAN, up to 32 VLAN groups, out of 4094 VLAN IDs
Port-based VLAN, up to 26 VLAN groups
MTU VLAN
Link Aggregation 1 group of 2-Port 10/100/1000BASE-T trunk supported
QoS Allows to assign low / high priority on each port
First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy
IGMP Snooping IGMP (v1 / v2) Snooping, up to 32 multicast groups
Without Query supported
Security Control MAC address binding
TCP & UDP filter
Management Functions
Basic Management Interfaces Web browser, SNMP v1
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet over Fiber-Optic
IEEE 802.3x Full-duplex flow control
IEEE 802.1Q VLAN
IEEE 802.1p QoS
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
