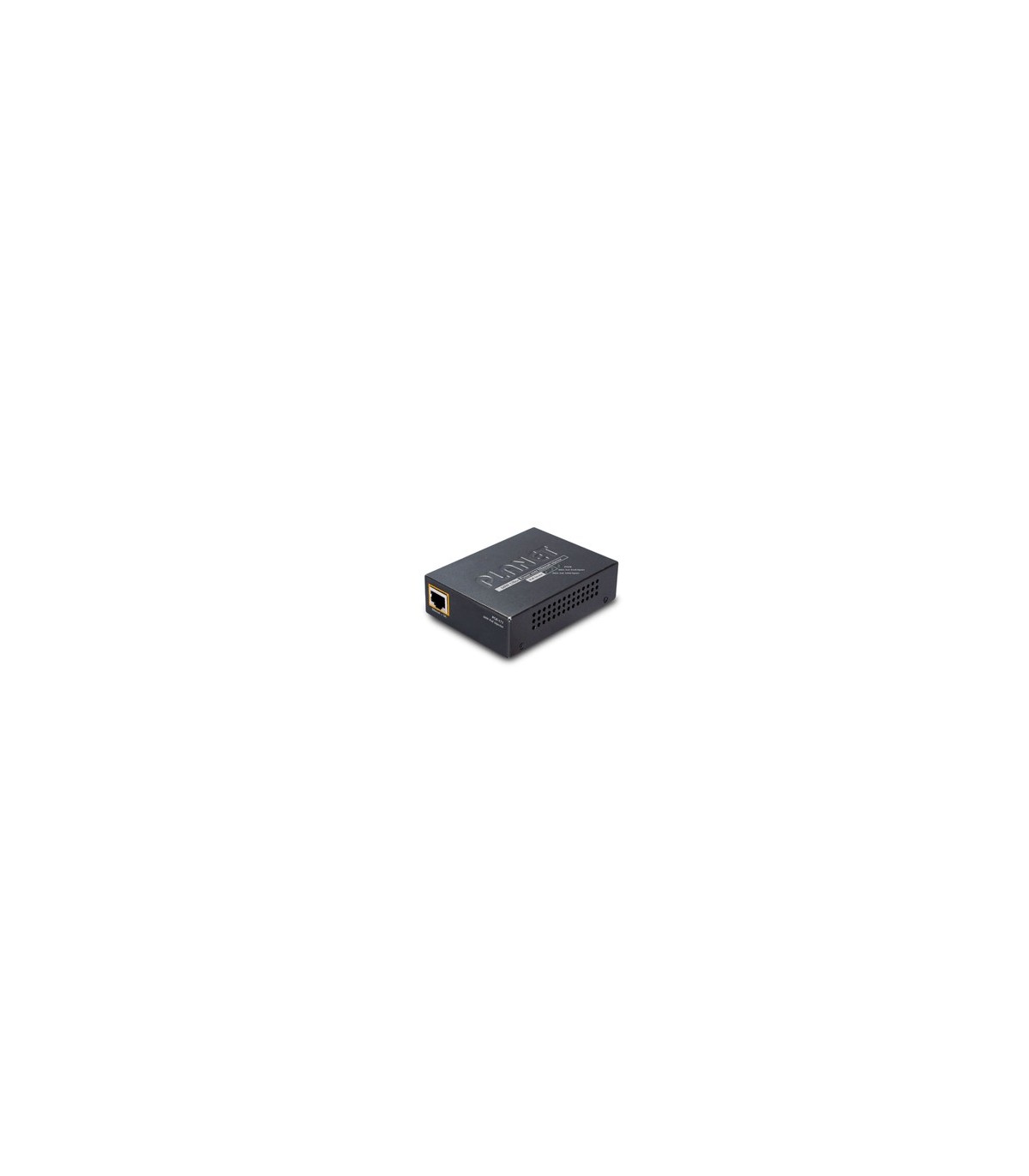

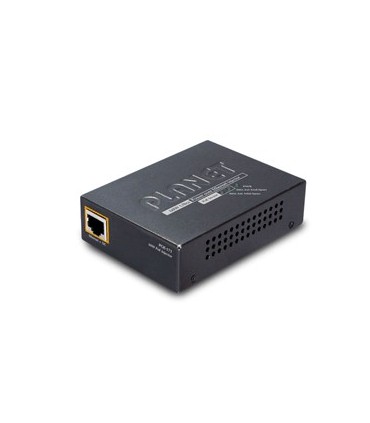

SPLITTER U.POE 12V/19V/24V 10/100/1000TX 802.3AT

Riferimento:POE-171S

Descrizione





POE-171S - Splitter Ultra-PoE 12V/19V/24V Gigabit Ethernet 10/100/1000Base-T - 802.3at





Specifiche tecniche
Interface Input Port
 ■ 1 x RJ-45 STP
 ■ PoE (Data + Power) In
Output Port
 ■ 1 x RJ-45 STP
 ■ Data Out
DC Socket
 ■ DC Out
DIP-Switch
 ■ 12V DC/19V DC/24V DC output voltage
LED Indicator System: Power x 1 (Green)
Network Cable Ultra PoE (60W):
 10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m (328ft)
802.3af / at PoE (15W / 30W):
 10/100/1000Base-T: 2-Pair UTP Cat. 3, 5, 5e, 6 up to 100m (328ft)
Data Rate 10/100/1000Mbps
Dimensions (W x D x H) 95 x 70 x 26 mm
Weight 300g
Power Requirements 52 ~ 56V DC
Power Consumption 50 watts (maximum)
Operating Temperature 0 ~ 50 degrees C
Storage Temperature -10 ~ 70 degrees C
Humidity 5 ~ 95% (Non-condensing)
Power over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus
Power Output DC 12V/19V/24V by DIP switch control
PoE Power Supply Type End-Span + Mid-Span
Power Pin Assignment Pair 1: 1/2(-), 3/6(+)
Pair 2: 4/5(+), 7/8(-)
Standards Conformance
Standards Compliance IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at High Power over Ethernet
IEEE 802.3af Power over Ethernet
Regulation Compliance FCC Part 15 Class A, CE

Dettagli del prodotto
POE-171S
