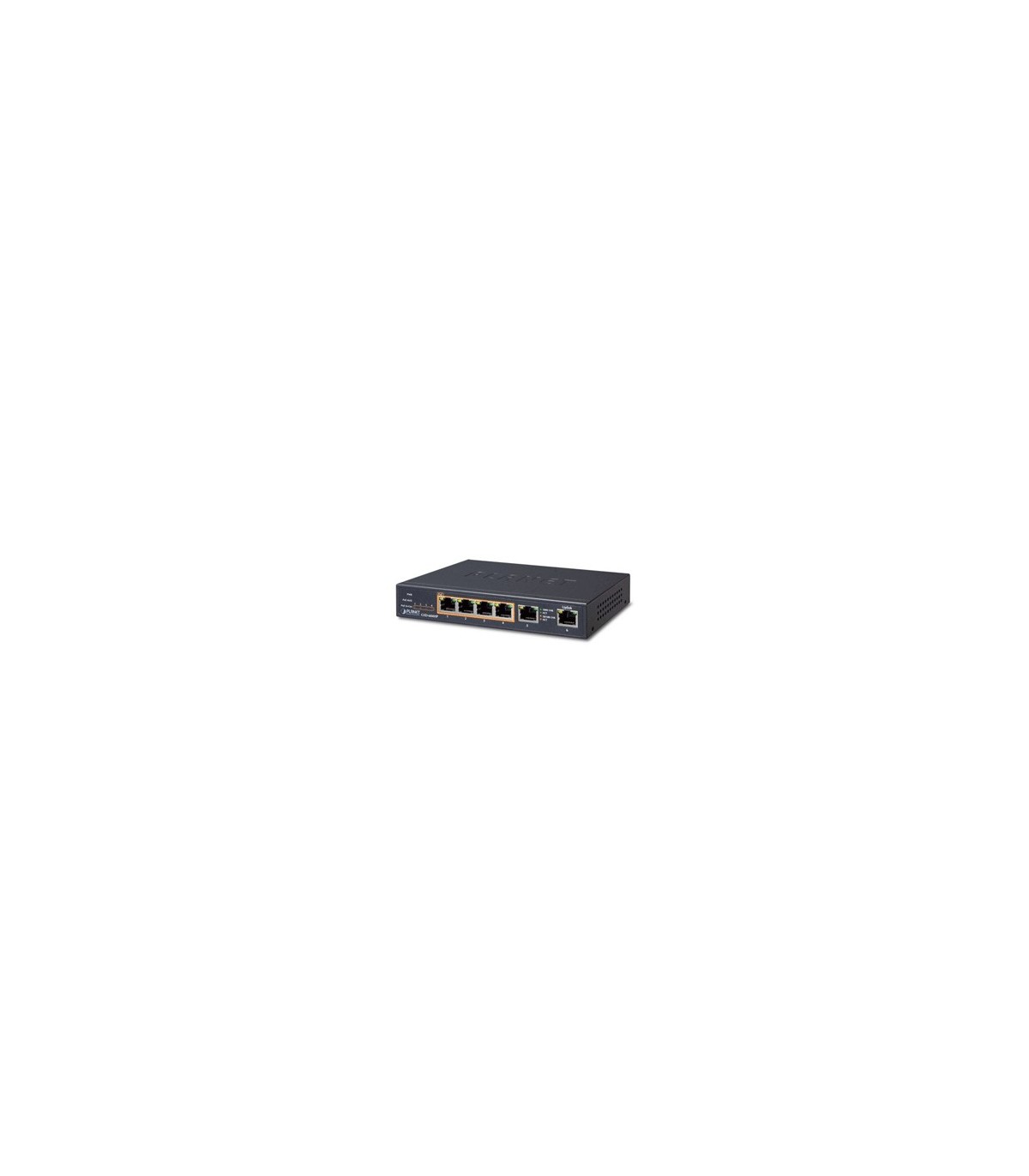

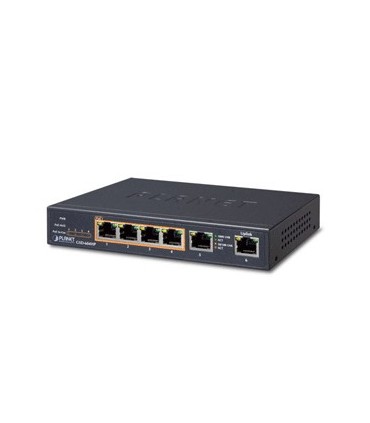

4-Porte 10/100/1000T 802.3at PoE + 2-Porte 10/100/1000T Desktop

Riferimento:GSD-604HP

Descrizione





GSD-604HP 4-Porte 10/100/1000T 802.3at PoE + 2-Porte 10/100/1000T Desktop Switch (External 55 Watts)





Specifiche Tecniche
Network Connector 6-port RJ45 for 10/100/1000BASE-T, auto MDI / MDIX
PoE Inject Port 4-port with 802.3af/at PoE injector function (port 1 to port 4)
LED Display System:
Power (Green)
Per PoE port:
PoE (Orange, port 1 to port 4)
PoE max. (Orange)
Ethernet port:
1000 LNK (Green)
10/100 LNK (Orange)
Thermal Fan Fanless design
Switch Architecture Store and Forward switch architecture
MAC Address Table 8K MAC address table with auto learning function
Switch Fabric 12Gbps
Switch Throughput 8.92Mpps @64 bytes
Jumbo Packet 9216 bytes
Flow Control Back pressure for half-duplex
IEEE 802.3x pause frame for full-duplex
Power Requirements 55V DC, 1.1A
ESD Protection 6kV DC
Power Consumption Max. 60 watts, 204.6 BTU
Dimensions (W x D x H) 160 x 92.5 x 28 mm
Weight 374g
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Output Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
PoE Power Budget 55 watts
Standard Conformance
EMI Safety FCC Class B, CE
Standard Compliance IEEE 802.3: Ethernet
IEEE 802.3u: Fast Ethernet
IEEE 802.3ab: Gigabit Ethernet
IEEE 802.3x: Flow Control
IEEE 802.3af: Power over Ethernet
IEEE 802.3at: Power over Ethernet Plus
Environment
Operating Environment 0 ~ 50 degrees C
Storage Environment -10 ~ 70 degrees C
Operating Humidity 5 ~ 95%, relative humidity, non-condensing
Storage Humidity 5 ~ 95%, relative humidity, non-condensing

Dettagli del prodotto
GSD-604HP
