Specifiche Tecniche
Modello	FST-80X Series
Hardware Specification
Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX and 100Base-FX
Copper Port	1 x 10/100Base-TX port, Auto-negotiation, Auto-MDI-MDI-X
Optical Port	1 x 100Base-FX
Fiber Connector	FST-801 : ST / Multi-mode / 220m~550m FST-802 : SC / Multi-mode / 220m~550m FST-802S15 : SC / Single Mode / 15km FST-802S35 : SC / Single Mode / 35km FST-802S50 : SC / Single Mode / 50km FST-806A20: WDM SC / Single Mode / 20km FST-806B20: WDM SC / Single Mode / 20km
Optical Wavelength	FST-801: 1310nm FST-802: 1310nm FST-802S15: 1310nm FST-802S35: 1310nm FST-802S50: 1310nm FST-806A20: TX: 1310nm, RX: 1550nm FST-806B20: TX: 1550nm, RX: 1310nm
Speed	Ethernet: 10/20Mbps for Half/ Full-duplex Fast Ethernet: 100/200Mbps for Half/ Full-duplex
Maximum Forward Packet Size	1600Bytes
DIP Switch	DIP-1: Fiber Full / Half duplex modes select DIP-2: Copper Forced Mode / Auto-negotiation Mode DIP-3: Copper Speed 10Mbps / 100Mbps DIP-4: Copper Full / Half duplex modes select DIP-5: Fiber LLR (Link Loss Return) Enable / Disable DIP-6: Fiber LLCF(Link Loss Carry Forward) Enable / Disable
LED Indicator	System: PWR TP: LNK/ ACT, FDX/ COL, 100 FX: LNK/ ACT, FDX/ COL
Power Input	DC 5V, 2A
Power Consumption	6.2 Watts/ 21 BTU (maximum)
Dimension (W x D x H)	94 x 81 x 26 mm
Weight	0.22kg
Cable	10Base-T: 2-pair Cat. 3, 4, 5 UTP cable, up to 100 meters 100Base-TX: 2-pair Cat. 5 UTP cable, up to 100 meters 100Base-FX: -50/ 125μgm or 62.5/ 125μgm multi-mode fiber cable, up to 2km. - 9/ 125μgm single-mode cable, provides long distance for 15/ 20/ 35/ 50km
Operate Environment	0~50 Degree C, 5~90% RH
Storage Environment	-20~70 Degree C, 5~90% RH
Emission	FCC Class B, CE mark

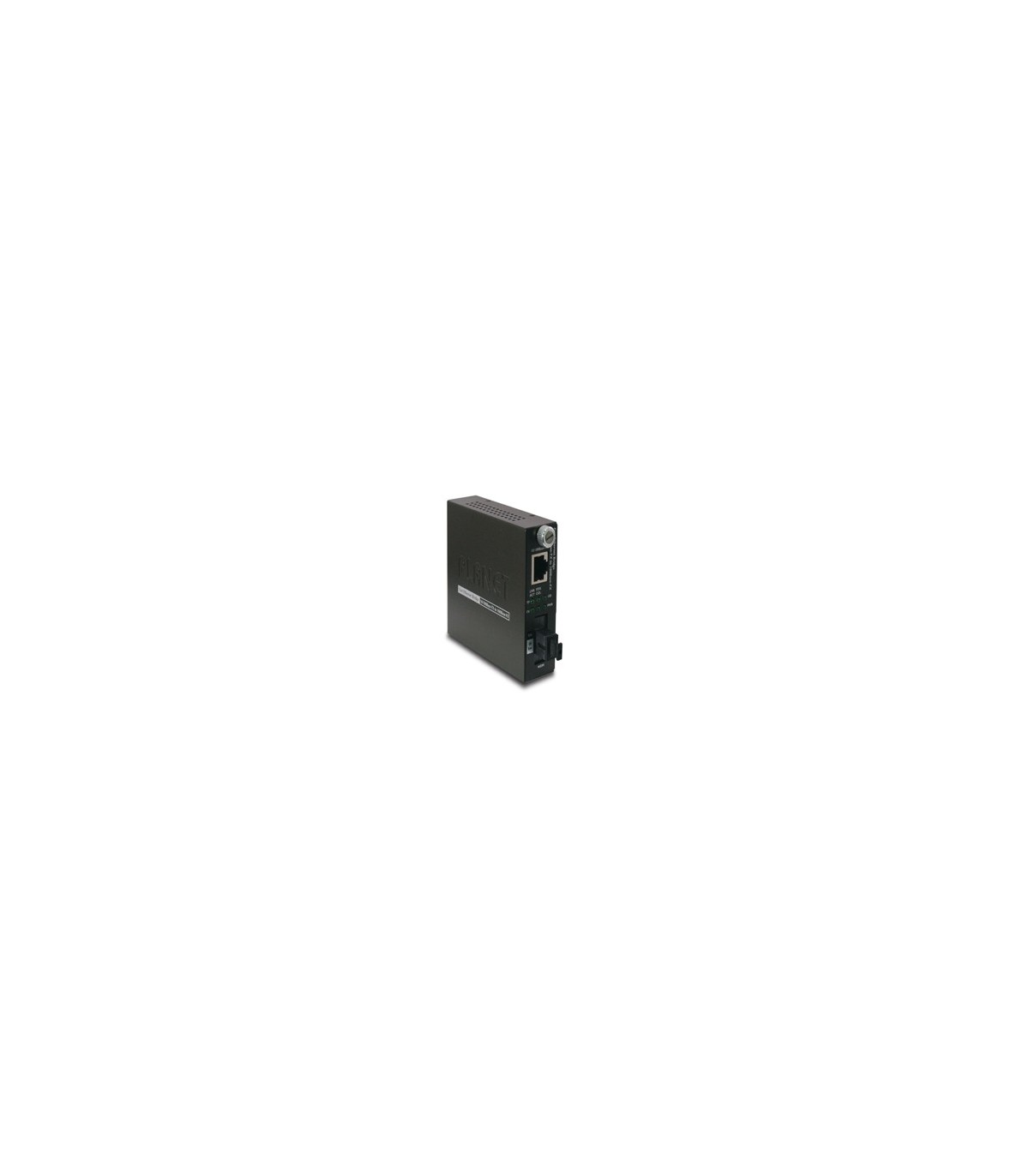

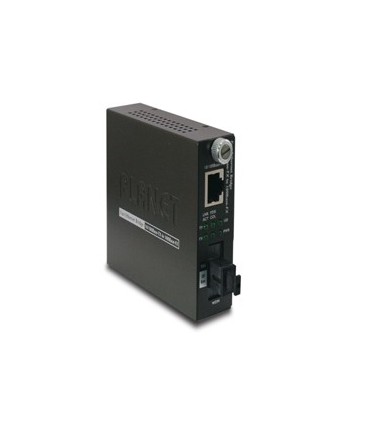

Media Converter Smart Wdm 10/100Base-Tx A 100Base-Fx - Tx: 1550
