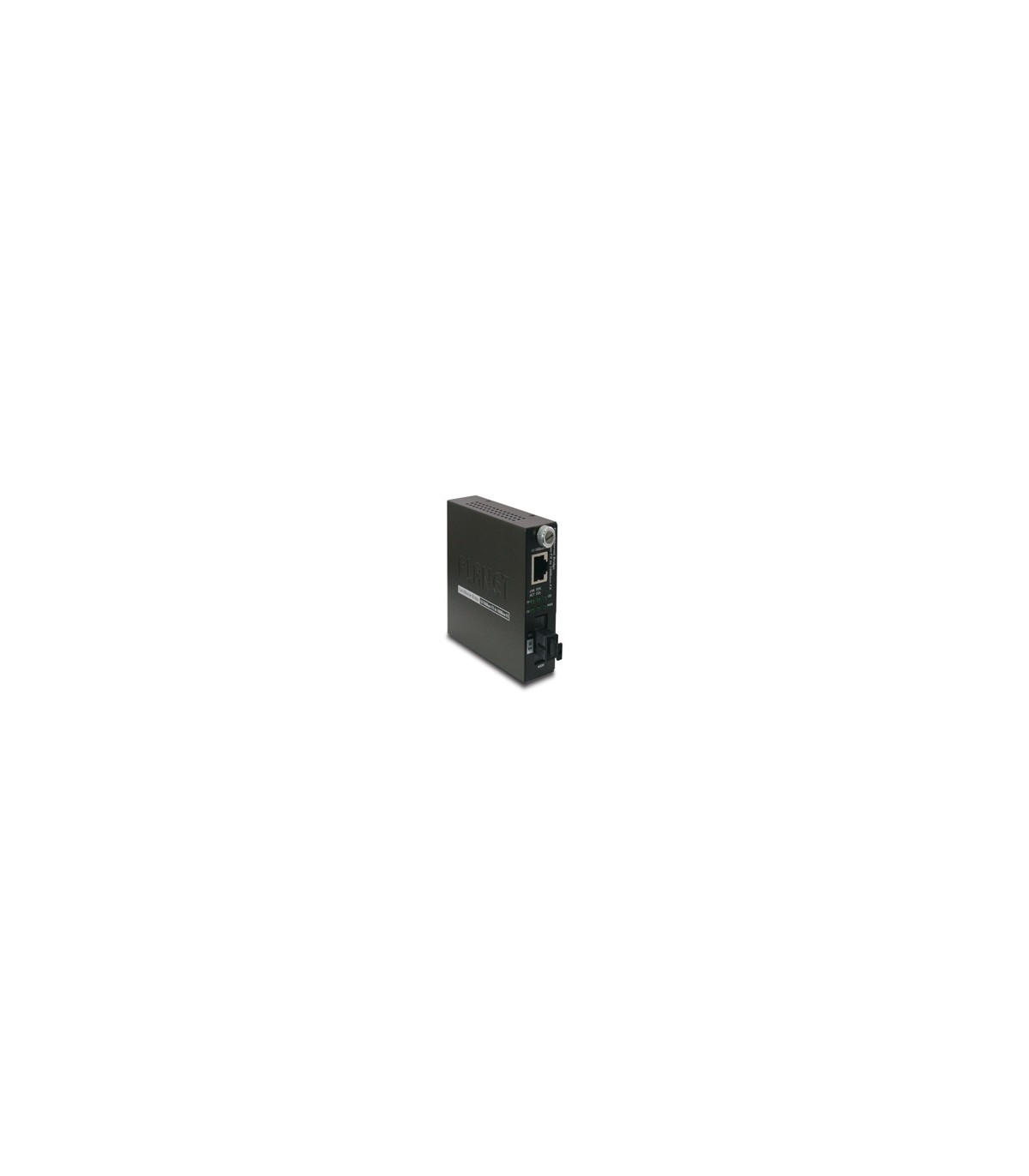

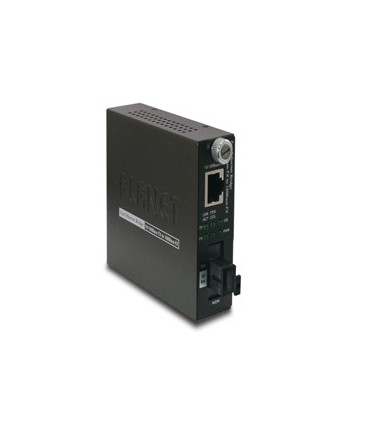

Media Converter Smart Wdm 10/100Base-Tx A 100Base-Fx - Tx: 1310

Riferimento:FST-806A60

Media Converter Smart Wdm 10/100Base-Tx A 100Base-Fx - Tx: 1310
Descrizione





FST-806A60   Media Converter Smart WDM 10/100Base-TX a 100Base-FX - Tx: 1310 - 60KM





Specifiche Tecniche
Modello FST-80X Series
Hardware Specification
Standards IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX and 100Base-FX
Copper Port 1 x 10/100Base-TX port, Auto-negotiation, Auto-MDI-MDI-X
Optical Port 1 x 100Base-FX
Fiber Connector FST-801 : ST / Multi-mode / 220m~550m
FST-802 : SC / Multi-mode / 220m~550m
FST-802S15 : SC / Single Mode / 15km
FST-802S35 : SC / Single Mode / 35km
FST-802S50 : SC / Single Mode / 50km
FST-806A20: WDM SC / Single Mode / 20km
FST-806B20: WDM SC / Single Mode / 20km
Optical Wavelength FST-801: 1310nm
FST-802: 1310nm
FST-802S15: 1310nm
FST-802S35: 1310nm
FST-802S50: 1310nm
FST-806A20/60: TX: 1310nm, RX: 1550nm
FST-806B20/60: TX: 1550nm, RX: 1310nm
Speed Ethernet: 10/20Mbps for Half/ Full-duplex
Fast Ethernet: 100/200Mbps for Half/ Full-duplex
Maximum Forward Packet Size 1600Bytes
DIP Switch DIP-1: Fiber Full / Half duplex modes select
DIP-2: Copper Forced Mode / Auto-negotiation Mode
DIP-3: Copper Speed 10Mbps / 100Mbps
DIP-4: Copper Full / Half duplex modes select
DIP-5: Fiber LLR (Link Loss Return) Enable / Disable
DIP-6: Fiber LLCF(Link Loss Carry Forward) Enable / Disable
LED Indicator System: PWR
TP: LNK/ ACT, FDX/ COL, 100
FX: LNK/ ACT, FDX/ COL
Power Input DC 5V, 2A
Power Consumption 6.2 Watts/ 21 BTU (maximum)
Dimension (W x D x H) 94 x 81 x 26 mm
Weight 0.22kg
Cable 10Base-T: 2-pair Cat. 3, 4, 5 UTP cable, up to 100 meters
100Base-TX: 2-pair Cat. 5 UTP cable, up to 100 meters
100Base-FX:
-50/ 125μgm or 62.5/ 125μgm multi-mode fiber cable, up to 2km.
- 9/ 125μgm single-mode cable, provides long distance for 15/ 20/ 35/ 50km
Operate Environment 0~50 Degree C, 5~90% RH
Storage Environment -20~70 Degree C, 5~90% RH
Emission FCC Class B, CE mark

Dettagli del prodotto
FST-806A60
