Switch Gigabit Ethernet Managed Ad Alimentazione Solare
Descrizione

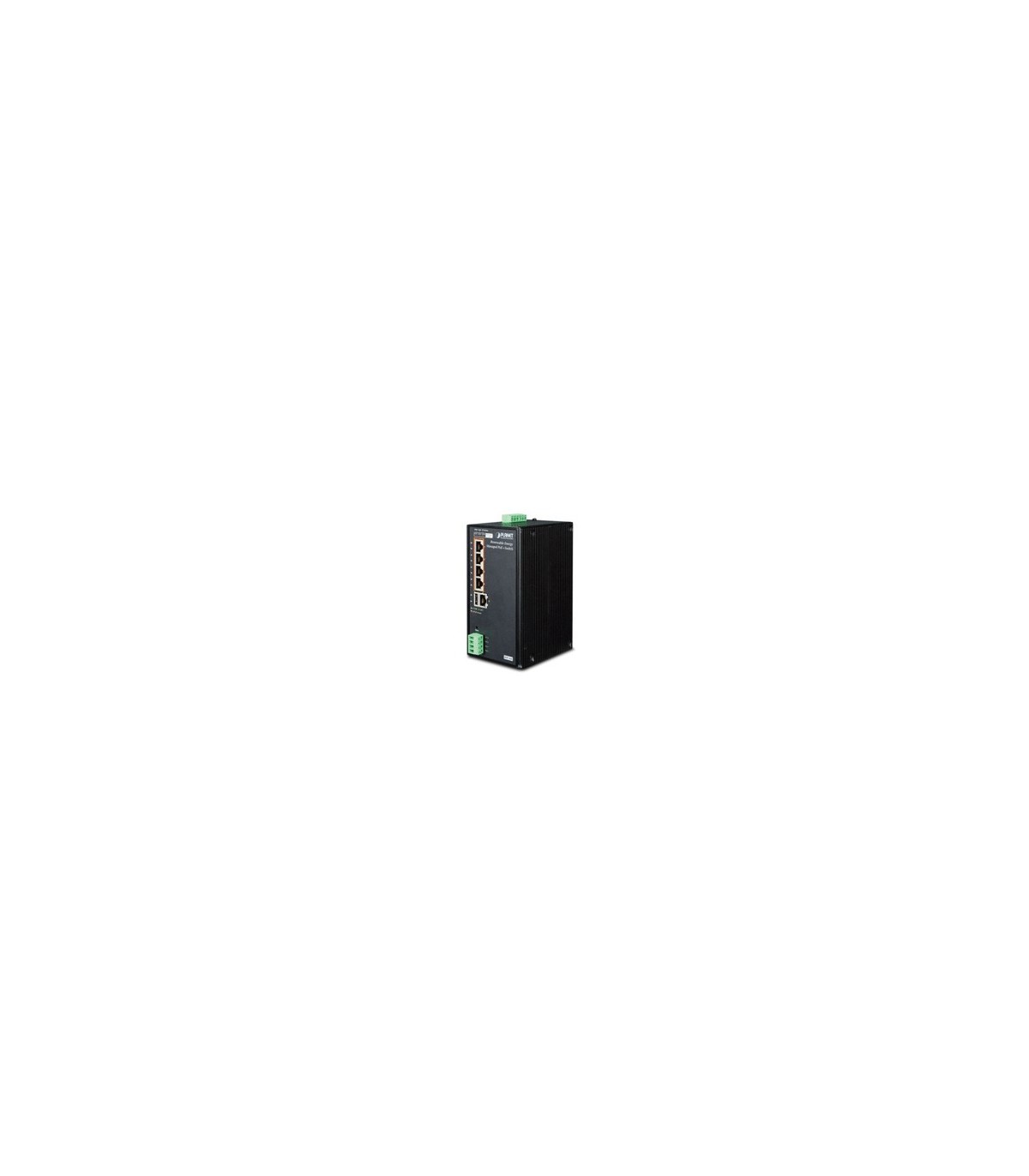

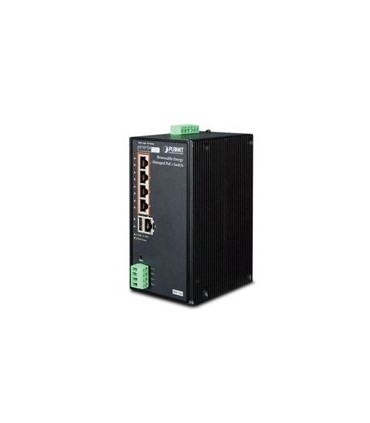

BSP-360 Switch Gigabit Ethernet Managed ad alimentazione solare, 4-Porte 10/100/1000-T 802.3at PoE +1-Porta 10/100/1000-T, protezione PWM (-20 a 60 °C)

Il BSP-360 di Planet Technology è un potente switch PoE Gigabit gestito, alimentato a energia solare, perfetto per reti in ambienti remoti o esterni dove l'alimentazione di rete è limitata o assente. Grazie alla sua capacità di auto-alimentazione tramite pannelli solari e batterie, offre una soluzione ecologica e affidabile per alimentare e connettere fino a 5 dispositivi PoE, come telecamere IP, access point wireless, sensori e molto altro.

Caratteristiche principali:

  • Alimentazione solare integrata: Alimentato direttamente da pannelli solari, eliminando la necessità di connessioni alla rete elettrica.

  • 4 porte PoE+ Gigabit: Alimenta dispositivi PoE standard e ad alta potenza (fino a 30 watt) su un singolo cavo Cat.5e/6.

  • 1 porta Gigabit standard: Connette switch aggiuntivi o altri dispositivi di rete.

  • Gestione completa: Configura e monitora lo switch tramite interfaccia web o SNMP.

  • Protezione PWM: Protegge la batteria da sovraccariche e scariche profonde.

  • Robusto e affidabile: Funziona in ambienti difficili con temperature operative da -10 a 60°C.

Vantaggi:

  • Ecologico: Alimentazione sostenibile tramite energia solare.

  • Versatilità PoE: Supporta dispositivi PoE standard e ad alta potenza.

  • Gestione flessibile: Configurazione e monitoraggio semplificati.

  • Affidabilità elevata: Protezioni integrate per garantire la continuità operativa.

  • Installazione semplice: Adatto per ambienti remoti o esterni.

  • Robusto e resistente: Costruzione resistente per condizioni difficili.

Applicazioni:

  • Reti in aree rurali o isolate senza accesso alla rete elettrica

  • Videosorveglianza IP wireless ad energia solare

  • Reti wireless in parchi, piazze e spazi pubblici

  • Reti per sensori e attuatori industriali

  • Reti in siti temporanei come eventi e cantieri





Specifiche Tecniche
Copper Ports LAN: 5 10/100/1000Mbps auto MDI/MDI-X RJ45 port (Port 1 to Port 5, bridge mode)
WAN: 1 10/100/1000Mbps auto MDI/MDI-X RJ45 port (Port 5, gateway mode)
PoE Injector Port 4 ports with 802.3af/802.3at PoE injector function (Port 1 to Port 4)
USB 1 USB Type A female for setting backup
Power Output 4 PoE out 51VDC; max. 30 watts per PoE port
2 DC out 24@ 1A maximum (four-pin terminal block)
* The voltage of DC out is based on the battery.
Switch Architecture Store-and-Forward
Switch Fabric 10Gbps/non-blocking
Switch Throughput@64 bytes 5.95Mpps@64 bytes
MAC Address Table 8K entries
Shared Data Buffer 512Kbit
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
LED 3 LEDs for System and Power:
  • Green: Power
  • Green: Fault
  • Green: System

4 LEDs for PoE Copper Ports (Port 1~Port 4):
  • Green: LNK/ACT
  • Orange: PoE-in-use

1 LED for 10/100/1000T Copper Port (Port 5):
  • Green: LNK/ACT

3 LEDs for PoE Power Usage (W)
  • Green: 50, 100 and 120W
Connector Removable 6-pin terminal block
Pin 1/2 for PV panel; Pin 3/4 for alarm; Pin 5/6 for battery
Alarm 1 Digital Output (DO):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Open collector to 24V DC, 100mA max.
Power Requirements PV in: 24~45V DC
Battery in/out: 24V DC
Power Consumption/ Dissipation 5.04 watts, 17.1BTU (Standby without PoE function)
6.96 watts, 23.7 BTU (Full loading without PoE function)
135.36 watts, 461.5 BTU (Full loading with PoE function)
Dimensions (W x D x H) 84 x 107 x 152 mm
Weight 1026g
ESD Protection 6KV DC
Enclosure IP30 aluminum case
Installation DIN-rail kit and wall-mount ear
Power over Ethernet
PoE Standard IEEE 802.3af/802.3at Power over Ethernet PSE
PoE Power Supply Type End-span
PoE Power Output Per port 51V DC, 275mA. Max. 15.4 watts (IEEE 802.3af)
Per port 51V DC, 535mA. Max. 30 watts (IEEE 802.3at)
Power Pin Assignment 1/2 (+), 3/6 (-)
PoE Power Budget 120 watts (PoE consumption + DC out and depending on power input)
Max. Number of Class 2 PDs 4
Max. Number of Class 3 PDs 4
Max. Number of Class 4 PDs 4
Electrical Characteristics
System Voltage Rating 24V DC
Maximum Charging Current 6A
Max. Solar Array VOC 60V DC
Max. Operating Voltage 45V DC
Total Current Consumption While operating -32mA
At idle -11mA
High Temperature Shutdown 100 degrees C disconnect solar and load
80 degrees C reconnect solar and load
Battery Charging Characteristics
Charge Algorithm Bulk charge (constant current), Absorption charge (constant voltage) and Floating charge. Absorption and Floating charge with PWM protection.
Maximum Output Current 6A
Nickel-cadmium Battery ± 40 mV/degrees Celsius for NiCad type batteries; charge cut-off @ 55 degrees C
(Temperature compensation baseline@ 25 degrees C)
Lead Acid Battery (Default Setting) ± 60 mV/degrees Celsius for lead acid type batteries; charge cut-off @ 55 degrees C
(Temperature compensation baseline@ 25 degrees C)
Float Charge Voltage DC 27.2V (26.0~30.0V)
Absorption Charge Voltage DC 29.2V (28.0~32.0V)
LVD (Low Voltage Disconnection) DC 22.2V (21.0~25.0V)
LVR (Low Voltage Reconnection) DC 24.8V (23.0~27.0V)
Router Features
Internet Connection Type Shares data and Internet access with users, supporting the following internet accesses:
  • PPPoE
  • Dynamic IP
  • Static IP
  • PPTP
  • L2TP
Firewall NAT firewall with SPI (Stateful Packet Inspection)
Built-in NAT server supporting Port Forwarding, and DMZ
Built-in firewall with IP address/MAC address/Port/ URL filtering
Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, DoS protection
Routing Protocol Static/Dynamic (RIP1 and 2) routing
VPN Pass-through PPTP, L2TP, IPSec, IPv6
LAN Built-in DHCP server supporting static IP address distribution
Supports UPnP, Dynamic DNS
Supports IGMP Proxy
Supports 802.1d STP (Spanning Tree)
IP/MAC-based bandwidth control
Management
Management Interface Setup of system/management functions
Web firmware upgrade
SNMP trap for alarm notification of events
PoE Management Power limit by consumption and allocation
PoE admin mode
Per port power schedule
Per port power enable/disable
Power feeding priority
Current per port usage and status
Total power consumption
PD alive check
Scheduled power recycling
Battery Management Battery current usage and status
Battery capacity statistics
Low Voltage Cut-Off Protection
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.1D Spanning Tree Protocol
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768: UDP
RFC 791: IP
RFC 2068 HTTP
RFC 1157: SNMP v1
RFC 1902: SNMP v2c
RFC 5424: Syslog
Environment
Operating Temperature: -10 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Dettagli del prodotto
BSP-360
