Switch Gigabit Ethernet Poe L2 16-Porte 10/100/1000-T
Riferimento:GS421016P2S
Switch Gigabit Ethernet PoE L2 16-Porte 10/100/1000-T

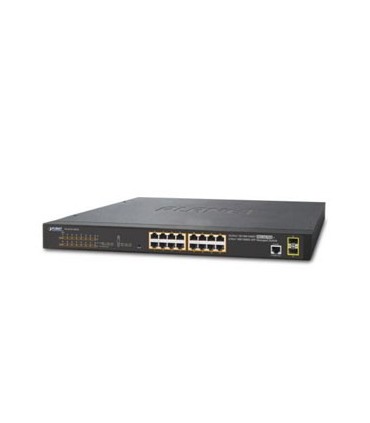

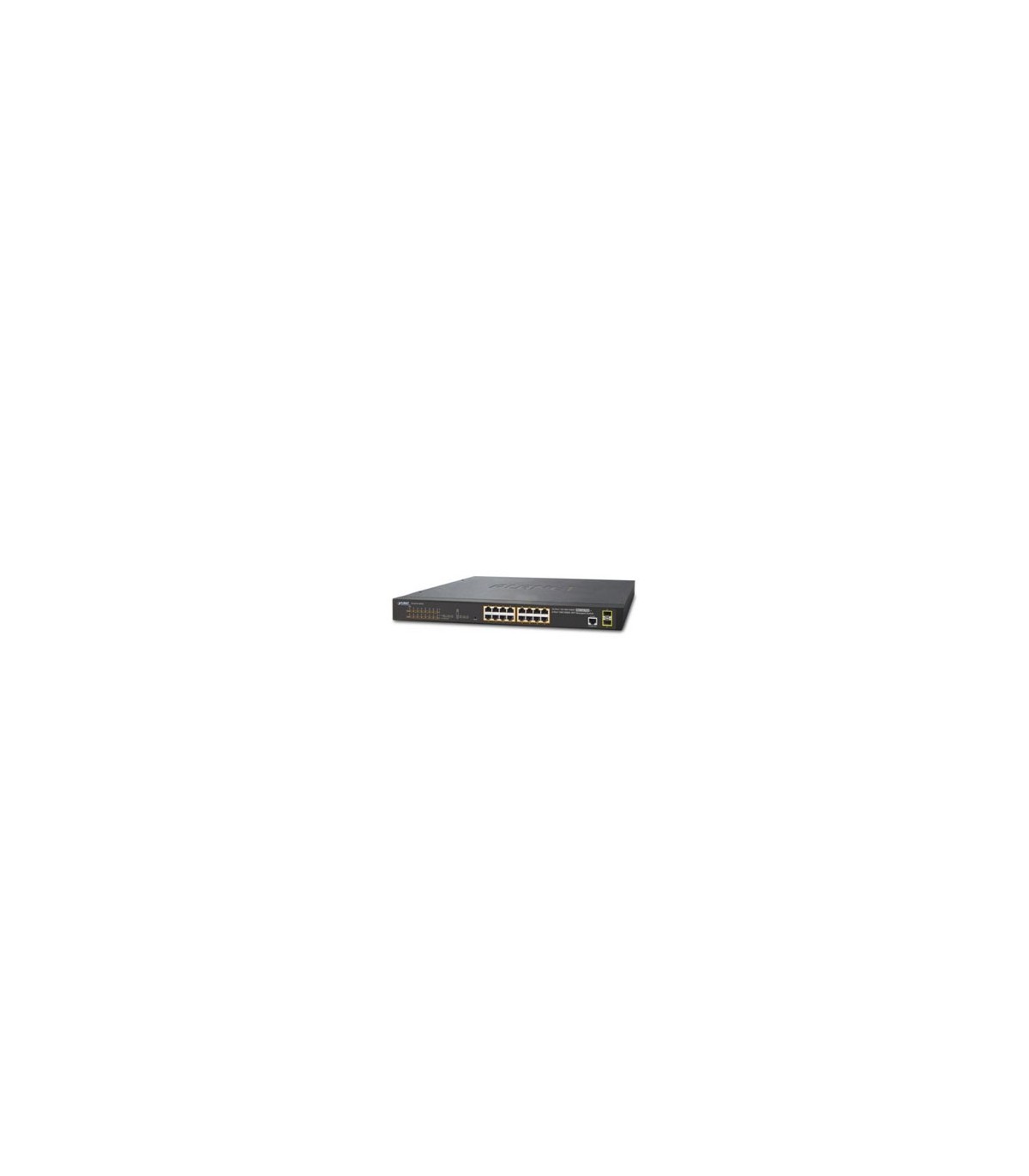

GS421016P2S: Switch Gigabit Ethernet PoE L2 16-Porte 10/100/1000-T + 2-Porte 100/1000-X SFP - (220W) – 802.3at
Lo switch GS421016P2S di Planet Technology è la soluzione ideale per potenziare la tua rete aziendale o di ufficio con connettività Gigabit Ethernet PoE+ e connessioni in fibra ottica ad alta velocità. Gestisci e alimenta facilmente dispositivi PoE come telecamere di sicurezza, access point wireless, telefoni VoIP e molto altro ancora.
Caratteristiche principali:
- 16 porte Gigabit Ethernet PoE+: Alimenta fino a 16 dispositivi PoE con un budget totale di 220 watt, perfetto per alimentare dispositivi PoE ad alta potenza.
- 2 porte SFP 100/1000 Mbps: Espandi la tua rete a connessioni in fibra ottica ad alta velocità per uplink o connessioni backbone.
- Prestazioni avanzate: Architettura non bloccante da 36 Gbps per un switching fluido e senza interruzioni.
- Gestione flessibile: Web, Telnet, CLI e SNMP v1/2c/3 per una gestione semplice e intuitiva.
- Sicurezza robusta: Autenticazione 802.1X, ACL, filtraggio MAC e altro per proteggere la tua rete.
- Funzionalità Layer 2: VLAN, QoS, Spanning Tree e altre funzionalità per ottimizzare il traffico e la ridondanza.
Vantaggi:
- Scalabilità: Alimenta e collega più dispositivi PoE con un unico switch.
- Alta velocità: Connessioni Gigabit Ethernet e in fibra ottica per prestazioni elevate.
- Gestione efficiente: Gestisci facilmente lo switch da remoto o localmente.
- Sicurezza affidabile: Proteggi la tua rete da accessi non autorizzati.
- Versatilità: Ideale per diverse applicazioni aziendali e di ufficio.
Applicazioni:
- Reti aziendali di piccole e medie dimensioni
- Uffici con postazioni di lavoro multiple
- Videosorveglianza IP
- Reti wireless ad alta densità
- Voce su IP (VoIP)
- Automazione industriale
| Specifiche Tecniche | |
| Copper Ports | 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port |
| SFP/mini-GBIC Slots | 2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode |
| PoE Injector Port | 16 ports with 802.3af/at PoE injector function |
| Console | 1 RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 36Gbps/non-blocking |
| Switch Throughput@64 bytes | 26.78Mpps@64 bytes |
| MAC Address Table | 8K entries |
| Shared Data Buffer | 4Mbits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 9K bytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| LED | System: Power (Green) 10/100/1000T RJ45 Interfaces (Port 1 to Port 16): 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange), PoE (Orange) 100/1000Mbps SFP Interfaces (Port 17 to Port 18): 1000 LNK/ACT (Green), 100 LNK/ACT (Orange) |
| Thermal Fan | 2 |
| Power Requirements | 100~240V AC, 50/60Hz, 4A (max.) |
| Power Consumption/Dissipation | Max. 281 watts/964 BTU |
| Dimensions (W x D x H) | 445 x 207 x 45 mm (1U height) |
| Weight | 2.8kg |
| Enclosure | Metal |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per Port 53V DC, 30.8 watts (max.) |
| PoE Power Budget | 220 watts (max.) |
| Number of PDs, 7 watts | 16 units |
| Number of PDs, 15.4 watts | 14 units |
| Number of PDs, 30 watts | 7 units |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| VLAN | 802.1Q tagged-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN GVRP |
| Link Aggregation | IEEE 802.3ad LACP supports 8 groups of 16-port trunk Static trunk supports 8 groups of 8-port trunk |
| Spanning Tree Protocol | IEEE 802.1D STP IEEE 802.1w RSTP IEEE 802.1s MSTP |
| Multicast | IGMP (v2/v3) Snooping IGMP Querier Up to 256 multicast groups |
| Access Control List | IPv4 IP-based ACL MAC-based ACL |
| QoS | 8 mapping ID to 8 level priority queues - Port Number - 802.1p priority - DSCP field in IP Packet Traffic classification based, Strict priority and WRR |
| Security | IEEE 802.1X Port-based authentication Built-in RADIUS client to cooperate with RADIUS server RADIUS/TACACS+ user access authentication MAC filter Static MAC address DHCP Snooping and DHCP Option82 STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| Management Functions | |
| Basic Management Interfaces | Web browser, Telnet, SNMP v1/v2c/v3 and RJ45 Console Firmware upgrade by HTTP/TFTP protocol through Ethernet network Remote/Local Syslog System log LLDP protocol SNTP |
| Secure Management Interfaces | SSH, SSL, SNMP v3 |
| SNMP MIBs | RFC 3635 Ethernet-like MIB RFC 2863 Interface Group MIB RFC 2819 RMON (1, 2, 3, 9) RFC 1493 Bridge MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
