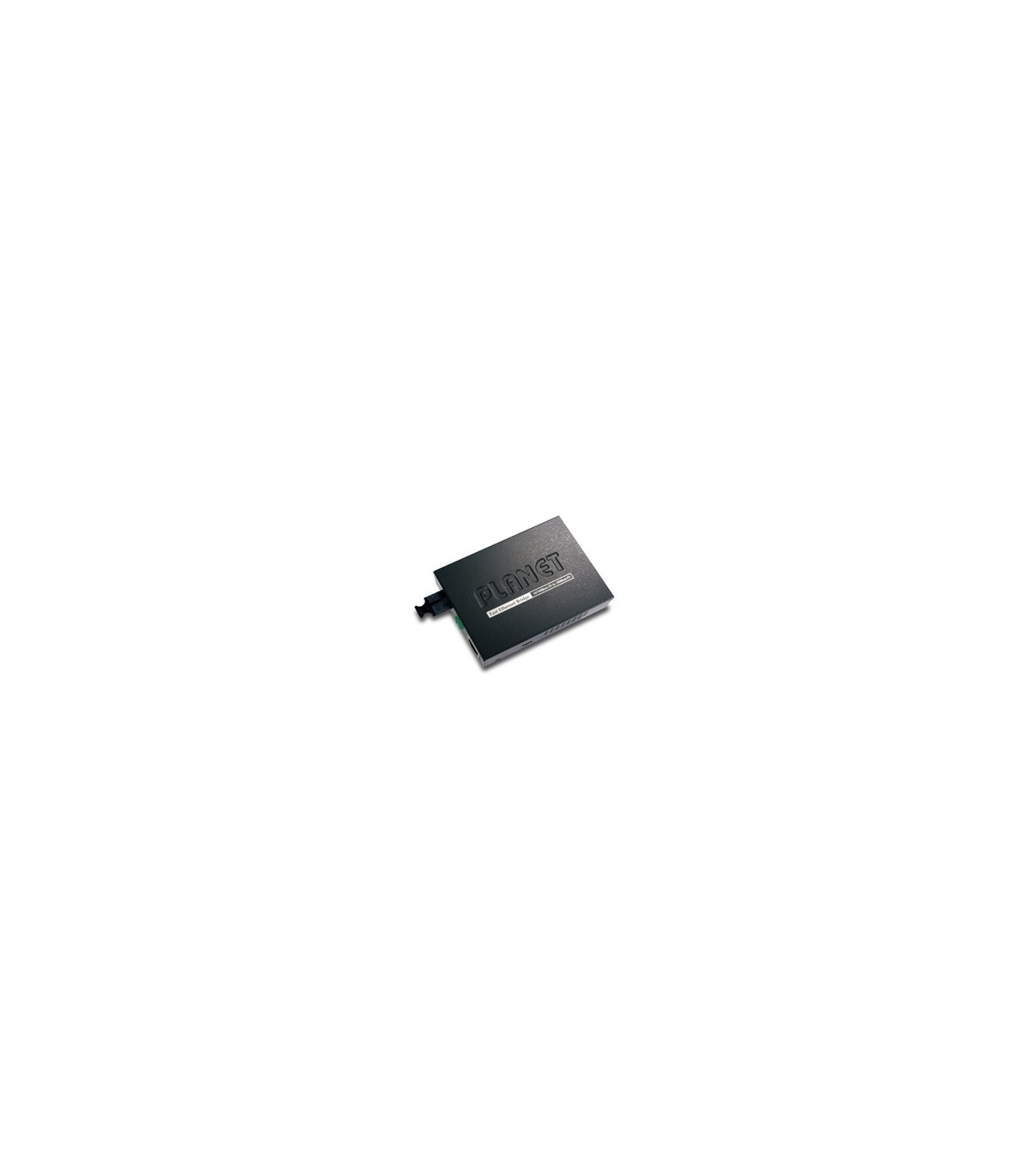

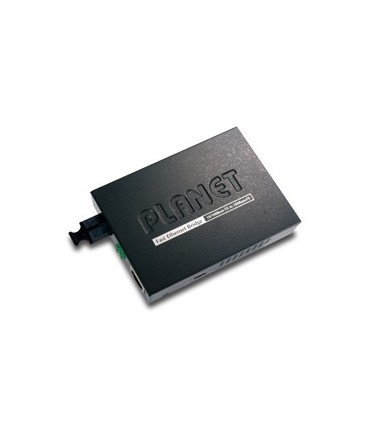

Media Converter 10/100TX a 100Base-FX (WDM) Bi-direzionale - 131

Riferimento:FT-806A20

Descrizione





FT-806A20   Media Converter 10/100TX a 100Base-FX (WDM) Bi-direzionale - 1310nm - 20KM, LFPT





Specifiche Tecniche
Modello FT-80x Series
Product
Protocol IEEE 802.3u, 100Base-FX, 100Base-TX
Dimension (W x D x H) 97 x 69 x 26 mm
Weight 0.2kg
Power 5V DC, 2A, max.
Connectors and Cables
Twisted Pair / STP RJ45, Category 5 (EIA/TIA 568)
Fiber-optic FT-801 : ST / Multi-mode / 220m~550m
FT-802 : SC / Multi-mode / 220m~550m
FT-802S15 : SC / Single Mode / 15km
FT-802S35 : SC / Single Mode / 35km
FT-802S50 : SC / Single Mode / 50km
FT-806A20: WDM SC / Single Mode / 20km
FT-806B20: WDM SC / Single Mode / 20km
Multi-mode cable 50/125, 62.5/125 µm
Single-Mode (SM) cable 9/125 µm
Supported Distances and function
Twisted Pair STP 100 m / 328 ft.
Multi-mode Fiber Optic 412 m / 1,350 ft. (Half-Duplex)
2 km / 1.2 mile. (Full-Duplex)
Single-Mode (SM) 412 m / 1,350 ft. (Half-Duplex)
15 km / 9 mile. (Full-Duplex)
35 km / 21 mile. (Full-Duplex)
50 km / 31 mile. (Full-Duplex)
Port Mode TP: Half and Full Duplex, auto-negotiation
FX: Half and Full Duplex via DIP switch
Environmental
Temperature 0~50 Degree C
Humidity 5-90% (non-condensing)

Dettagli del prodotto
FT-806A20
