Access Point Wireless da esterno IP55 802.11ac, 5GHz 900Mbps CPE w/ MU-MIMO WAVE 2 (Antenna integrata 14dBi)

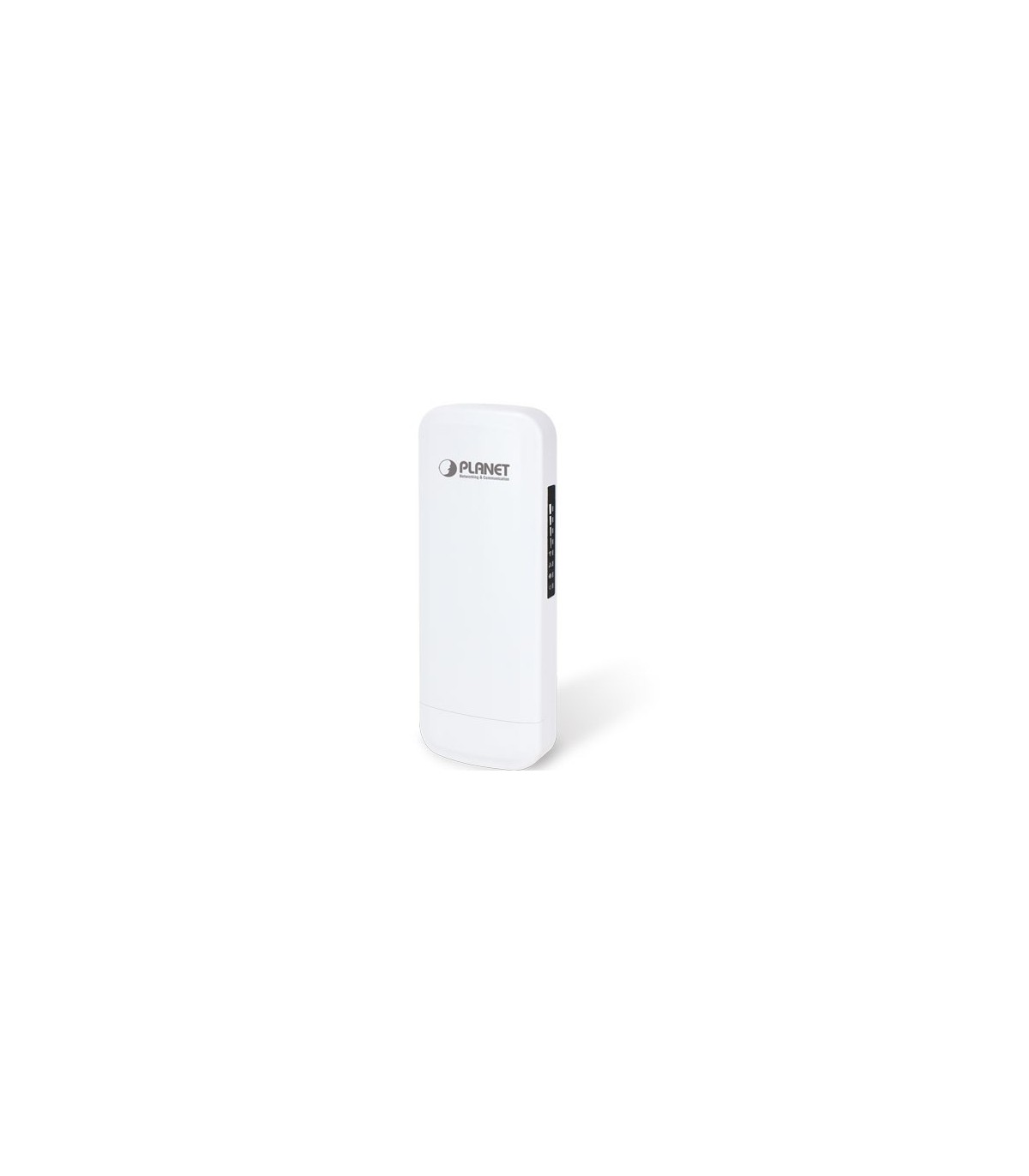

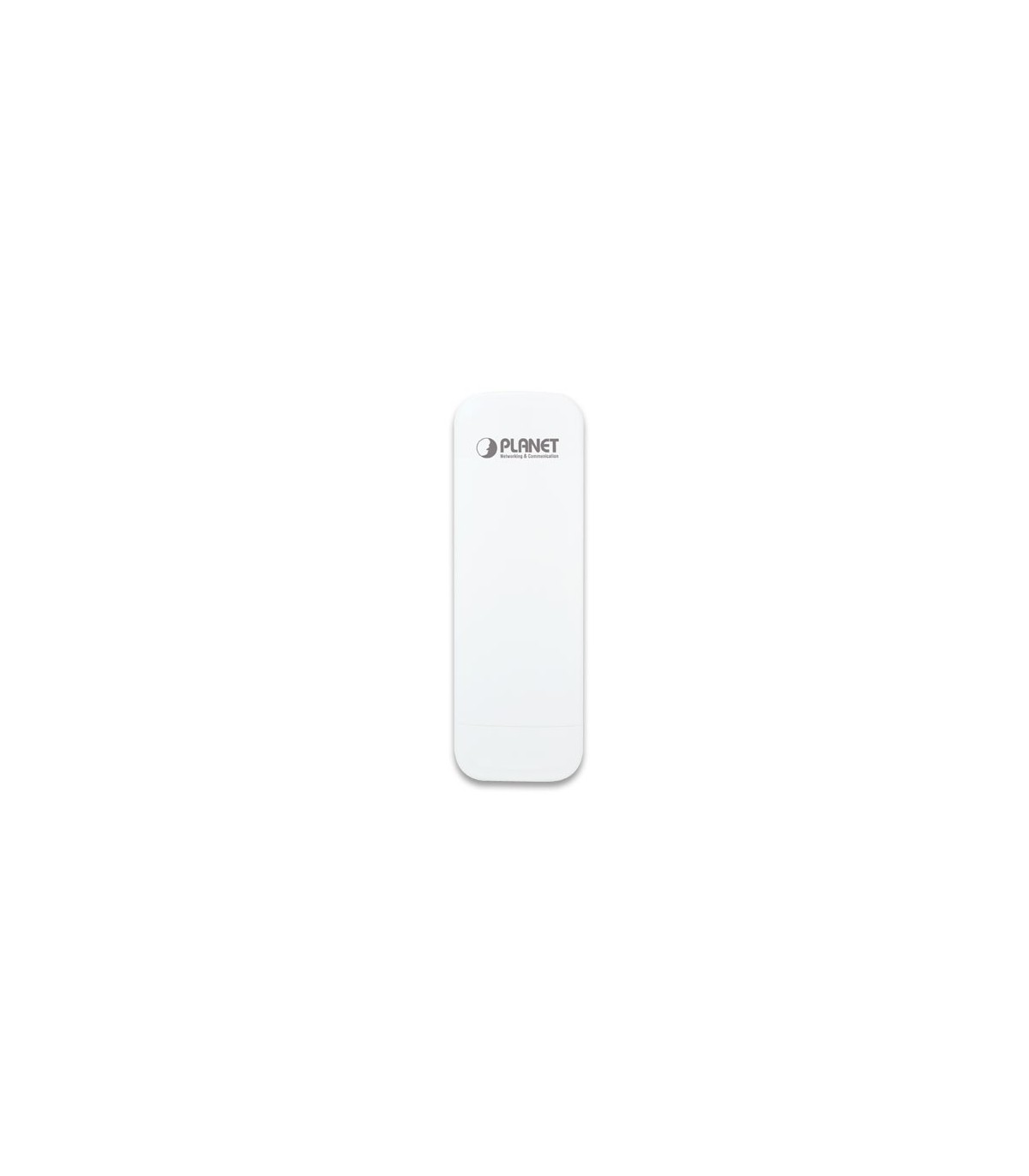

WBS-512AC Access Point Wireless da esterno IP55 802.11ac,  5GHz 900Mbps CPE w/ MU-MIMO WAVE 2 (Antenna integrata 14dBi) (-20 a 70°C) gestisce fino a 50 utenze simultanee per banda

Specifiche Tecniche
Standard Support IEEE 802.11a/n/ac
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x flow control
IEEE 802.11k, 802.11v, and 802.11r
Dimensions (W x D x H) 87 x 38 x 260 mm
Weight 405g
Power Requirements 48V DC IN,0.5A, IEEE 802.3 at PoE+ or
12V DC IN, 1.0A from DC Jack
Power Consumption (max.) < 10W
Interface Wireless IEEE 802.11a/n/ac, 2T2R
PoE: 1 x 10/100/1000BASE-TX, auto-MDI/MDIX, 802.3 at PoE In
LAN: 1x 10/100/1000BASE-TX, auto-MDI/MDIX
Button Reset/Pair button, PtP Switch
Antenna Built-in 14dBi directional antenna with dual polarization

Half-power beam width
Vertical H: 70 V: 15
Horizontal H: 50 V: 15
Data Rate IEEE 802.11a: up to 54Mbps
IEEE 802.11n (20MHz): up to 150Mbps
IEEE 802.11n (40MHz): up to 300Mbps
IEEE 802.11ac (80MHz): up to 867Mbps
Media Access Control CSMA/CA
Modulation 802.11 a/n/ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
Frequency Band FCC: 5.180~5.240GHz, 5.745~5.825GHz
ETSI: 5.180~5.700GHz
Operating Channels FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 channels)
ETSI: 36, 40, 44, 48, 100, 104, 108, 112, 116, 132, 136, 140 (12 channels)

5GHz channel list will vary in different countries according to their regulations.
Max. Transmit Power (dBm) FCC: up to 25 ± 1dBm
ETSI: < 20dBm (EIRP)
Receiver Sensitivity (dBm)
Network Mode Data Rate Receive Sensitivity (dBm)
802.11a 6Mbps -92
54Mbps -75
802.11n HT20 MCS0/MCS8 -91
MCS7/MCS15 -72
802.11n HT40 MCS0/MCS8 -88
MCS7/MCS15 -70
802.11ac VHT20 MCS0 -92
MCS8 -70
802.11ac VHT40 MCS0 -89
MCS9 -65
802.11ac VHT80 MCS0 -87
MCS9 -61
Environment & Certification
Operating Temperature -20 ~ 70 degrees C
Operating Humidity 5 ~ 90% (non-condensing)
IP Level IP55
ESD Protection ± 8kV air-gap discharge
± 4kV contact discharge
Surge Protection ± 4kV
Regulatory CE, RoHS
Supports IP-MAC binding
WAN Type (GW/WISP mode)
  • Static IP
  • Dynamic IP
  • PPPoE
Wireless Modes
  • Access Point
  • Gateway
  • Repeater
  • Super WDS
  • WISP
Channel Width 20MHz, 40MHz, 80MHz
Encryption Type 64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless Security Enable/Disable SSID Broadcast
Wireless Max. 32 MAC address filtering
User Isolation
Max. SSIDs 4
Max. Wireless Clients 64 per radio (50 is suggested, depending on usage)
Max. WDS Peers 4 (Up to 3 peers by using “One-click WDS”)
Wireless QoS Supports Wi-Fi Multimedia (WMM)
Wireless Advanced Auto Channel Selection
5-level Transmit Power Control (Max. (100%), Efficient (75%), Enhanced (50%), Standard (25%), Min. (12.5%))
Client Limit Control, Coverage Threshold
Wi-Fi channel analysis chart
Fast Roaming(IEEE 802.11k, 802.11r, 802.11v)
Status Monitoring Device status, wireless client List
PLANET Smart Discovery
DHCP client table
System Log supports remote syslog server
VLAN IEEE 802.1Q VLAN (VID: 3~4094)
SSID-to-VLAN mapping up to 4 SSIDs
Self-healing Supports auto reboot settings per day/hour
Management Remote management through PLANET DDNS/Easy DDNS
Configuration backup and restore
Supports UPnP
Supports IGMP Proxy
Supports PPTP/L2TP/IPSec VPN Pass-through
SNMP v1/v2c/v3 support, MIB I/II, Private MIB
Central Management Applicable controllers: WAPC-500, WAPC-1000, NMS-500, NMS-1000V
