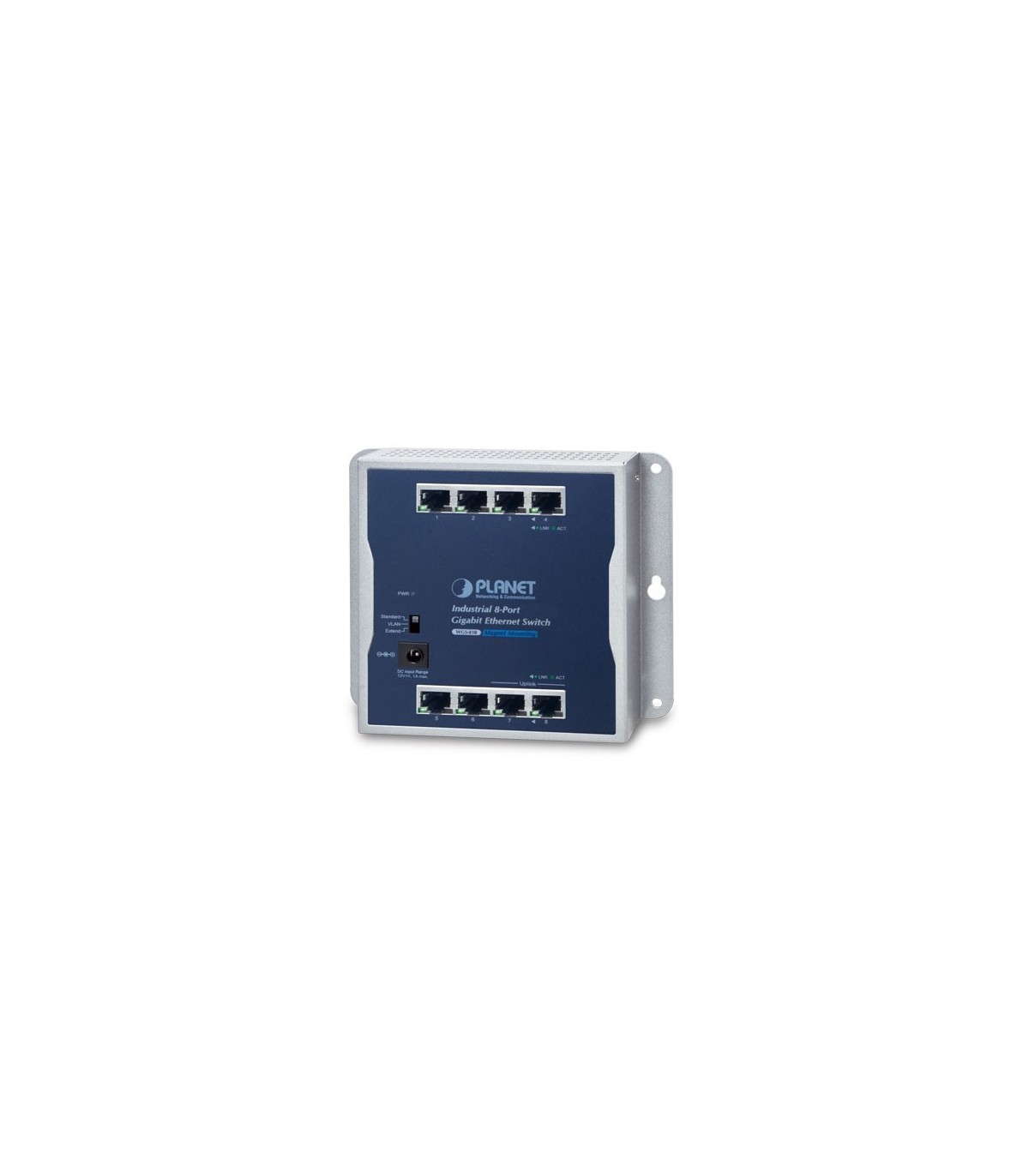

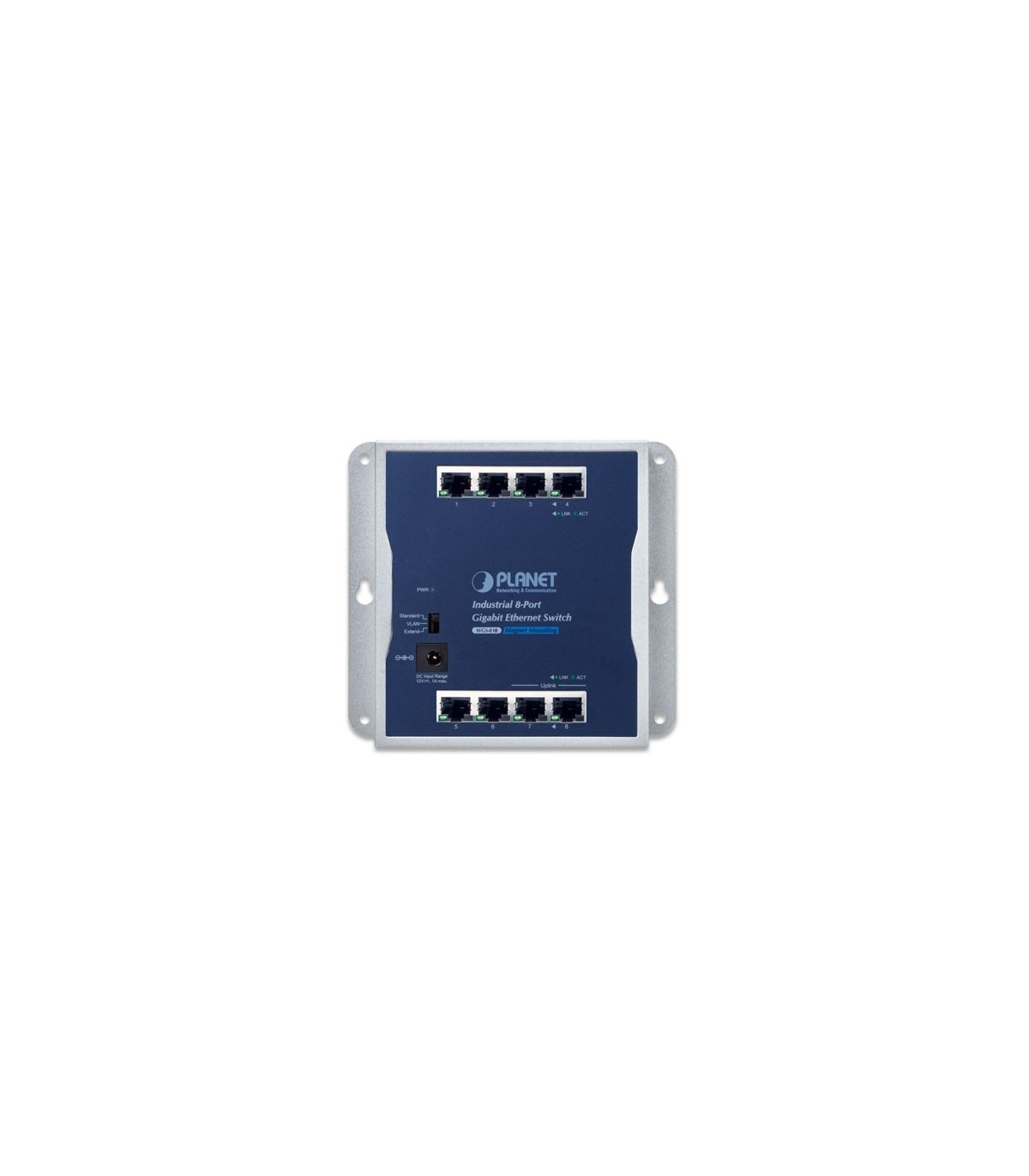

Switch Unmanaged Wall-Mount 8-Porte 10/100/1000T Con 8-Porte 802.3At Poe+ (-20 A 60°C)

Riferimento:WGS-818HP

Switch Unmanaged Wall-Mount 8-Porte 10/100/1000T Con 8-Porte 802.3At PoE+ (-20 A 60?C)
Descrizione

WGS-818HP Switch Unmanaged Wall-mount 8-Porte 10/100/1000T con 8-Porte 802.3at PoE+ (-20 a 60°C)

Specifiche Tecniche
Network Connector 8-Port RJ45 for 10/100/1000BASE-T
PoE Inject Port 8-Port with 802.3at PoE+ injector function (Port-1 to Port-8)
Switch Architecture Store and forward
MAC Address Table 4K MAC address table with auto learning function
Switch Fabric 16Gbps / non-blocking
Switch Throughput 11.9Mpps@64Bytes
Jumbo Frame 9Kbytes
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
LED Indicators Power LED:
 Power (Green)
PoE Power Usage LED:
 30W, 60W, 90W, 120W (Amber)
PoE Port:
 PoE-in-Use (Amber)
 LNK/ACT (Green)
ESD Protection 4KV DC
DIP Switch Selectable operation modes:
■ Standard: IEEE 802.3at PoE+ transmission distance of 100m
■ VLAN: Port-based VLAN
■ Extend: 25-watt PoE transmission distance of 250m at speed of 10Mbps
Connector DC power jack with 2.0mm central pole
Power Requirements 48~56V DC, 3A (max.)
Power Consumption 137 watts / 467BTU
Enclosure IP30 metal
Dimensions (W x D x H) 148 x 25 x 134 mm
Weight 474g
Installation Fixed wall mounting, magnetic wall mounting and DIN-rail mounting
Power over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus PSE
PoE Power Supply Type End-span
PoE Power Output IEEE 802.3af Standard
 - Per port 48V~56V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
 - Per port 50V~56V DC (depending on the power supply), max. 30 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 120 watts (depending on power input)
Max. Number of Class 2 PDs 8
Max. Number of Class 3 PDs 8
Max. Number of Class 4 PDs 4
Standard Conformance
Standard Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet plus
IEEE 802.3z Energy Efficient Ethernet
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (Free fall)
IEC 60068-2-27 (Shock)
IEC 60068-2-6 (Vibration)
Environment
Operating Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -20 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
