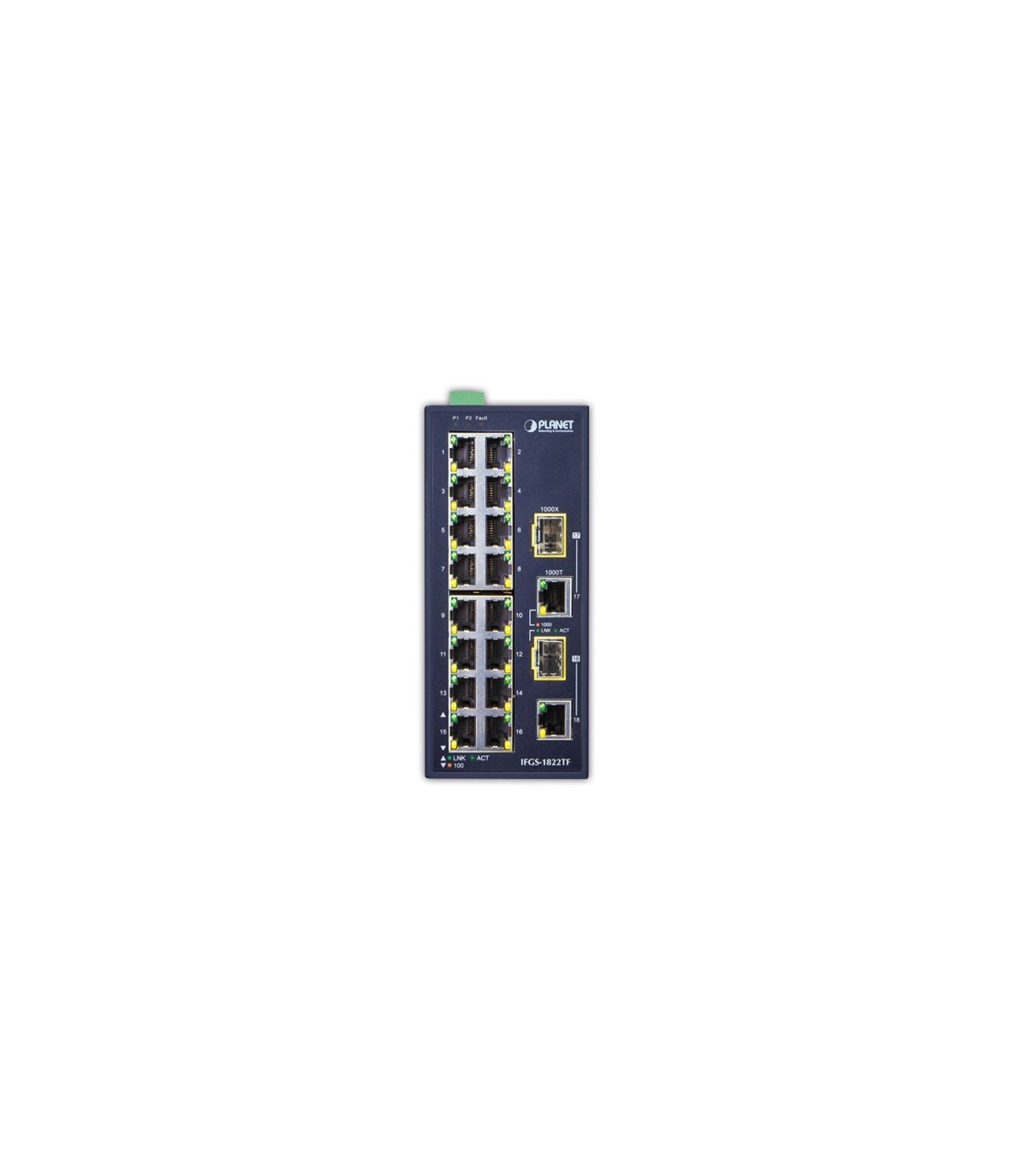

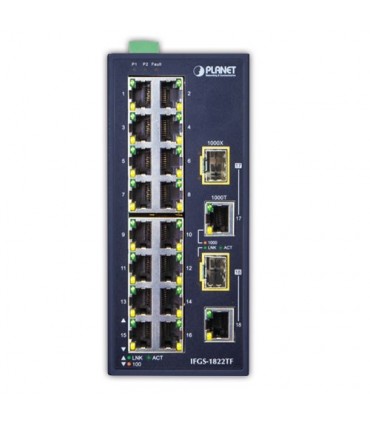

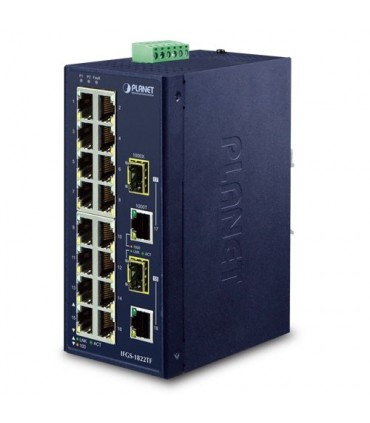

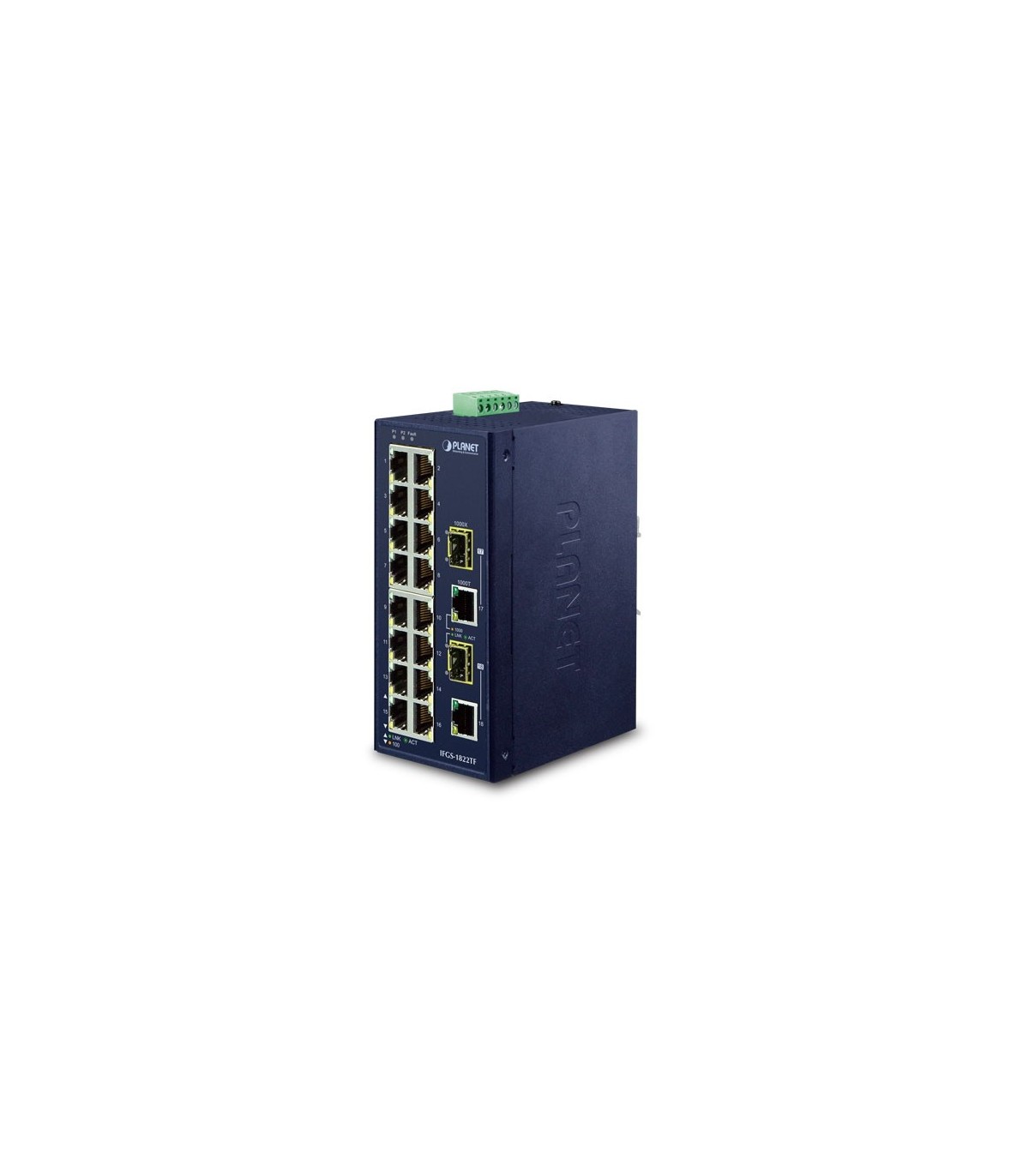

Industrial 16-Port 10/100Tx + 2-Port Gigabit Tp/Sfp Combo Ethernet Switch (-40~75 Degrees C)

Riferimento:IFGS-1822TF

Descrizione

IFGS-1822TF Industrial 16-Port 10/100TX + 2-Port Gigabit TP/SFP Combo Ethernet Switch (-40~75 degrees C)

Specifiche Tecniche
Fast Ethernet Copper Ports 16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
Gigabit Ethernet Copper Ports Two 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
(shared with Port-17 and Port-18)
SFP Slots Two 1000BASE-SX/LX/BX SFP interfaces (shared with Port-17 and Port-18)
Switch Architecture Store-and-Forward
Switch Fabric 7.2Gbps (non-blocking)
Throughput (packet per second) 5.36Mpps@ 64 bytes
Address Table 16K entries, automatic source address learning and aging
Shared Data Buffer 4Mbits
Flow Control IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
ESD Protection 6KV DC
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount kit
Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Dimensions (W x D x H) 66 x 107 x 152 mm
Weight 300g
Power Requirements Dual 12~48V DC or one 24V AC
Power Consumption Max. 6.3 watts/21.4BTU (Ethernet full loading)
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.1p Class of Service
IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)

Dettagli del prodotto
IFGS-1822TF
