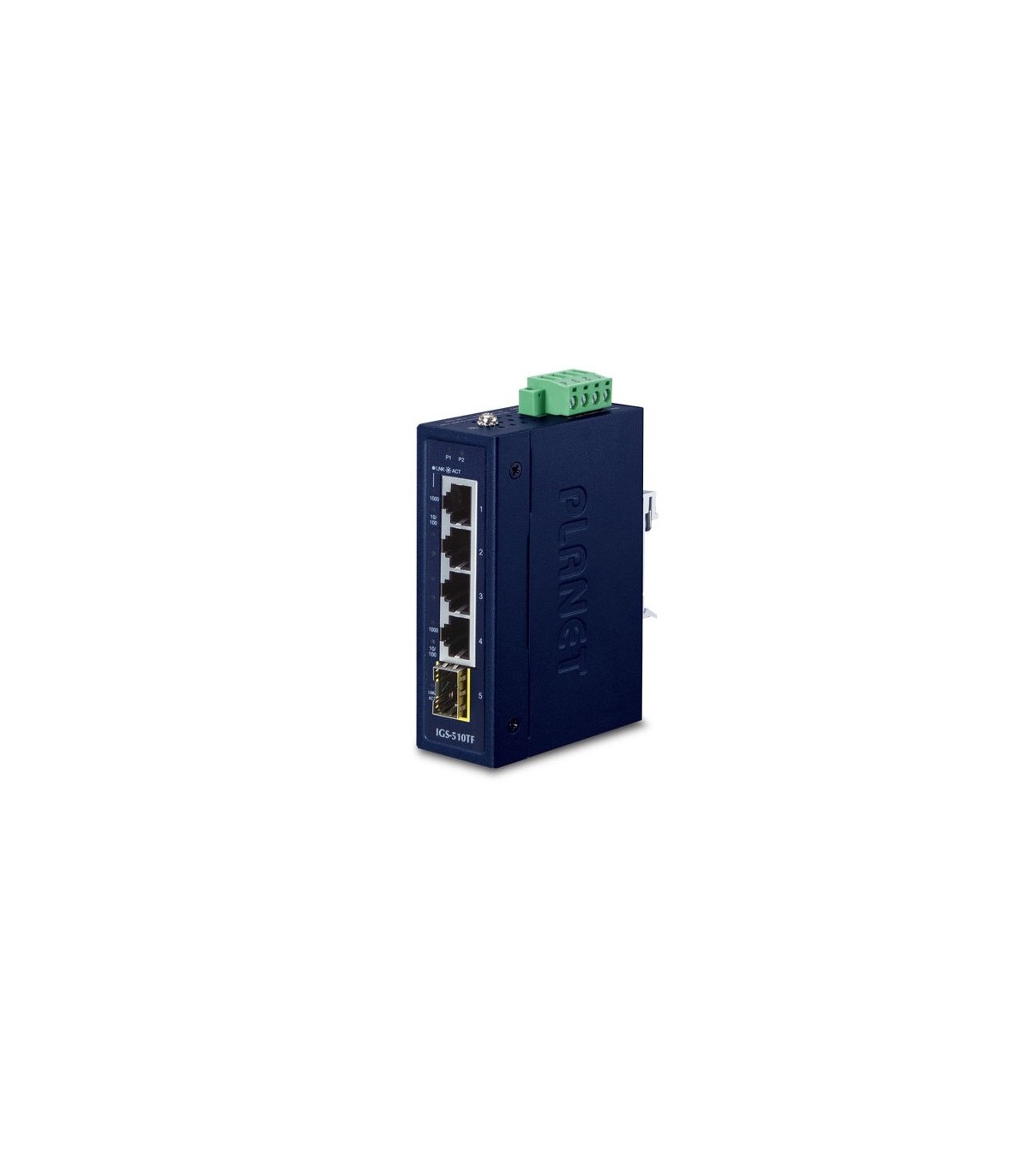

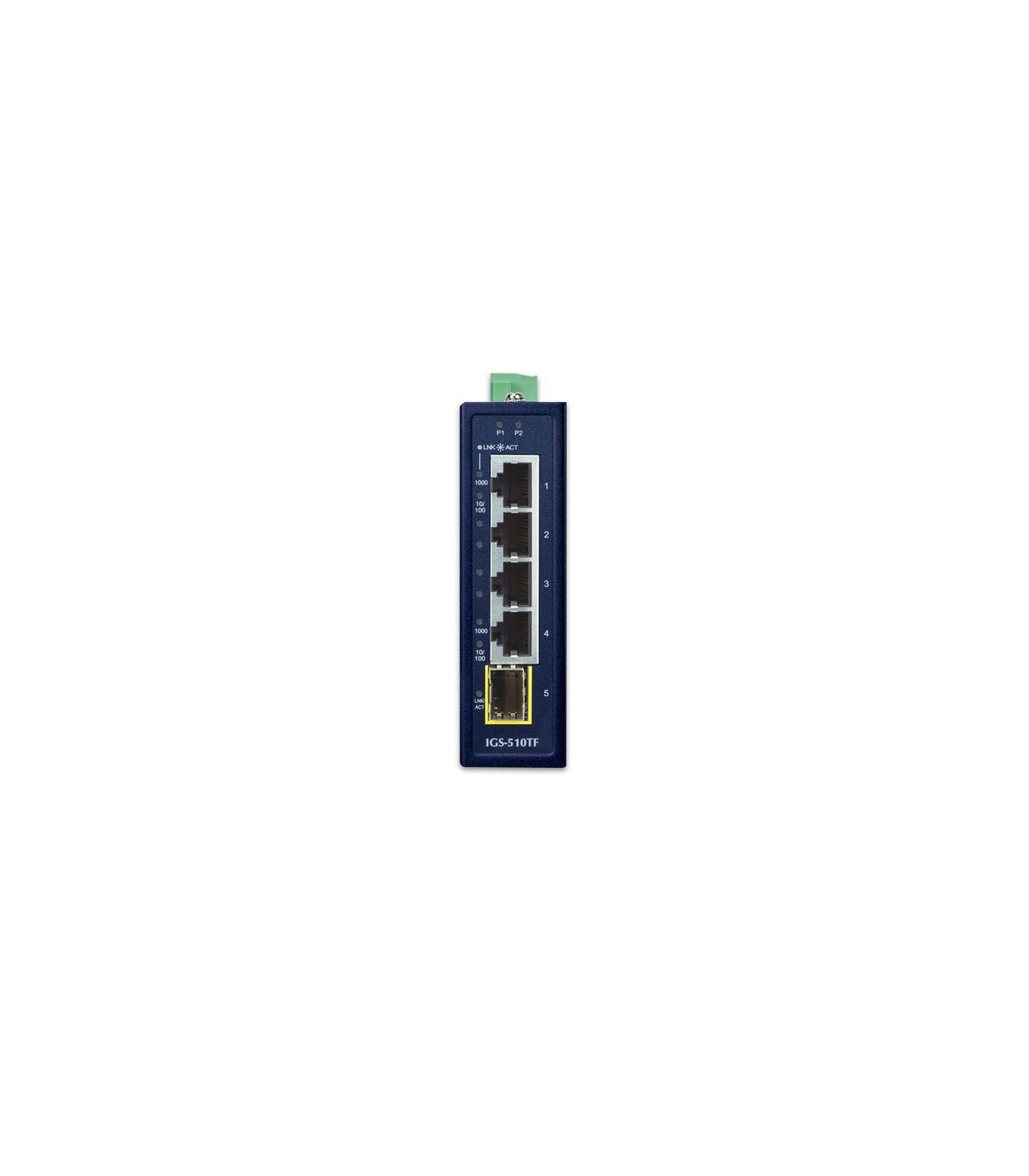

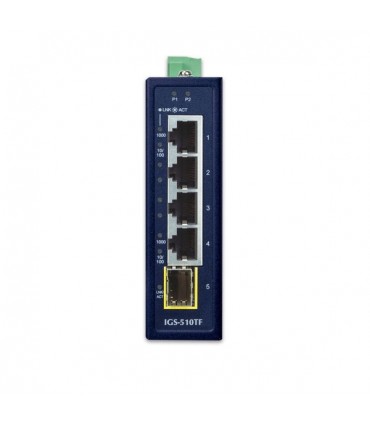

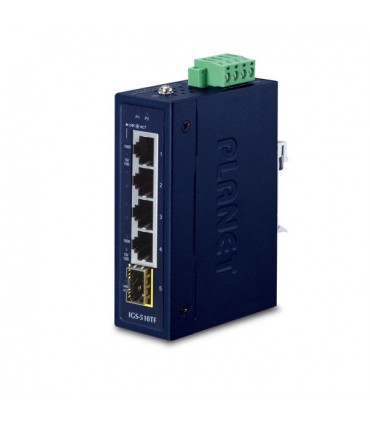

Switch Unmanaged 4-Porte 10/100/1000T + 1-Porta 100/1000X Sfp Compact Size (-40 A 75°C)
Riferimento:IGS-510TF
Switch Unmanaged 4-Porte 10/100/1000T + 1-Porta 100/1000X SFP Compact Size (-40 A 75?C)
IGS-510TF Switch Unmanaged 4-Porte 10/100/1000T + 1-Porta 100/1000X SFP Compact Size (-40 a 75°C)
| Hardware Specifications | |
|---|---|
| Copper Ports | 4-port 10/100/1000BASET RJ45 TP auto-MDI/MDI-X, auto negotiation |
| SFP Slots | 1 1000BASE-SX/LX/BX SFP interface Compatible with 100BASE-FX SFP |
| Connector | Removable 4-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for Power 2 |
| LED | 2 x LED for system and power: ■ Green: DC Power 1 ■ Green: DC Power 2 2 x LED for each copper port ■ Green: 1000Mbps LNK/ACT ■ Orange:10/100Mbps LNK/ACT 1 x LED for SFP fiber slot ■ Green: LNK/ACT |
| ESD Protection | 6KV |
| Power Requirements | 9~48V DC, redundant power with reverse polarity protection, 24V AC power support |
| Power Consumption / Dissipation | 2.8 watts/9.5BTU |
| Installation | DIN-rail kit and wall-mount ear |
| Enclosure | IP30 metal case |
| Dimensions (W x D x H) | 30 x 70 x 104 mm |
| Weight | 252g |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 4K entries |
| Buffer Memory | 1M bits on-chip buffer memory |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 10Gbps |
| Throughput (packet per second) | 7.4Mpps@64bytes |
| Jumbo Frame | 9K |
| Network Cables | 10/100/1000BASE-T Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters) EIA/TIA-568 100-ohm STP (max. 100 meters) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3az Gigabit SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~90%, Storage: 5~90% (non-condensing) |
