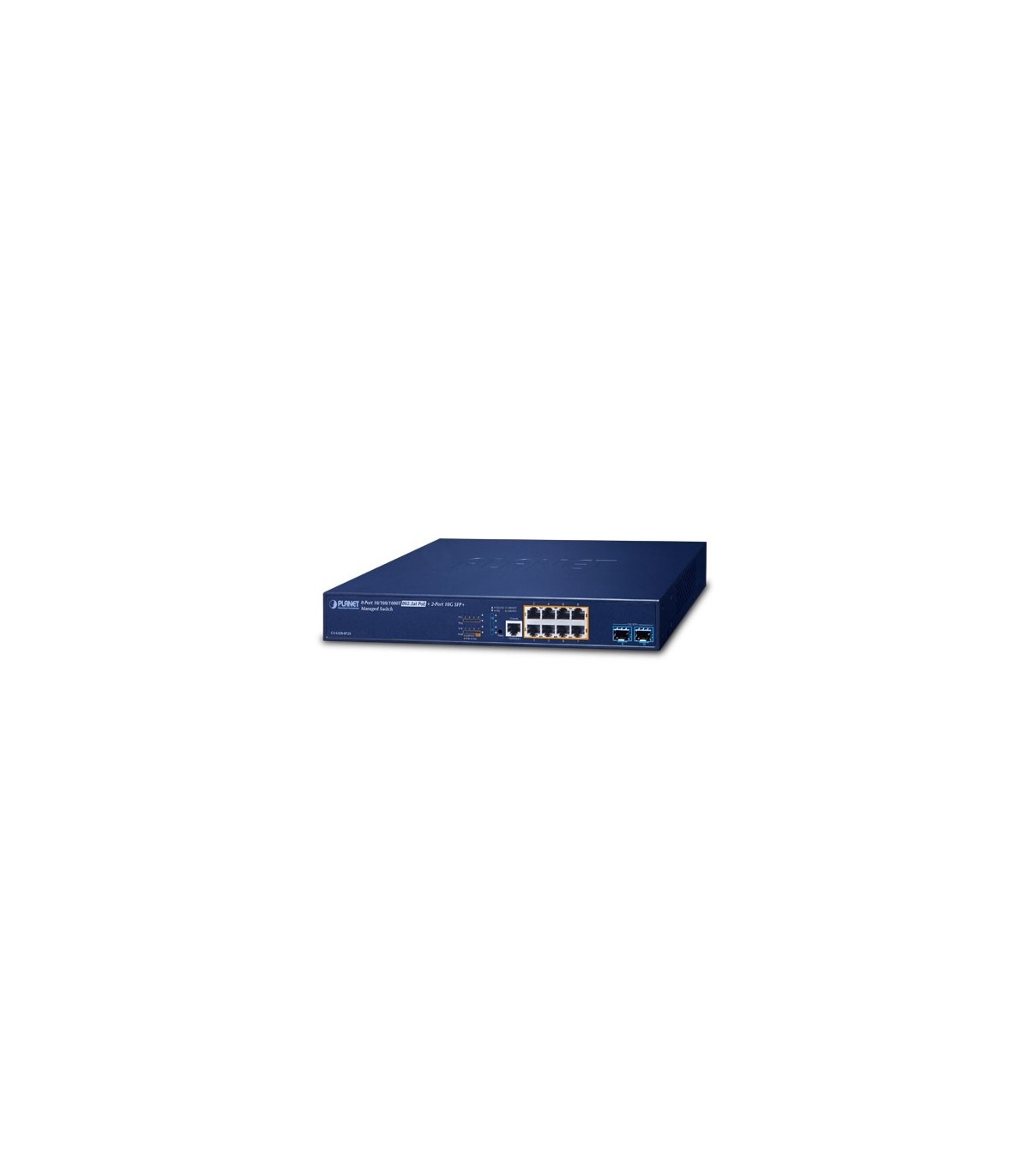

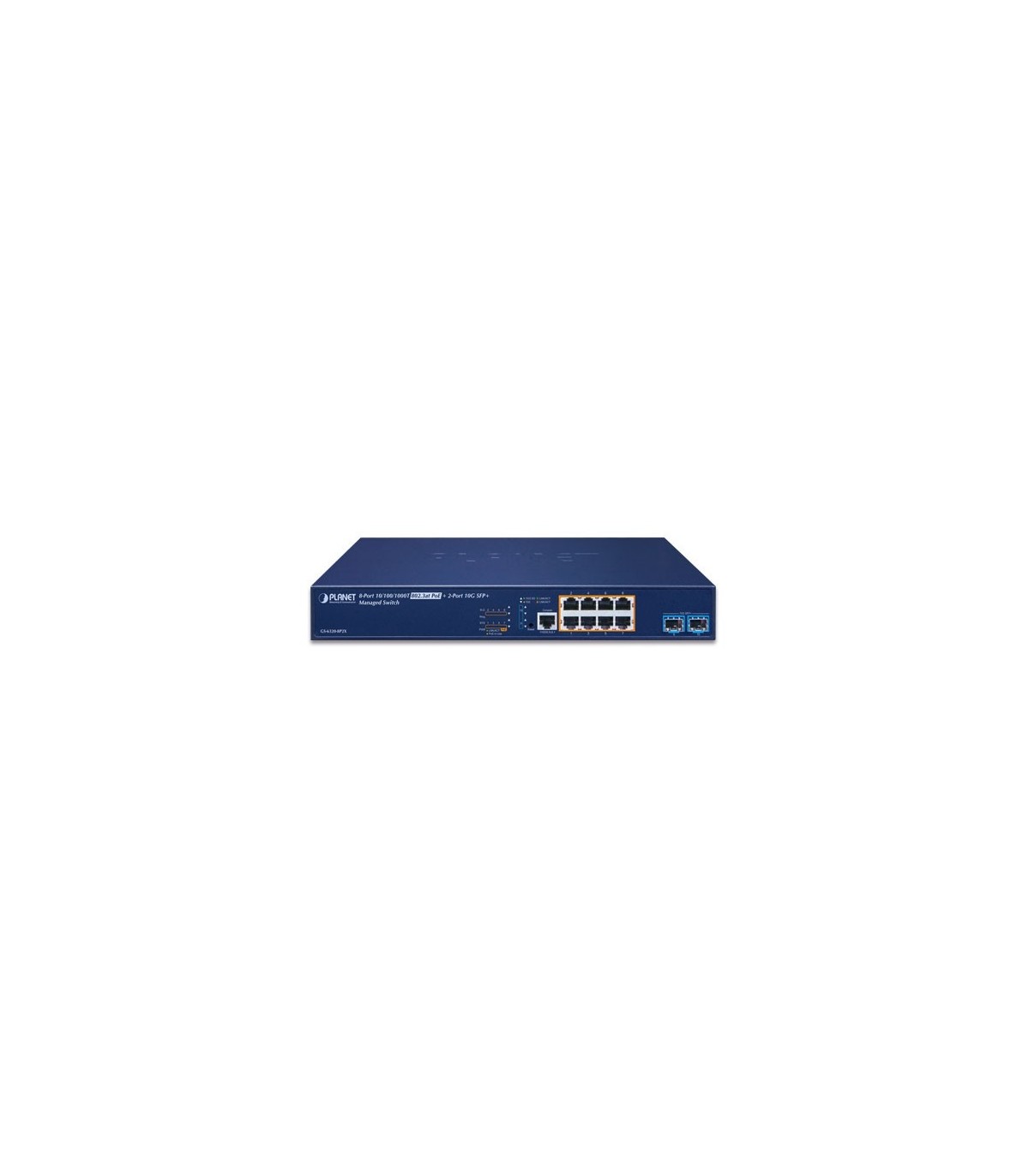

Switch Managed L3 8-Porte 10/100/1000T 802.3at PoE + 2-Porte 10G SFP+ (120W)

Riferimento:GS63208P2X

Descrizione

GS-6320-8P2X Switch Managed L3 8-Porte 10/100/1000T 802.3at PoE + 2-Porte 10G SFP+ (120W)

Specifiche Tecniche
Copper Ports 8 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X interface with Port-1 to Port-8
SFP/mini-GBIC Slots 2 x 1G/2.5G/10G BASE-X SFP interfaces with Port-9 to Port-10
PoE Injector Port 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8
Console 1 x RJ45 serial port (115200 , 8, N, 1)
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H) 330 x 150 x 44.5 mm, 1U height
Weight 1.6 KG
Power Requirements 100~240V AC, 50/60Hz
Power Consumption Max. 14.8 watts/50.47BTU (Power on without any connection)
Max. 162watts/552.42BTU (Full loading with PoE+ function)
ESD Protection 6KV DC
LED System:
 R.O. (Green), Ring (Green), SYS (Green), PWR (Green)
10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 8):
 10/100/1000Mbps LNK/ACT (Green)
 PoE-in-Use (Amber) (Port 1 to Port 8)
1G/2.5G/10G Mbps SFP Interfaces (Port 9 to Port 10):
 1G/2.5G LNK/ACT (Green)
 10G LNK/ACT (Amber)
Switching Specifications
Switch Architecture Store-and-Forward
Switch Fabric 56Gbps/non-blocking
Throughput 41.67Mpps@ 64Bytes packet
Address Table 8K entries, automatic source address learning and aging
Shared Data Buffer 4.1Mbits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 9KB
Power over Ethernet
PoE Standard IEEE 802.3at PoE Plus, PSE
Backward compatible with IEEE 802.3af PoE PSE
PoE Power Supply Type End-span
PoE Power Output Per port 52V DC, max. 36 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 120 watts (max.) @ 25 degrees C
100 watts (max.) @ 50 degrees C
PoE Ability PD @ 7 watts: 8 units
PD @ 15.4 watts: 7 units
PD @ 30.8 watts: 3 units
PoE Management Functions
PoE System Management System PoE Admin control
Auto power input and PoE budget control
Over-temperature threshold alarm
PoE usage threshold alarm
PoE Device Live Detects Per port remote PD IP address
4 actions
 None
 PD reboot
 PR reboot and alarm
 Alarm
PoE Power Recycle Yes, daily or predeinded schedule
PoE Schedule 4 schedule profiles
PoE Extend Mode Yes, max. 160 to 200 meters
Layer 3 Functions
IP Interfaces Max. 128 VLAN interfaces
Routing Table Max. 128 routing entries
Routing Protocols IPv4 RIPv2
IPv4 OSPFv2
IPv6 OSPFv3
IPv4 hardware static routing
IPv6 hardware static routing
Layer 2 Functions
Port Configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable
Port Status Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring TX/RX/Both
Many-to-1 monitor
Supports up to 5 sessions
VLAN IEEE 802.1Q tag-based VLAN,
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP (static trunk)
Supports 5 trunk groups with 2 ports per trunk
IGMP Snooping IPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD Snooping IPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
Ring Supports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms @ 3 nodes
Recovery time < 50ms @ 16 nodes
Supports Major ring and sub-ring
Bandwidth Control Per port bandwidth control
 Ingress: 10Kbps~13000Mbps
 Egress: 10Kbps~13000Mbps
QoS Traffic classification based, strict priority and WRR
8-level priority for switching
 Port number
 802.1p priority
 802.1Q VLAN tag
 DSCP/TOS field in IP packet
Security Functions
Access Control List IP-based ACL/MAC-based ACL
ACL based on:
 MAC Address
 IP Address
 Ethertype
 Protocol Type
 VLAN ID
 DSCP
 802.1p Priority
Up to 256 entries
Security Port security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level
AAA RADIUS client
TACACS+ client
Network Access Control IEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Management Functions
Basic Management Interfaces Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces SSHv2, TLSv1.2, SNMPv3
System Management Firmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewer app
Event Management Remote Syslog
System log
SMTP
ONVIF ONVIF device discovery
ONVIF device monitoring
Floor Map
SNMP MIBs RFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
RFC 2453 RIP v2
Environments
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
