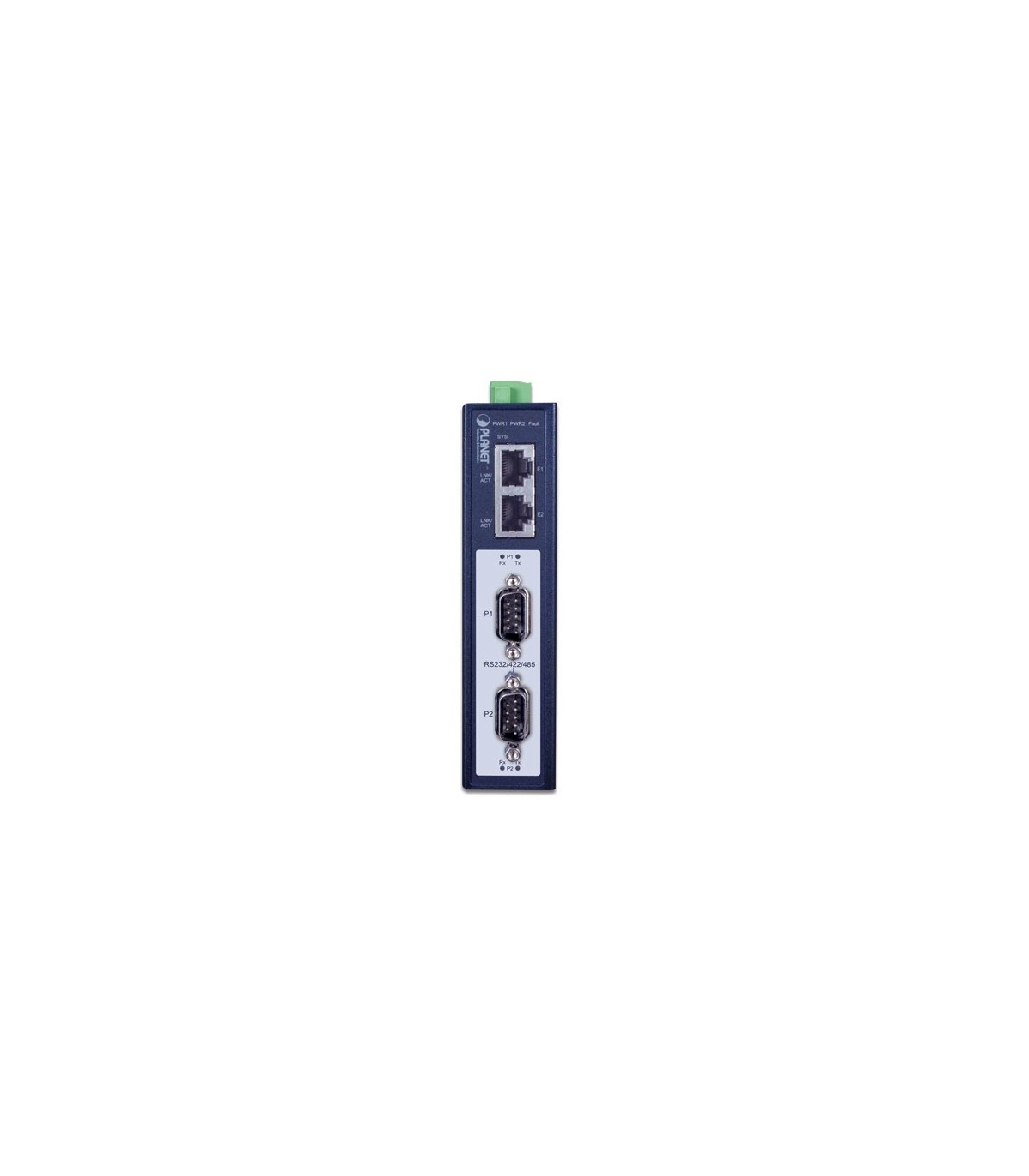

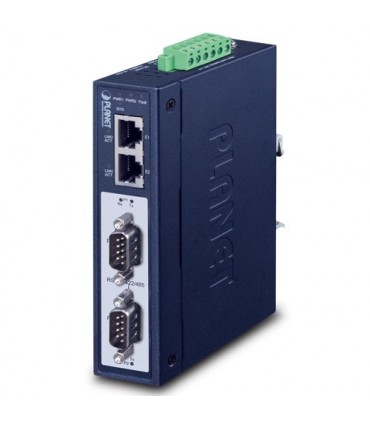

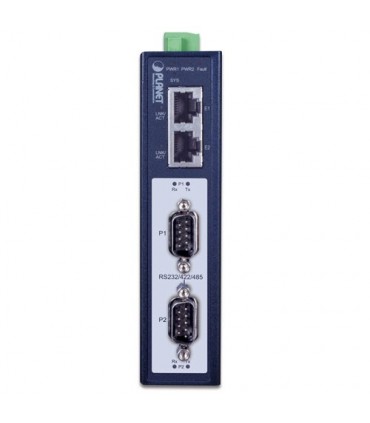

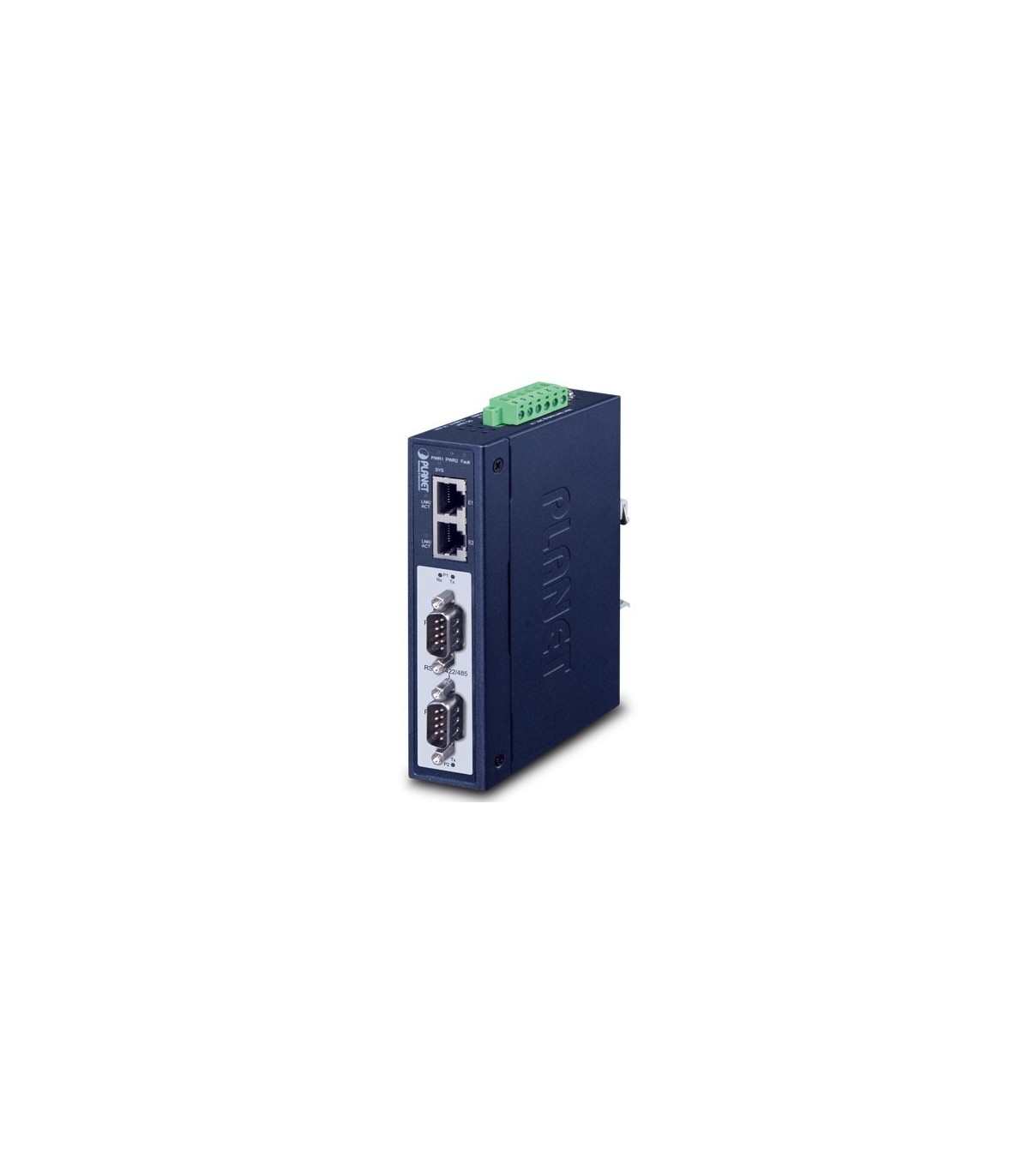

Modbus Gateway Industriale 2-Porte Rs232/Rs422/Rs485 2 X 10/100-Tx, -40 A 75°C, 15Kv Isolation, Dual 12~48V Dc

Riferimento:IMG-2200T

Modbus Gateway Industriale 2-Porte Rs232/Rs422/Rs485 2 X 10/100-Tx, -40 A 75?C, 15Kv Isolation, Dual 12~48V Dc
Descrizione

IMG-2200T Modbus Gateway Industriale 2-Porte RS232/RS422/RS485 (2 x 10/100-TX, -40 a 75°C, 15KV isolation, dual 12~48V DC, Modbus RTU/ASCII, Master/Slave ), dual 12~48V DC, Modbus RTU/ASCII, Master/Slave )

Serial Interface
Serial Ports 2 x DB9 male
Serial Standards RS232 / 4-wire RS422 or RS485 / 2-wire RS485
Baud Rate (Data Rate) 50bps to 921Kbps
Data Bits 5, 6, 7, 8
Parity Type 1, 1.5, 2
Stop Bit Odd, Even, None, Space, Mark
Flow Control RTS/CTS and DTR/DSR (RS232 only)
XON/XOFF
Signals RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS422: Tx+, Tx-, Rx+, Rx-, GND
4-wire RS485: Tx+, Tx-, Rx+, Rx-, GND
2-wire RS485: Data A (+), Data B (-), GND
Pin Assignment
Pin RS232 RS422
RS485-4W
RS485-2W
1 DCD TxD+ --
2 RxD TxD- --
3 TxD RxD- Data-
4 DTR RxD+ Data+
5 GND GND GND
6 DSR -- --
7 RTS -- --
8 CTS -- --
9 -- -- --
Operation Mode RTU Master/RTU Slave/ASCII Master/ASCII Slave
Master mode: Supports up to 32 TCP slave connection requests
Slave mode: Supports up to 32 TCP master connection requests
Serial Line Protection 2KV isolation protection
1KV (level 2) surge protection
15KV ESD protection
Ethernet Interface
Ethernet Ports 2 x RJ45
Standard 10/100BASE-TX
Distance 100m
Switch Architecture Store-and-Forward
Address Table 1K
ESD Protection 6KV
Surge Protection 2KV
Hardware
Installation DIN-rail kit and wall-mount ear
Enclosure IP 30 metal
Dimensions (W x D x H) 32 x 97 x 135 mm
Weight 392g
LED Indicators System: Power 1, Power 2, Fault, SYS
TP Port: Link/ Active
Serial Port: Tx and Rx
Power Requirements 12~48V DC, redundant power reverse polarity protection
Power Consumption Full Loading
12VDC: 0.326A (3.8 watts)
24VDC: 0.176A (4.2 watts)
48VDC: 0.114A (5.4 watts)
Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Alarm Provides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Management
Management Interfaces Web management
Telnet Console management
Windows-based VCOM Utility management
SNMPv1, v2c / SNMP Trap
UNI-NMS monitoring
PLANET Smart Discovery Utility
IP Version IPv4 and IPv6
Operation Mode RTU Master
RTU Slave
ASCII Master
ASCII Slave
Virtual COM Utility Platform Supports Windows-based only:
 Windows XP
 Windows Server 2003
 Windows 7
 Windows Server 2008
 Windows 8 (Must install the latest version of WinPcap)
 Windows Server 2012 (Must install the latest version of WinPcap)
 Windows 10
Fault Alarm Record: System log / SNMP trap
Time NTP
Security Allow max. 4 accessible IP address hosts/ranges
SNMP MIBs RFC1213 MIB-II
RFC1317 RS232-like MIB
Standards Conformances
Regulatory Compliance FCC Part 15 Class A,
CE Certification Class A
Stability Testing IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Standards IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 854 Telnet
RFC 958 NTP
RFC 1591 DNS (client only)
RFC 1908 SNMPv2c
RFC 2068 HTTP
RFC 2131 DHCP Client
RFC 2732 Format for Literal IPv6 Addresses in URL's
RFC 3315 DHCPv6 Client
RFC 3513 IPv6 Addressing Architecture
RFC 3596 DNSv6
RFC 4443 ICMPv6
EIA/TIA RS232/422/485
Regulatory Approval RoHS
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)
