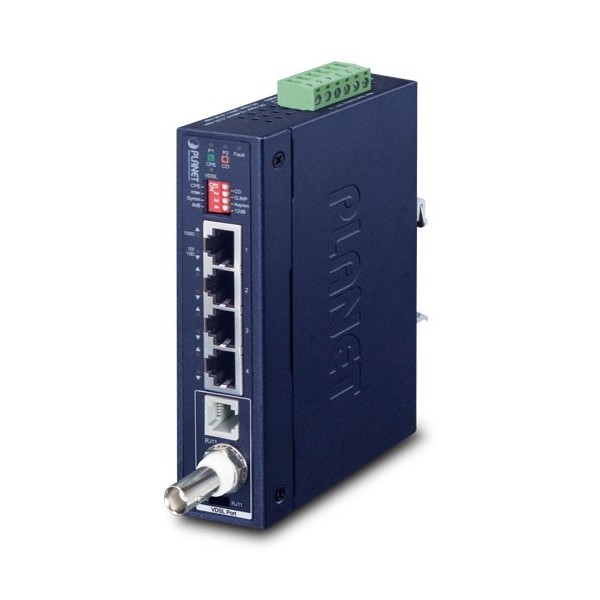

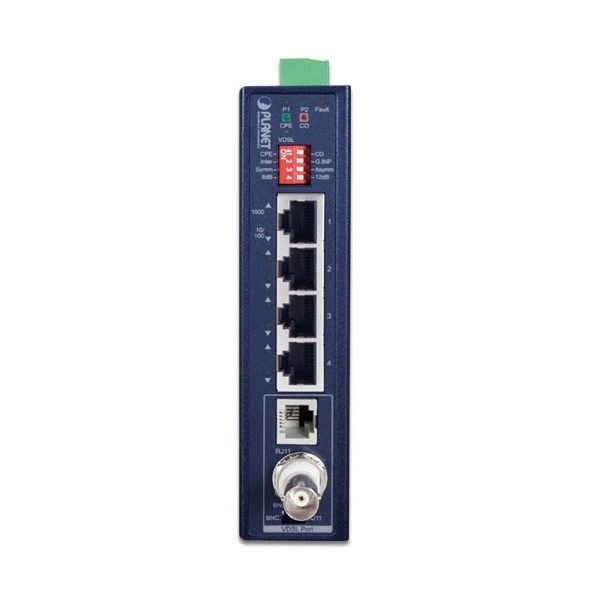

Ethernet Extender Industriale 1-Porta Bnc/Rj11 A 4-Porte 10/100/1000T ( -40 A 75°C)





IVC-234GT - Extender Ethernet IP30 Slim da 1-Porta BNC a 4-Porte 10/100Base-TX (-40 a 75°C)



Specifiche tecniche
TP interface 4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
DIP Switch DIP-1: Select CO or CPE mode
DIP-2: Select G.INP or Interleaved mode
DIP-3: Select Band Profile (Asymmetric or Symmetric)
DIP-4: Select SNR of 12dB or 8dB
VDSL BNC 1 BNC female Ethernet over Coaxial port
 Coaxial cable: 75 ohm
 RG-6/U cable, less than12Ω/1000 ft
 RG-59/U cable, less than 30Ω/1000 ft.
Maximum Distance:
 Max. 1.2km with data transmission (3,937ft.)
VDSL RJ11 1 VDSL2/ADSL2+ RJ11 female phone jack
Twisted-pair telephone wires (AWG-24 or better) up to 1.2km (3,937ft.)
LED Indicators Power 1/Power 2: Green
1000BASE-T LNK/ACT: Green
10/100BASE-TX LNK/ACK: Green
VDSL: Green
CO: Green
CPE: Green
ESD Protection 6KV DC
Enclosure IP30 slim metal case
Dimension (W x D x H) 32 x 135 x 87.8mm
Weight 185g
Power Requirement DC input: Dual 12~48V DC, 0.4A max.
24V AC
Power Consumption 5.7 watts
Operating Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Operating Humidity Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
Standard Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
ITU-T G.993.1 VDSL
ITU-T G.997.1
ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
ITU-T G.993.5 G.Vectoring and G.INP
ITU-T G.998
