Switch Gigabit Ethernet L2+ PoE+ 8 porte SFP 2 porte RJ45 - PLANET MGSD-10080F
Switch L2+ Gigabit 8xSFP 2xRJ45 PoE+ 20Gbps Web Management CLI SNMP VLAN QoS ACL -10/+60°C

Planet MGSD-10080F: Switch Ethernet Managed Metro L2/L4 8-Porte 100/1000-X Sfp

Riferimento:MGSD-10080F

Planet
Transceiver Fibra Sfp 100Mbps Wdm Tx-1550 Fino A 2Km Supporta Ddm
Transceiver Fibra Sfp (120Km) 100Mbps Monomodale

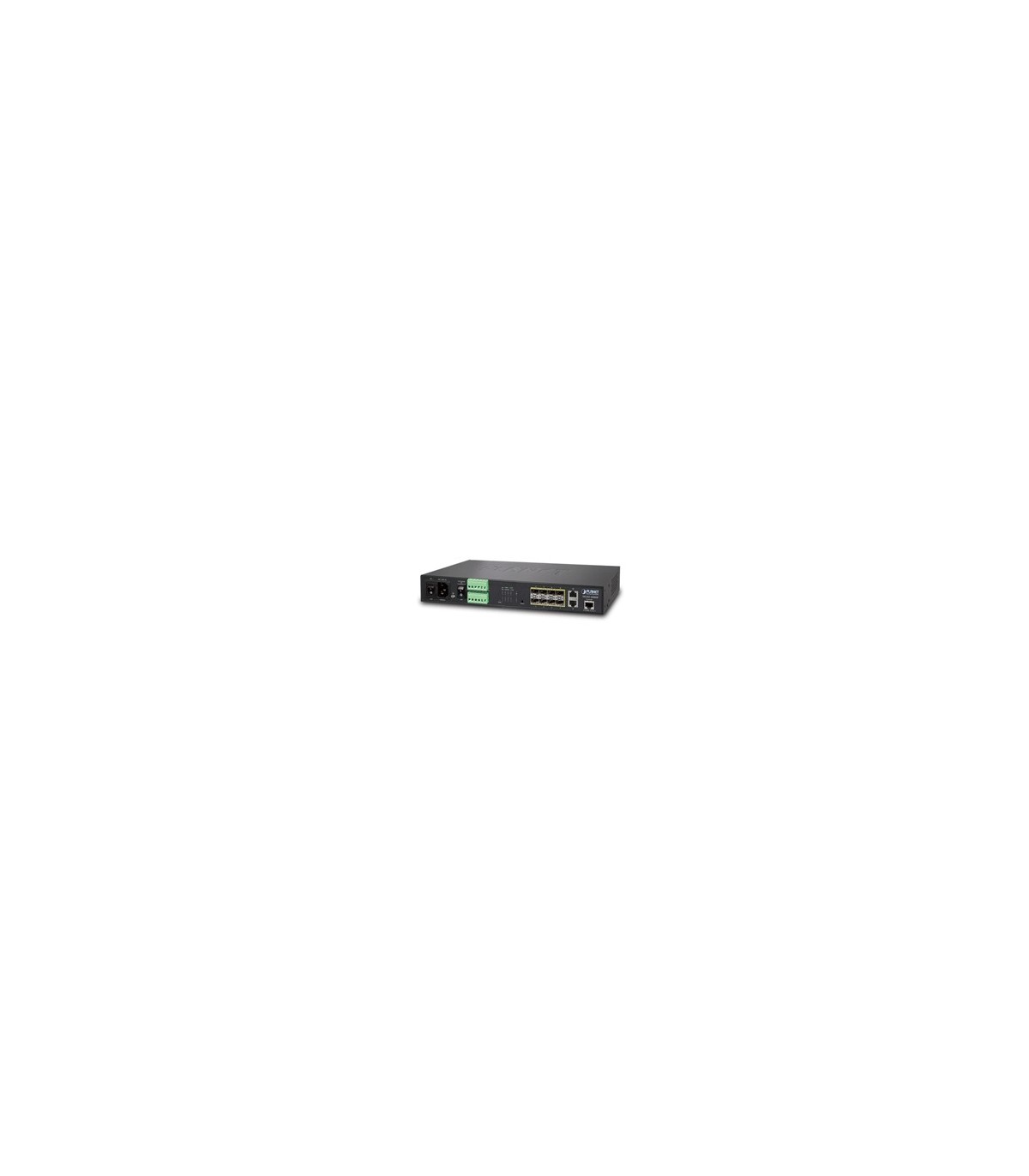

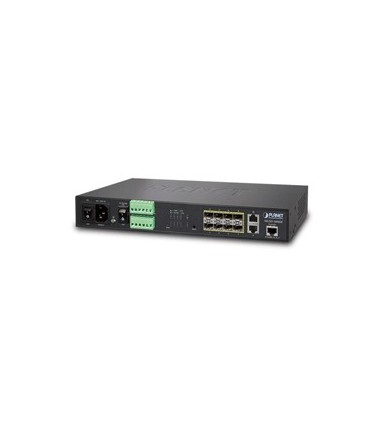

MGSD-10080F: Switch Ethernet Managed Metro L2/L4 8 Porte 100/1000-X SFP

Descrizione



MGSD-10080F Ethernet Managed Metro L2/L4 8-Porte 100/1000-X SFP + 2-Porte 10/100/1000-T (AC+2 DC, DIDO)



Gli switch industriali serie METRO di Planet Technology, garantiscono sicurezza e continuità nelle connessioni di rete. Ideali per proteggere aree critiche (cantieri, campi fotovoltaici o eolici). Configurabili mediante moduli SFP per adattarsi a ogni necessità di cablaggio, senza che costose interfacce rimangano inutilizzate. Terminali DI/DO per collegare sensori (radar, contatti magnetici ecc.) o attuatori (combinatori, allarmi, saracinesche ecc). L'attivazione degli allarmi è programmabile anche su interruzione di una connessione di rete o delle alimentazioni (AC più due ingressi DC 36÷72V). Il Controllo remoto dei parametri di ogni porta (SFP-DDM) supporta le decisioni in caso di allarme. Ottimizzati per installazione su reti ridondanti con rapido self recovery. Prezzo competitivo e scalabilità, rendono la linea METRO adatta anche a installazioni per piccole imprese. Approfondimenti e dettagli sugli switch industriali serie Metro con porte DI/DO sul blog tecnico di 4Power



Specifiche Tecniche
SFP/mini-GBIC Slots 8 1000Base-SX/LX/BX SFP interfaces, from port 1 to port 8
Compatible with 100Base-FX SFP
Copper Ports 2 10/ 100/1000Base-T RJ-45 auto-MDI/MDI-X ports
Console Port 1 x RJ-45-to-RS-232 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Throughput (packet per second) 14.8Mpps @ 64Bytes packet
Switch Fabric 20Gbps / non-blocking
Address Table 8K entries, automatic source address learning and ageing
Share Data Buffer 4Mbits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 9Kbytes
Reset Button < 5 seconds: System Reboot
> 10 seconds: Factory Default
Dimensions (W x D x H) 330 x 155 x 43.5 mm, 1U high
Weight 1661g
LED Indicator System:
　　PWR (Green)
　　DC 1 (Green)
　　DC 2 (Green)
　　Fault Alarm (Green)
　　Ring* (Green)
　　Ring Owner* (Green)
Per Gigabit Ports:
　　100 LNK/ACT (Orange)
　　1000 LNK/ACT (Green)
Power Consumption Max. 11.2 Watts / 38.2 BTU (AC input)
Max. 10.8 Watts / 36.9 BTU (DC input)
Power Requirements AC 100~240V, 50/60Hz 0.15A
-36V DC @ 0.3A, Range: -36V ~ -72V DC
Alarm One relay output for power failure.
Alarm Relay current carry ability: 1A @ DC 24V
DI/DO 2 Digital Input (DI)
　Level 0: -24V~2.1V (±0.1V)
　Level 1: 2.1V~24V (±0.1V)
　Input Load to 24V DC, 10mA max.
2 Digital Output (DO): Open collector to 24VDC, 100mA max.
Layer 2 Function
Port Configuration Port disable / enable
Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Bandwidth control on each port
Power saving mode control
Port Status Display each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port Mirroring TX / RX / Both
1 to 1 monitor
VLAN 802.1Q Tagged based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDs
Link Aggregation IEEE 802.3ad LACP / Static Trunk
Supports 5 groups of 8-Port trunk support
QoS Traffic classification based, Strict priority and WRR
8-Level priority for switching
　- Port Number
　- 802.1p priority
　- 802.1Q VLAN tag
　- DSCP/TOS field in IP Packet
IGMP Snooping IGMP (v1/v2/V3) Snooping, up to 255 multicast Groups
IGMP Querier mode support
MLD Snooping MLD (v1/v2) Snooping, up to 255 multicast Groups
MLD Querier mode support
Access Control List IP-based ACL / MAC-based ACL
Up to 123 entries
Bandwidth Control Per port bandwidth control
　Ingress: 500Kb~1000Mbps
　Egress: 500Kb~1000Mbps
Management
Basic Management Interfaces Console, Telnet, Web Browser, SNMP v1, v2c and v3
Secure Management Interface SSH, SSL, SNMP v3
SNMP MIBs RFC-1213 MIB-II
IF-MIB
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2819 RMON MIB (Group 1)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC-2933 IGMP-STD-MIB
RFC-3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1D Spanning tree protocol
IEEE 802.1w Rapid Spanning tree protocol
IEEE 802.1s Multiple Spanning tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
Environment
Operating
Temperature: -10 ~ 60 degrees C for DC power input
Relative Humidity: 5 ~ 95 % (non-condensing)
Storage
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95 % (non-condensing)



Dettagli del prodotto
MGSD-10080F
