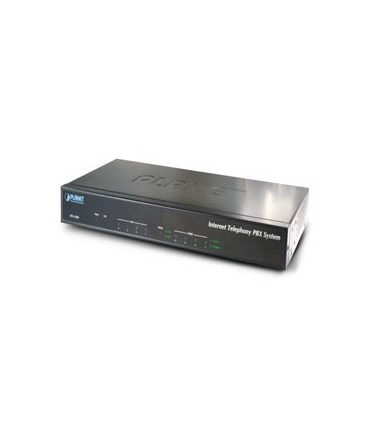

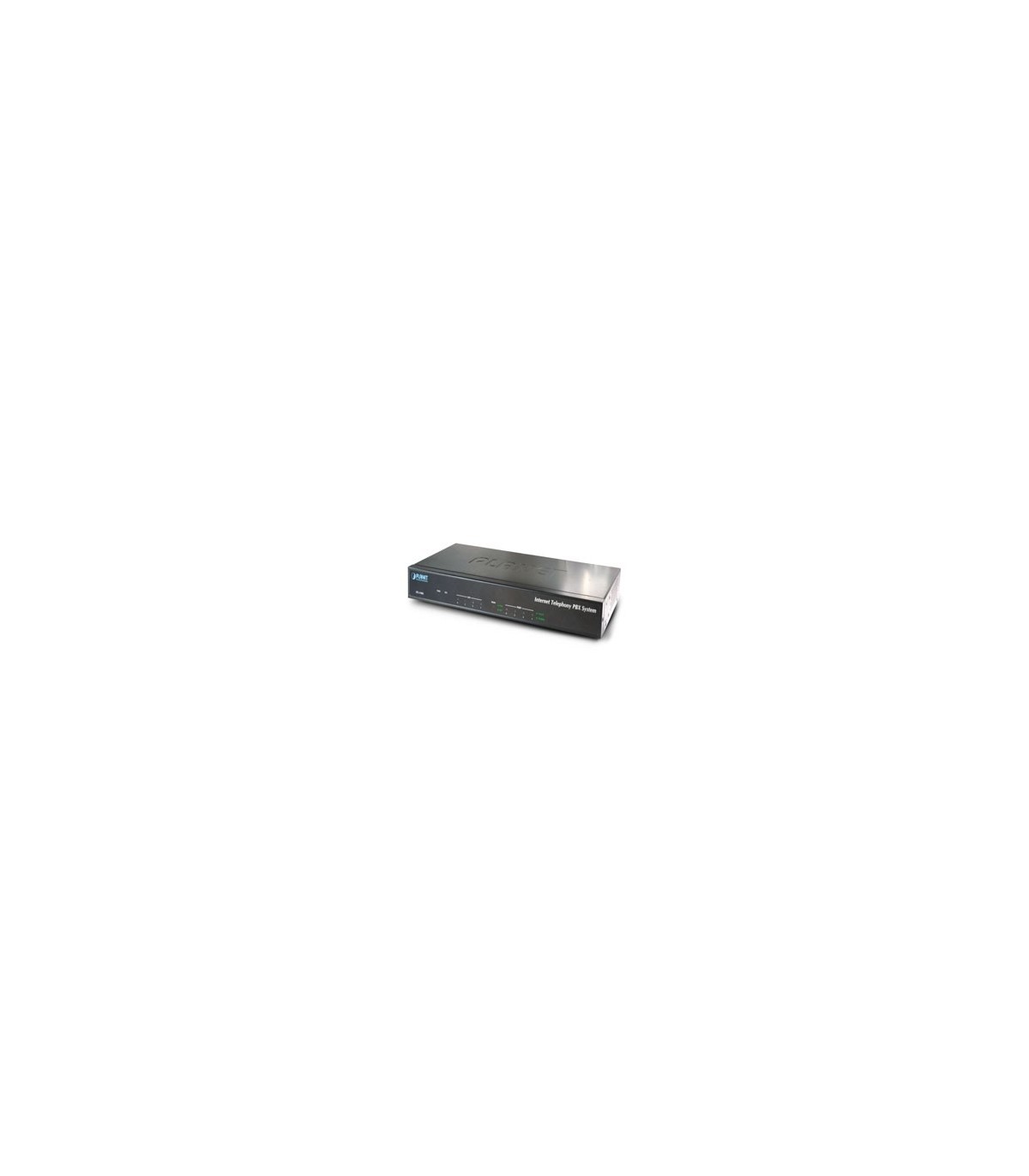

IPX-1900 Centralino IP con moduli opzionali max. 4-Porte FXO/PSTN, Server Proxy, 300 Utenti - SIP
| Specifiche Tecniche | |||
| Modello | IPX-1900 | ||
| Hardware | |||
| LAN | 4 RJ-45 (10/100Base-TX, Auto-Sensing / Switching) | ||
| WAN | 1 RJ-45 (10/100Base-TX, Auto-Sensing / Switching) | ||
| Standards and Protocol | |||
| Call control | SIP 2.0 (RFC3261) , SDP (RFC 2327), Symmetric RTP | ||
| Registration | Max. 300 nodes / SIP IP phones / ATA / FXO gateways | ||
| Calls | Max. 60 concurrent calls | ||
| Voice CODEC Support | G.723, G.726, G.729, G.711, GSM , iLBC | ||
| Voice Processing | DTMF detection and generation In-Band and Out-of-Band (RFC 2833), (SIP INFO) Supports password authentication using MD5 digest | ||
| PBX features | Customization Auto Attendant (AA) Customization Interactive Voice Response (IVR) Records IVR via IP Phone Voicemail Support (VM) Voicemail Send to E-mail Call Detailed Record (CDR) User Management via Web Browsers Web Firmware Upgrade Backup and Restore Configuration file Call / Pickup Group Displays Registered User's Status: Unregistered / Registered / On-Call Displays Registered Trunk's Status: Unregistered / Registered Fax Support using G.711 Pass-Through or T.38 | ||
| Call features | Caller ID Call Group Call Hold Call Waiting Call Transfer Call Forward (Always, Busy, No Answer) Call Pickup Call Park Call Resume Music on Hold Three-way conference with feature phones | ||
| Internet Sharing | |||
| Protocol | TCP / IP, UDP / RTP / RTCP, HTTP, ICMP, ARP, NAT, DHCP, PPPoE, DNS | ||
| Advanced Function | NAT / Bridge mode, DHCP server, Static Route, DMZ, Virtual Server, Port Trigger, Packet / URL Filter, UPnP, DDNS, SNMP, Ping test | ||
| Network and Configuration | |||
| Connection Type | Static IP, PPPoE, DHCP | ||
| Management | HTTP Web Browser | ||
| LED Indications | System: 1, PWR WAN: 1, LNK / ACT LAN: 4, LNK / ACT Line: 4, In-Use / Ringing | ||
| Environment | |||
| Dimension (W x D x H) | 340 x 159 x 39 mm | ||
| Operating Temperature | 0~40 Degree C, Humidity (RH) 10~80% non-condensing | ||
| Power Requirement | 12V DC | ||
| EMC / EMI | CE, FCC Class B | ||
